SP1045
Elektronische Bauelemente
VOLTAGE 45V
10.0AMP Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
ITO-220
10
0.5
3.2
0.2
0.1
4.5
0.2
0.3
FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* Epitaxial construction
0.2
0.3
2.8
2.7
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Lead solderable per MIL-STD-202,
method 208 guaranteed
* Polarity: As Marked
* Mounting position: Any
* Weight: 2.24 grams
3.7
2.54
0.2
0.7
2.54
PIN 1
PIN 3
0.2
0.2
13Min
0.2
MECHANICAL DATA
1.3
0.2
15
0.5
2.6
0.2
0.2
CASE
PIN 2
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
R ating 25 C ambient temperature unles s otherwis e s pecified.
S ingle phas e half wave, 60Hz, res is tive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse
Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
See Fig. 1
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at
5.0A
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage (Note3) T
a=100 C
Typical Junction Capacitance (Note1)
Typical Thermal Resistance
R
θJC
(Note 2)
Operating Temperature Range T
J
Storage Temperature Range T
STG
NOTES:
SP1045
45
45
45
10
150
0.55
0.3
45
700
3.0
-50
+150
-65
+
175
UNITS
V
V
V
A
A
V
mA
mA
pF
C /W
C
C
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Thermal Resistance Junction to Case.
3. Pulse Test : Pulse Width = 300us, Duty Cycle <= 2.0%.
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
14-Sep-2010
Rev.
B
Page 1 of 2
SP1045
Elektronische Bauelemente
VOLTAGE 45V
10.0AMP Schottky Barrier Rectifiers

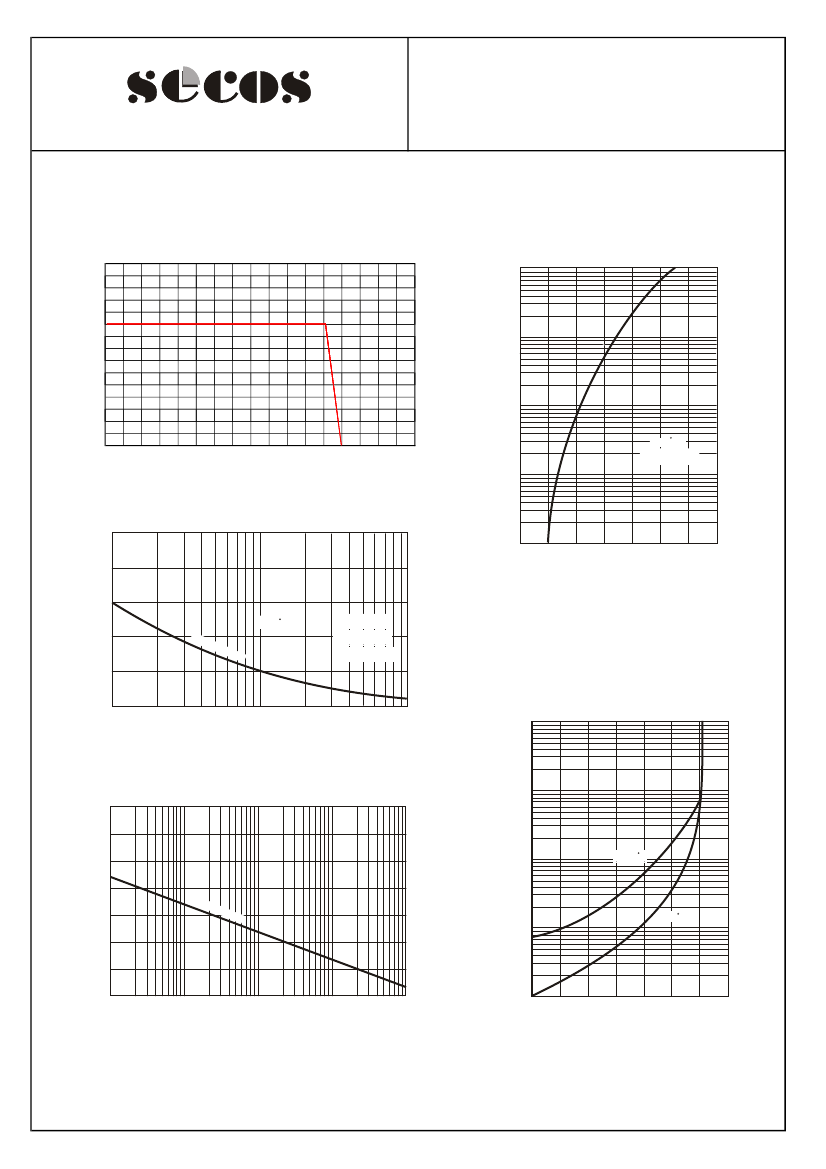

FIG.2-TYPICAL FORWARD
Typical Forward Current Derating Curve
Average Forward Current (A); per Leg
erage
d
CHARACTERISTICS
30
INSTANT
ANEOUS FORWARD CURRENT,(A)
10
5
Tj=25 C
1
Tc, Case Temperature (
)
Pulse Width 300us
1% Duty Cycle
F IG .3-MAXIMUM NON-R E P E T IT IV E F OR WAR D
S UR G E C UR R E NT
250
0.1
P E AK F OR WAR D S UR G E C UR R E NT,(A)
.01
200
.1
.3
.5
.7
.9 1.1 1.3
FORWARD VOLTAGE,(V)
1.5
150
Tj=25 C
8.3ms Single Half
Sine Wave
S P1
0 45
100
JEDEC method
50
FIG.5 - TYPICAL REVERSE
0
1
5
10
50
100
100
CHARACTERISTICS
NUMBER OF CYCLES AT 60Hz
F IG .4-T Y P IC AL J UNC T ION C AP AC ITANC E
2800
2400
2000
1600
1200
800
400
0
SP
104
5
J UNC T ION C APAC ITANC E ,(pF )
REVERSE LEAKAGE CURRENT, (mA)
10
1.0
Tj=75 C
Tj=25 C
.1
.01
.05
.1
.5
1
5
10
50
100
.01
0
20
40
60
80
100 120 140
R E V E R S E V OLT AG E ,(V )
PERCENT OF RATED PEAK REVERSE VOLT
AGE,(%)
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
14-Sep-2010 Rev. B
Page 2 of 2
