3362U-1-501TLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3362U-1-501TLF

3362U-1-501TLF: DescriptionTrimmer, Cermet, 0.5W, 500ohm, 10% +/-Tol, -100,100ppm/Cel, 2628; CategoryPassive components The resistor; File Size278KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3362U-1-501TLF Overview

Trimmer, Cermet, 0.5W, 500ohm, 10% +/-Tol, -100,100ppm/Cel, 2628

3362U-1-501TLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
Reach Compliance Code	compliant
structure	Trimmer Pot
JESD-609 code	e3
Lead diameter	0.46 mm
Lead length	5.46 mm
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.7 mm
Package length	6.71 mm
Package form	PCB Mount
Package width	7.04 mm
method of packing	Tube
Rated power dissipation(P)	0.5 W
resistance	500 Ω
Resistor type	TRIMMER
rotation angle	240 deg
size code	2628
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Matte Tin (Sn)
Tolerance	10%

3362U-1-501TLF Preview

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

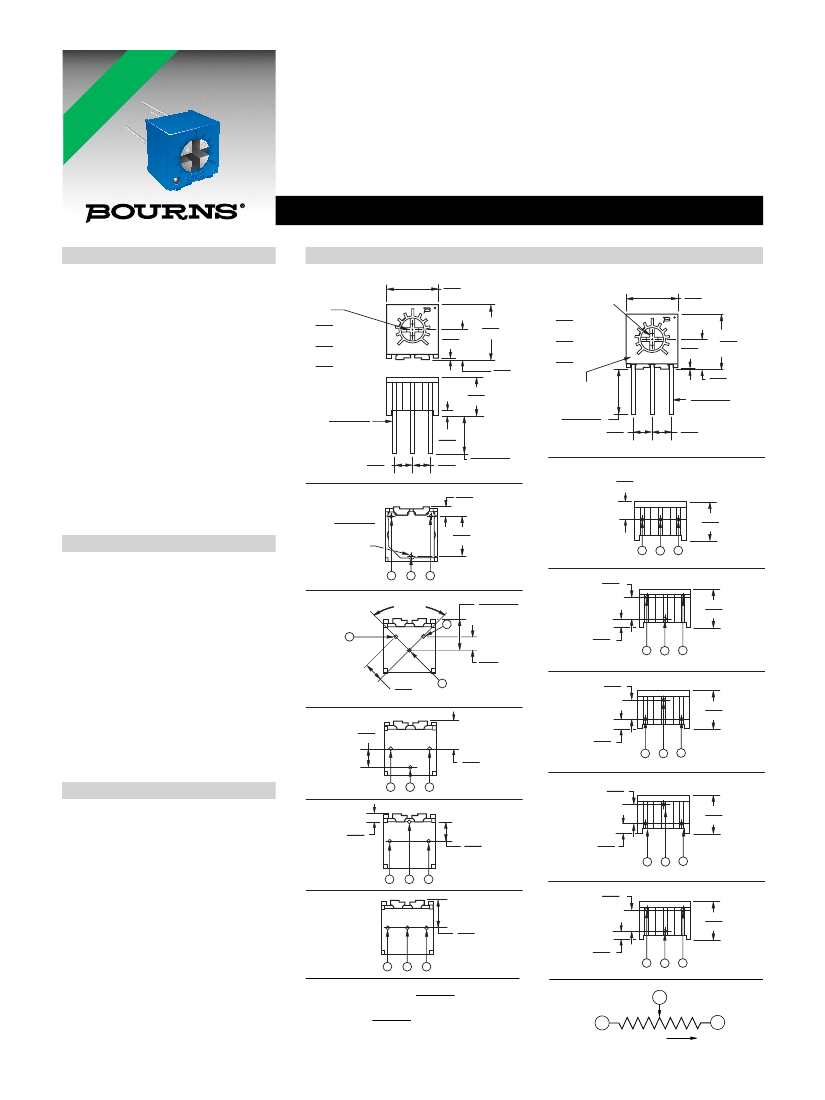

Features

■

Single-Turn / Cermet / Industrial / Sealed

■

Miniature package

■

Rotor designed for automatic machine

■

RoHS compliant* version available

■

For trimmer applications/processing

guidelines,

click here

adjust interface

■

Withstands harsh environments and

immersion cleaning processes

■

Tape and reel packaging available

3362 - 1/4 ” Square Trimpot

Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

................................10 to 2 megohms

(see standard resistance table)

Resistance Tolerance ........... ±10 % std.

(tighter tolerance available)

Absolute Minimum Resistance

.................................... 1 % or 2 ohms

(whichever is greater)

Contact Resistance Variation

........................... 1 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage .................................. ±0.05 %

Resistance ............................ ±0.15 %

Resolution ................................... Inﬁnite

Insulation Resistance ............... 500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level................................ 900 vac

80,000 Feet ............................ 350 vac

Adjustment Angle ................. 240 ° nom.

Environmental Characteristics

Power Rating (300 volts max.)

70 °C .................................... 0.50 watt

125 °C ....................................... 0 watt

Temperature Range ... -55 °C to +125 °C

Temperature Coefﬁcient ... ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

Humidity .......MIL-STD-202 Method 103

96 hours

(2 %

ΔTR;

10 Megohms IR)

Vibration ....... 30 G (1 %

ΔTR;

1 %

ΔVR)

Shock ......... 100 G (1 %

ΔTR;

1 %

ΔVR)

Load Life.. 1,000 hours 0.5 watt @ 70 °C

(3 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Rotational Life .......................200 cycles

(4 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Physical Characteristics

Mechanical Angle ................. 270 ° nom.

Torque............................. 3.0 oz-in. max.

Stop Strength ................. 7.0 oz -in. min.

Terminals .......................Solderable pins

Weight ....................................... 0.02 oz.

Marking....................... Resistance code,

terminal numbers, manufacturer’s

model number, style

and date code

Wiper ............... 50 % (Actual TR) ±10 %

Flammability ..........................U.L. 94V-0

Standard Packaging .....50 pcs. per tube

Adjustment Tool..............................H-90

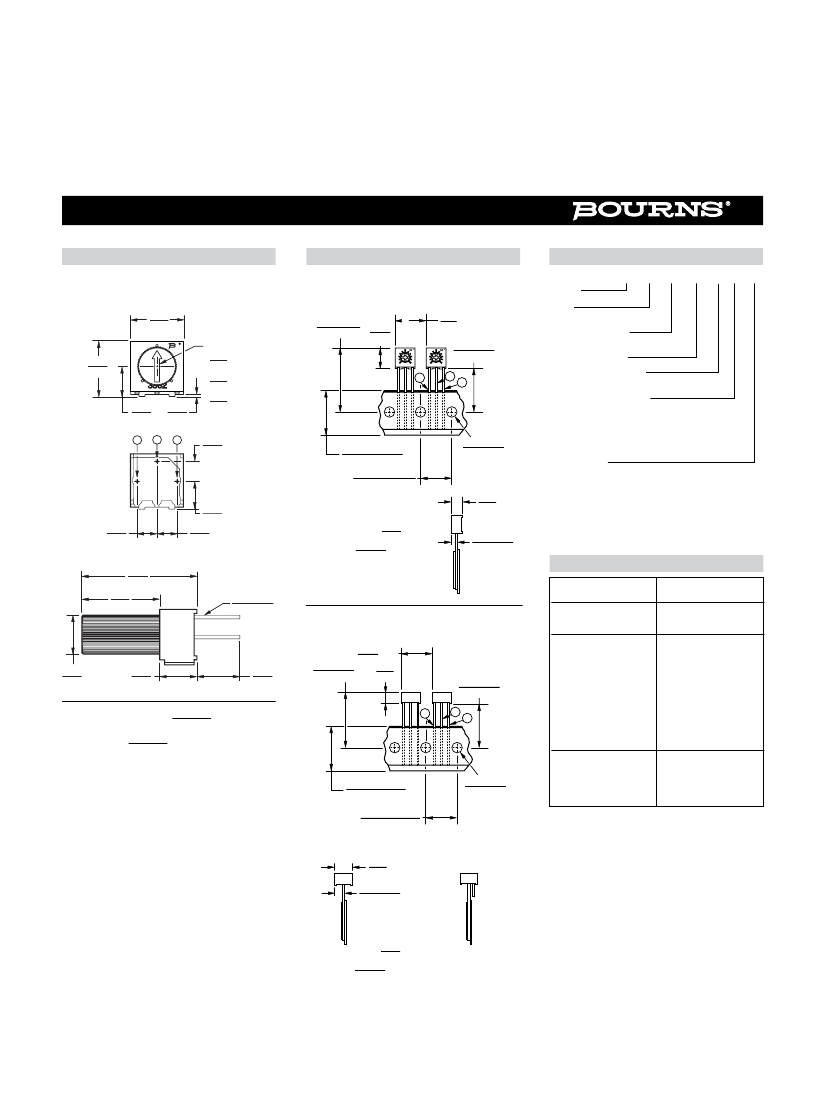

Product Dimensions

Common Dimensions

Top Adjust

ADJ. CROSS

SLOT

2.77 LONG X

(.109)

.64 WIDE X

(.025)

.89 DEEP X

(.035)

6.60

(.260)

Common Dimensions

Side Adjust

ADJ. CROSS SLOT

6.99

(.275)

2.77 LONG X

(.109)

.64 WIDE X

(.025)

.89 DEEP X

(.035)

PIN MARKING

REVERSED FOR

STYLE W

5.46

.38

(.215

.015) 2.54

(.100)

6.60

(.260)

3362

.254

TYP.

(010)

3362

6.99

.25 TYP. (.275)

(010)

3.84

(.151)

DIA.

.46

.03

(.018

.001) 3 PLCS.

2.54

(.100)

3.84

(.151)

4.70

(.185)

.46

.03

(.018

.001)

.330

(.013)

2.54

(.100)

2.54

(.100)

5.46

.38

(.215

.015)

3362M

2.29

(.090)

3362F

.46

.12

(.018

.005)

DIA.

3 PLCS.

1.22

(.048)

5.08

(.200)

4.70

(.185)

90°

5°

3362S

4.06

.38

(.160

.015)

2.54

(.100)

4.70

(.185)

1.02

(.040)

3362H

1.80

(.071)

2.54

(.100) TYP.

3362W

2.54

(.100)

4.70

(.185)

3362P

2.54

(.100)

3.53

(.139)

1.02

(.040)

3362X

2.54

(.100)

4.70

(.185)

3362R

1.02

(.040)

2.54

(.100)

1.02

(.040)

3362Z

3362U

3.53

(.139)

2.54

(.100)

4.70

(.185)

1.02

(.040)

DIMENSIONS:

0.25

TOLERANCES: ±

(.010)

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

†“Fluorinert” is a registered trademark of 3M Co.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

(INCHES)

EXCEPT WHERE NOTED

CCW

CLOCKWISE

WIPER

3362 - 1/4 ” Square Trimpot

Trimming Potentiometer

Product Dimensions

Top adjust models 3362F, H, P, R and U are

available with a knob for ﬁnger adjustment.

Add sufﬁx letter “T” to order code.

6.71

(.264)

ADJ. SLOT

4.0 LONG

(.157)

0.6 X WIDE

(.024)

1.0 X DEEP

(.039)

Packaging Speciﬁcations

SIDE ADJUST

3362M-1

12.70

REF.

(.500)

18 ± .76

(.708 ± .029)

How To Order

3362 P - 1 - 502 T __ LF

Model

Style

Standard or Modiﬁed

Product Indicator

-1 = Standard Product

Resistance Code

Optional Sufﬁx Letter

T = Knob*

Packaging Designator

Blank = Tube (Standard)

R = Tape and Reel

(M, U and P Pin Styles Only)

A = Ammo Pack

(M, U and P Pin Styles Only)

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

*Knob option is available only in standard Tube

packaging for terminal styles F, H, P, R and U.

Consult factory for other available options.

27.56 ± .76

(1.085 ± .030)

7.0

(.275)

7.04

(.277)

3.84

(.151)

0.25

(.010)

2.54

(.100)

18 + 1.0/ - 0.5

(.709 + .039 -.019)

12.7 + 0.3/ -0.25

(.500 + .012/ -.009)

4.0 ± 0.3

DIA.

(.157 ± .011)

2.54

(.100)

3.53

(.139)

2.54

(.100)

4.7

(.185)

ALL PINS IN-LINE ON

DIMENSIONS:

2.54

CENTER

(.100)

(INCHES)

2.3 ± .38

(.090 ± .014)

14.63

(.576)

9.93

(.391)

1000/REEL/BOX

Standard Resistance Table

Resistance

(Ohms)

100

200

500

1,000

2,000

5,000

10,000

20,000

25,000

50,000

100,000

200,000

250,000

500,000

1,000,000

2,000,000

Resistance

Code

100

200

500

101

201

501

102

202

502

103

203

253

503

104

204

254

504

105

205

DIA. 3 PLCS.

0.46 ± 0.25

(.018 ± .010)

TOP ADJUST

3362U-1, 3362P-1

12.70

REF.

(.500)

22.7 ± .76

4.7

(.893 ± .029)

(.185)

5.00

DIA.

(.197)

4.7

(.185)

5.46

(.215)

18 ± .76

(.708 ± .029)

DIMENSIONS:

TOLERANCES: ±

0.25

(.010)

(INCHES)

EXCEPT WHERE NOTED

18 + .76/ -.5

(.708 + .029 -.019)

12.70 + 0.3/ - 0.25

(.500 + .011 -.009)

4.0 ± 0.3

DIA.

(.157 ± .011)

Popular distribution resistance values listed in

boldface. Special resistances available.

SIDE VIEW

3362P-1

SIDE VIEW

3362U-1

7.0

(.275)

3.56 ± .38

(.140 ± .014)

ALL PINS IN-LINE ON

DIMENSIONS:

750/REEL

1000/BOX

2.54

CENTER

(.100)

(INCHES)

Meets EIA Speciﬁcation 468.

REV. 08/26/10

“Trimpot” is a registered trademark of Bourns, Inc.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
