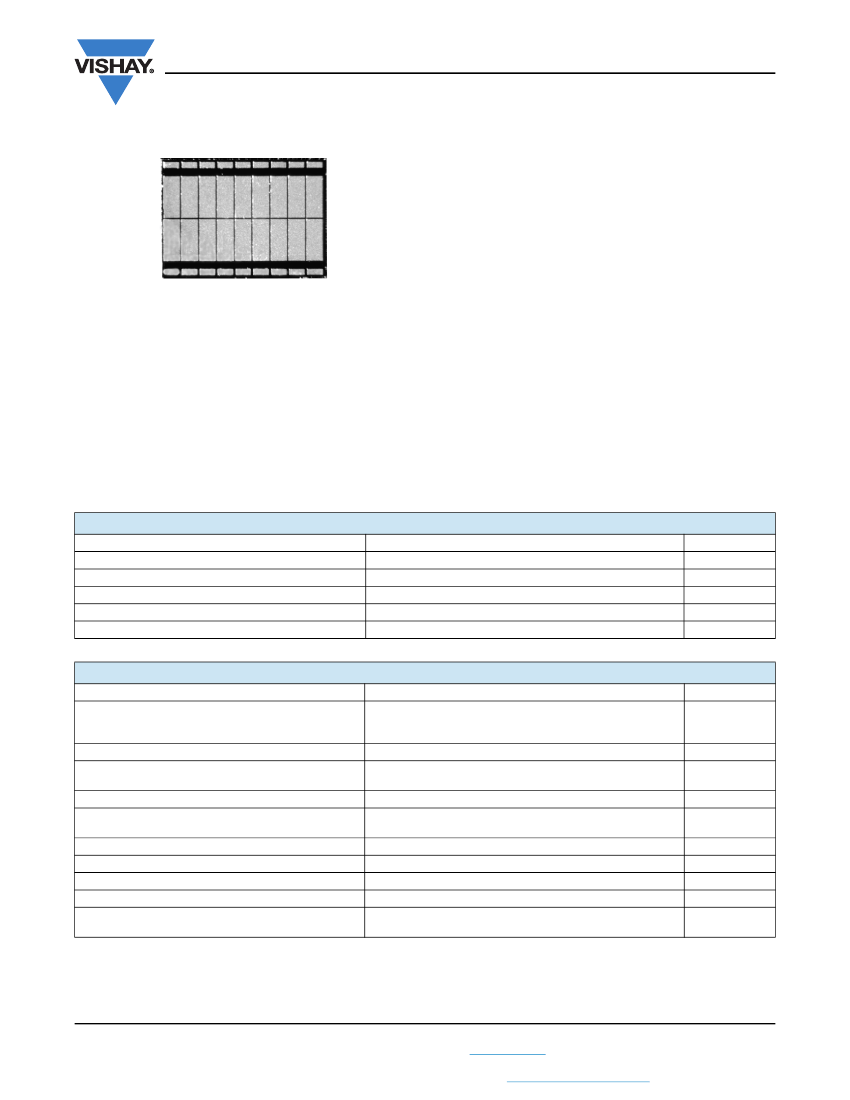

RCN
www.vishay.com
Vishay Electro-Films
Wire Bondable Thin Film Filter Resistor Networks
FEATURES
• Wire bondable
• Standard resistance range: 25
and 50
• Standard capacitance range: 50 pF, 100 pF, 200 pF, 400 pF
• Resistance tolerance to 1 %, capacitance tolerance to 5 %
• Capacitor MOS/MNOS
• Chip size: 0.135" x 0.125"
Product may not be to scale
The RCN series combines resistor and capacitor technology
on a single chip to provide filtering capability together with
excellent stability. Specifications below are standard but
may be changed and customized for the application and are
available in widebody SOIC or DIP packages.
These chips are manufactured using Vishay (EFI)
sophisticated thin film equipment and manufacturing
technology. The RCNs are 100 % electrically tested and
visually inspected to MIL-STD-883.
• Case: 1210
• Resistor material: Tantalum nitride, self-passivating
• Oxidized silicon substrate
APPLICATIONS
• The RCN filter chips are used for low pass filters, RFI and
EMI, CMOS digital filters, ECL terminators and power
supply filters.
• Contact our Sales Department for any
configurations or requirements that are needed.
special
TEMPERATURE COEFFICIENT OF RESISTANCE, VALUES, AND TOLERANCES
PARAMETER
Total Resistance Range
Standard Capacitace Range
Standard Tolerances
TCR
Absolute TCC
VALUE
25, 50
50, 100, 200, 400
± 0.01, ± 0.1, ± 1
± 100
+ 45 ± 75
UNIT
pF
%
ppm/°C
ppm/°C
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Noise, MIL-STD-202, Method 308
100
to 250 k
< 100
or > 251 k
Moisture Resistance, MIL-STD-202, Method 106
Stability, 100 h, + 125 °C, 50 mW/Res, at W
VDC
Operating Temperature Range
Thermal Shock, MIL-STD-202, Method 107,
Test Condition F
High Temperature Exposure, + 150 °C, 1000 h
Insulation Resistance
Operating Voltage
DC Power Rating at - 55 °C to + 125 °C (100 V max.)
5 x Rated Power Short-Time Overload, + 25 °C, 5 s
(100 V max.)
VALUE
- 35 typ.
- 20 typ.
± 0.5 max.
R/R
± 0.5 max.
R/R
± 2.0 max.
R/R
- 55 to + 125
± 0.1 max.
R/R
± 0.2 max.
R/R
10
9
min.
25 max.
0.05
± 0.5 max.
R/R
V
W
%
UNIT
dB
%
%
°C
%
%
Revision: 11-Nov-11
Document Number: 61013
1
For technical questions, contact:
efi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCN
www.vishay.com
DIMENSIONS
in inches
0.135
Vishay Electro-Films
0.125
SCHEMATIC
Chip back plane
MECHANICAL SPECIFICATIONS
PARAMETER
Chip Size
Chip Thickness
Chip Substrate Mmaterial
Resistor Material
Bonding Pad Size
Number of Pads
Pad Material
Backing
VALUE
0.135" x 0.125" ± 0.005" (3.429 mm x 3.175 mm ± 0.127 mm)
0.010" ± 0.002" (0.254 mm ± 0.05 mm)
Oxidized silicon, 10 kÅ minimum SiO2
Tantalum nitride, self-passivating
0.005" x 0.007" (0.127 mm x 0.178 mm)
16 (8 x RC)
10 kÅ minimum aluminum
3 kÅ minimum gold
Options:
Gold bonding pads 15 kÅ minimum thickness. Consult Applications Engineer
ORDERING INFORMATION
Example: 100 % visualled, 25
,
± 20 %, 200 pF ± 20 %, ± 100 ppm/°C, aluminum pads, class H visual inspection
P/N:
W
INSPECTION/PACKAGING
W
= 100 % visually inspected
parts in matrix trays per
MIL-STD-883
X
= Sample, commercial
visually inspected parts loaded in
matrix trays (4 % AQL)
RCN
PRODUCT
FAMILY
200
SERIES
250
RESISTANCE
VALUE
Use the first 3
significant digits of
the resistance
and multiplier
A
RESISTOR
TOLERANCE
B
= 0.01
A
= 0.1
0
=1
1
= 10
2
= 100
201
CAPACITOR
VALUE
Use the first 3
significant digits
of the
capacitance and
multiplier
M
CAPACITANCE
TOLERANCE
J
= 5.0 %
K
= 10 %
M
= 20 %
N
= 25 %
Revision: 11-Nov-11
Document Number: 61013
2
For technical questions, contact:
efi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
