MPSC-02-12-02-7.70-01-T-V datasheet, PDF

Datasheet> All Categories > The connector> The connector> MPSC-02-12-02-7.70-01-T-V

MPSC-02-12-02-7.70-01-T-V: DescriptionRectangular Power Connector, 16 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size391KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

MPSC-02-12-02-7.70-01-T-V Overview

Rectangular Power Connector, 16 Contact(s), Female, Solder Terminal

MPSC-02-12-02-7.70-01-T-V Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.4 inch
subject depth	0.396 inch
body length	1.395 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S12P4
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	HYBRID
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	MPSC
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	10u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.107 inch
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

REVISION U

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS

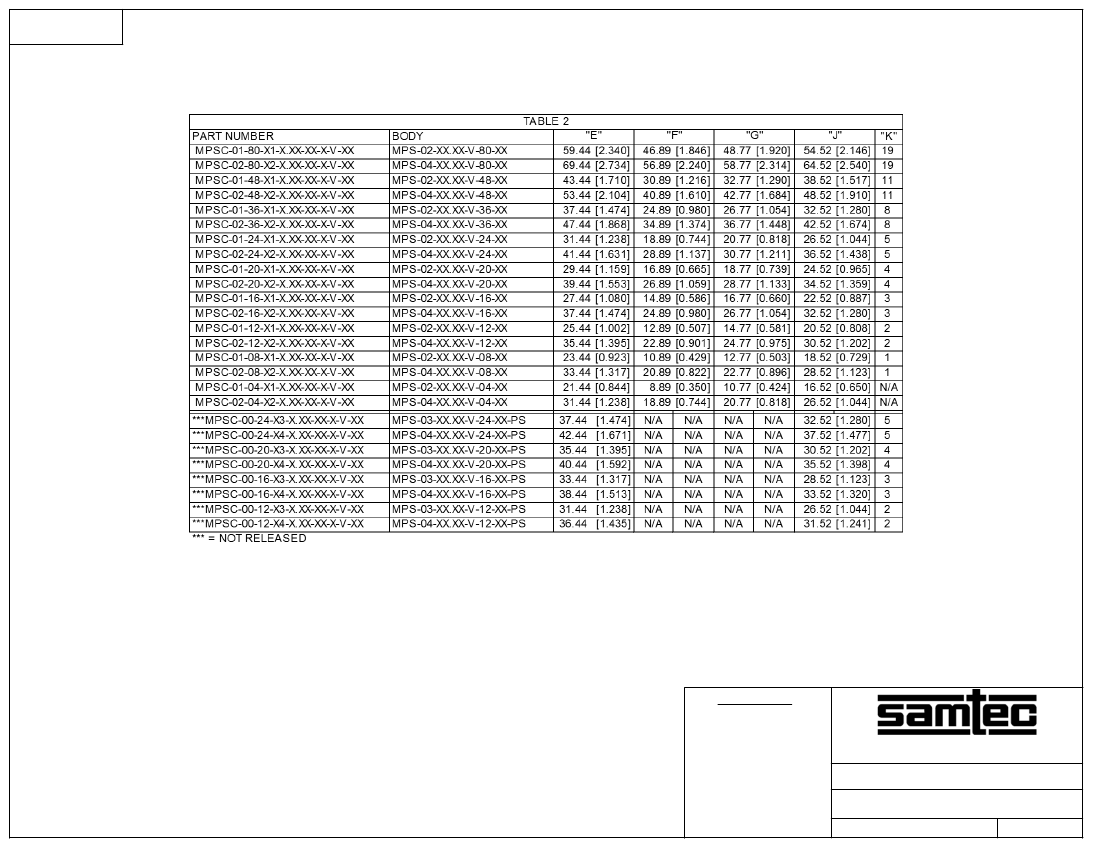

"E" REF (SEE TABLE 2, SHEET 3)

MPSC-XX-XX-XX-X.XX-XX-X-V-XX

*POWER PINS (PER END)

***-00, -01, -02

*SIGNAL PINS

-04: (4 X 1)

-08: (4 X 2)

*** -12: (4 x 3)

-16: (4 X 4)

*** -20: (4 x 5)

-24: (4 X 6)

-36: (4 X 9)

-48: (4 X 12)

-80: (4 X 20)

10.16 .400

"A" REF

*POWER PINS (PER END)

-01, -02, ***-03, ***-04

LEAD STYLE

-7.70

OPTION

-LC: LOCKING CLIP

(SEE FIG 2, SHT 2)

VERTICAL

PLATING SPECIFICATION

-L: SEE TABLE 3, SHT 2

-T: SEE TABLE 3, SHT 2

"F" REF (SEE TABLE 2, SHEET 3)

4.44 .175 (TYP)

"A"

TAIL LENGTH

-01: FOR 1.57[.062] THICK PCB

****-02: FOR 2.36[.093] THICK PCB

-03: FOR 2.36[.093] THICK PCB

01 (POWER)

1.47

- 0.18

.058

- .007

+0.05

+.002

2.00 .079 REF (TYP)

0.38 .015 REF (TYP)

"C"

"B"

MPSC-01-80-01-7.70-01-X-V SHOWN

5.08 .200

REF (TYP)

2.50 .098

REF

"C" REF

FIG 1

* = SEE TABLE 2 FOR AVAILABLE COMBINATIONS

*** = NOT RELEASED

**** = FOR EXISTING CUSTOMERS ONLY

MPS-XX-XX.XX-V-80

SUB-C-214-XX.XX-XX-X

1.27 .050

REF (TYP)

1.00 .039

REF (TYP)

0.41 .016

REF (TYP)

1.88 .074 (TYP)

0.50 .020 SQ REF (TYP)

"B" REF

"D"

- 0.13

+0.25

C-79-XX-X

"C"

2 MAX SWAY

(TYP)

"B"

0.38 .015 REF

+0.25

"A"

- 0.50

3° MAX

SWAY

CHECK BOW ON THIS SURFACE

2.54 .100

(SEE NOTE 5)

0.79 .031 REF (TYP)

2.54 .100

REF (TYP)

2.54 .100

6.00 .236

(3 EQ SPACES

@ 2.00[.079])

("K" EQ SPACES @ 2.00[.079])

(SEE TABLE 2, SHEET 3)

"J" REF (SEE TABLE 2, SHEET 3)

SECTION "B"-"B"

SECTION "C"-"C"

SECTION "A"-"A"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: 0.038[.0015] MAX.

3. MINIMUM PUSHOUT FORCE: 4.45 N [1.0 LB].

4. PARTS TO BE PACKAGED IN TRAYS WITH PIN #1 TO THE RIGHT.

5. BOW ALLOWED AT .05 MM/MM [.002 IN/IN].

6. MINIMUM SIGNAL CONTACT & -LC PULLOUT FORCE: 4.45 N [1.0 LB]

F:\DWG\MISC\MKTG\MPSC-XX-XX-XX-X.XX-XX-X-V-XX-MKT.SLDDRW

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

X.X: 0.3 [.01]

X.XX: 0.13 [.005]

X.XXX: 0.051 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

INSULATOR: LCP, UL 94 V0, COLOR: BLACK

POWER CONTACT: COPPER ALLOY

SIGNAL CONTACT: PHOS BRONZE

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

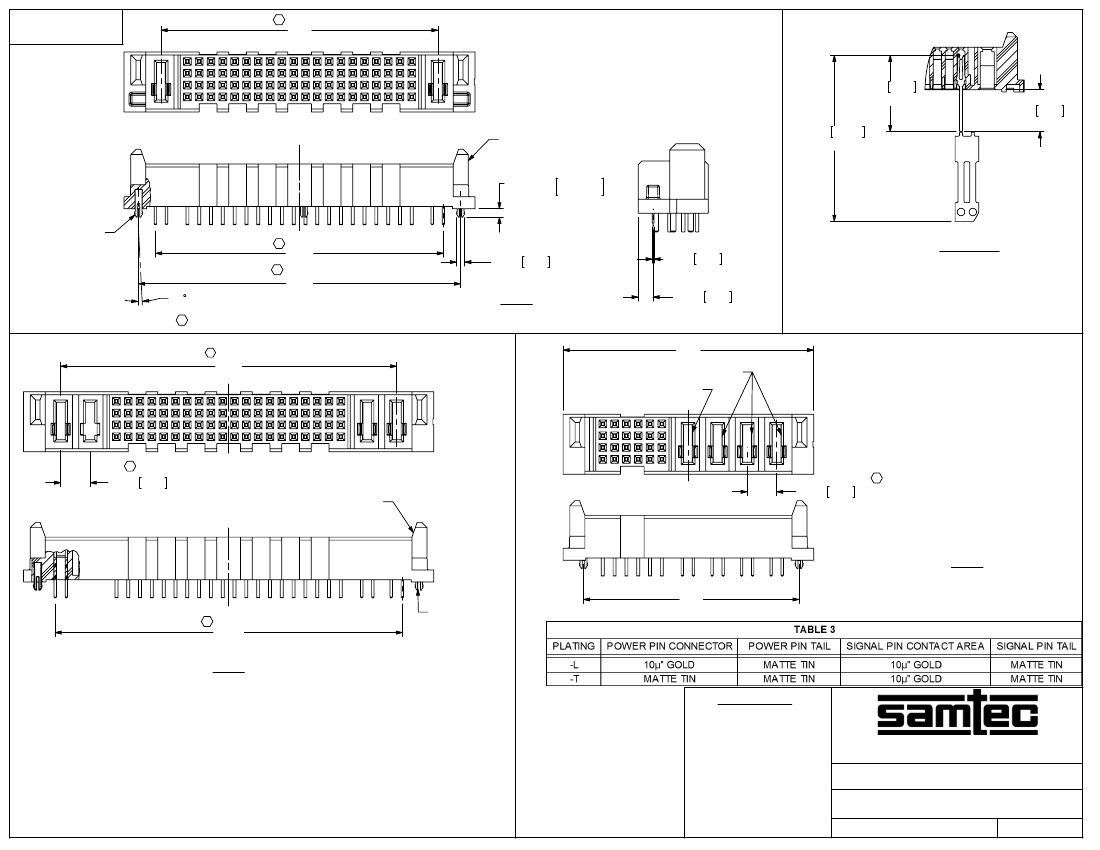

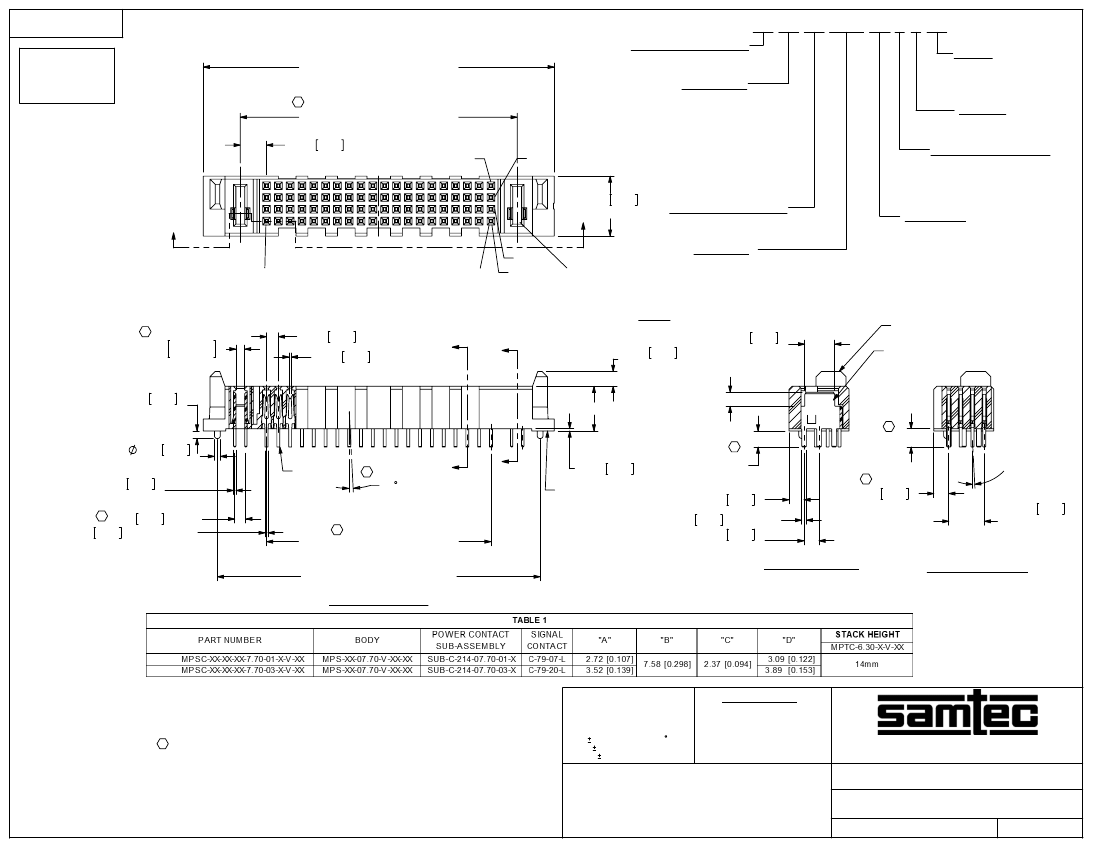

VERTICAL MINI-POWER W/ SIGNAL SOCKET

MPSC-XX-XX-XX-X.XX-XX-X-V-XX

SHEET

BY:

BRATCHER 2/16/2007
