BTB16-700BW

Description
16 A Snubberless, logic level and standard Triacs
File Size1MB,6 Pages
ManufacturerKersemi Electronic
Websitehttp://www.kersemi.com
Download Datasheet View All

BTB16-700BW Overview

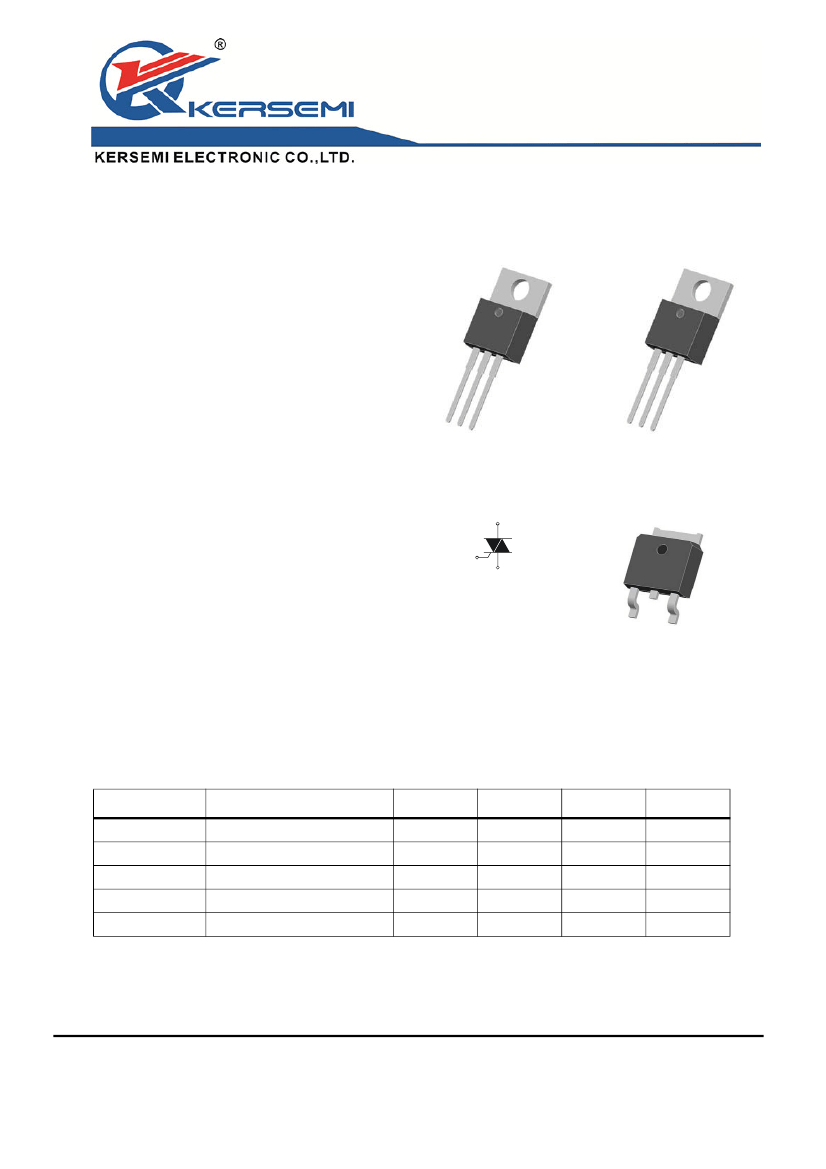

16 A Snubberless, logic level and standard Triacs

BTA16, BTB16
T1610, T1635
16 A Snubberless™, logic
level and standard Triacs
TO-220AB
insulated
BTA16
TO-220AB
BTB16
Features
Medium current Triac
Low thermal resistance with clip bonding
Low thermal resistance insulation ceramic for
insulated BTA
High commutation (4Q) or very high
commutation (3Q) capability
BTA series UL1557 certified (File ref: 81734)
RoHS ( 2002/95/EC) compliant
Insulated tab (BTA series, rated at 2500 V
RMS
)
D
2
PAK
T1635G
T1610G
Applications
A2
Snubberless versions (BTA/BTB...W and
T1635) especially recommended for use on
inductive loads, because of their high
commutation performances
On/off or phase angle function in applications
such as static relays, light dimmers and
appliance motor speed controllers
G
A1
Description
Available either in through-hole or surface-mount
packages, the BTA16, BTB16, T1610 and T1635
Triacs series are suitable for general purpose
mains power AC switching.
Table 1.
Symbol
I
T(RMS)
V
DRM
/V
RRM
Device summary
Parameter
On-state rms current
Repetitive peak off-state voltage
BTA16
(1)
16
600/800
35/50
10
25/50
BTB16
16
600/800
35/50
10
25/50
T1610
16
600/800
-
10
-
T1635
16
600/800
35
-
-
I
GT
(Snubberless) Triggering gate current
I
GT
(logic level)
I
GT
(standard)
1. Insulated
Triggering gate current
Triggering gate current
TM:
Snubberless is a trademark of STMicroelectronics
2014-6-9
1
www.kersemi.com
