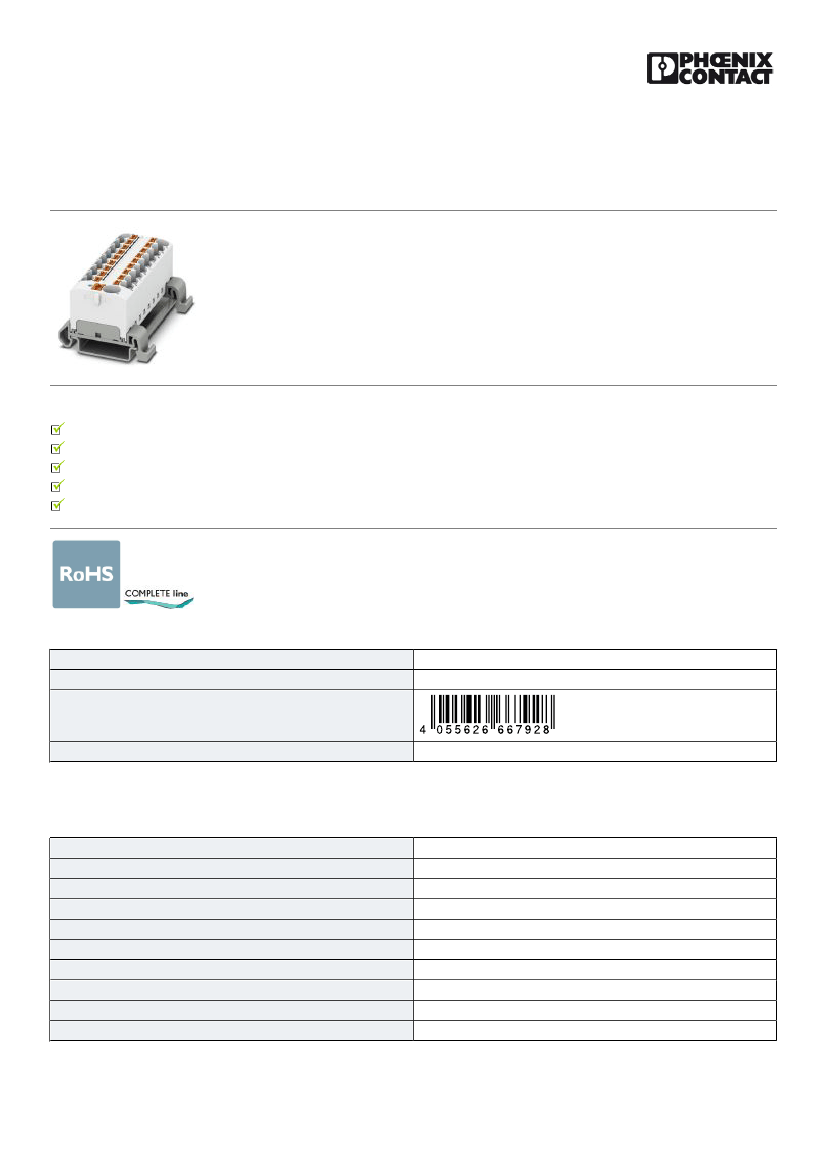

Distribution block - PTFIX 10/18X4-NS35A WH - 3273780
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Distribution block, nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, Push-
in connection, number of connections: 19, cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, width: 64.8 mm,
color: white, mounting type: NS 35/7,5, NS 35/15
Your advantages
 Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
 Clear wiring, thanks to eleven different color variants
 Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
 Time savings of up to 80%, thanks to ready-to-mount blocks without manual bridging
 Space savings of up to 50% on the DIN rail, thanks to transverse mounting
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626667928
8 pc
8 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Nominal cross section feed-in
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
1
19
1
4 mm²
10 mm²
white
PA
V0
6 kV
3
10/28/2020   Page 1 / 11
https://www.phoenixcontact.com/pi/products/3273780
Distribution block - PTFIX 10/18X4-NS35A WH - 3273780
Technical data
General
Overvoltage category
Insulating material group
Maximum load current
Maximum total current
Nominal current I
N
Nominal voltage U
N
Open side panel
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (storage/transport)
Ambient temperature (assembly)
Ambient temperature (actuation)
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
III
I
63 A
63 A
32 A
800 V
450 V
No
-60 °C ... 85 °C
-25 °C ... 55 °C (For a short time, not exceeding 24 h, -60 to +70 °C)
30 % ... 70 %
-5 °C ... 70 °C
-5 °C ... 70 °C
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
Test passed
2 kV
Test passed
Test passed
10 rpm
135
0.5 mm² / 0.3 kg
10 mm² / 2 kg
0.2 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg
Tensile test result
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Result of temperature-rise test
Requirement temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Test passed
Test passed
NS 35
5N
Test passed
Test passed
Increase in temperature ≤ 45 K
Test passed
10 mm²
1.2 kA
Test passed
30 s
10/28/2020   Page 2 / 11
https://www.phoenixcontact.com/pi/products/3273780
Distribution block - PTFIX 10/18X4-NS35A WH - 3273780
Technical data
General
Result of aging test
Ageing test for screwless modular terminal block temperature cycles
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Smoke gas toxicity NFPA 130 (SMP 800C)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
Test passed
192
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie-mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
130 °C
-60 °C
passed
passed
28 MJ/kg
passed
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
Width
Length
Height NS 35/7,5
64.8 mm
45.7 mm
30.9 mm
Connection data
Connection method
Stripping length
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Push-in connection
10 mm ... 12 mm
IEC 60947-7-1
0.2 mm²
6 mm²
24
10/28/2020   Page 3 / 11
https://www.phoenixcontact.com/pi/products/3273780
Distribution block - PTFIX 10/18X4-NS35A WH - 3273780
Technical data
Connection data
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Two conductors with the same cross section, flexible, with TWIN
ferrules, with plastic sleeve, minimum
Two conductors with the same cross section, flexible, with TWIN
ferrules, with plastic sleeve, maximum
Connection cross sections directly pluggable
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Internal cylindrical gage
Connection
Connection method
Stripping length
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Two conductors with the same cross section, flexible, with TWIN
ferrules, with plastic sleeve, minimum
Two conductors with the same cross section, flexible, with TWIN
ferrules, with plastic sleeve, maximum
10
0.2 mm²
4 mm²
24
12
0.2 mm²
0.2 mm²
4 mm²
0.5 mm²
1 mm²
0.5 mm² 6 mm² 20 10
0.5 mm²
6 mm²
0.75 mm²
0.5 mm²
4 mm²
A4
Feed-in stage
Push-in connection
12 mm ... 14 mm
IEC 60998-2-2
0.5 mm²
10 mm²
20
6
0.5 mm²
10 mm²
20
8
0.5 mm²
0.5 mm²
10 mm²
0.5 mm²
4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
10/28/2020   Page 4 / 11
https://www.phoenixcontact.com/pi/products/3273780
Distribution block - PTFIX 10/18X4-NS35A WH - 3273780
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
IEC 60998-2-2
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings

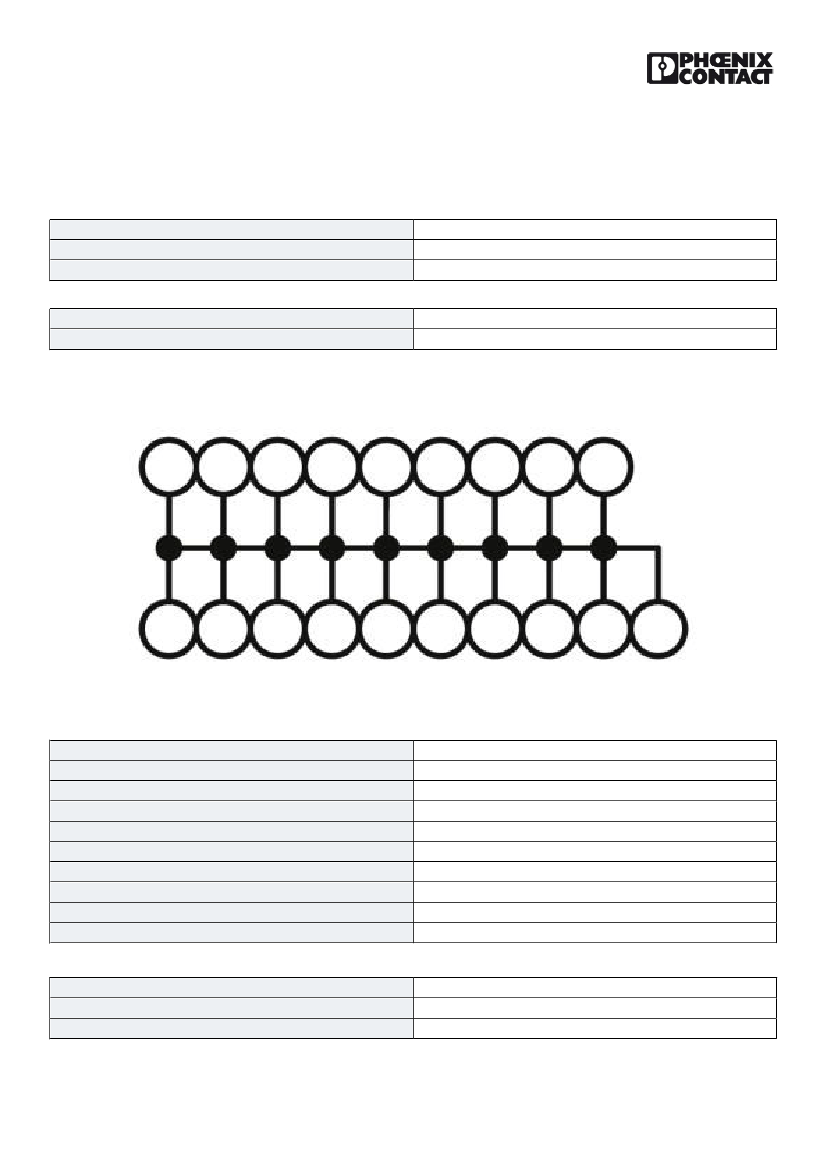

Circuit diagram
Classifications
eCl@ss
eCl@ss 10.0.1
eCl@ss 11.0
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141121
27141121
27141120
27141120
27141100
27141120
27141120
27141120
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
10/28/2020   Page 5 / 11
