501527-3239 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 501527-3239

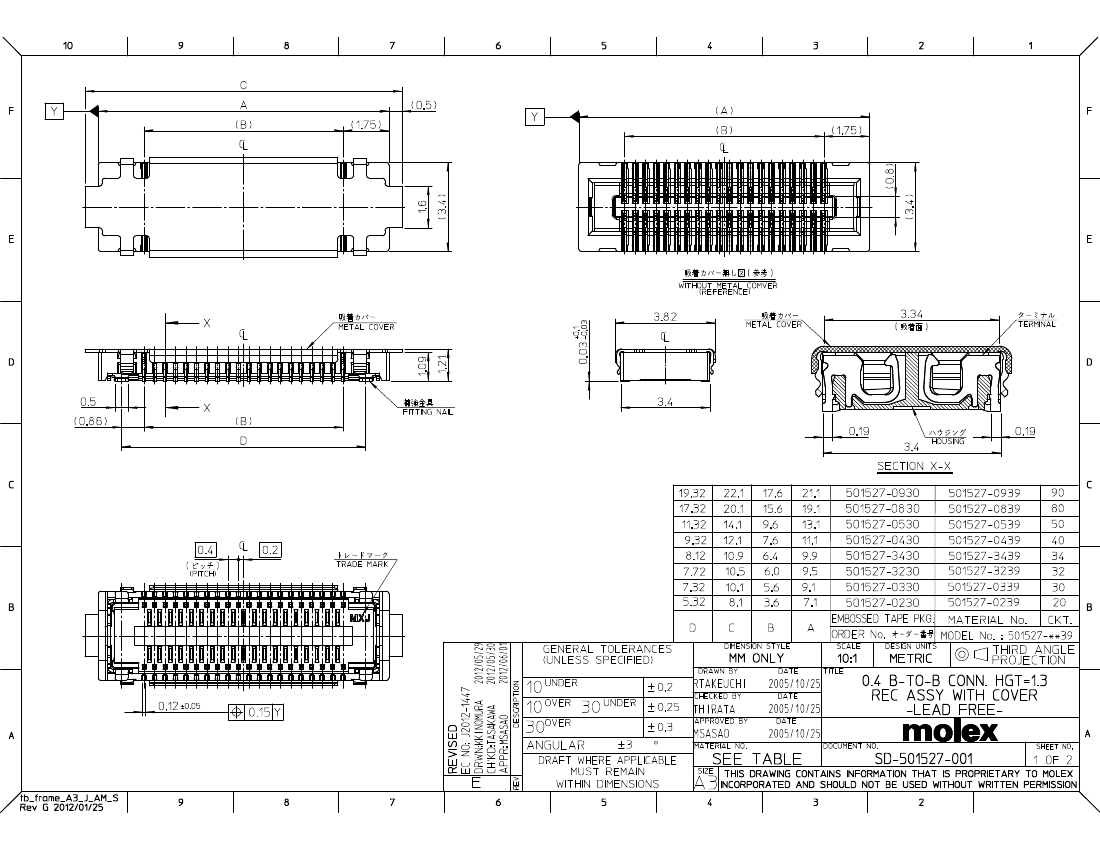

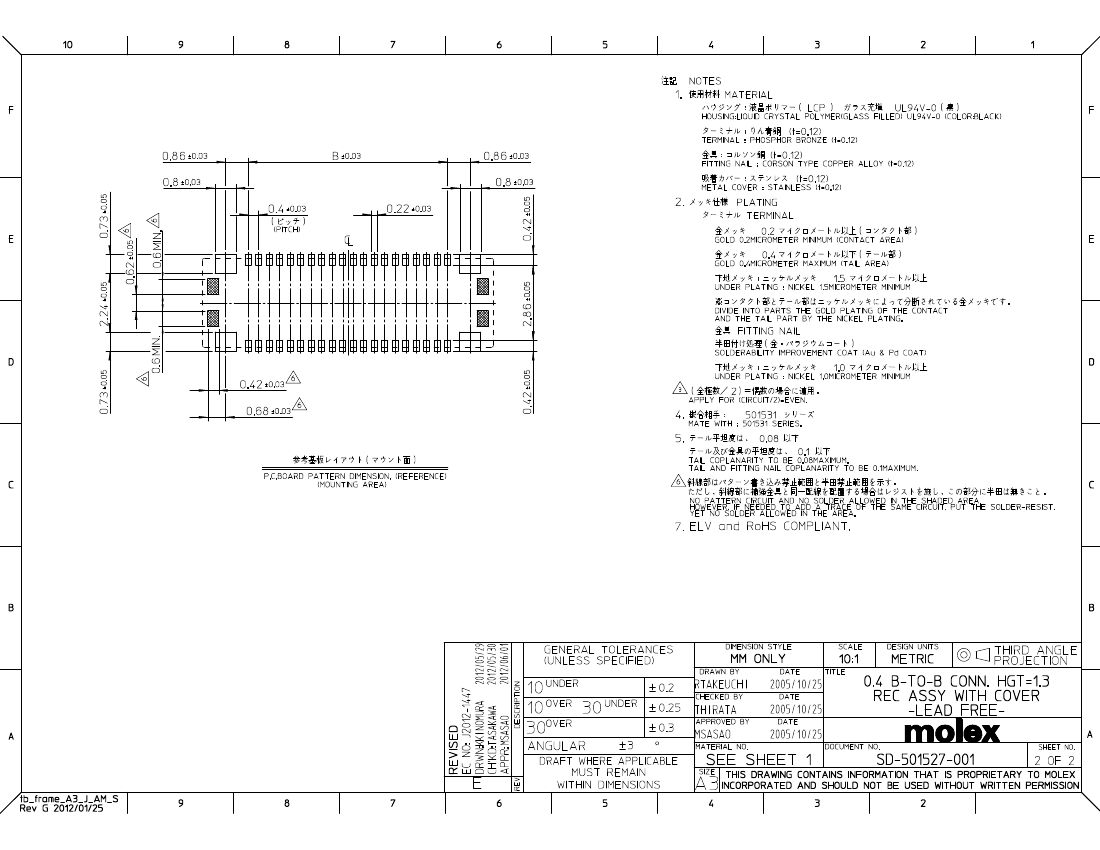

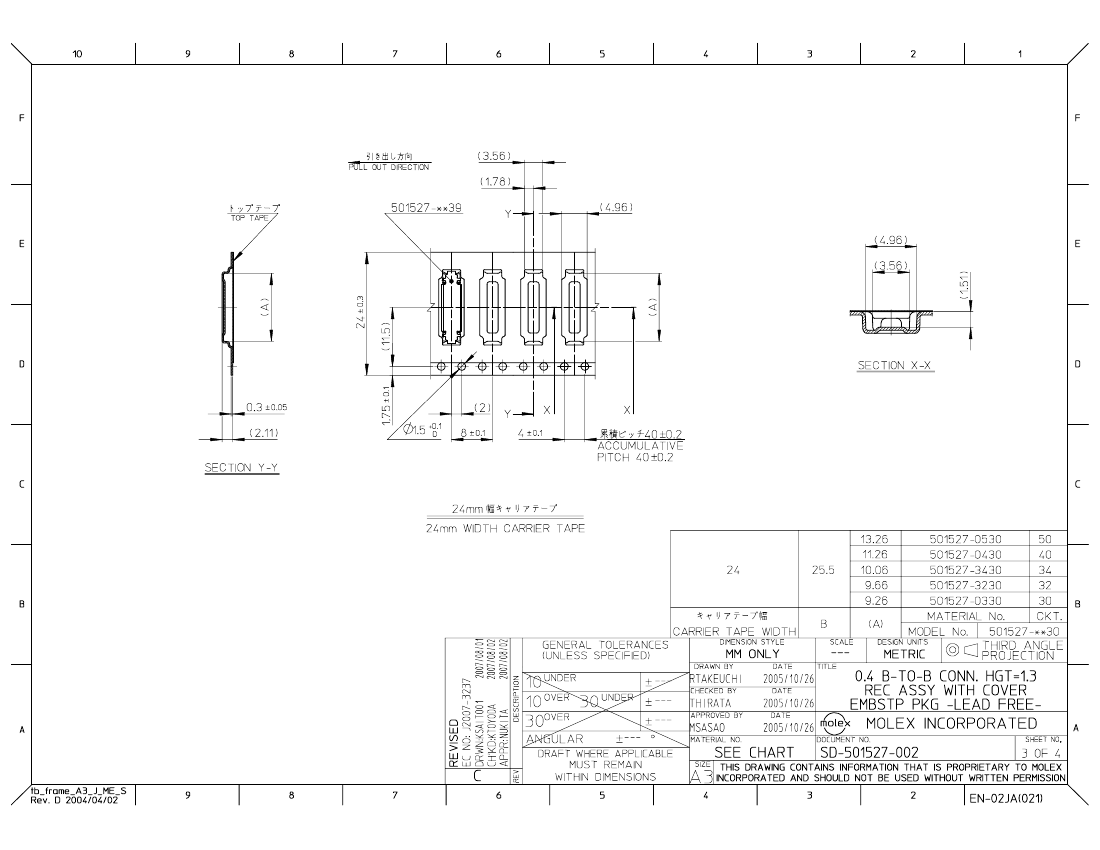

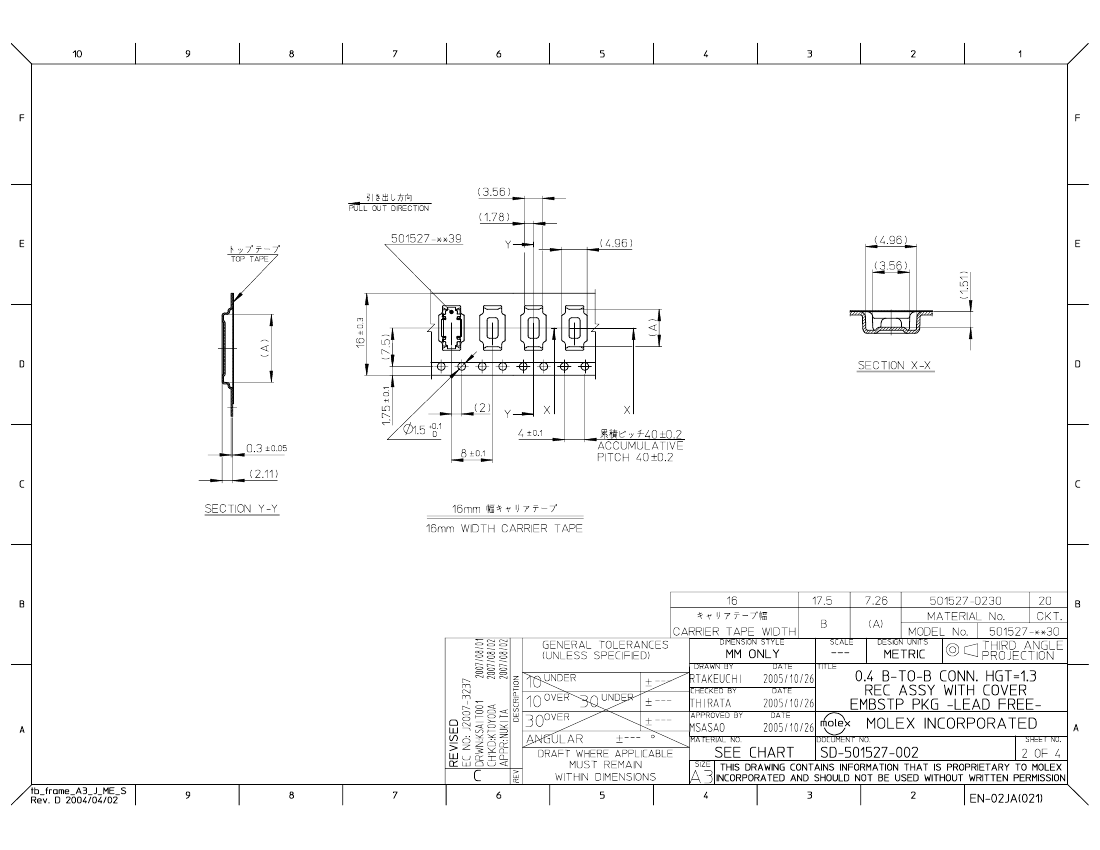

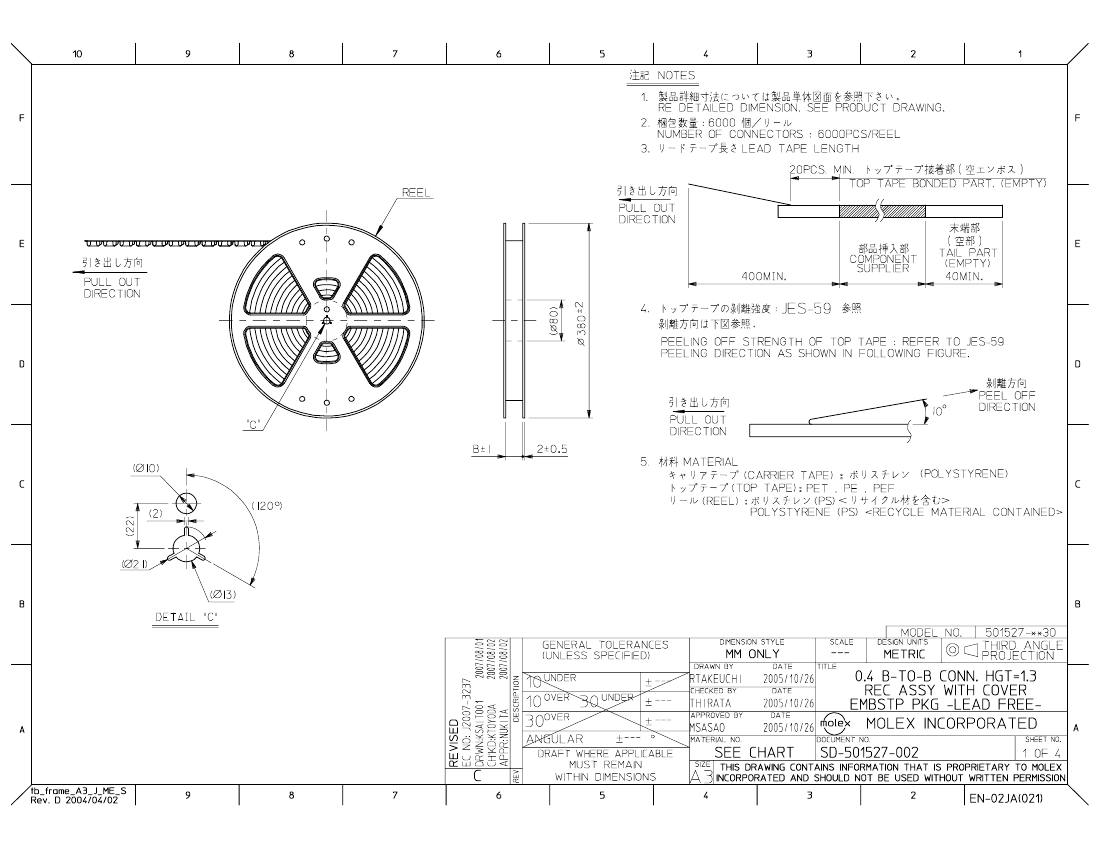

Preview

501527-3239: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size414KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

501527-3239 Overview

Board Connector, 32 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

501527-3239 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Board mount options	FITTING NAIL
body width	0.134 inch
subject depth	0.048 inch
body length	0.413 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	3500VAC V
Durability	30 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	501527
Plug contact pitch	0.016 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.302 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4064 mm
Termination type	SURFACE MOUNT
Total number of contacts	32

Preview

Download Datasheet

View All

501527-3239 Related Products

	501527-3239	5015273230	5015270230	501527-0539	501527-3439	501527-0439
Description	Board Connector, 32 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	0.4 btb rcpt assy W/cover32pos	conn 0.4 btb rcpt W/cover 20ckt	Board Connector, 50 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle
Reach Compliance Code	unknown	compliant	compli	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	NOT SPECIFIED	GOLD	AU ON NI	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Terminal pitch	0.4064 mm	0.4064 mm	0.4 mm	0.4064 mm	0.4064 mm	0.4064 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	32	32	20	50	34	40
Maker	Molex	Molex	-	-	Molex	Molex
Board mount options	FITTING NAIL	FITTING NAIL	-	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.134 inch	0.134 inch	-	0.134 inch	0.134 inch	0.134 inch
subject depth	0.048 inch	0.048 inch	-	0.048 inch	0.048 inch	0.048 inch
body length	0.413 inch	0.413 inch	-	0.555 inch	0.429 inch	0.476 inch
Contact completed and terminated	GOLD OVER NICKEL	-	Gold (Au)	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	-	40 mΩ	40 mΩ	40 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	3500VAC V	3500VAC V	-	3500VAC V	3500VAC V	3500VAC V
Durability	30 Cycles	30 Cycles	-	30 Cycles	30 Cycles	30 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	501527	-	-	501527	501527	501527
Plug contact pitch	0.016 inch	0.016 inch	-	0.016 inch	0.016 inch	0.016 inch
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING
Number of connectors	ONE	ONE	-	ONE	ONE	ONE
PCB row number	2	2	-	2	2	2
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.302 mm	3.302 mm	-	3.302 mm	3.302 mm	3.302 mm
Plating thickness	8u inch	8u inch	-	8u inch	8u inch	8u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.3 A	0.3 A	-	0.3 A	0.3 A	0.3 A
Guideline	UL	UL	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
