SM20100D1
Elektronische Bauelemente
RoHS Compliant Product
A suffix of “-C” specifies halogen free
Voltage 100V 20.0 Amp
Barrier Schottky Rectifier
TO-252
FEATURES
Low forward voltage drop
Low reverse current
High current capability
High reliability
High surge current capability
Epitaxial construction
A
B
C
D
MECHANICAL DATA
GE
Case: Molded plastic
Epoxy: UL94V-0 rate flame retardant
Lead: Lead solderable per MIL-STD-202
method 208 guaranteed
Polarity: As Marked
Mounting position: Any
Weight: 0.7g (Approximate)
K
M
J
HF
N
O
P
REF.
A
B
C
D
E
F
G
H
Millimeter
Min.
Max.
6.35
6.90
4.95
5.50
2.10
2.50
0.43
0.9
6.0
7.5
2.80 REF
5.40
6.40
0.60
1.20
REF.
J
K
M
N
O
P
Millimeter
Min.
Max.
2.30 REF.
0.64
1.14
0.50
1.14
1.3
1.8
0
0.13
0.58REF.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Parameter
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
Current
Voltage Rate of Chance (Rated V
R
)
Typical Thermal Resistance
3
Symbol
V
RRM
V
RSM
V
DC
(Per Leg)
(Per Device)
I
F
I
FSM
dv/dt
R
JC
T
J
,T
STG
Rating
100
100
100
10
20
160
10000
10
-55~150
Unit
V
V
V
A
A
V /
μs
°C /W
°C
Peak Forward Surge Current, 8.3 ms single half sine-wave
Operating and Storage Temperature Range
ELECTRICAL CHARACTERISTICS
Parameter
Maximum Instantaneous Forward
Voltage
Maximum DC Reverse Current
at Rated DC Blocking Voltage
2
Typical Junction Capacitance
1
Symbol
V
F
Typ.
0.76
0.63
0.8
0.66
2
1
180
Max.
0.8
0.65
0.85
0.68
10
4
-
Unit
V
Test Condition
I
F
= 8A, T
J
= 25°C
I
F
= 8A, T
J
= 125°C
I
F
= 10A, T
J
= 25°C
I
F
= 10A, T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
I
R
C
J
μA
mA
pF
NOTES:
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Pulse test: Pulse width 40ms
3. FR4 Board Heat sink size: 10*10*0.2mm.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
26-Jan -2013 Rev. C
Page 1 of 2
SM20100D1
Elektronische Bauelemente
Voltage 100V 20.0 Amp
Barrier Schottky Rectifier

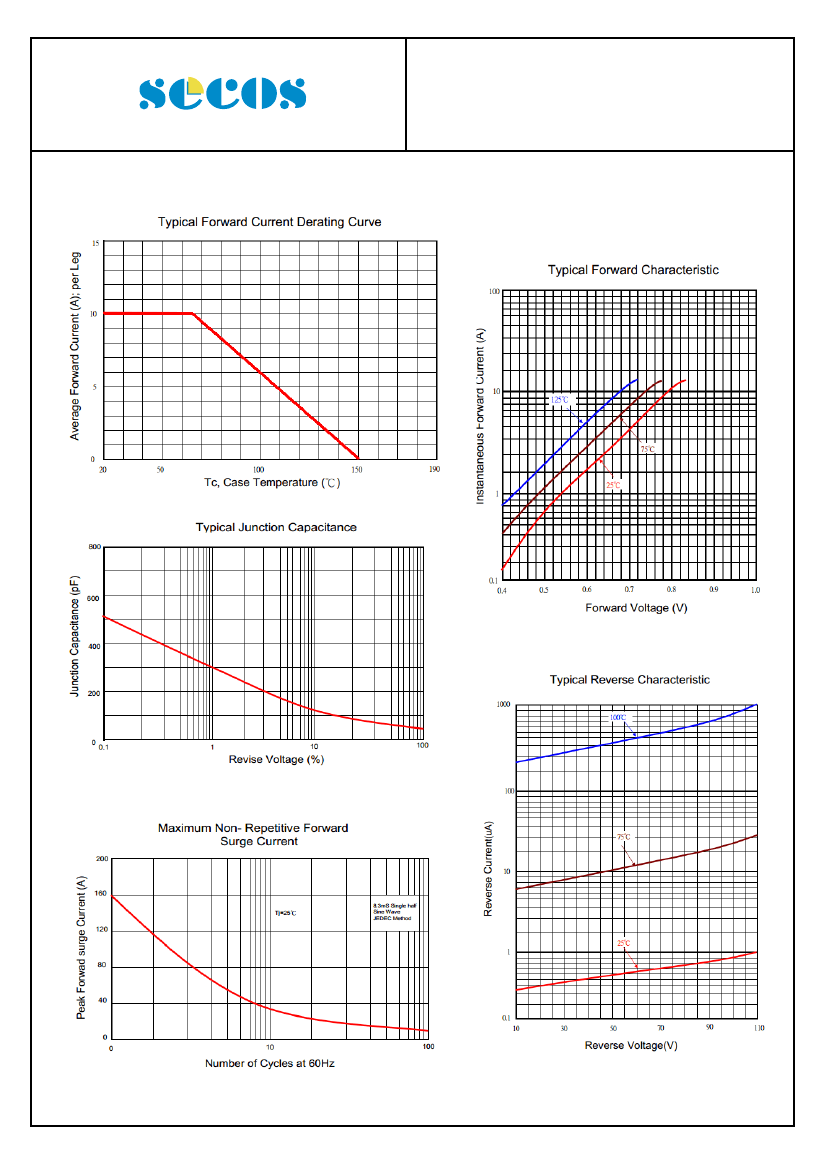

RATINGS AND CHARACTERISTIC CURVES
