5MP26J155K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 5MP26J155K

5MP26J155K: DescriptionFilm Capacitor, Polypropylene, 400V, 10% +Tol, 10% -Tol, 1.5uF, Chassis Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size2MB，7 Pages; ManufacturerElectronic Concepts Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

5MP26J155K Overview

Film Capacitor, Polypropylene, 400V, 10% +Tol, 10% -Tol, 1.5uF, Chassis Mount, RADIAL LEADED

5MP26J155K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Electronic Concepts Inc
package instruction	RADIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1.5 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
positive tolerance	10%
Rated (AC) voltage (URac)	230 V
Rated (DC) voltage (URdc)	400 V
surface mount	NO
Terminal shape	LUG

Preview

Download Datasheet

View All

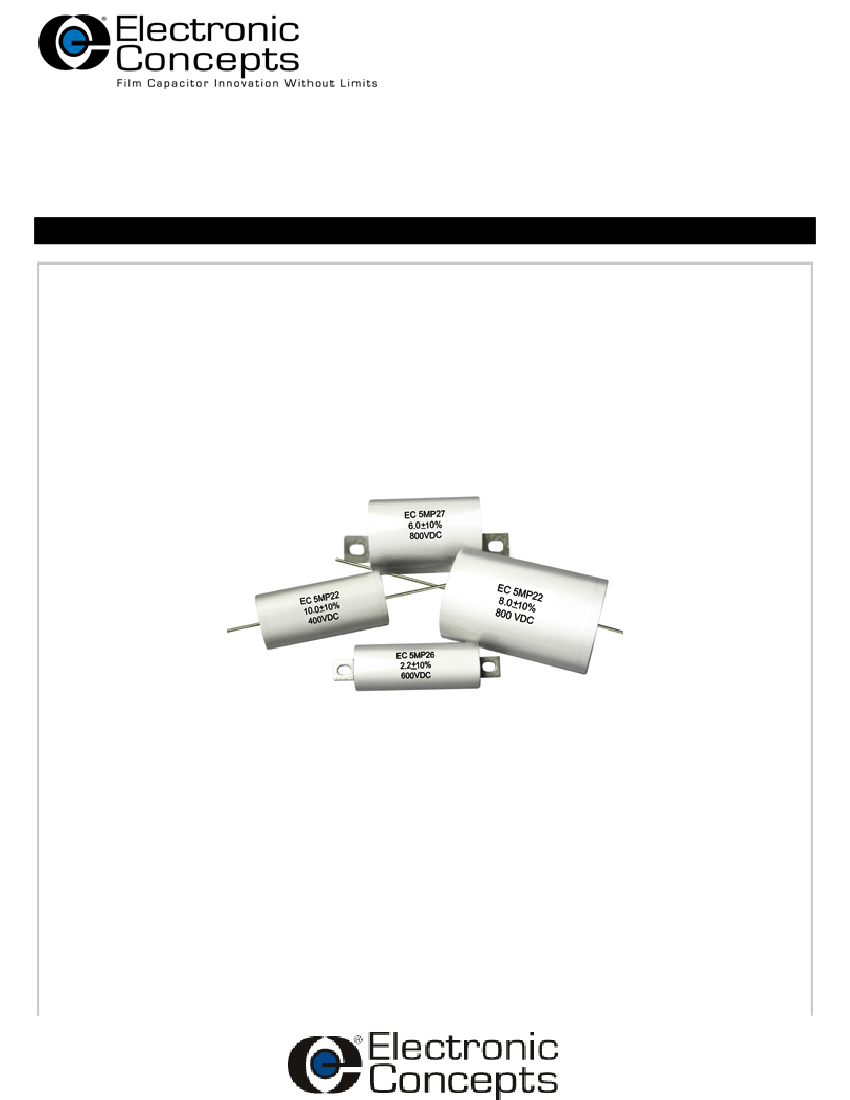

5MP2

SERIES

Metallized Polypropylene

Switching power supply capacitors that require snubber and high current

applications. Voltage: 400 to 2000VDC: Capacitance as high as l0.0µf; ESR as

low as 0.005OHMS; ESL as low as 18nH; RMS current to 48.4amps; UL94-VO

ame retardant; three con gurations; with axial leads or tab terminations.

Metallized

Polypropylene

FEATURES

Low loss polypropylene

dielectric

High Power Rugged

construction

Tested for high peak currents

Smaller size

UL 94-VO ame retardant

Low inductance

High RMS capability

Low impedance and ESR

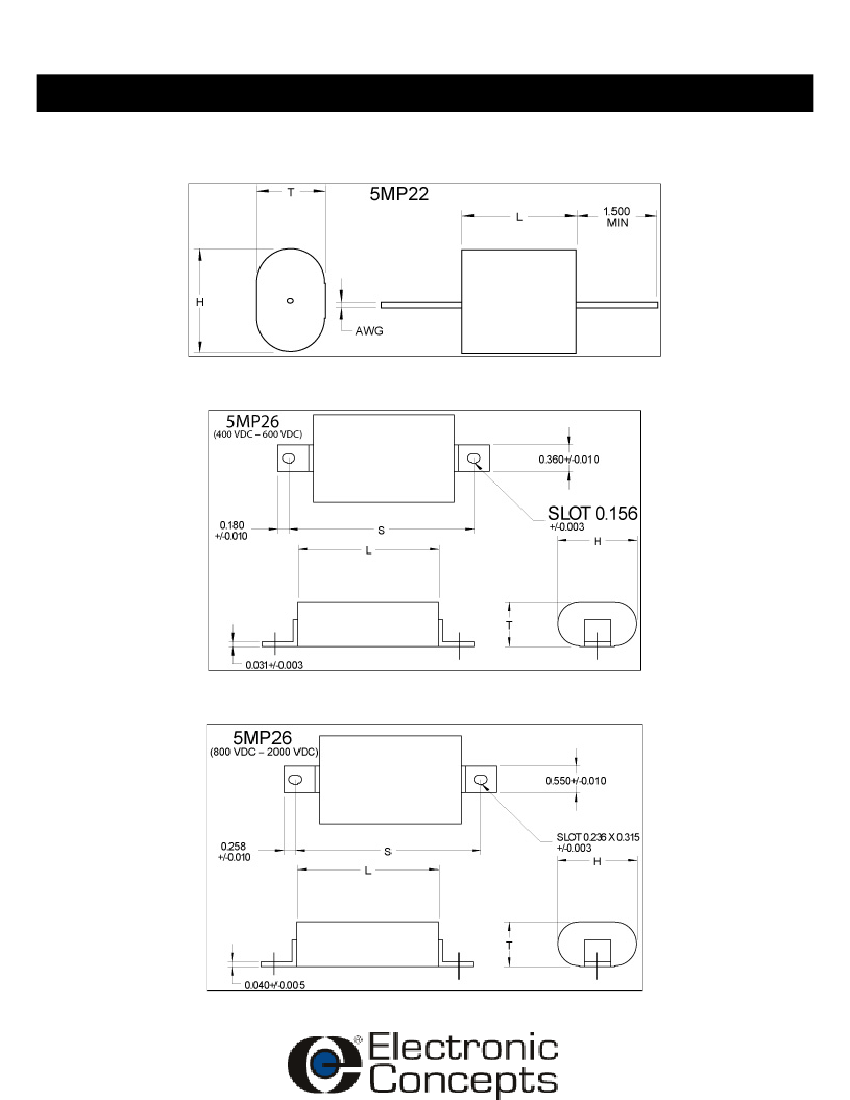

STANDARD CONFIGURATION

5MP22: axial leads

5MP26: radial tabs/low pro le

5MP27: radial tabs/high pro le

Rev. 2

5MP26J155K Related Products

	5MP26J155K	5MP22N705K	5MP26P125K	5MP27N605K	5MP22N805K	5MP26BN155K	5MP26P105K	5MP22K225K
Description	Film Capacitor, Polypropylene, 400V, 10% +Tol, 10% -Tol, 1.5uF, Chassis Mount, RADIAL LEADED	Film Capacitor, Polypropylene, 800V, 10% +Tol, 10% -Tol, 7uF, Through Hole Mount, AXIAL LEADED	Film Capacitor, Polypropylene, 2000V, 10% +Tol, 10% -Tol, 1.2uF, Chassis Mount, RADIAL LEADED	Film Capacitor, Polypropylene, 800V, 10% +Tol, 10% -Tol, 6uF, Chassis Mount	Film Capacitor, Polypropylene, 800V, 10% +Tol, 10% -Tol, 8uF, Through Hole Mount, AXIAL LEADED	Film Capacitor, Polypropylene, 1200V, 10% +Tol, 10% -Tol, 1.5uF, Chassis Mount, RADIAL LEADED	Film Capacitor, Polypropylene, 2000V, 10% +Tol, 10% -Tol, 1uF, Chassis Mount, RADIAL LEADED	Film Capacitor, Polypropylene, 600V, 10% +Tol, 10% -Tol, 2.2uF, Through Hole Mount, AXIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	1.5 µF	7 µF	1.2 µF	6 µF	8 µF	1.5 µF	1 µF	2.2 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE
Installation features	CHASSIS MOUNT	THROUGH HOLE MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	THROUGH HOLE MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	THROUGH HOLE MOUNT
negative tolerance	10%	10%	10%	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE
positive tolerance	10%	10%	10%	10%	10%	10%	10%	10%
Rated (AC) voltage (URac)	230 V	230 V	460 V	230 V	230 V	460 V	460 V	230 V
Rated (DC) voltage (URdc)	400 V	800 V	2000 V	800 V	800 V	1200 V	2000 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	LUG	WIRE	LUG	LUG	WIRE	LUG	LUG	WIRE
Maker	Electronic Concepts Inc	-	Electronic Concepts Inc	Electronic Concepts Inc	Electronic Concepts Inc	Electronic Concepts Inc	Electronic Concepts Inc	-
Other features	-	RATED AC VOLTAGE (V): 230	RATED AC VOLTAGE (V): 460	RATED AC VOLTAGE (V): 230	RATED AC VOLTAGE (V): 230	RATED AC VOLTAGE (V): 460	RATED AC VOLTAGE (V): 460	RATED AC VOLTAGE (V): 230
high	-	46.101 mm	36.957 mm	46.101 mm	46.101 mm	36.957 mm	36.957 mm	20.955 mm
length	-	57.15 mm	63.5 mm	50.8 mm	63.5 mm	38.1 mm	57.15 mm	50.8 mm
Package form	-	Axial	Axial	Axial	Axial	Axial	Axial	Axial
width	-	46.101 mm	46.101 mm	36.957 mm	46.101 mm	46.101 mm	46.101 mm	20.955 mm
