Part Number

Search

500027-3471

Description
Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Plug
CategoryThe connector    The connector
File Size347KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

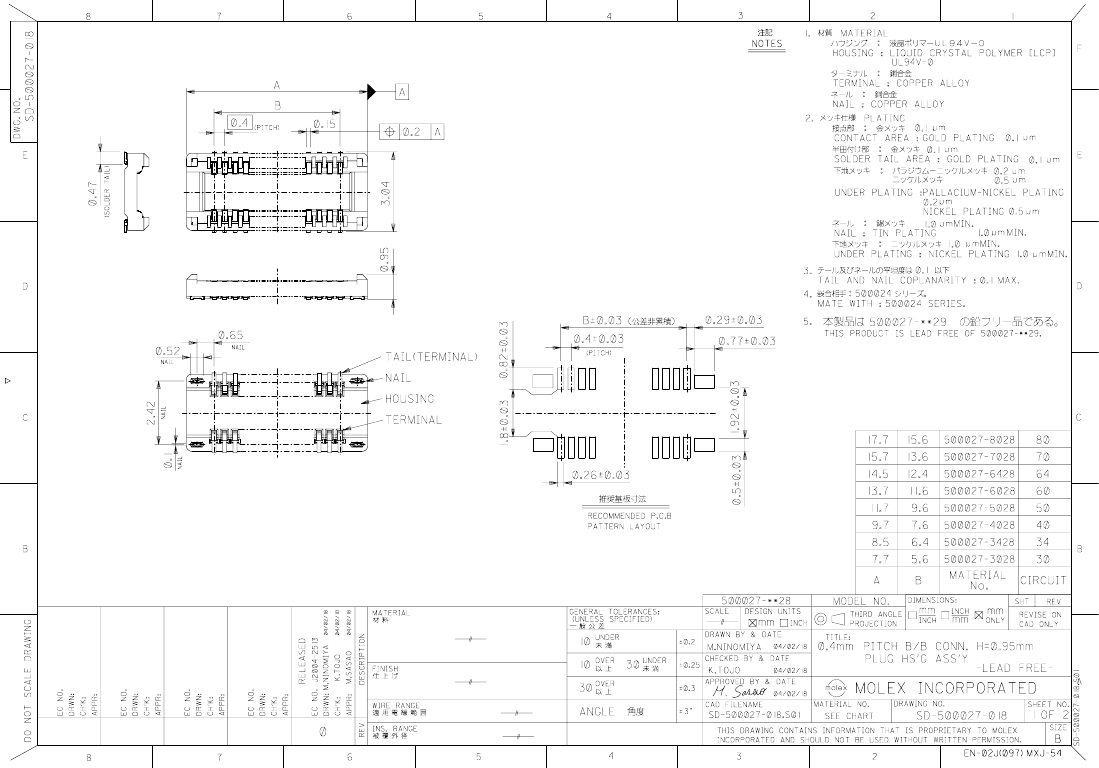

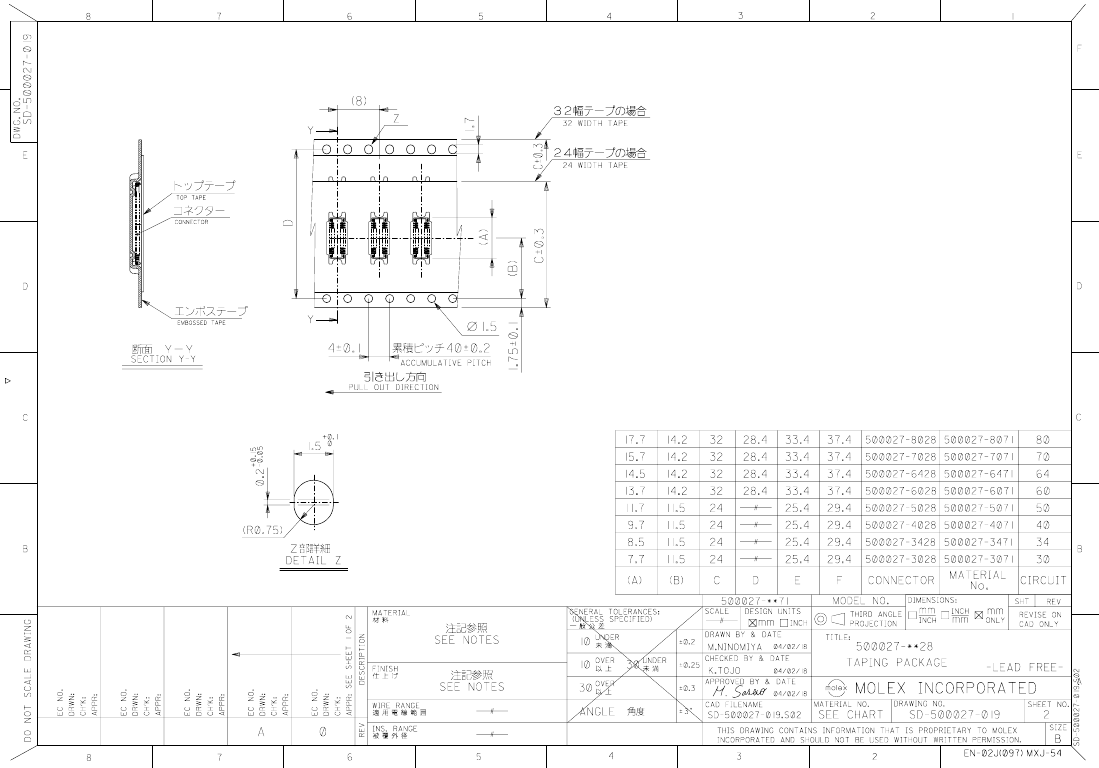

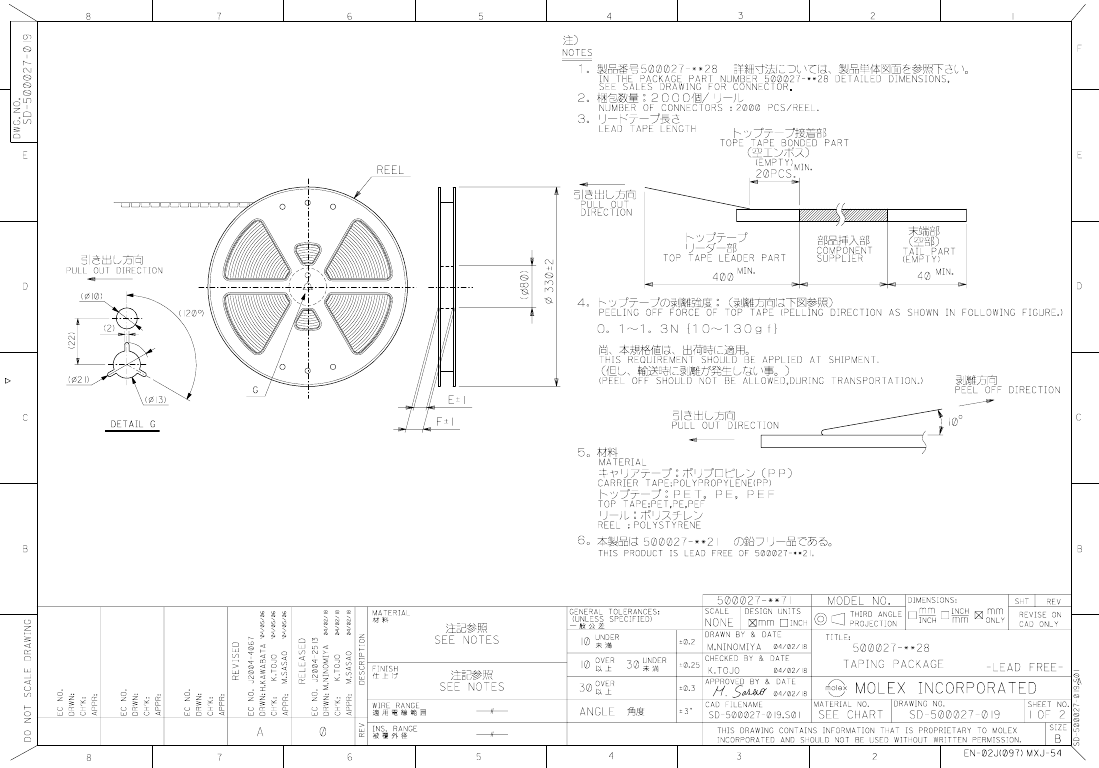

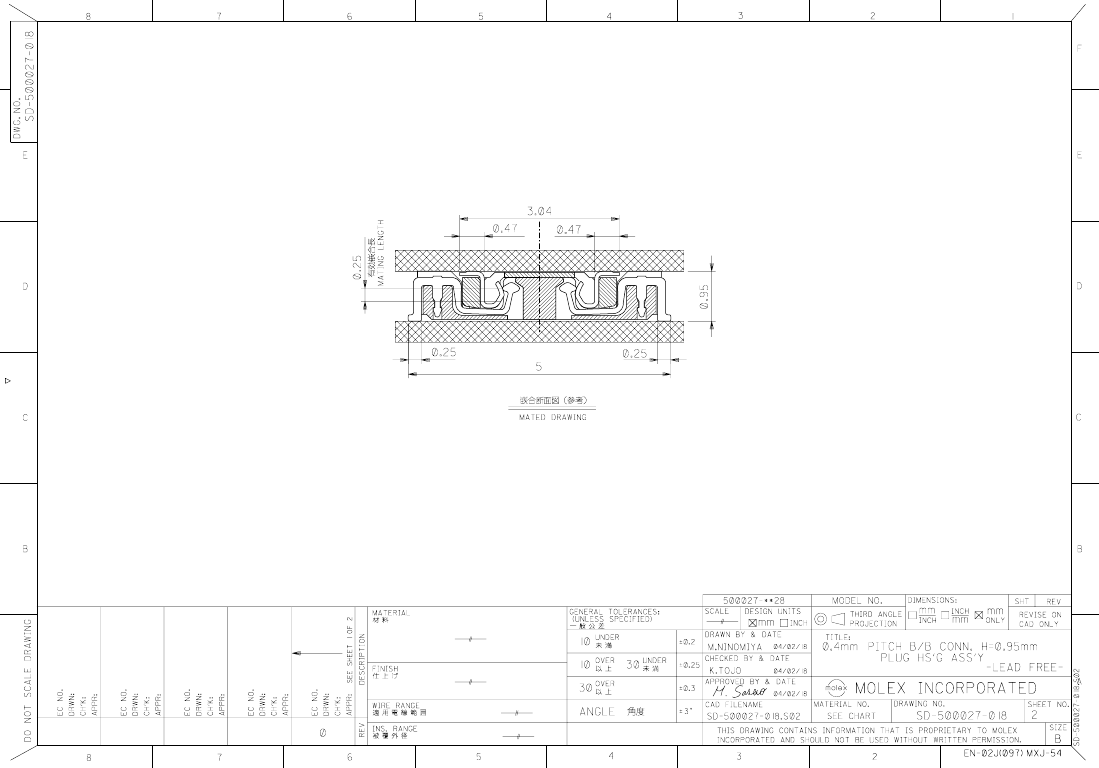

500027-3471 Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Plug

500027-3471 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
Board mount optionsFITTING NAIL
body width0.12 inch
subject depth0.037 inch
body length0.335 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU-PD-NI ON NI
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number500027
Plug contact pitch0.016 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing2.6162 mm
Plating thickness4u inch
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.4064 mm
Termination typeSURFACE MOUNT
Total number of contacts34
