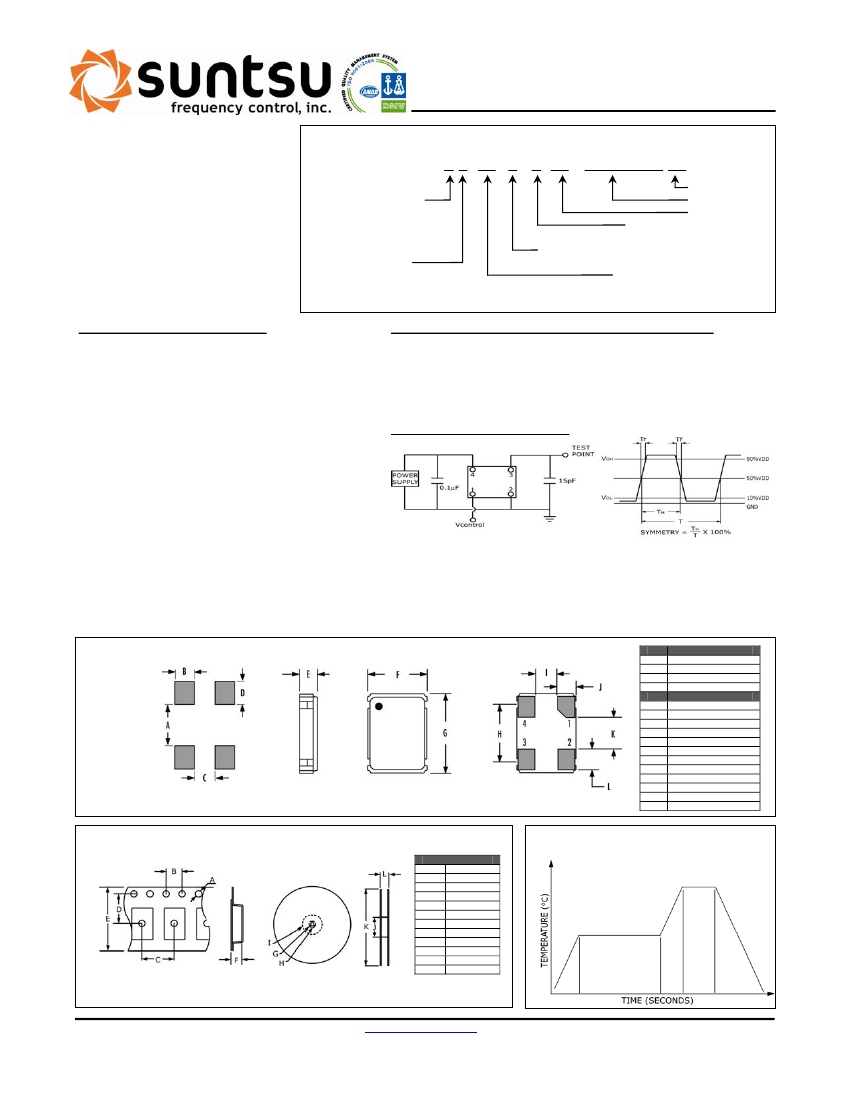

SVK SERIES
5X3.2 CERAMIC SMT 4 PAD LOW JITTER VCXO
SVK SERIES FEATURES
AVAILABLE TO ±20ppm
MINIATURE PACKAGE
CMOS
LOW JITTER
TRI-STATE FUNCTION
TAPE AND REEL
RoHS COMPLIANT
3.3±0.3V OR 5±0.5V
PART NUMBERING GUIDE
SVK A 3 48 T
FREQUENCY STABILITY
A: ±100ppm
B: ±50ppm
C: ±25ppm
D: ±20ppm
DUTY CYCLE
BLANK: 40%/60%
T: 45%/55%
B 10 - 25.000MHz TR
TAPE AND REEL
FREQUENCY
PULLABILITY
A: ±150ppm
B: ±100ppm
C: ±50ppm
LINEARITY
5: ±5%
10: ±10%
SUPPLY VOLTAGE
3: 3.3±0.165 V
5: 5.0±0.25 V
*FOR CUSTOM PARAMETERS CONTACT YOUR SUNTSU REPRESENTATIVE.
CAGE CODE: 4GUT4
OPERATING TEMPERATURE RANGE
BLANK: 0°C to + 70°C
27: -20°C to + 70°C
48: -40°C to + 85°C
ELECTRICAL SPECIFICATIONS
FREQUENCY RANGE:
AGING:
STORAGE TEMPERATURE:
DUTY CYCLE:
CURRENT CONSUMPTION:
LOAD:
START-UP TIME:
RISE/FALL TIME:
VOLTAGE CONTROL:
5.0V
3.3V
TRI-STATE FUNCTION (PIN 2):
PHASE JITTER:
TRI-STATE FUNCTION (PIN 1)
1.000MHz-77.760MHz
±3ppm/FIRST YEAR
-40°C TO 85°C
40%/60%, 45%/55%
60mA MAX
15pF MAX
10mS MAX
5nS MAX
2.5±2.0V
1.65±1.35V
OUTPUT ENABLE HIGH
1pS RMS MAX (12kHz TO
20MHz)
OUTPUT ENABLE HIGH
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
DROP TEST:
MECHANICAL SHOCK:
VIBRATION:
SOLDERABILITY:
RESISTANCE TO
SOLERING HEAT:
75cm ONTO 2mm STEEL PLATE (3 TIMES)
MIL-STD-883, METHOD 2002, CONDITION B
MIL-STD-883, METHOD 2007, CONDITION A
230°C, 3S (±5ppm)
260°C, 10S (±5ppm)
TEST CIRCUIT & WAVEFORM
PRODUCT SCHEMATIC
PIN
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
L
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
FUNCTION
VOLTAGE CONTROL
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
DIMENSIONS
1.05
1.2
0.9
1.5
1.2±0.1
3.20±0.2
5.00±0.2
2.54±0.1
1.20
1.0±0.1
1.14±0.1
1.2±0.1
TAPE AND REEL DIMENSIONS
A
B
C
D
E
F
G
H
I
J
K
L
DIMENSIONS
Φ1.50
4.0
8.0
5.5
12.0
1.5
2.5
Φ13.5
21.6
60.0
178
13.5
REFLOW PROFILE
260°C
150°C
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
120 S
10 S
MAX
9 orchard rd., suite 111
lake forest, ca 92630
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
REV. 02/19/10
www.suntsuinc.com
telephone • 949.305.0220
facsimile • 949.305.0221
