194D475X5020E8T

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 4.7 uF, SURFACE MOUNT, 2010, CHIP
CategoryPassive components    capacitor
File Size90KB,8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

194D475X5020E8T Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 4.7 uF, SURFACE MOUNT, 2010, CHIP

194D475X5020E8T Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerVishay
package instruction, 2010
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance4.7 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
high1.27 mm
JESD-609 codee0
leakage current0.0009 mA
length5.08 mm
Installation featuresSURFACE MOUNT
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, Embossed Plastic, 7 Inch
polarityPOLARIZED
positive tolerance5%
Rated (DC) voltage (URdc)20 V
size code2010
surface mountYES
Delta tangent0.06
Terminal surfaceTin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width2.54 mm

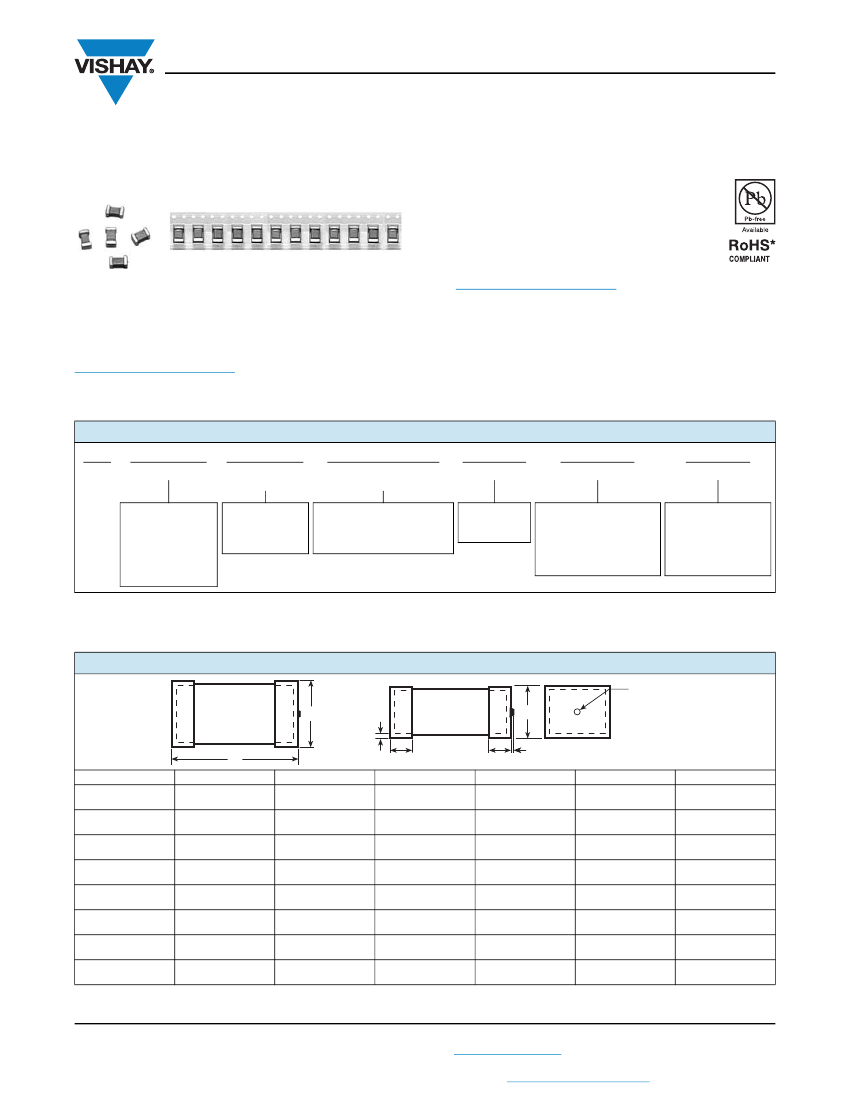

194D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors,
T
ANTAMOUNT®
, Conformal Coated
FEATURES
• 8 mm, 12 mm, 16 mm tape and reel
packaging available per EIA-481 and reeling
per IEC 60286-3, 7" [178 mm] standard
• Mounting: Surface mount
• Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
Note
*
Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Capacitance Range:
0.10 μF to 330 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 50 V
DC
ORDERING INFORMATION
194D
TYPE
225
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
X5 = ± 5 %
Special order
004
DC VOLTAGE RATING
AT + 85 °C
This is expressed in volts.
To complete the
three-digit block, zeros
precede the voltage rating
A
CASE CODE
2
TERMINATION
T
PACKAGING
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
See Ratings
and Case
Codes table
2 = Gold plated
(50 μ inch minimum)
standard
(RoHS compliant)
8 = 60/40 solder plated
7 = Hot solder dipped
T = T/R (full reel)
7" [178 mm] reel
standard
H = T/R (half reel)
7" [178 mm]
B = Bulk
Note
• Preferred tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
DIMENSIONS
in inches [millimeters]
Weld and
dimple
projection
identifies
anode (+)
terminal
W
T
1
-
H
L
P
P
T
2
max.
CASE CODE
A
B
C
D
E
F
G
H
W
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.100 ± 0.015
[2.54 ± 0.38]
0.100 ± 0.015
[2.54 ± 0.38]
0.135 ± 0.015
[3.43 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
L
0.100 ± 0.015
[2.54 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
0.200 ± 0.015
[5.08 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
0.200 ± 0.015
[5.08 ± 0.38]
0.220 ± 0.015
[5.59 ± 0.38]
0.265 ± 0.015
[6.73 ± 0.38]
0.285 ± 0.015
[7.24 ± 0.38]
H
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.070 ± 0.015
[1.78 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
P
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.050 ± 0.005
[1.27 ± 0.13]
0.050 ± 0.005
[1.27 ± 0.13]
T
1
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
T
2
MAX.
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
Note
• When solder coated terminations are required, add 0.015" [0.381 mm] to termination dimension tolerances
Revision: 11-Apr-12
Document Number: 40000
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
