SAW Components
SAW filter for base station
TD-LTE
Series/type:
Ordering code:
Date:
Version:
B5154
B39262B5154U410
August 30, 2012
2.0
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW filter
Data sheet
Application
s
s
s
s
s
B5154
2595.0 MHz
Low-loss TD-LTE RF filter for base station
Unbalanced to Unbalanced operation
Low amplitude ripple
Usable passband 50 MHz
No matching required for operation at 50Ω
Features
s
s
s
s
s
s
s
s
s

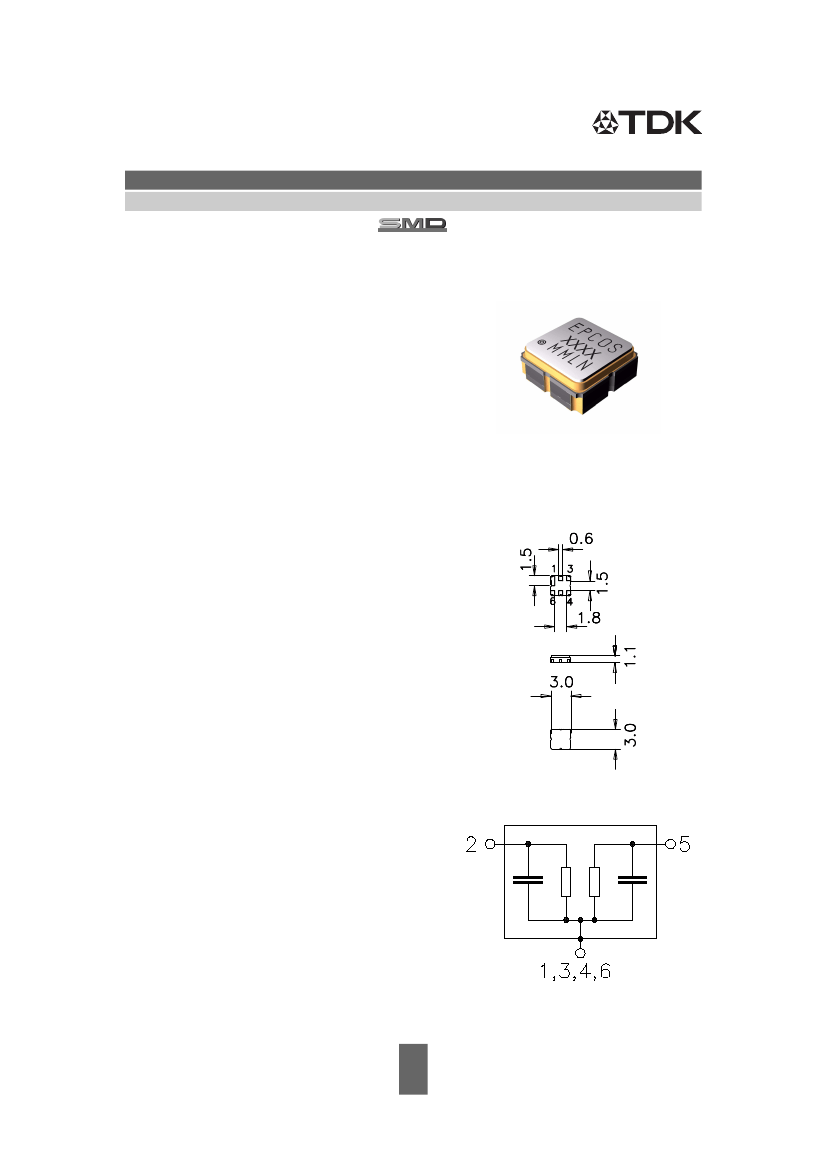

Package size 3.0 x 3.0 x 1.1 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
Moisture Sensitivity Level 1
Filter Surface Passivated
Pin configuration
s
2
s
5
s
1,3,4,6
Input unbalanced
Output unbalanced
To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
August 30, 2012
SAW Components
SAW filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
B5154
2595.0 MHz
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
2595.0
max.
—
MHz
Maximum insertion attenuation
α
max
2570.0 ... 2620.0MHz
Amplitude ripple
(p-p)
∆α
2570.0 ... 2620.0MHz
Group delay ripple
(p-p)
∆τ
2570.0 ... 2620.0MHz
Absolute group delay
τ
2570.0 ... 2620.0MHz
VSWR
2570.0 ... 2620.0 MHz
Attenuation
10
...
2875 ...
2930 ...
2400 MHz
2930 MHz
6000 MHz
α
abs
—
2.6
3.0
dB
—
0.6
1.0
dB
—
8
15
ns
—
20
40
ns
—
1.8:1
2.0:1
20
25
10
30
29
20
—
—
—
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
August 30, 2012
SAW Components
SAW filter
Data sheet
B5154
2595.0 MHz
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input power at
2570 ... 2620MHz
1)
T
T
stg
V
DC
V
ESD
P
IN
–40/+85
–40/+85
0
50
1)
22
10
˚C
˚C
V
V
dBm
dBm
machine model, 10 pulses
CW signal, 1 minute at 85˚C
CW signal, 100,000hrs at 85˚C
acc. to JESD22-A115A (machine model), 10 negative & 10 positive pulses.
Please read
cautions and warnings and
important notes
at the end of this document.
4
August 30, 2012
SAW Components
SAW filter
Data sheet

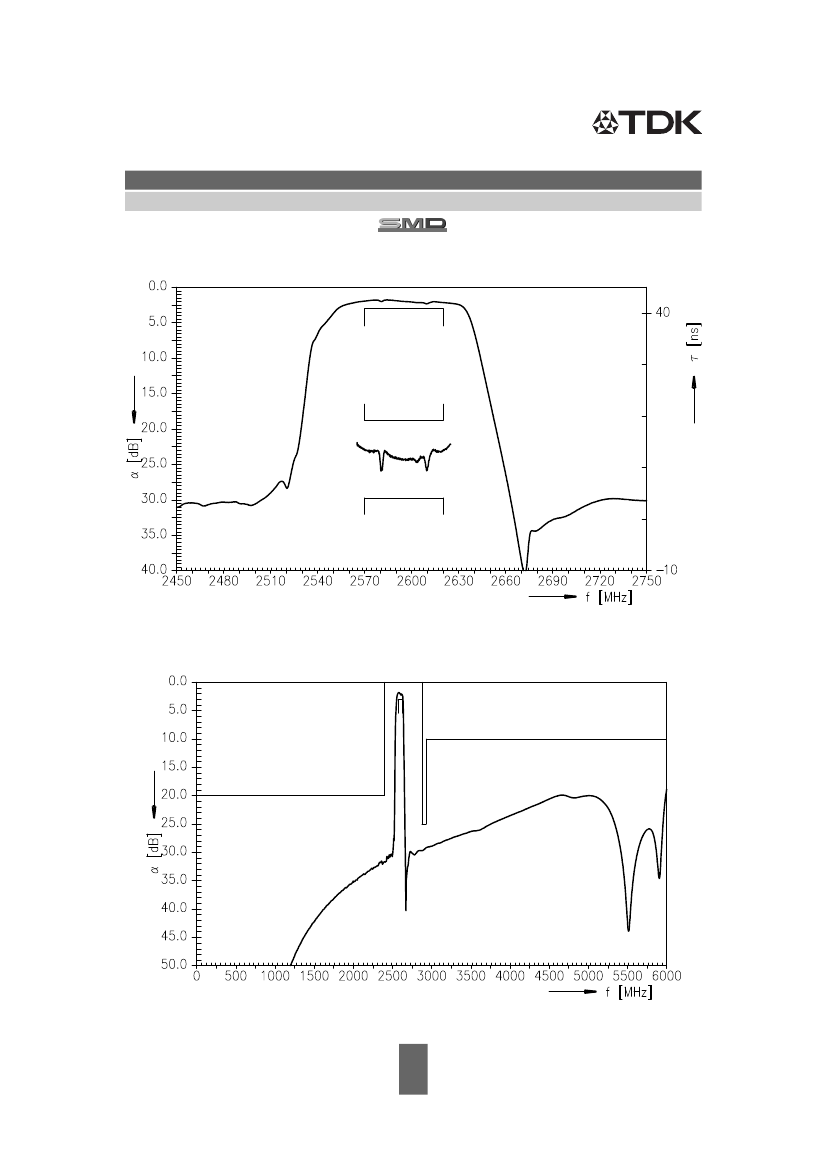

Transfer function
B5154
2595.0 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
August 30, 2012
