SMG8527-330KLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SMG8527-330KLF

SMG8527-330KLF: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

SMG8527-330KLF Overview

General Purpose Inductor,

SMG8527-330KLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gowanda Electronics
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SMG8527LF

Preview

Download Datasheet

View All

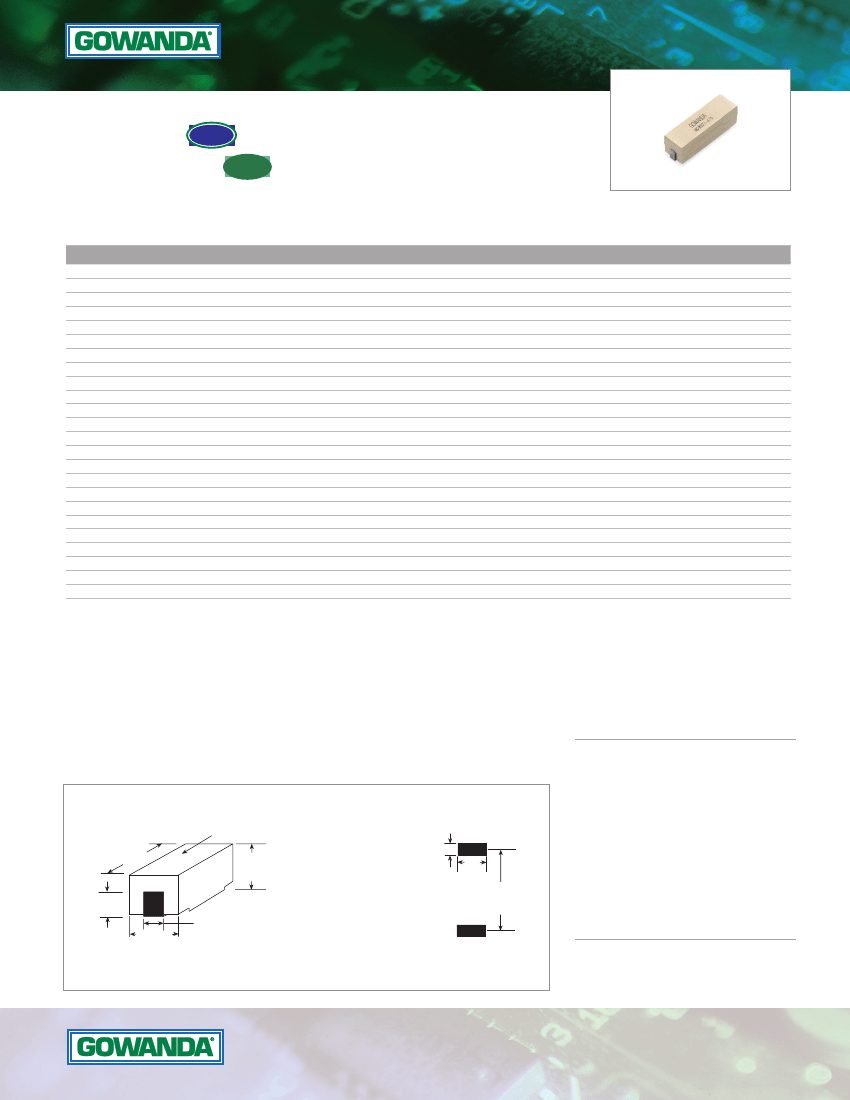

STANDARD RF INDUCTORS - SURFACE MOUNT

SMG8527

SMG8527LF

PART

NUMBER

SMG8527-100K

SMG8527-120K

SMG8527-150K

SMG8527-180K

SMG8527-220K

SMG8527-270K

SMG8527-330K

SMG8527-390K

SMG8527-470K

SMG8527-560K

SMG8527-680K

SMG8527-820K

SMG8527-101K

SMG8527-121K

SMG8527-151K

SMG8527-181K

SMG8527-221K

SMG8527-271K

SMG8527-331K

SMG8527-391K

SMG8527-471K

SMG8527-561K

SMG8527-681K

SMG8527-821K

TRADITIONAL

COMPLIANT

RoHS

Wirewound, Non-Magnetic, Molded

µH

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

MIN

TEST

FREQ

MHz

7.9

SRF

MHz

MIN

540

438

396

327

350

284

271

224

194

174

160

144

126

133

122

110

DCR

OHMS

MAX

0.050

0.058

0.067

0.076

0.083

0.089

0.092

0.109

0.121

0.143

0.150

0.180

0.210

0.230

0.330

0.440

0.480

0.648

0.911

1.26

1.76

CURRENT

RATING

mA DC

2930

2720

2530

2380

2280

2200

2160

1990

1880

1730

1690

1550

1430

1370

1140

990

950

810

690

580

490

NON-MAGNETIC COIL FORM

Suffix “K” for 10% tolerance

Optional tolerance levels available; please contact factory

Custom designs are available to meet your specific requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: SMG8527-100KLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.

These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

NOTES:

• Operating Temperature Range:

-55°C to +125°C

• Current Rating is based on a 35°C temperature

rise at an ambient temperature of 90°C

• Relative Permeability: ≤0.00003 µr

MARKING: GOWANDA

MG8527-XXX

0.270/0.290

(6.86/7.37)

OVER TERMINAL

EXAMPLE OF XXX

101 = 1.0µH

102 = 10µH

103 = 100µH

104 = 1000µH

RECOMMENDED FOOT PRINT

0.150 (3.81)

0.170

(4.32)

0.780

(19.05)

CENTERS

0.260/0.280

(6.60/7.11)

0.060/0.080 (1.52/2.03) WIDE X

0.050 (1.27) MIN DEEP

2 SIDES

in. (mm)

• Medical Grade

• Used in imaging equipment where non-magnetic

inductors are required

• Epoxy encapsulated for environmental protection

and superior strength to withstand all types of

reflow soldering

• Laser marking is standard

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter:

480

16 mm

44 mm

13 in.

0.860/0.880

(21.84/22.35)

OVER TERMINAL

0.150 (3.81)

REF

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

An Af f ili ate of G ow an da Hol di n gs , L L C

•

www. gowan da h ol di n gs. com

071214
