SK16FL
Elektronische Bauelemente
Voltage 60V
Low VF & Low IR
1.0 Amp Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
High Current Capability
Extremely Low Thermal Resistance
For Surface Mount Application
Low Forward Voltage
SOD-123FL
A
B
F
MECHANICAL DATA
Case: Molded Plastic
Epoxy: UL 94V-0 Rate Flame Retardant
Lead: Solderable per MIL-STD-202, method 208 guaranteed
Polarity: Color Band Denotes Cathode End
G
C
E
D
MARKING
REF.
K6
T6
Millimeter
Min.
Max.
2.60
1.60
0.81
3.50
3.10
2.00
1.55
3.90
REF.
E
F
G
Millimeter
Min.
Max.
0.10
0.80
0.35
0.30
1.35
0.85
A
B
C
D
PACKAGE INFORMATION
Package
SOD-123FL
MPQ
3K
Leader Size
7 inch
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C unless otherwise specified)
Parameter
Maximum Recurrent Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current @ T
J
=25°C
Peak Forward Surge Current @8.3ms single half
sine-wave superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage @ I
F
=1A
Maximum DC Reverse Current @V
R
=60V, T
J
=25°C
Typical Junction Capacitance
1
Typical Thermal Resistance
Typical Thermal Resistance
2
Operating Temperature Range
Storage Temperature Range
Notes：
1. Measured @ f=1.0MHz, V
R
=10V
2. FR-4 PCB, 2oz. 0.7mm×1.2mm copper pad.
Symbol
V
RRM
V
DC
I
F
I
FSM
V
F
I
R
C
J
R
JL
R
JA
T
J
T
STG
Rating
60
60
1
40
0.55
50
60
20
310
-50~125
-50~150
Unit
V
V
A
A
V
μA
pF
°C / W
°C / W
°C
°C
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
26-Dec-2013 Rev. C
Page 1 of 2
SK16FL
Elektronische Bauelemente
Voltage 60V
Low VF & Low IR
1.0 Amp Schottky Barrier Rectifiers

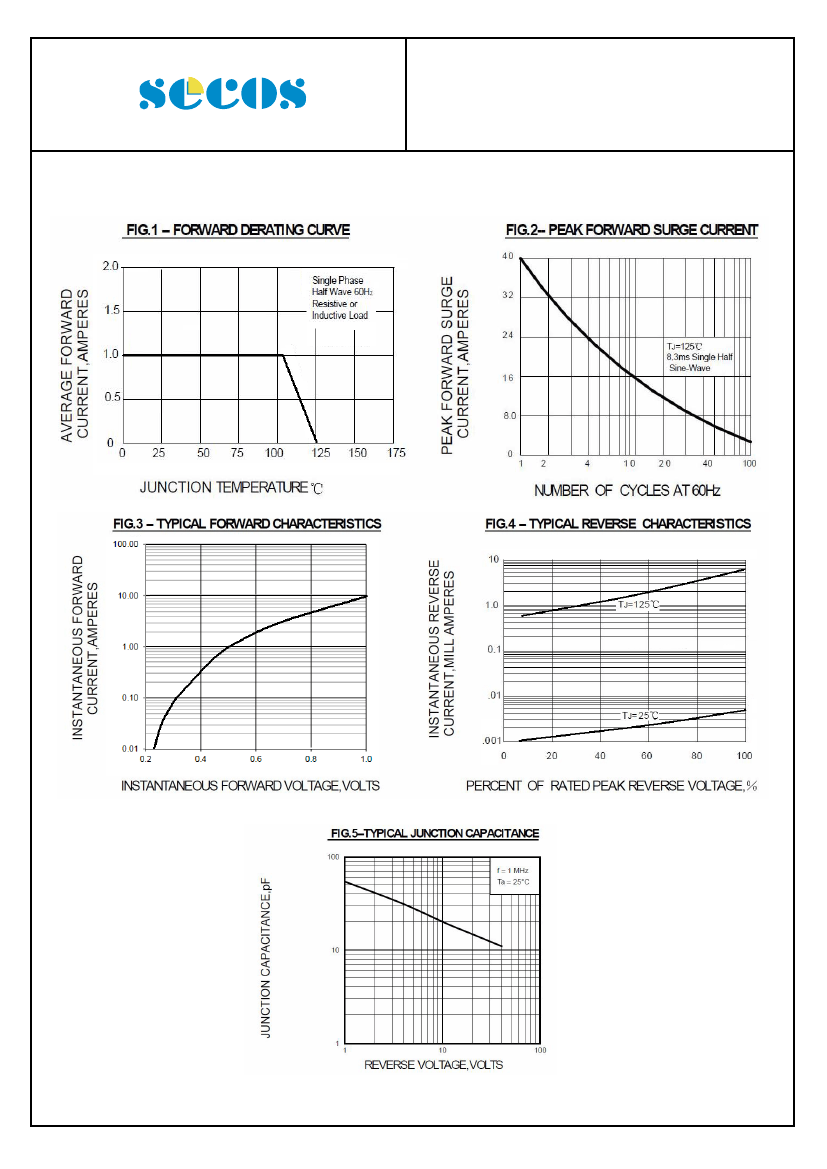

CHARACTERISTIC CURVES
