SK34CL
Elektronische Bauelemente
Voltage 40V 3.0 Amp
Low VF & Low IR Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
SMC
Ideal for surface mount applications
Easy pick and place
Built-in strain relief
Super Low V
F
& Low I
R
B
A
C
MECHANICAL DATA
Case：Molded Plastic
Epoxy：UL 94V-0 Rate Flame Retardant
Metallurgically bonded construction
Polarity：Color Band Denotes Cathode End
Mounting Position: Any
H
D
G
E
F
PACKAGE INFORMATION
Package
SMC
MPQ
3K
Leader Size
13 inch
REF.
A
B
C
D
Millimeter
Min.
Max.
2.75
3.15
6.60
7.11
5.59
6.22
2.00
2.62
REF.
E
F
G
H
Millimeter
Min.
Max.
-
0.203
7.75
8.13
0.76
1.27
0.15
0.31
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Parameter
Peak Repetitive Peak reverse voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage

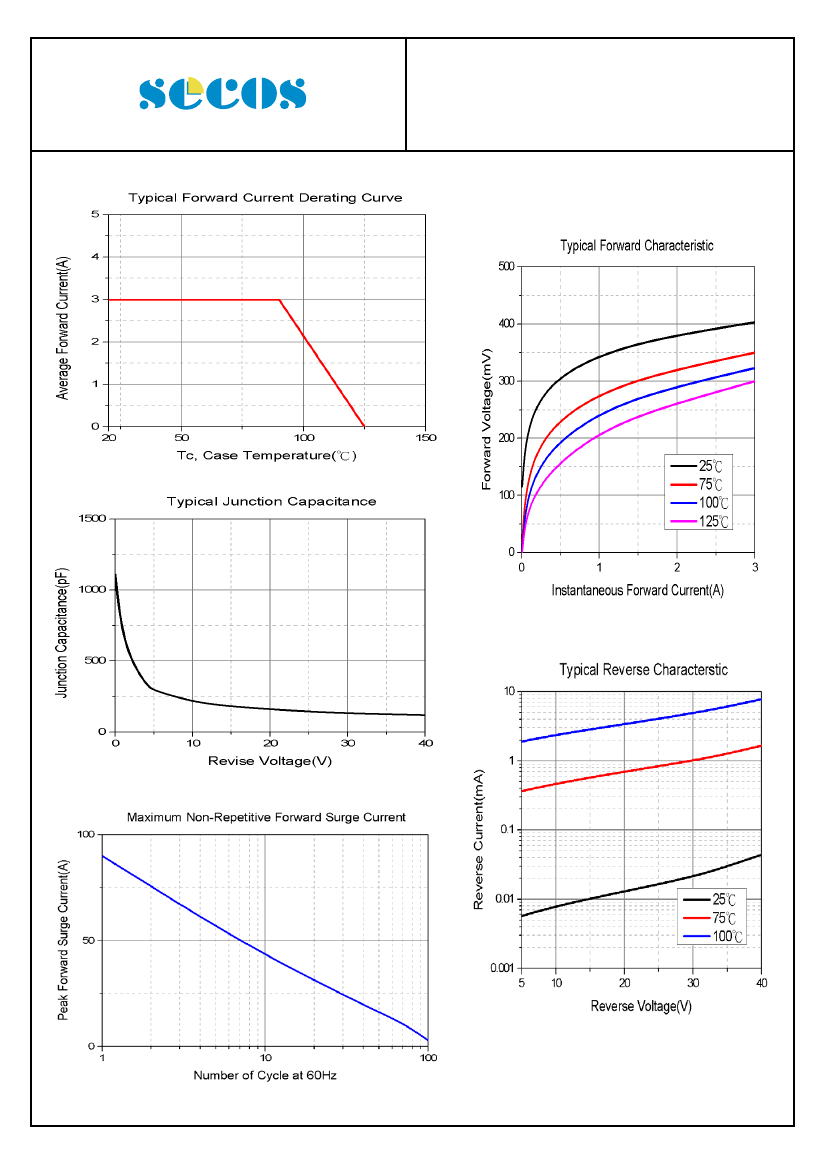

Maximum Average Forward Current, See Fig. 1
Peak Forward Surge Current @ 8.3 ms Half
Sine-Wave superimposed on rated load (JEDEC
method)
Maximum Instantaneous Forward Voltage @ I
F
= 3A
Maximum DC Reverse Current
At Rated DC Blocking Voltage
3
Voltage Rate of Chance (Rated VR)
Typical Thermal Resistance
1
Typical Thermal Resistance
2
Operating Temperature Range
Storage temperature
Notes:
1. Thermal Resistance Junction to Lead.
2. Thermal Resistance Junction to Case
3. Pulse test: 300μs pulse width, 1% duty cycle.
http://www.SeCoSGmbH.com/
Symbol
V
RRM
V
RWM
V
DC
I
F
I
FSM
V
F
I
R
dv/dt
R
θJL
R
θJC
T
J
T
STG
Rating
40
40
40
3
90
0.42
0.5
5
10000
20
25
-25~125
-55~150
Unit
V
V
V
A
V
mA
V /
μS
°C / W
°C / W
°C
°C
T
A
= 25°C
T
A
= 80°C
Any changes of specification will not be informed individually.
04-Nov-2013 Rev.D
Page 1 of 2
