Data Sheet
Features
•
•
•
•
•
•
•
For GSM/EDGE applications
Usable bandwidth 400 KHz
Low loss
Single-ended and differential operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856444
125 MHz SAW Filter
•
Package
Surface Mount 9.10 x 4.80 x 1.24 mm
SMP–35C

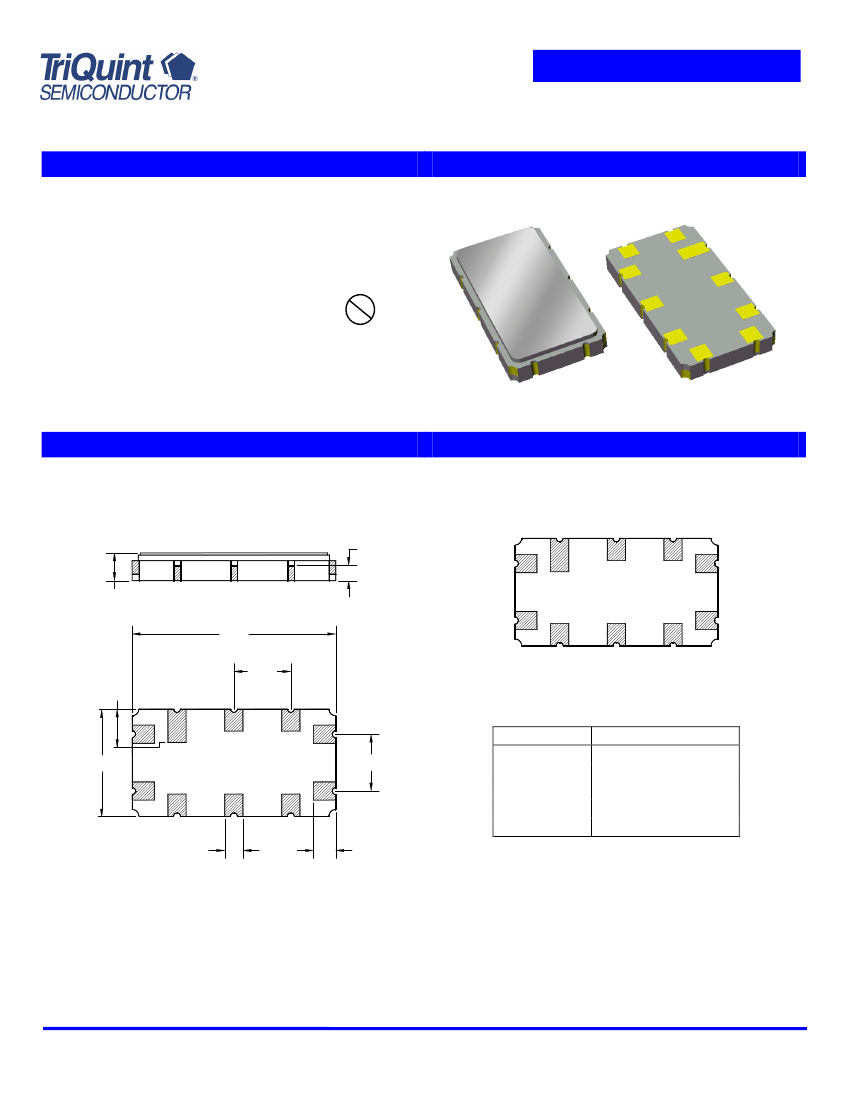

Pin Configuration
Bottom View
1
0.69
2
3
4
10
1.24 NOM.
1.35 MAX.
9.10
9
8
2.54
5
7
6
1.50
4.80
2.54
Pin No.
10
9
5
4
1,2,3,6,7,8
Description
Input
Input Return
Output
Output Return
Case Ground
0.80
1.00
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width +0.10mm/-0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
12/07
© TriQuint Semiconductor
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-10 to +85
o
C
Part Number 856444
125 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Insertion Loss at Fo
1 dB Lower Frequency
1 dB Upper Frequency
8 dB Lower Frequency
8 dB Upper Frequency
20 dB Lower Frequency
20 dB Upper Frequency
Amplitude Variation
124.8 - 125.2 MHz
Passband Ripple
Group Delay Variation
124.8 - 125.2 MHz
124.9 - 125.1 MHz
Absolute Delay
124.8 - 125.2 MHz
Absolute Attenuation
10.0 - 112.0 MHz
112.0 - 115.5 MHz
115.5 - 119.0 MHz
119.0 - 121.6 MHz
121.6 - 123.2 MHz
123.2 - 123.8 MHz
126.2 - 126.8 MHz
126.8 - 128.4 MHz
128.4 - 131.0 MHz
131.0 - 134.5 MHz
134.5 - 138.0 MHz
138.0 - 450.0 MHz
Input/Output VSWR
124.8 - 125.2 MHz
Source Impedance
(5)
Load Impedance
(5)
Notes:
1.
2.
3.
4.
5.
Minimum
-
4
-
125.2
124.4
-
123.8
-
-
-
-
-
0.7
55
43
40
34
25
20
20
25
34
40
43
55
-
-
-
Typical
(4)
125
5.9
124.73
125.26
124.43
125.55
124.12
125.88
0.55
0.01
68
37
0.93
70
65
59
45
37
33
33
37
45
59
68
58
1.3
50
50
Maximum
-
7
124.8
-
-
125.6
-
126.2
1.0
0.2
300
100
1.7
-
-
-
-
-
-
-
-
-
-
-
-
2.3
-
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
dB p-p
dB
nsec
nsec
µsec
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
-
Ω
Ω
All specifications are based on the test circuit shown on page 4
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Typical values are based on average measurements at room temperature
This is the optimum impedance in order to achieve the performance shown
Subject to change or obsolescence without notice
Rev A
12/07
© TriQuint Semiconductor
Page 2 of 5
Data Sheet
Part Number 856444
125 MHz SAW Filter

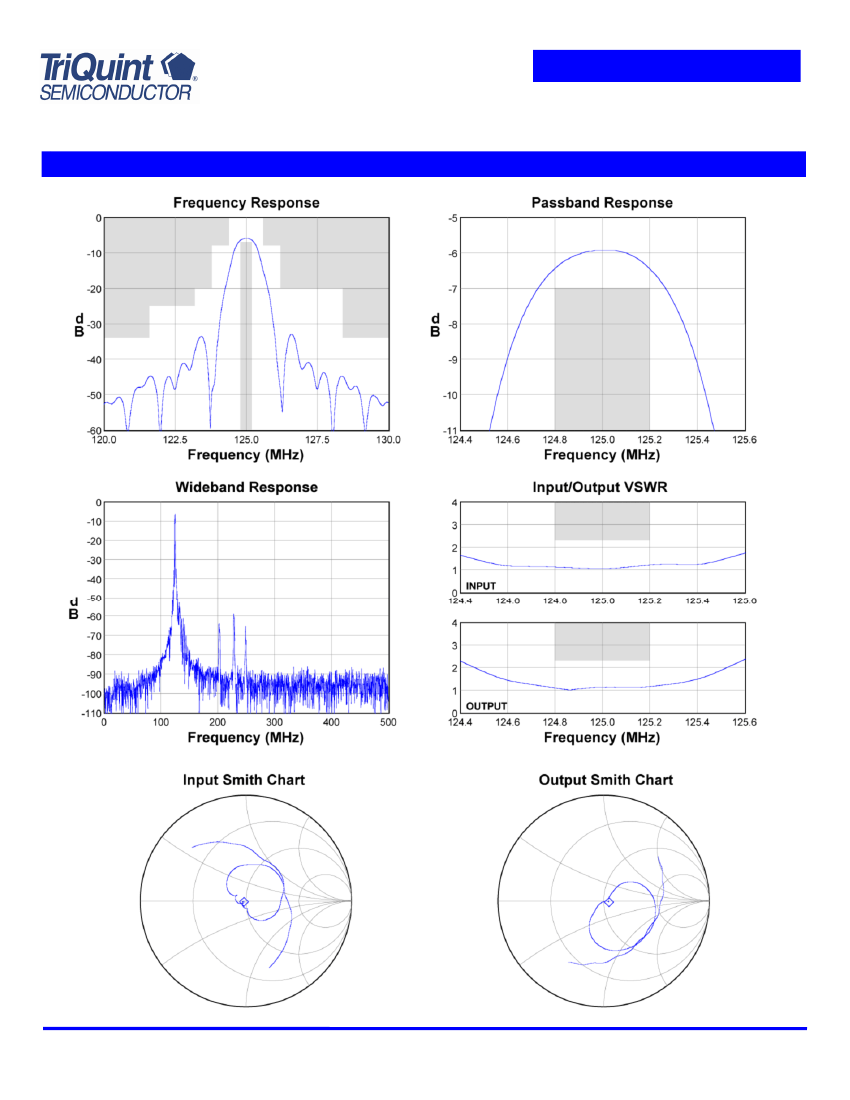

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev A
12/07
© TriQuint Semiconductor
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
144nH
10
5
109nH
Part Number 856444
125 MHz SAW Filter

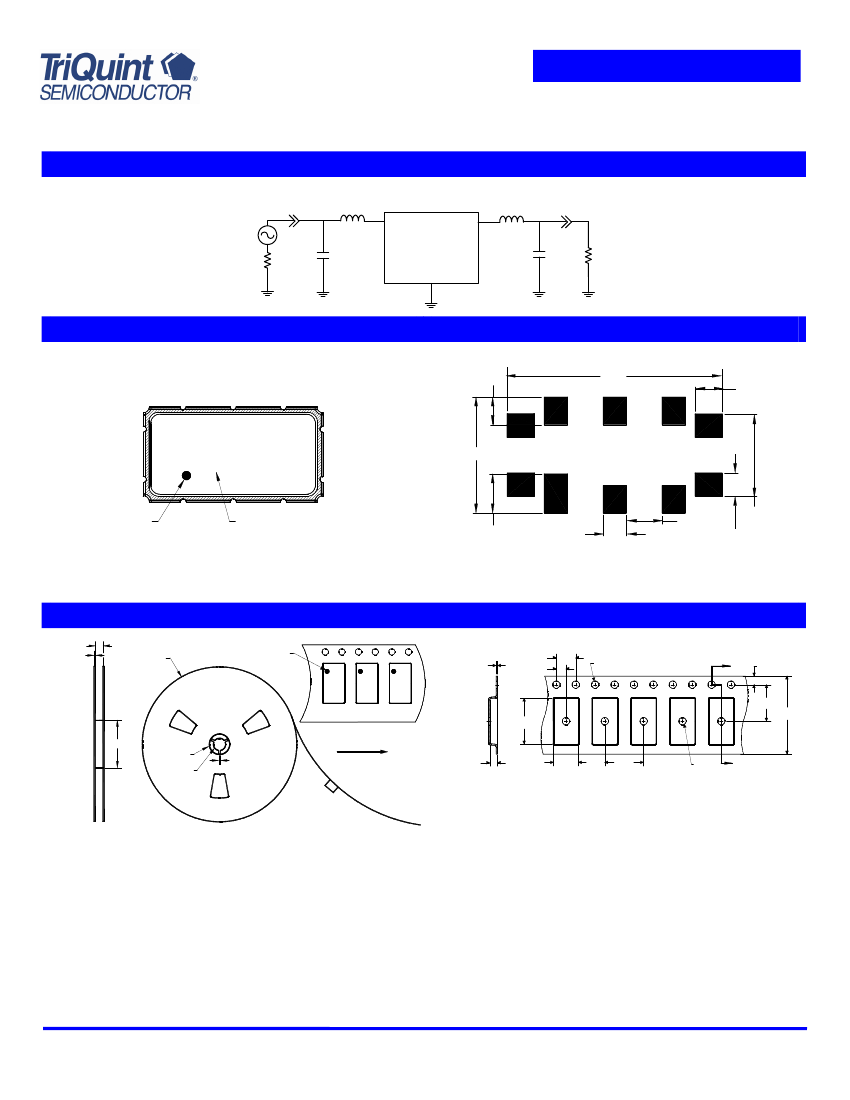

Matching Schematics
50
Ω
Single-ended
Input
50
Ω
56pF
1,2,3,4,
6,7,8,9
56pF
50
Ω
50
Ω
Single-ended
Output
Marking
1.19
PCB Footprint
9.29
1.19
SAWTEK
856444
XXXXXX
ID Dot
Date Code
5.00
1.53
1.70
1.01
3.55
1.01
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
16.8
2.7
Ø330
ID dot
0.3
4.0
2.0
Ø1.5
A
1.75
7.5
9.4
Ø102
Ø20.2
Ø13.0
16.0
2.0
Direction of travel
1.6
Section A-A
5.1
8.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 2000 units/reel
Subject to change or obsolescence without notice
Rev A
12/07
© TriQuint Semiconductor
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Input Power
Part Number 856444
125 MHz SAW Filter
Symbol
T
T
stg
P
in
Minimum
-10
-40
-
Maximum
+85
+125
10
Unit
C
C
dBm
o
o
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev A
12/07
© TriQuint Semiconductor
Page 5 of 5
