All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
All attenuation measurements will be referenced to minimum insertion loss
Total variation measured over the defined frequency range
The filter can be matched for single-ended or balanced operation to an impedance of 50 Ohms to 750 Ohms
Minimum
-
-
-
379
-
45
35
30
10
10
30
35
40
-
-
-
-
Typical
374
9
366.5
381.5
18
50
45
40
20
24
40
45
50
0.6
20
200
200
Maximum
-
10.5
369
-
-
-
-
-
-
-
-
-
-
1.0
75
-
-
Unit
MHz
dB
MHz
MHz
MHz
dB
dB
dB
dB
dB
dB
dB
dB
dB
nsec
Ω
Ω
Test Circuit:
27nH
2
6
7pF
3
1,4,5,8
7
33nH
200Ω
33nH
200Ω
Balanced
Input
200Ω
7pF
27nH
200Ω
Balanced
Output
Subject to change or obsolescence without notice
Rev -
22-Apr-2005
Page 2 of 5
Preliminary Data Sheet
Part Number 856466
374 MHz SAW Filter

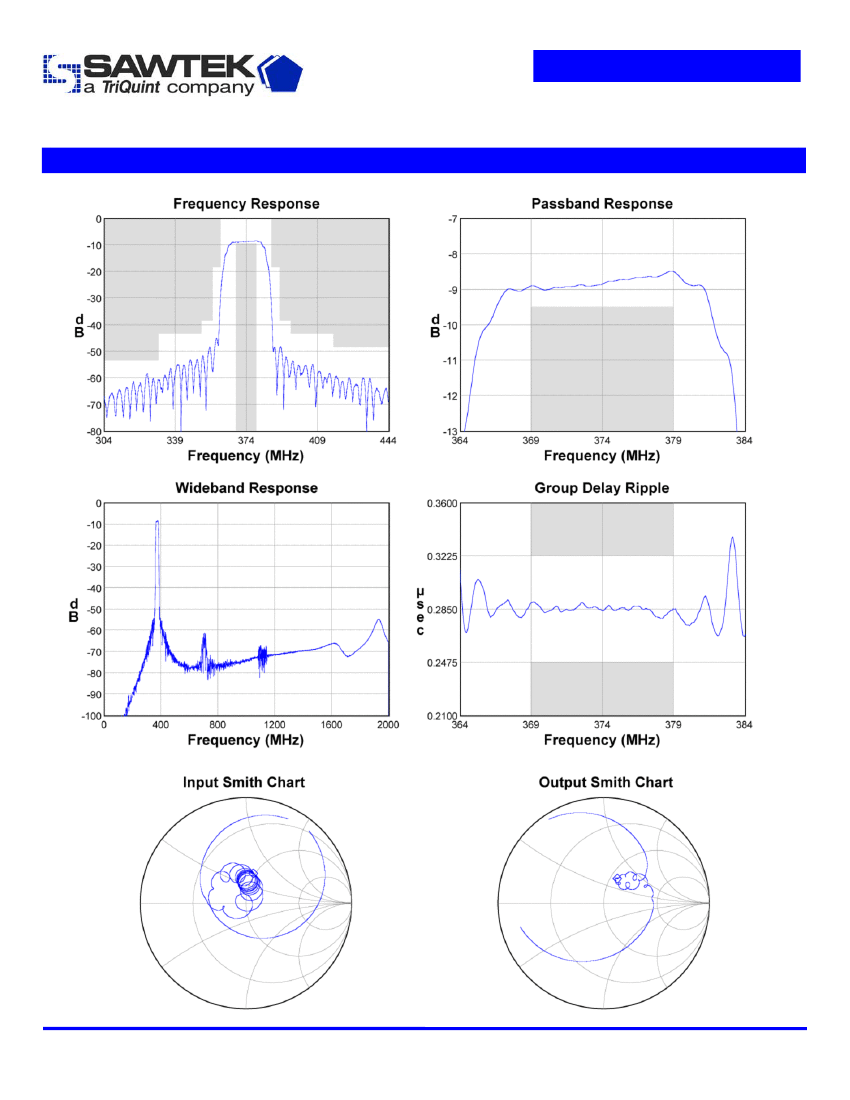

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
22-Apr-2005
Page 3 of 5
Preliminary Data Sheet
Actual matching values may vary due to PCB layout and parasitics
27nH
2
6
33nH
Part Number 856466
374 MHz SAW Filter
Matching Schematics
200Ω
Balanced
Input
200Ω
7pF
27nH
3
1,4,5,8
7
33nH
7pF
200Ω
200Ω
Balanced
Output
Marking
Marking
code
PCB Footprint
1.70
4.01
1.19
Sawtek
logo
.81
.41
3
JJJYM
ID dot
Date code
.46
.81
1.19
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
5.5
4.1
1.8
Section A-A
4.1
8.0
Ø1.5
A
Sawtek
logo
Ø102
Ø20.2
Ø13.0
12.0
2.0
Direction of travel
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev -
22-Apr-2005
Page 4 of 5
Preliminary Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Input Power
(10,000 hrs, 374 MHz, CW)
Part Number 856466
374 MHz SAW Filter
Symbol
T
T
stg
P
in
Minimum
-40
-40
-
Maximum
+85
+85
+10
Unit
C
C
dBm
o
o
Warnings
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Material Content
Does not contain lead (Pb) or other RoHS restricted materials
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
