153.6 MHz SAW Filter
Applications
General Purpose
Broadband Wireless Applications
For IF applications
Product Features
Usable bandwidth 32 MHz
Low loss
High Attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small Size
Dimensions: 13.30 x 6.50 x 1.5mm
Hermetic
RoHS
compliant,
Pb-free

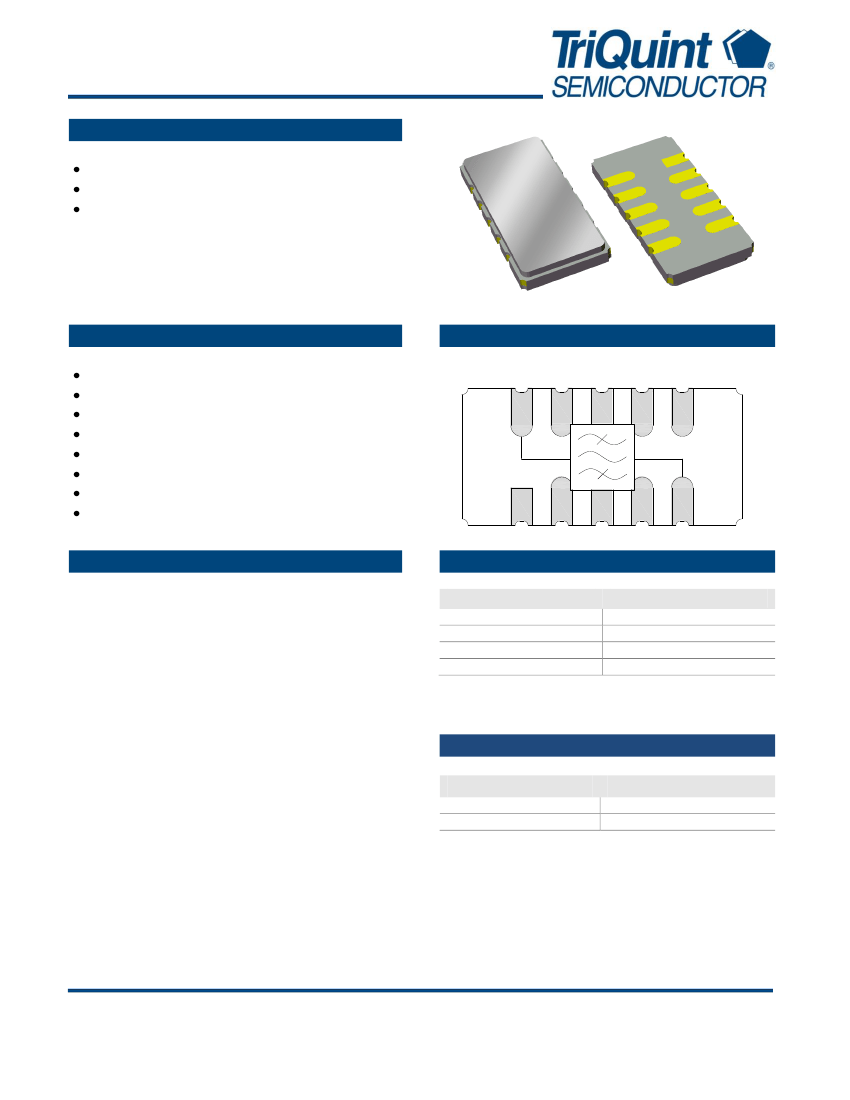

Functional Block Diagram
Top view
10
9
8
7
6
1
2
3
4
5
General Description
The 856517 is a high-performance IF SAW filter with a
center frequency of 153.6 MHz and a usable bandwidth of
32 MHz. It is suitable for a wide variety of applications,
including broadband wireless data transceivers.
It features low loss with excellent attenuation, and is
designed to be used with a single ended input and output.
The device is RoHS compliant and Pb-free.
Pin Configuration
Pin # SE
10
5
1,6
2,3,4,7,8,9
Description
Input
Output
Ground
Case Ground
Ordering Information
Part No.
856517
856517-EVB
Description
packaged part
evaluation board
Standard T/R size = 2000 units/reel.
Data Sheet: Rev B 1/19/12
© 2012TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856517
153.6 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-40 to +85 ºC
Parameter
(3)
Conditions
at 153.6 MHz
Min
-
-
-
169.6
-
-
-
-
-
40
35
40
30
8
9
-
-
Typical
(4)
153.6
13
136.1
171.1
0.7
5
1
0.7
50
52
55
45
40
10
11
50
50
Max
-
15
136.7
-
1.2
12
2.5
0.8
100
-
-
-
-
-
-
-
-
Units
MHz
dB
MHz
MHz
dB p-p
deg p-p
deg p-p
µs
ns p-p
dB
dB
dB
dB
dB
dB
Center Frequency
Insertion Loss
1.0 dB Lower Frequency
(7)
1.0 dB Upper Frequency
(7)
Amplitude Variation
(5)
Phase Ripple (p-p)
Phase Ripple (RMS)
Absolute Group Delay at 153.6 MHz
Group Delay Variation
Stopband Attenuation
(7)
Input Return Loss
(6)
Output Return Loss
(6)
Source Impedance (single-ended)
(8)
Load Impedance (single-ended)
(8)
137.6 – 169.6 MHz
137.6 – 169.6 MHz
137.6 – 169.6 MHz
137.6 – 169.6 MHz
137.6 – 169.6 MHz
70 – 125 MHz
275 – 350 MHz
400 – 1000 MHz
1000 – 2000 MHz
137.6 – 169.6 MHz
137.6 – 169.6 MHz
-
-
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Is defined as the difference between the lowest loss and the highest loss within defined frequency points
6. An external impedance matching network +/- 2% tolerance will be necessary to achieve proposed return loss
7. Relative to Insertion loss at center frequency
8. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
(9)
Rating
-40 to +85
o
C
-40 to +85
o
C
9. Device may operate over this range with degraded Electrical Specifications
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev B 1/19/12
© 2012TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856517
153.6 MHz SAW Filter

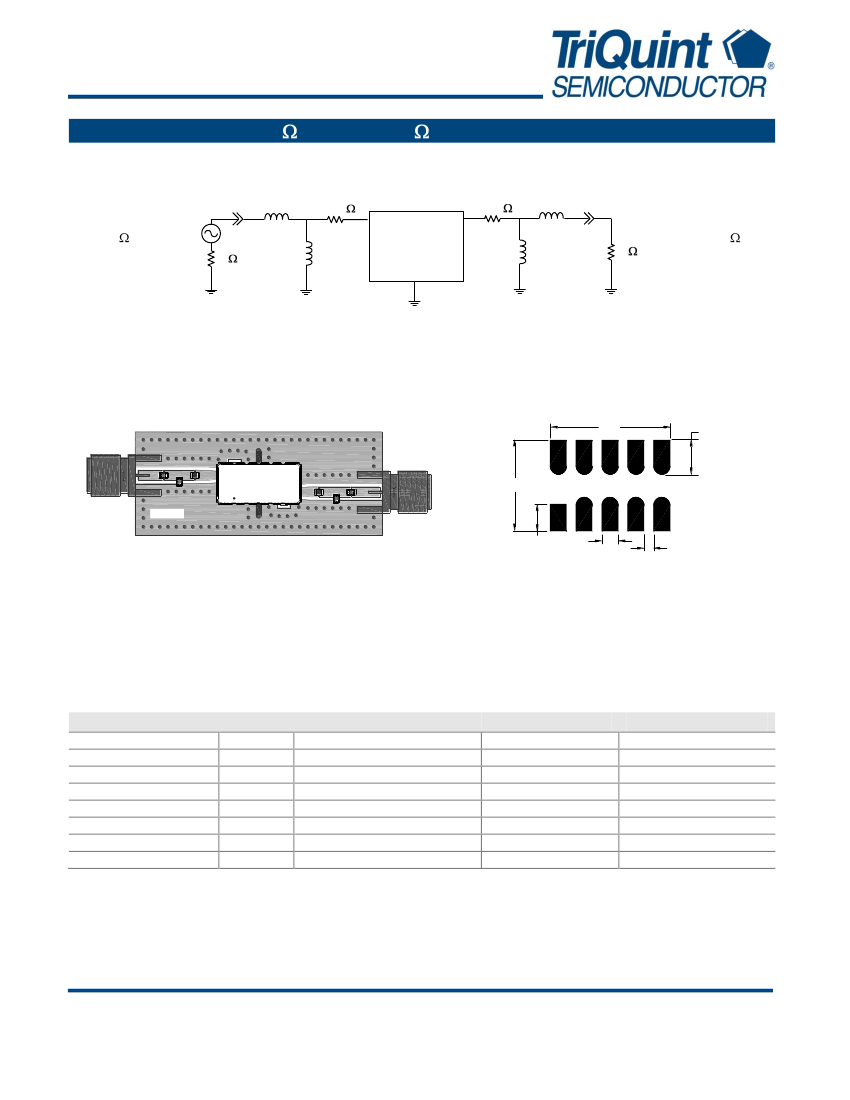

Reference Design – 50
Schematic
56nH
2.2
10
5
33nH
50
2.2
39nH
SE Input, 50
SE Output
50
Single-ended
Input
50
68nH
1,2,3,4,
6,7,8,9
50
Single-ended
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitics
PC Board
Mounting Configuration
8.86
2.51
L1
L2
R1
SAWTEK
856517
JJJYHH
R2
L3
L4
6.70
960656
2.00
1.22
.69
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
L3
L4
R1
R2
SMA
PCB
Value
56nH
68nH
33nH
39nH
2.2 Ohms
2.2 Ohms
N/A
N/A
Description
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
SMA connector
3-layer
Manufacturer
CoillCraft
CoillCraft
CoillCraft
CoillCraft
Skywell
Skywell
Radiall USA Inc.
multiple
Part Number
0603CS-560XJBC
0603CS-680XJBC
0603CS-330XJBC
0603CS-390XJBC
RC03J2R2G
RC03J2R2G
9602-1111-018
960740
Data Sheet: Rev B 1/19/12
© 2012TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856517
153.6 MHz SAW Filter

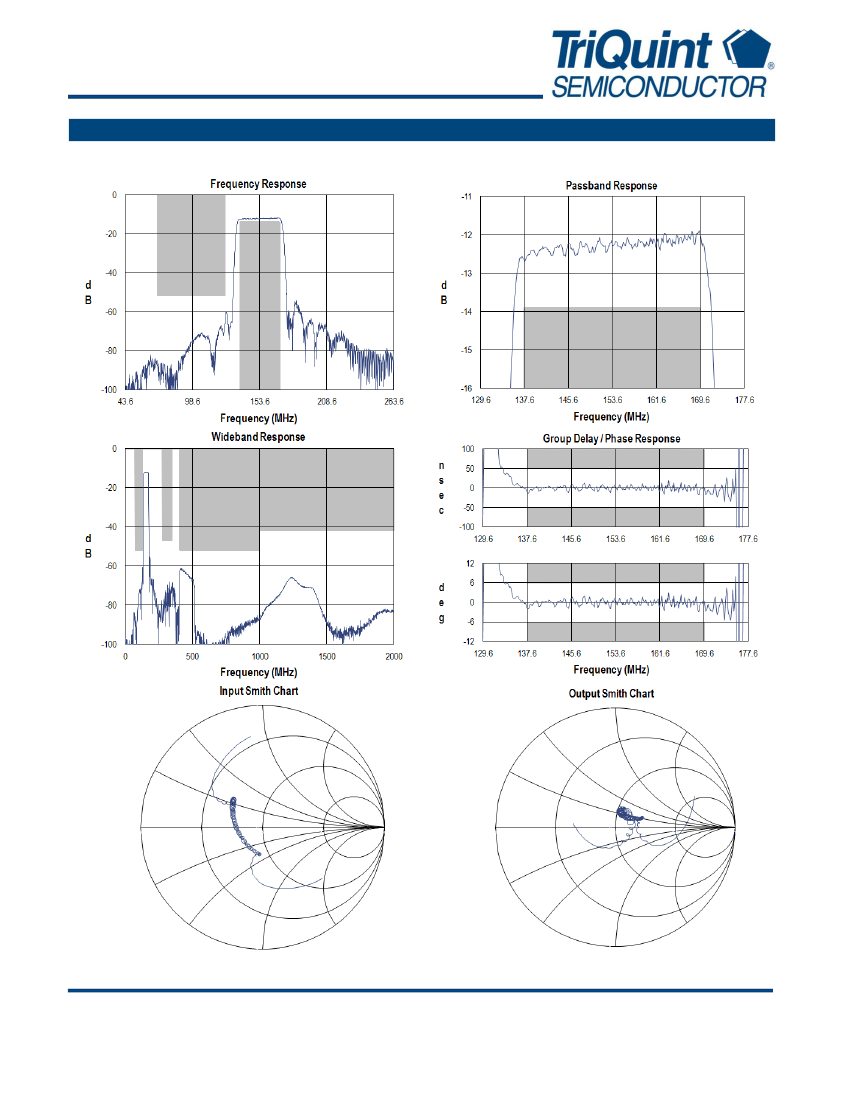

Typical Performance
(at room temperature)
Data Sheet: Rev B 1/19/12
© 2012TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856517
153.6 MHz SAW Filter

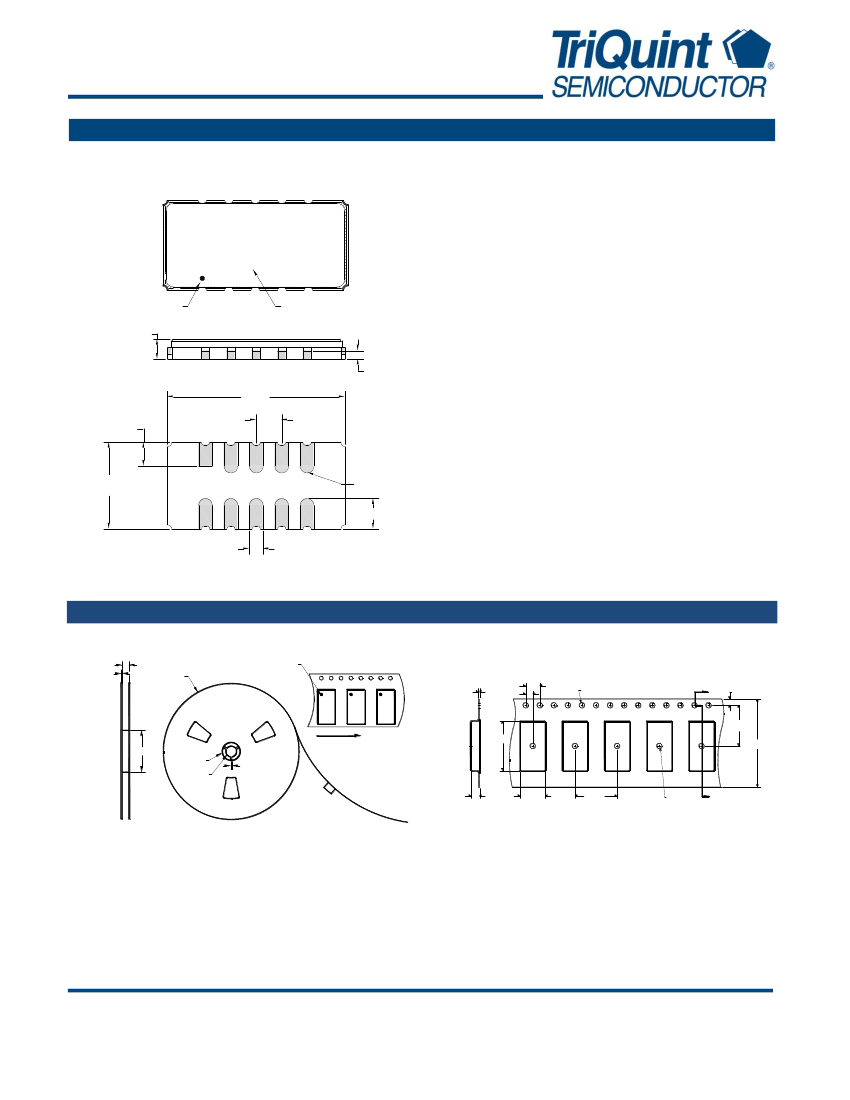

Mechanical Information
Package Information, Dimensions and Marking
SAWTEK
856517
JJJYHH
Package Style: SMP-53C
Dimensions: 13.3 x 6.50 x 1.50 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
ID Dot
Date Code
1.50 NOM.
1.65 MAX.
0.64
13.3
1.80
1.91
6.50
R0.51
2.31
1.02
Tape and Reel Information
Standard T/R size = 2000 units/reel. All dimensions are in millimeters
24.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
11.5
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
13.9
24
2.3
Section A-A
7.1
12.0
Ø1.5
A
Data Sheet: Rev B 1/19/12
© 2012TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
