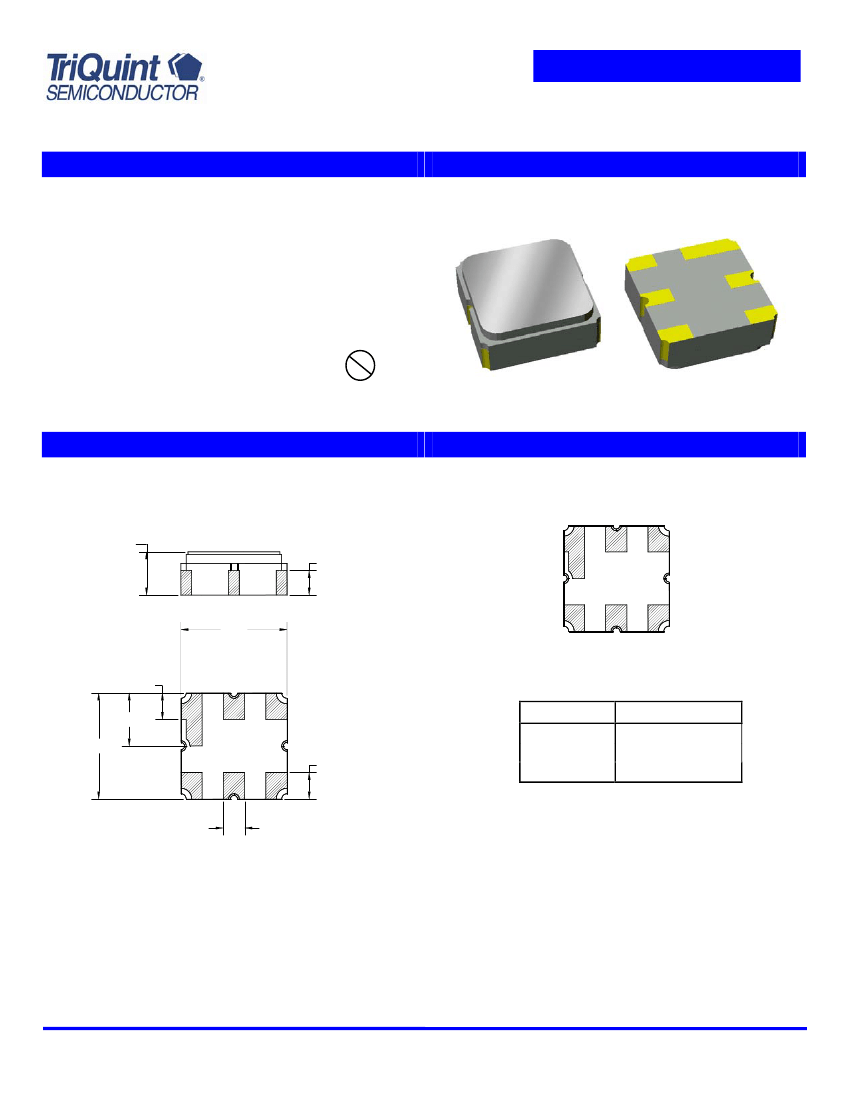

Data Sheet
Features
•
•
•
•
•
•
•
•
•
For wireless applications
Usable bandwidth 60 MHz
Low loss
High attenuation
No impedance matching required for operation
at 50
Ω
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856530
1880 MHz SAW Filter
•
Package
Surface Mount 3.00 x 3.00 x 1.22 mm
Pin Configuration
Bottom View
1
2
3
1.22 NOM.
1.32 MAX.
0.69
3.00
6
5
4
0.75
1.50
3.00
0.75
Pin No.
2
5
1,3,4,6
Description
Input
Output
Case ground
0.60
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
© 8-06 TriQuint Semiconductor, Inc.
Page 1 of 6
Data Sheet
Operating Temperature Range:
(2)
-20 to +75
o
C
Part Number 856530
1880 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Maximum Insertion Loss
1850 - 1910 MHz
Amplitude Variation
1850 - 1910 MHz
Absolute Attenuation
500 - 1750 MHz
1750 - 1820 MHz
1930 - 1935 MHz
1935 - 1990 MHz
2032 - 2125 MHz
Source Impedance
(4)
Load Impedance
(4)
Notes:
1.
2.
3.
4.
Minimum
-
-
-
30
20
30
35
35
-
-
Typical
1880
2.8
1.0
34
23
51
42
41
50
50
Maximum
-
4.75
2.65
-
-
-
-
-
-
-
Unit
MHz
dB
dB p-p
dB
dB
dB
dB
dB
Ω
Ω
All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
No impedance matching
required
Subject to change or obsolescence without notice
Rev -
© 8-06 TriQuint Semiconductor, Inc.
Page 2 of 6
Data Sheet
Operating Temperature Range:
(2)
+25
o
C
±
2
o
C
Part Number 856530
1880 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Maximum Insertion Loss
1850 - 1910 MHz
Amplitude Variation
1850 - 1910 MHz
Absolute Attenuation
500 - 1750 MHz
1750 - 1820 MHz
1930 - 1935 MHz
1935 - 1990 MHz
2032 - 2125 MHz
Source Impedance
(4)
Load Impedance
(4)
Notes:
1.
2.
3.
4.
Minimum
-
-
-
30
20
45
35
35
-
-
Typical
1880
2.8
1.0
32
23
50
40
41
50
50
Maximum
-
3.6
2.1
-
-
-
-
-
-
-
Unit
MHz
dB
dB p-p
dB
dB
dB
dB
dB
Ω
Ω
All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
No impedance matching
required
Subject to change or obsolescence without notice
Rev -
© 8-06 TriQuint Semiconductor, Inc.
Page 3 of 6
Data Sheet
Part Number 856530
1880 MHz SAW Filter

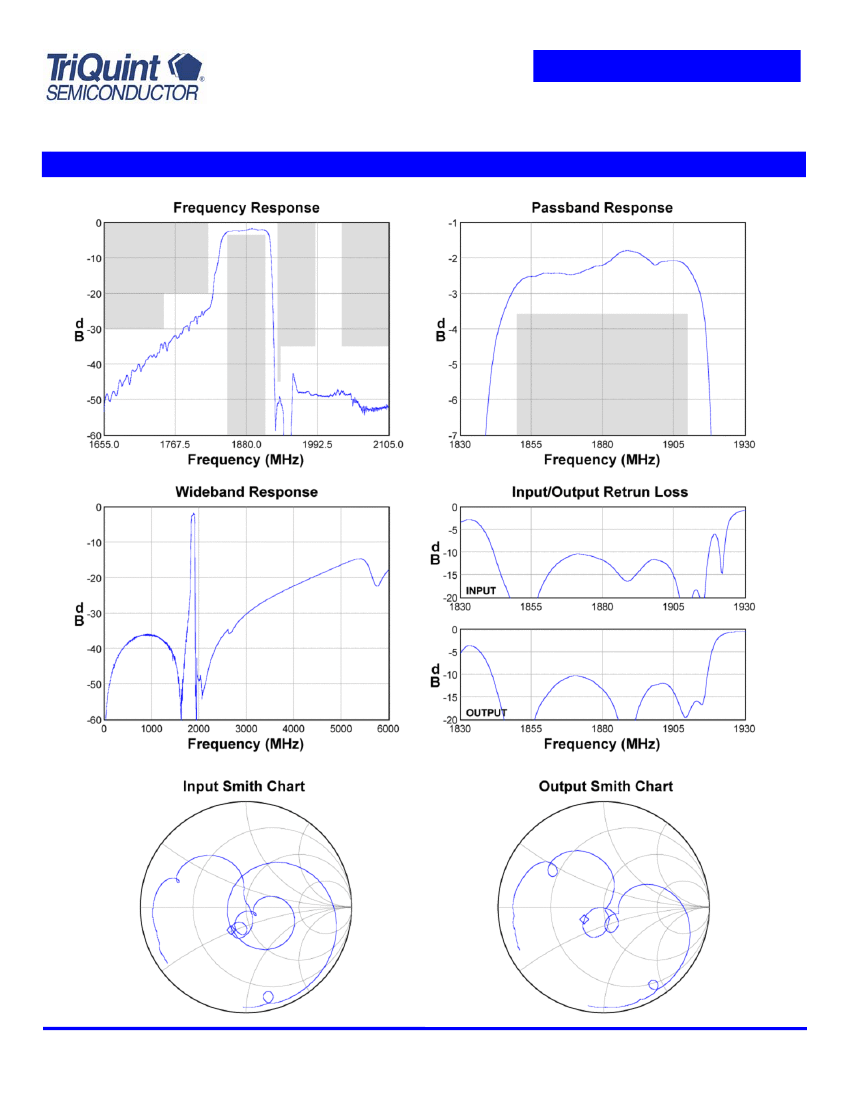

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
© 8-06 TriQuint Semiconductor, Inc.
Page 4 of 6
Data Sheet
Part Number 856530
1880 MHz SAW Filter

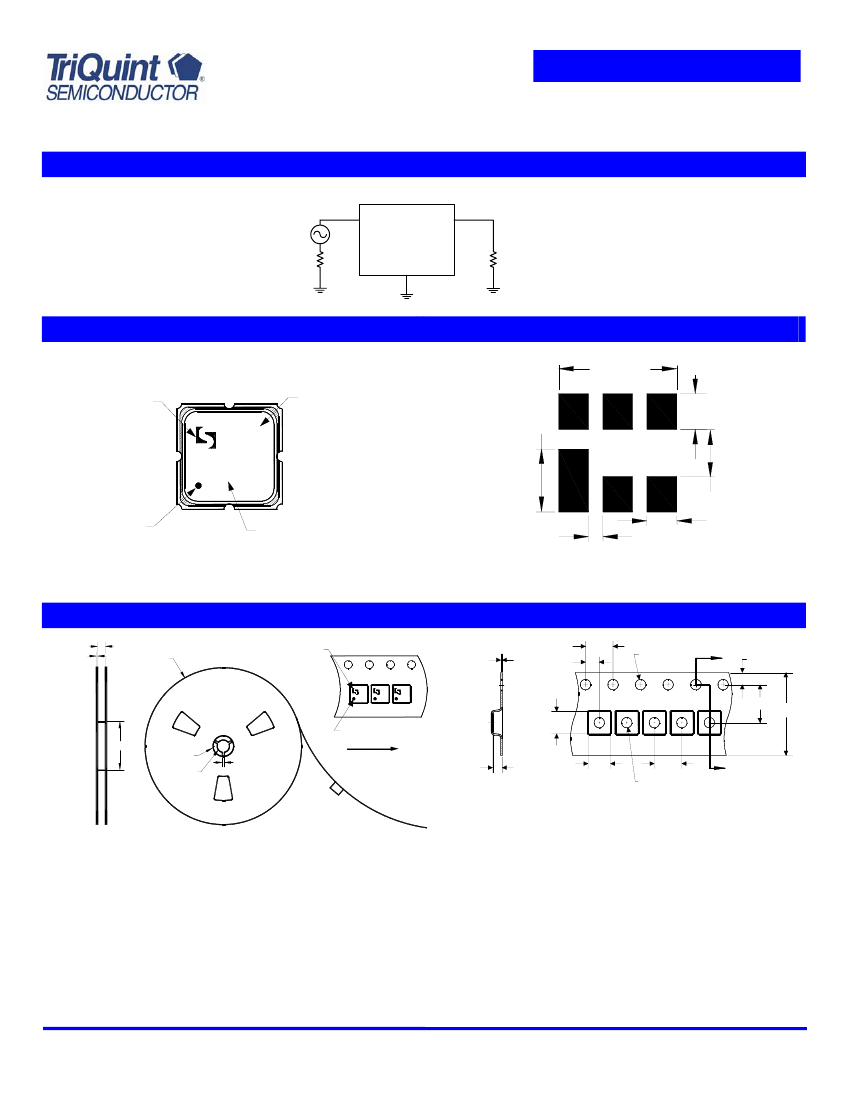

Matching Schematics
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
No impedance matching
required
Marking
Sawtek
logo
Marking
code
PCB Footprint
3.20 SQ
.96
CF
JJJYM
1.70
1.27
ID dot
Date code
.81
.38
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
Sawtek
logo
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
ID dot
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
12.0
3.25
1.4
Section A-A
3.25
4.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev -
© 8-06 TriQuint Semiconductor, Inc.
Page 5 of 6
