Data Sheet
Features
•
•
•
•
•
•
•
•
•
For GPS applications
Usable bandwidth of 2 MHz
Compatible with leading chipset suppliers
Low loss
Single-ended input, 50
Balanced output, 100
Ceramic Chip Scale Package (CSP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 856576
1575.5 MHz SAW Filter
•
Package
Surface Mount 1.40 x 1.20 x 0.46 mm
CSP5BT

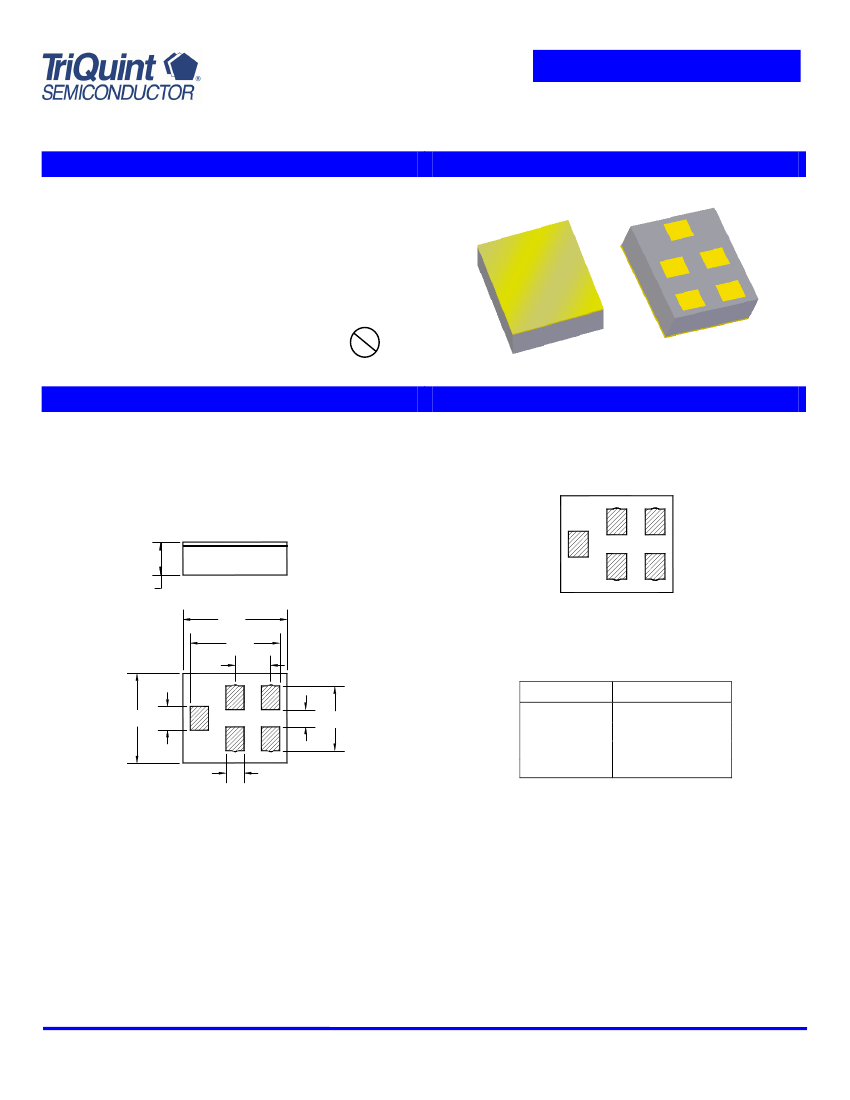

Pin Configuration
Bottom View
2
3
1
0.46 NOM.
0.50 MAX.
5
1.40
1.25
0.50
4
1.20 0.325
0.25
0.90
0.25
SE - Balanced Configuration
Pin No.
Description
1
Input
3
Output +
4
Output -
2,5
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev D
07/08
© TriQuint Semiconductor, Inc.
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
o
C
Part Number 856576
1575.5 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Insertion Loss
1574.42 - 1576.42 MHz
Absolute Attenuation
0 - 960 MHz
1495 - 1515 MHz
1610 - 1625 MHz
1635 - 1655 MHz
1710 - 1785 MHz
1850 - 1910 MHz
1920 - 1980 MHz
2402 - 2480 MHz
2480 - 6000 MHz
Output Amplitude Balance (|S
31
/S
21
|)
1574.42 - 1576.42 MHz
Output Phase Balance [Φ(S
31
)-ΦS
21
+180]
1574.42 - 1576.42 MHz
Amplitude Ripple
1574.42 - 1576.42 MHz
Input/Output VSWR
1574.42 - 1576.42 MHz
Source Impedance
(5)
Load Impedance
(5)
Notes:
1.
2.
3.
4.
5.
Minimum
-
-
40
25
6.5
20
32
40
40
35
37
-1
-5
-
-
-
-
Typical
(4)
1575.42
1.1
46
35
11
22
36
42.5
43
45
43.5
±0.6
±3.5
0.1
1.5
50
100
Maximum
-
1.4
-
-
-
-
-
-
-
-
-
1
5
0.3
2.0
-
-
Unit
MHz
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
degree
dB
-
Ω
Ω
All specifications are based on the TriQuint test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Typical values are based on average measurements at room temperature
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
1
3
100Ω
Ω
50
Ω
Single-ended
Input
50Ω
Ω
2,5
4
100
Ω
Balanced
Output
Subject to change or obsolescence without notice
Rev D
07/08
© TriQuint Semiconductor, Inc.
Page 2 of 5
Data Sheet
Part Number 856576
1575.5 MHz SAW Filter

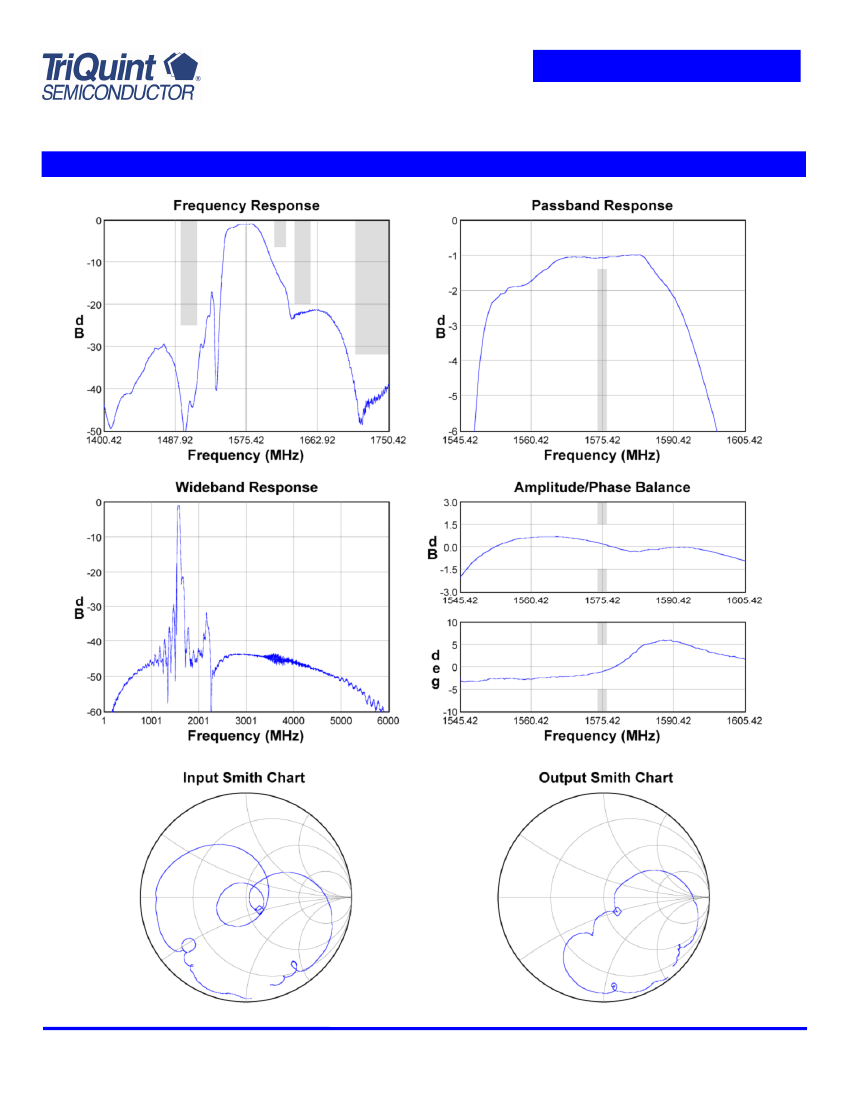

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev D
07/08
© TriQuint Semiconductor, Inc.
Page 3 of 5
Data Sheet
Part Number 856576
1575.5 MHz SAW Filter

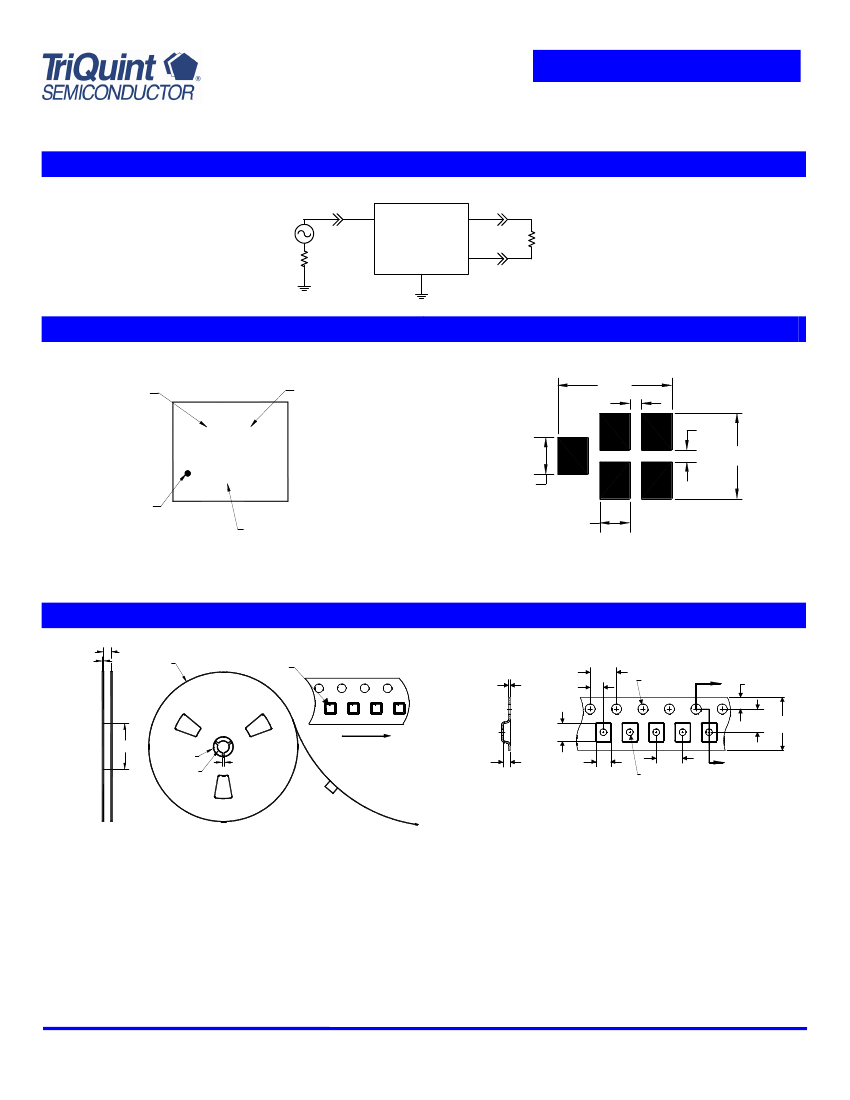

Matching Schematics
1
3
100Ω
Ω
50Ω
Ω
2,5
4
50
Ω
Single-ended
Input
100
Ω
Balanced
Output
Marking
Marking
code
MFG site
PCB Footprint
1.35
0.15
AC M
WWY
ID dot
Date code
0.15
1.00
0.425
0.35
The date code consists of: WW = 2 digit week,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
8.8
Ø330
ID dot
4.0
0.3
2.0
Ø1.5
A
1.75
1.73
Ø102
Ø20.2
Ø13.0
Direction of travel
2.0
3.5 8.0
0.91
Section A-A
1.47
4.0
Ø1.0
A
Dimensions shown are nominal in millimeters
Packaging quantity: 10000 units/reel
Subject to change or obsolescence without notice
Rev D
07/08
© TriQuint Semiconductor, Inc.
Page 4 of 5
Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856576
1575.5 MHz SAW Filter
Maximum Ratings
Symbol
T
T
stg
Minimum
-40
-40
Maximum
+85
+125
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev D
07/08
© TriQuint Semiconductor, Inc.
Page 5 of 5
