NV5032SB-62M-NSA3550A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> NV5032SB-62M-NSA3550A

Preview

NV5032SB-62M-NSA3550A: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size449KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric View All

NV5032SB-62M-NSA3550A Overview

CMOS Output Clock Oscillator,

NV5032SB-62M-NSA3550A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NDK
package instruction	DILCC6,.2,50
Reach Compliance Code	unknown
Other features	STAND-BY; ENABLE/DISABLE FUNCTION
Maximum control voltage	3.3 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	50%
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	62 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2,50
physical size	5.0mm x 3.2mm x 1.2mm
Maximum slew rate	10 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

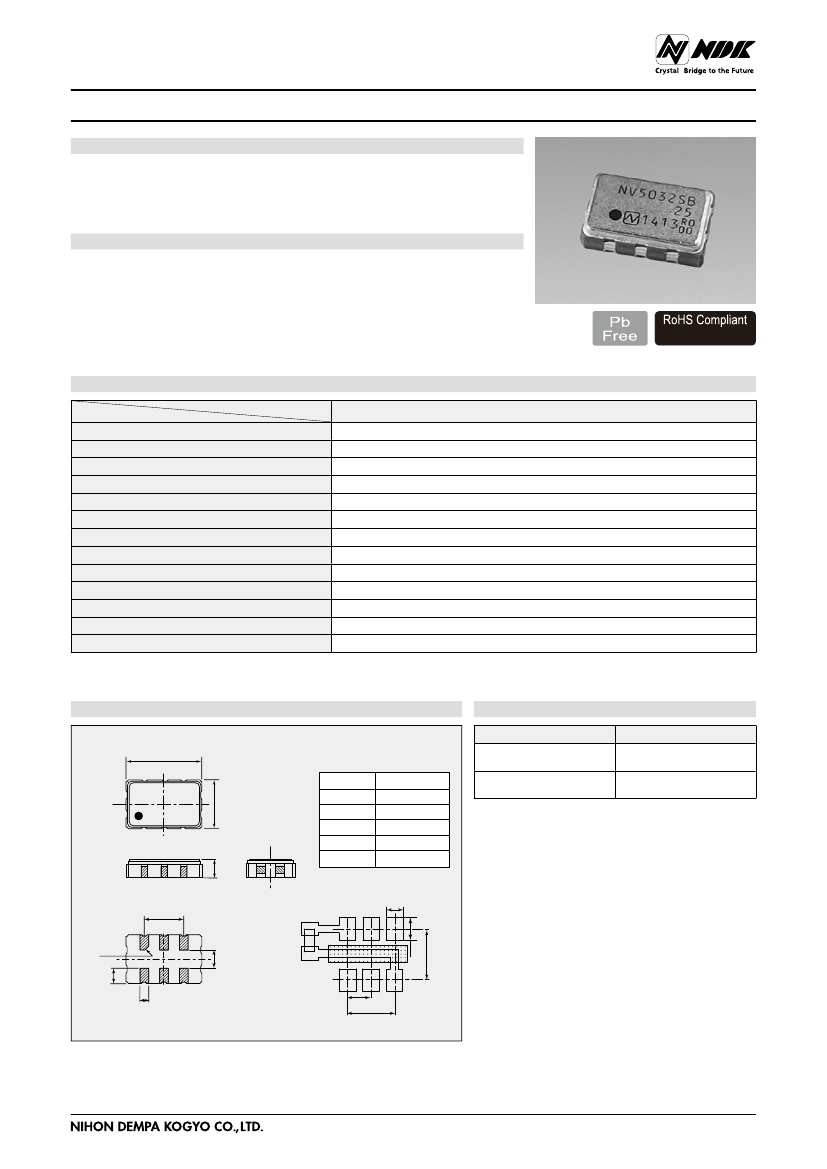

NV5032SB-62M-NSA3550A Preview

Crystal Oscillator

NV5032SB

■

Main Application

For communication equipment for ISDN, SDH/SONET, WiMAX, etc. and Base-stations

Voltage Controlled Crystal Oscillator

(VCXO)

■

Features

● A small ceramics-package.(Dimensions : 5.0×3.2mm)

● Output Specification : CMOS

● Frequency range : 1.25MHz to 62MHz

● Low current consumption : Max. 10mA

Directive 2011/65/EU

Directive (EU) 2015/863

■

Specifications

Item

Nominal Frequency Range (MHz)

Standard Frequency (MHz)

Supply Voltage [V

CC

] (V)

Current Consumption (mA)

Output Specification

Symmetry (%)

Output Load Condition (pF)

Operating Temperature Range (°C)

Storage Temperature Range (°C)

Overall Frequency Tolerance

Frequency Control Range / Control Voltage [ V

cont

]

Frequency Change Polarity

Specification Number

Model

NV5032SB

1.25 to 62

25, 30.72, 38.4, 50, 61.44

+3.3 ±10 %

Max. 10

CMOS

45 to 55 (1/2 V

CC

)

15

−40 to +85

−55 to +125

Max. ±50 × 10

−6

Min. ±100 × 10

−6

/ +1.65 ± 1.65 V

Positive

NSA3550A

■

Dimensions

mm

5.0 ± 0.2

3.2 ± 0.2

■

List of Stand-by function

Terminal land connections

#1

#2

#3

#4

#5

1.2 ± 0.2

#6

V

cont

STAND-BY

GND

OUTPUT

NC

V

CC

Input (#2)

High Level

( Min. 0.7 V

CC

) or OPEN

Low Level

( Max. 0.3 V

CC

)

Output (#4)

Output

Hi-Impedance

Land pattern (Typical)

#6

#5

0.90

#4

2.54 ± 0.2

#1

C0.30

1.0 ± 0.1

#2

#3

1.2 ± 0.2

1.40

#1

#2

1.27

2.54

#3

#6

#5 #4

0.64 ± 0.1

Cby=0.01 F

Please specify the model name, frequency, and specification number when you order products.

For further questions regarding specifications, please feel free to contact us.

1904C_NV5032SB_e

2.00

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
