856678 Overview

1 FUNCTIONS, 1950 MHz, SAW FILTER

856678 Parametric

Parameter NameAttribute value
Maximum operating temperature85 Cel
Minimum operating temperature-30 Cel
Number of functions1
Processing package descriptionROHS COMPLIANT, HERMETIC, CERAMIC, SMP-12, 6 PIN
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
Installation typeSURFACE MOUNT
terminal coatingGOLD (39) OVER NICKEL (236)
DimensionsL3.0XB3.0XH1.32 (mm)/L0.118XB0.118XH0.052 (inch)
Manufacturer Series856678
filter typeSAW FILTER
input resistance50 OHM
Output impedance50 OHM
Maximum insertion loss3 dB
Rated center frequency1950 MHz

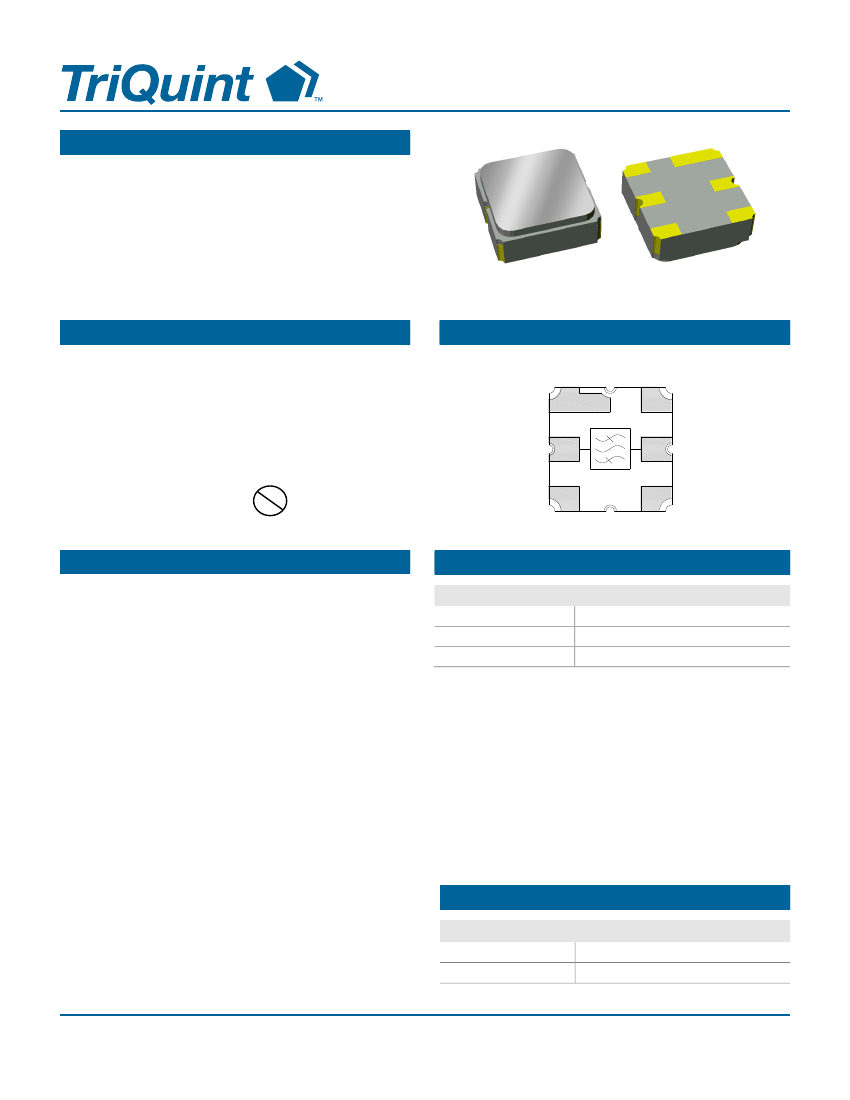

856678
1950 MHz SAW Filter
Applications
Wireless Infrastructure
AMPS, CDMA and TDMA
General Purpose RF Filter
4G, Multi-Standard
Band 1 Uplink
Repeaters

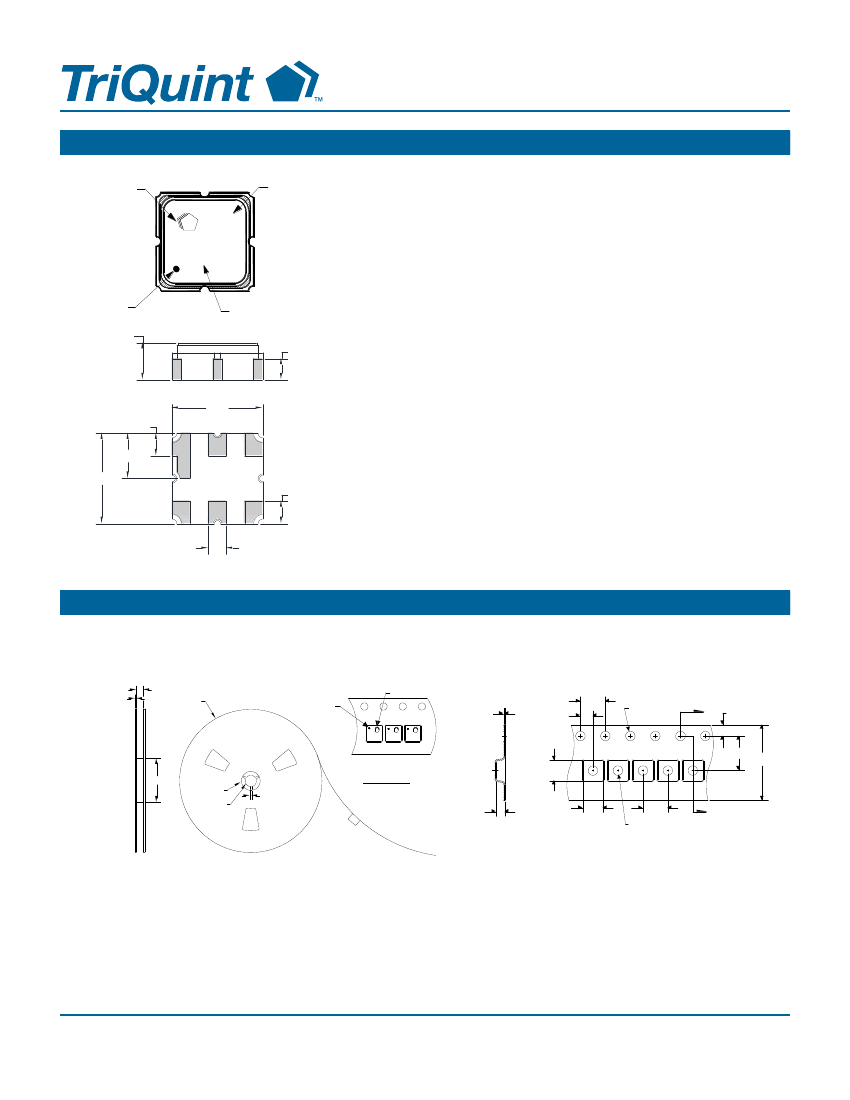

SMP-12, 3.00 x 3.00 x 1.22 mm
Product Features
60 MHz Bandwidth
High Attenuation
Single-ended Operation
50 Ohm Impedance
Small Size: 3.00 x 3.00 x 1.22 mm
Ceramic Surface Mount Package (SMP)
Hermetically Sealed
RoHS Compliant, Pb-Free
Pb
Functional Block Diagram
Top View
Gnd
1
6
Gnd
Input
2
5
Output
Gnd
3
4
Gnd
General Description
The 856678 is a Surface Acoustic Wave (SAW) based filter
suitable for LTE Band 1 Uplink.
856678 is specifically designed to meet the high
performance expectations of insertion loss and rejection for
LTE downlink systems under all operating conditions.
This filter is housed in a compact, industry standard 3 x 3 mm
footprint.

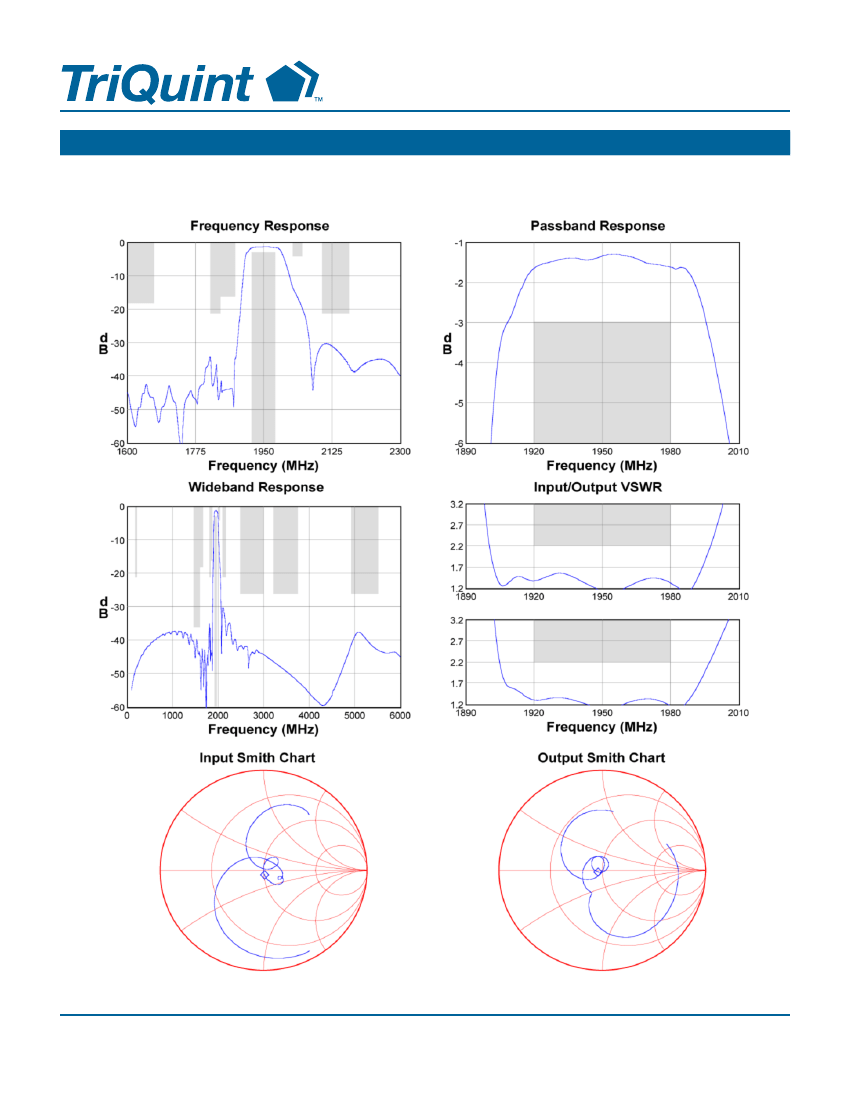

Low insertion loss, coupled with high attenuation makes this
filter an ideal choice for Base Station Applications.
This filter is part of TriQuint’s wide portfolio of RF filters.
Pin Configuration - Single Ended
Pin No.
2
5
1.3,4,6
Label
Input
Output
Ground
Ordering Information
Part No.
856678

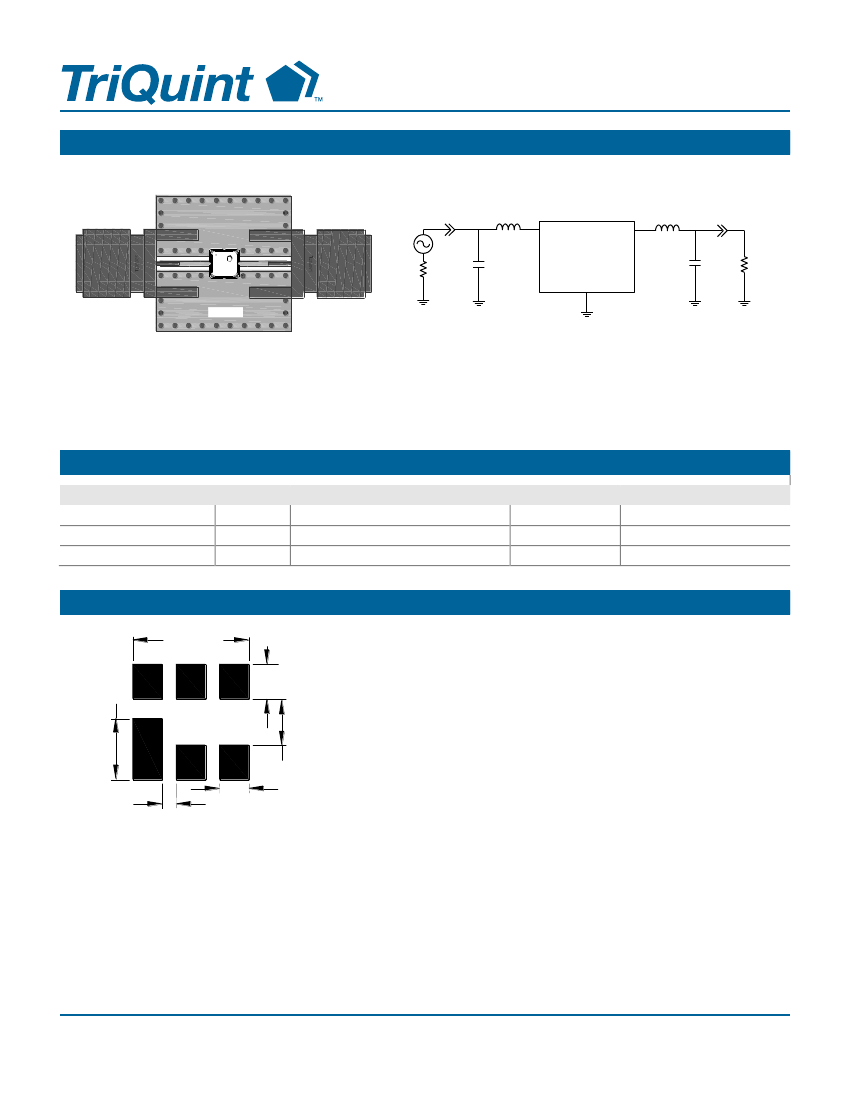

856678-EVB
Description
1950 MHz SAW Filter
Evaluation board
Standard T/R size = 5000 units/reel
Data Sheet: Rev F 11-14-2014
© 2014 TriQuint
-
1 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
