Data Sheet
Features
•
•
•
•
•
•
•
•
For WiMAX applications
Usable bandwidth 10 MHz
Typical bandwidth of 18.5 MHz
Low loss
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 856690
756 MHz SAW Filter

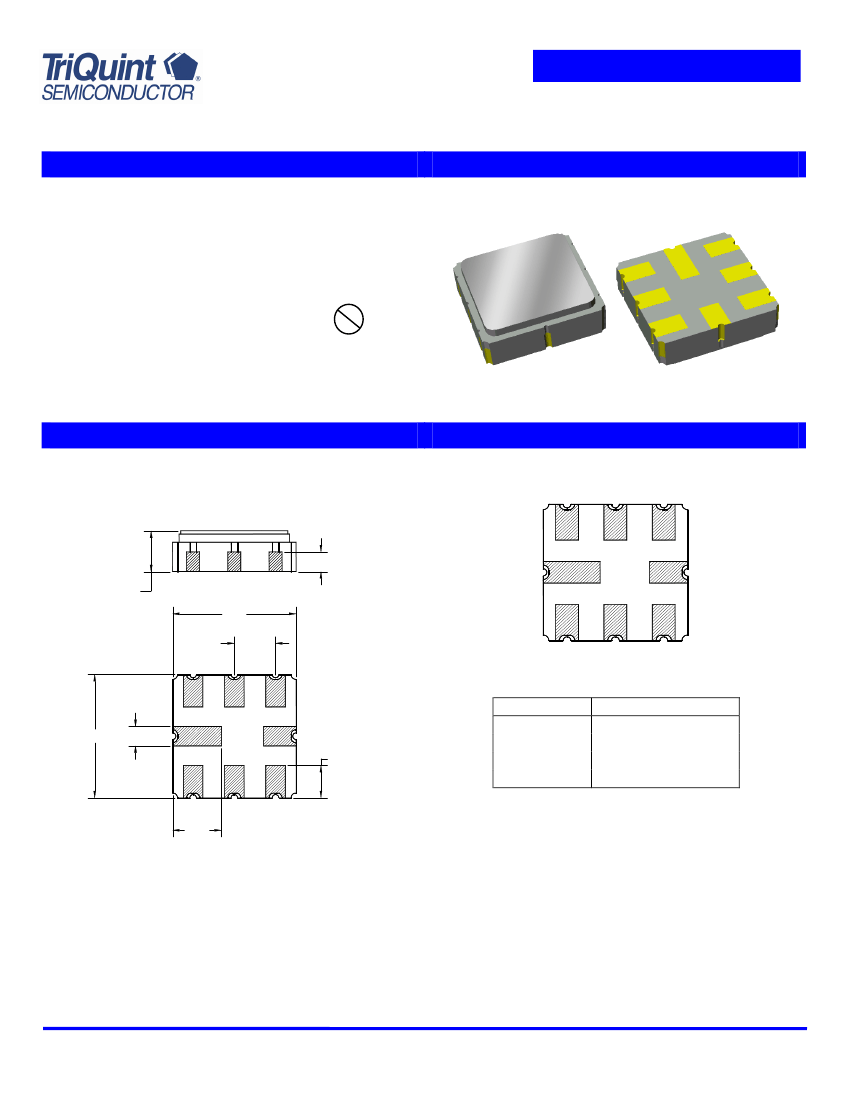

Package
Surface Mount 3.80 x 3.80 x 1.27 mm
SMP-15
Pin Configuration
Bottom View
1
2
3
0.61
8
1.27 NOM.
1.45 MAX.
3.80
1.27
4
7
6
5
3.80
0.60
1.00
Single-ended Configuration
Pin No.
Description
1
Input
5
Output
2,3,6,7
Ground
4,8
Case Ground
1.50
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev B
02/08
© TriQuint Semiconductor
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
°C
Part Number 856690
756 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Lower 1 dB Band Edge
(5)
Upper 1 dB Band Edge
(5)
1 dB Bandwidth
Amplitude Variation
751 – 761 MHz
Group Delay Variation
751 – 761 MHz
Absolute Attenuation
(5)
10 – 700 MHz
700 – 727 MHz
727 – 742 MHz
770 – 805 MHz
805 – 825 MHz
825 – 1000 MHz
Temperature Coefficient of Frequency
Source Impedance (single-ended)
(6)
Load Impedance (single-ended)
(6)
Notes:
Minimum
-
-
-
761.0
-
-
-
45
30
5
4
30
45
-
-
-
Typical
(4)
756
1.9
746.7
765.3
18.5
0.1
12
55
39
14
11
53
50
-38
50
50
Maximum
-
2.5
751.0
-
-
1.0
50
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
MHz
MHz
dB p-p
ns p-p
dB
dB
dB
dB
dB
dB
ppm/°C
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to minimum insertion loss
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
1
5
2,3,4
6,7,8
50
Ω
50
Ω
Single-ended
Input
50
Ω
50
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev B
02/08
© TriQuint Semiconductor
Page 2 of 5
Data Sheet
Part Number 856690
756 MHz SAW Filter

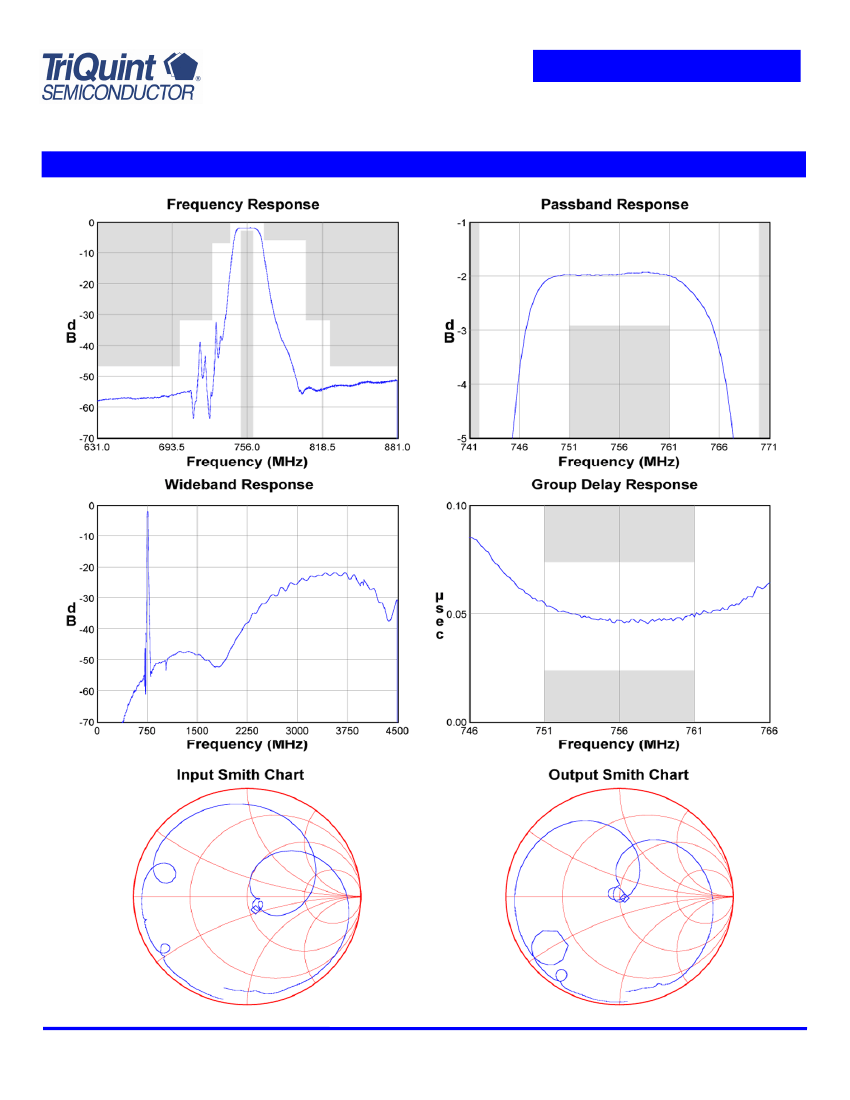

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev B
02/08
© TriQuint Semiconductor
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
1
5
2,3,4
6,7,8
Part Number 856690
756 MHz SAW Filter

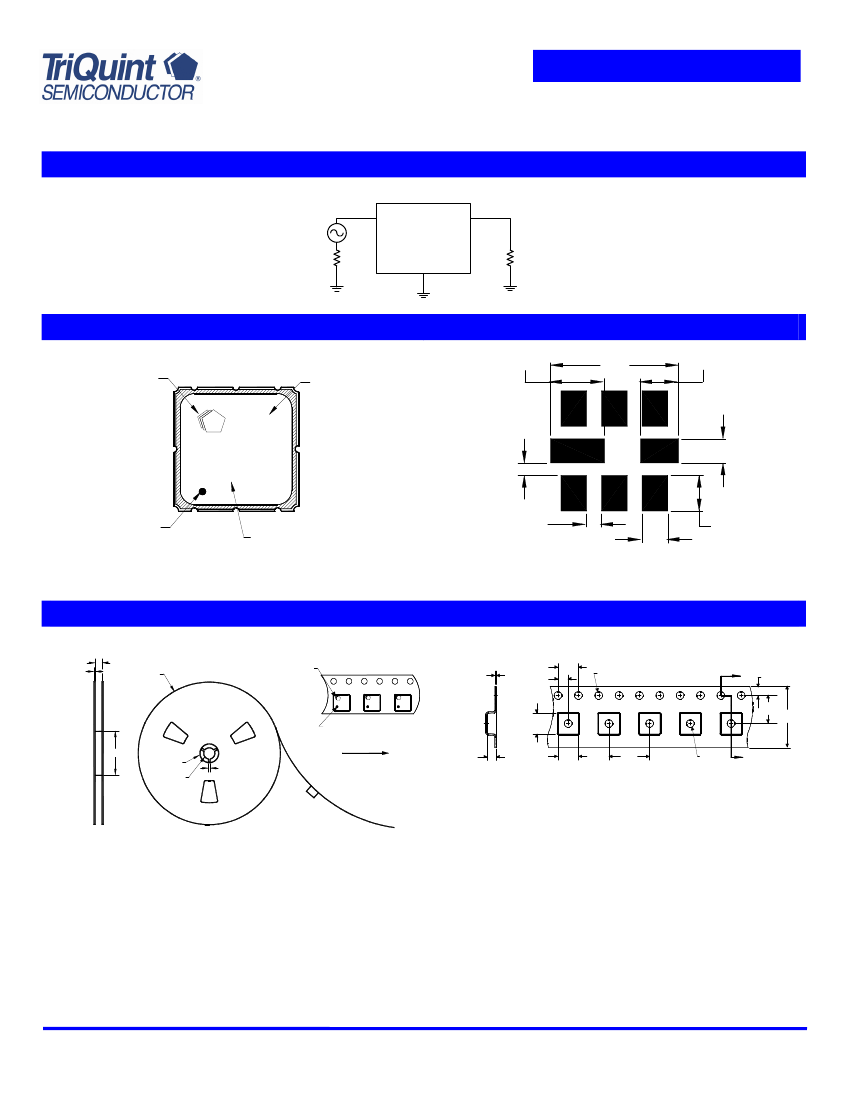

Matching Schematics
50
Ω
Single-ended
Input
50
Ω
50
Ω
50
Ω
Single-ended
Output
Marking
1.70
PCB Footprint
4.01
1.19
TriQuint
logo
Marking
code
14
JJJYM
ID dot
.81
.41
.46
Date code
1.19
.81
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
TriQuint
logo
0.3
4.0
2.0
Ø1.5
A
1.75
5.5
Pad 1 ID dot
Ø102
Ø20.2
Ø13.0
Direction of travel
1.8
Section A-A
4.1
4.1
8.0
Ø1.5
A
12.0
2.0
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev B
02/08
© TriQuint Semiconductor
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856690
756 MHz SAW Filter
Symbol
T
T
stg
Minimum
-40
-40
Maximum
+85
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Rev B
02/08
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
© TriQuint Semiconductor
Page 5 of 5
