Data Sheet
Features
•
•
•
•
•
•
•
•
For multiple applications
Usable bandwidth 6 MHz
Low loss
High attenuation
Balanced operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856693
140 MHz SAW Filter
•

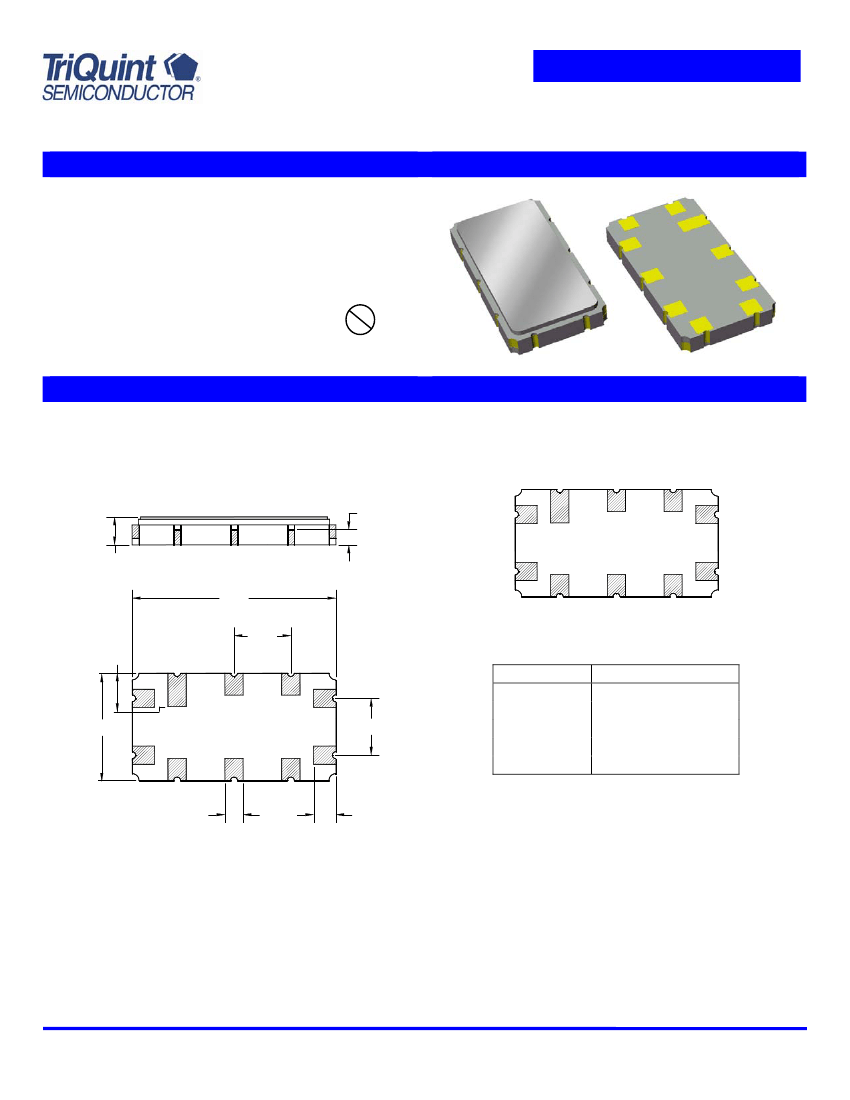

Package
Surface Mount 9.10 x 4.80 x 1.24 mm
SMP-35C
Pin Configuration
Bottom View
1
0.69
2
3
4
10
1.24 NOM.
1.35 MAX.
9.10
2.54
1.50
9
8
7
6
5
4.80
2.54
Pin No.
9
10
4
5
1,2,3,6,7,8
Description
Input +
Input -
Output +
Output -
Case Ground
0.80
1.00
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm,
over a 2 - 6μm
Ni
plating
Subject to change or obsolescence without notice
Rev D
07-08 TriQuint Semiconductor, Inc. ©
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
°C
Part Number 856693
140 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Amplitude Variation
137.0 – 143.0 MHz
Phase Linearity
137.6 – 142.4 MHz
137.0 – 143.0 MHz
Average Group Delay
137.0 – 143.0 MHz
Relative Attenuation
(4)
10 – 118 MHz
118 – 120 MHz
120 – 129 MHz
129 – 133 MHz
147 – 160 MHz
160 – 163 MHz
163 – 250 MHz
Triple Transit Suppression
Source Impedance (balanced)
(6)
Load Impedance (balanced)
(6)
Notes:
1.
2.
3.
4.
5.
6.
Minimum
-
-
-
-
-
0.88
40
42
38
31
32
39
43
35
-
-
Typical
(5)
140
11
0.4
1.6
2.1
0.93
65
61
50
42
39
55
58
49
50
50
Maximum
-
12.5
1.0
4
6.5
0.98
-
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
dB p-p
º p-p
º p-p
µs
dB
dB
dB
dB
dB
dB
dB
dB
Ω
Ω
All specifications are based on the TriQuint matching schematic shown on page 4
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Relative to minimum insertion loss
Typical values are based on average measurements at room temperature
This is the optimum impedance in order to achieve the performance shown
Subject to change or obsolescence without notice
Rev D
07-08 TriQuint Semiconductor, Inc. ©
Page 2 of 5
Data Sheet
Part Number 856693
140 MHz SAW Filter

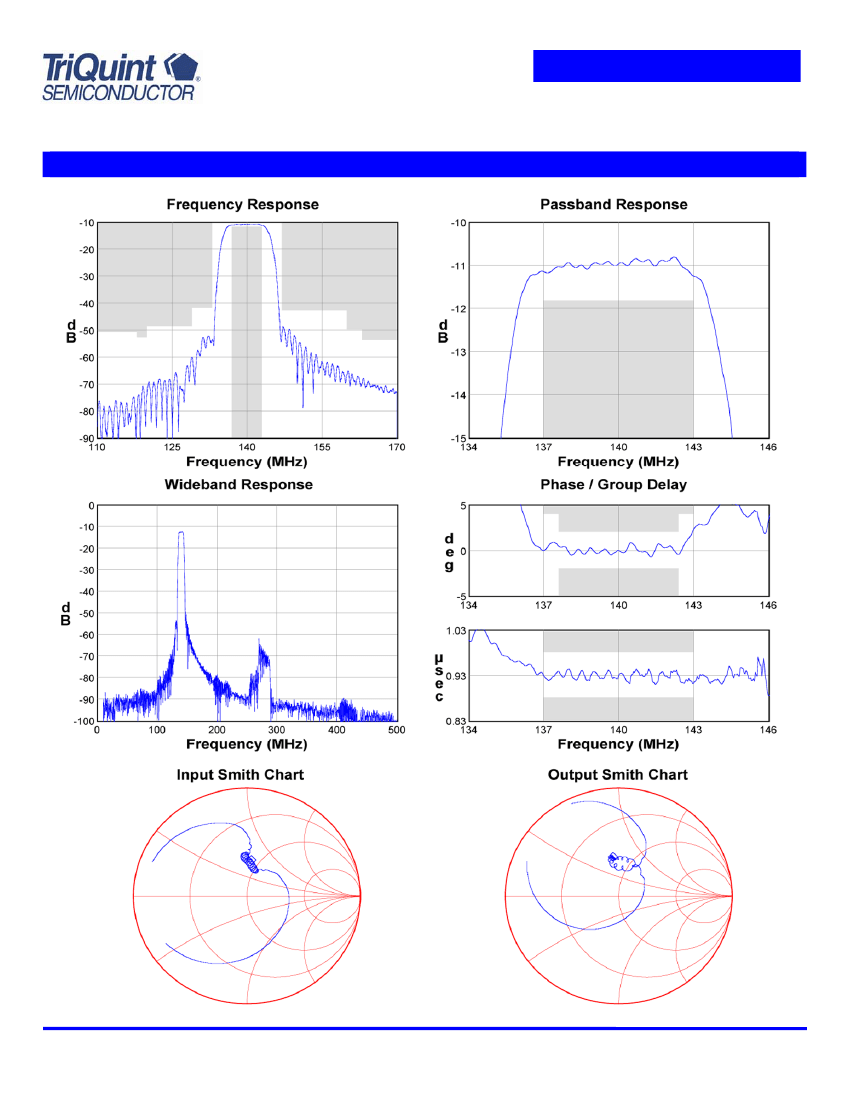

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev D
07-08 TriQuint Semiconductor, Inc. ©
Page 3 of 5
Data Sheet

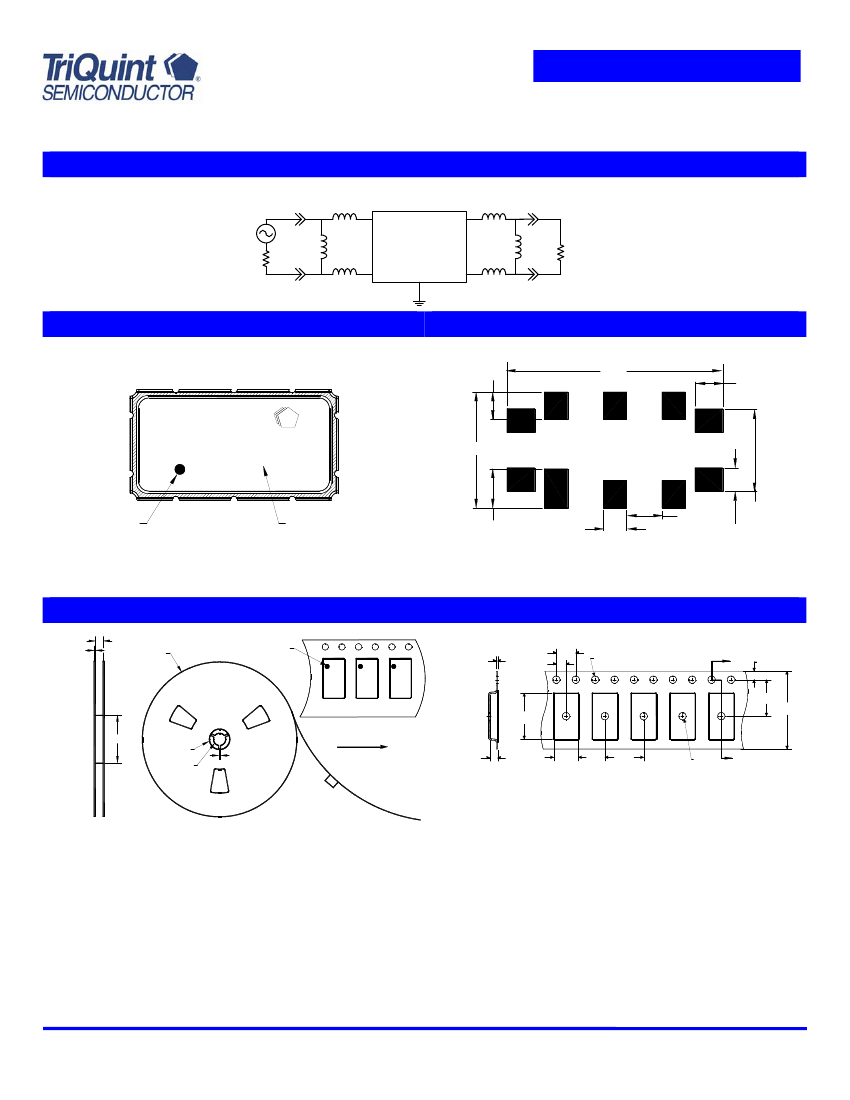

Matching Schematic
Actual matching values may vary due to PCB layout and parasitics
10nH
9
4
6.8nH
Part Number 856693
140 MHz SAW Filter
50
Ω
Balanced
Input
50
Ω
15nH
10nH
10
1,2,3
6,7,8
5
6.8nH
27nH
50
Ω
50
Ω
Balanced
Output
Marking
1.19
PCB Footprint
9.29
1.19
TriQuint
856693
JJJYHH
5.00
ID Dot
Date Code
1.70
1.53
1.01
3.55
1.01
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
16.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
7.5
9.4
Ø102
Ø20.2
Ø13.0
16.0
2.0
Direction of travel
1.6
Section A-A
5.1
8.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev D
07-08 TriQuint Semiconductor, Inc. ©
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Pyroelectric Voltage
Input Power
Part Number 856693
140 MHz SAW Filter
Symbol
T
T
stg
V
Pyro
P
in
Minimum
-40
-55
-
-
Maximum
+85
+125
50
+20
Unit
C
C
mV p-p
dBm
o
o
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
