Data Sheet

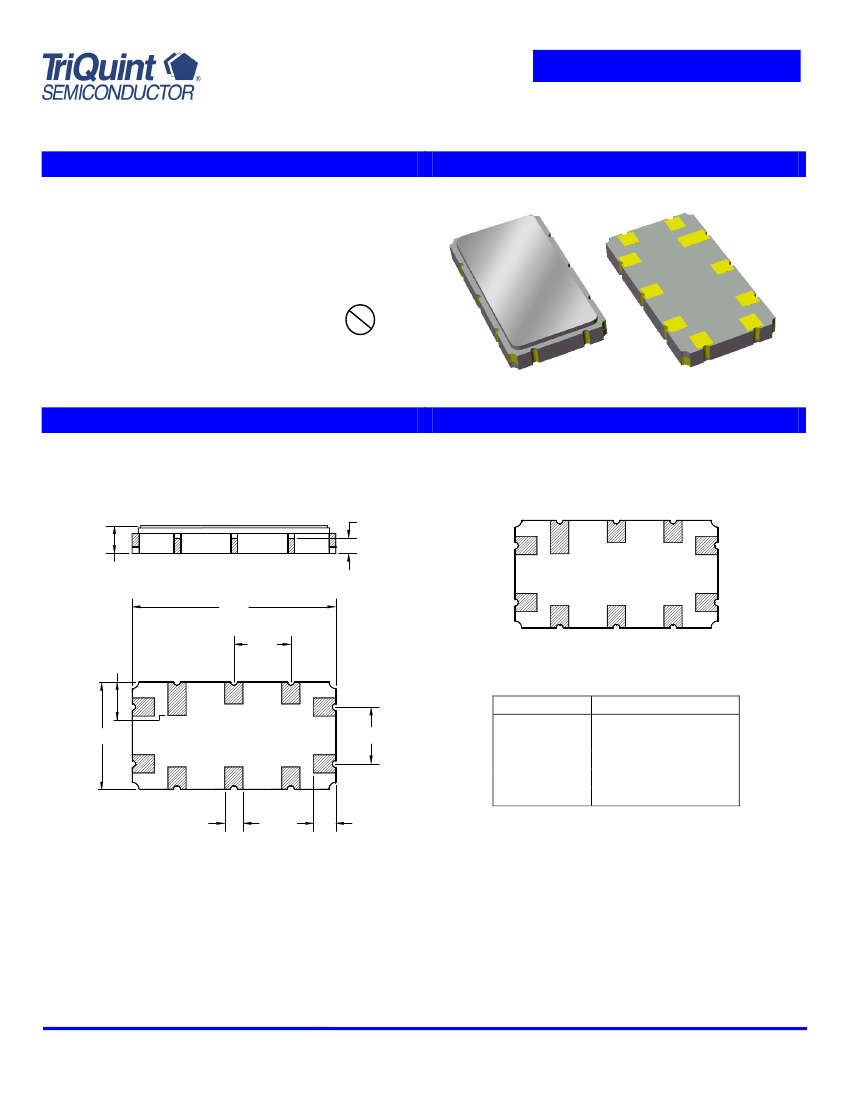

Features
•
•
•
•
•
•
•
•
For multiple applications
Usable bandwidth 20 MHz
Low loss
High attenuation
Balanced operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856697
140 MHz SAW Filter
•
Package
Surface Mount 9.10 x 4.80 x 1.24 mm
SMP-35C
Pin Configuration
Bottom View
1
0.69
2
3
4
10
1.24 NOM.
1.35 MAX.
9.10
9
8
7
6
5
2.54
1.50
4.80
2.54
Pin No.
9
10
4
5
1,2,3,6,7,8
Description
Input +
Input -
Output +
Output -
Case Ground
0.80
1.00
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev D
09-08 TriQuint Semiconductor, Inc. ©
Page 1 of 6
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
°C
Part Number 856697
140 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Amplitude Variation
130 – 150 MHz
Phase Linearity
131 – 149 MHz
130 – 150 MHz
Average Group Delay
130 – 150 MHz
Relative Attenuation
(4)
10 – 100 MHz
100 – 108 MHz
108 – 116 MHz
116 – 121.5 MHz
158.5 – 164 MHz
164 – 172 MHz
172 – 187 MHz
187 – 192 MHz
192 – 248 MHz
248 – 265 MHz
265 – 350 MHz
Triple Transit Suppression
Source Impedance (balanced)
(6)
Load Impedance (balanced)
(6)
Notes:
1.
2.
3.
4.
5.
6.
Minimum
-
-
-
-
-
0.66
40
38
33
22
22
33
40
38
40
36
40
30
-
-
Typical
(5)
140
9.8
0.4
2.5
2.5
0.71
66
55
52
43
40
50
51
54
47
42
46
52
50
50
Maximum
-
13
1.0
6
6
0.76
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
dB p-p
º p-p
º p-p
µs
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
All specifications are based on the TriQuint matching schematic shown on page 5
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Relative to minimum insertion loss
Typical values are based on average measurements at room temperature
This is the optimum impedance in order to achieve the performance shown
Subject to change or obsolescence without notice
Rev D
09-08 TriQuint Semiconductor, Inc. ©
Page 2 of 6
Data Sheet
Operating Temperature Range:
(2)
-20 to +85
°C
Part Number 856697
140 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Amplitude Variation
130 – 150 MHz
Phase Linearity
131 – 149 MHz
130 – 150 MHz
Average Delay
130 – 150 MHz
Relative Attenuation
(4)
10 – 100 MHz
100 – 108 MHz
108 – 116 MHz
116 – 121.5 MHz
158.5 – 164 MHz
164 – 172 MHz
172 – 187 MHz
187 – 192 MHz
192 – 248 MHz
248 – 265 MHz
265 – 350 MHz
Triple Transit Suppression
Source Impedance (balanced)
(6)
Load Impedance (balanced)
(6)
Notes:
1.
2.
3.
4.
5.
6.
Minimum
-
-
-
-
-
0.66
40
38
33
22
22
33
40
38
40
36
40
30
-
-
Typical
(5)
140
9.8
0.4
2.5
2.5
0.71
66
55
52
43
40
50
51
54
47
42
46
52
50
50
Maximum
-
13
1.0
5.65
5.50
0.76
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
dB p-p
º p-p
º p-p
µs
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
All specifications are based on the TriQuint matching schematic shown on page 5
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Relative to minimum insertion loss
Typical values are based on average measurements at room temperature
This is the optimum impedance in order to achieve the performance shown
Subject to change or obsolescence without notice
Rev D
09-08 TriQuint Semiconductor, Inc. ©
Page 3 of 6
Data Sheet
Part Number 856697
140 MHz SAW Filter

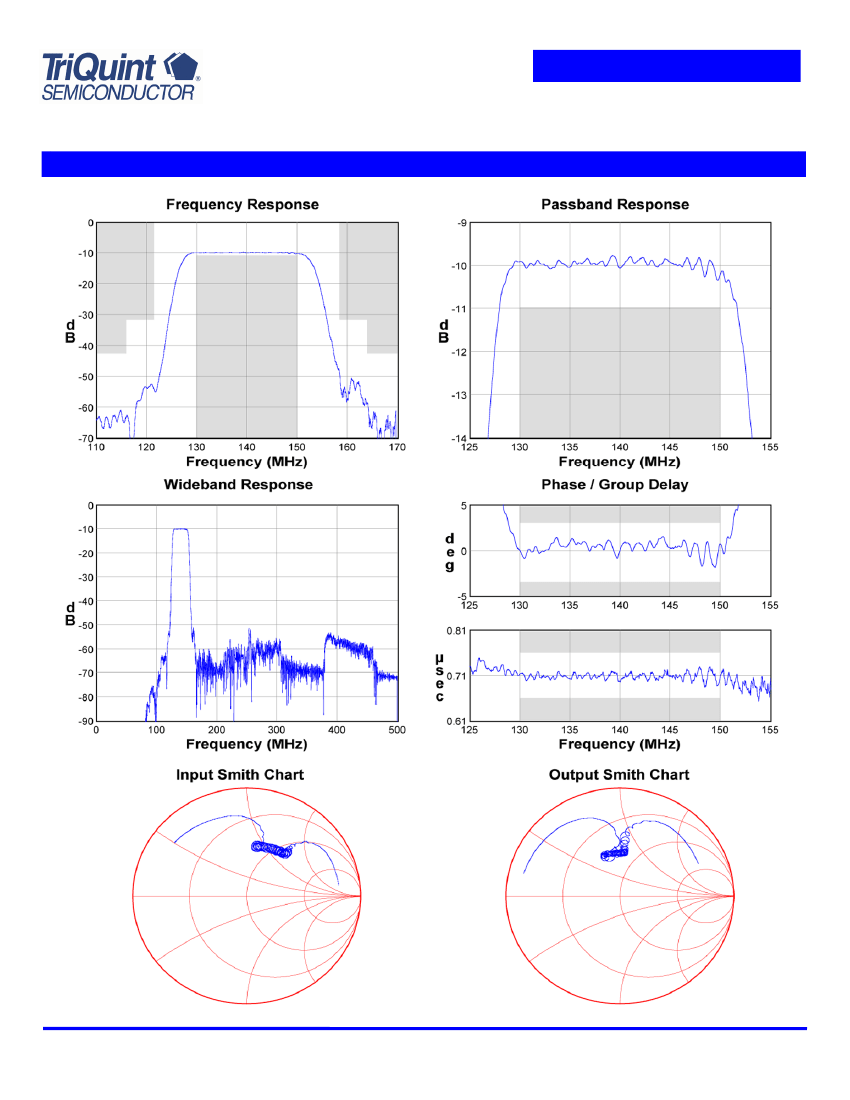

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev D
09-08 TriQuint Semiconductor, Inc. ©
Page 4 of 6
Data Sheet

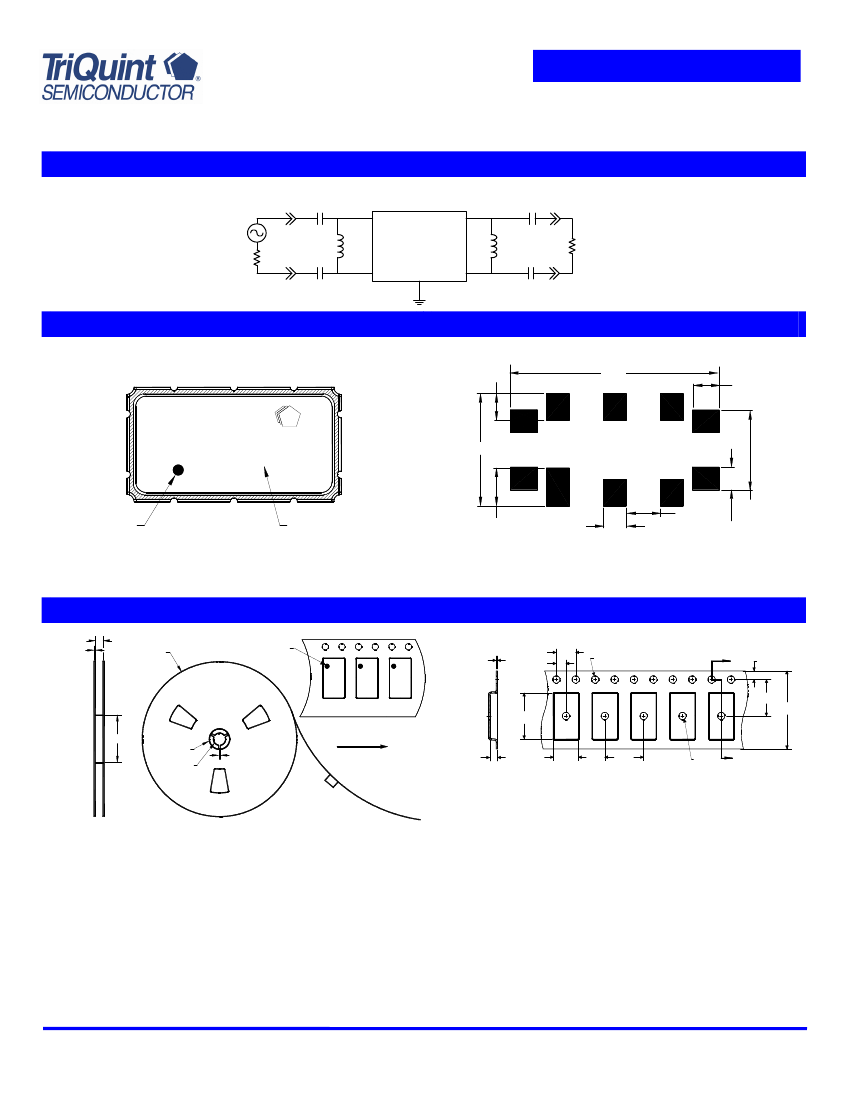

Matching Schematic
Actual matching values may vary due to PCB layout and parasitics
47pF
9
4
39nH
10
47pF
1,2,3
6,7,8
5
Part Number 856697
140 MHz SAW Filter
56pF
50Ω
Ω
50
Ω
Balanced
Input
50Ω
Ω
47nH
50
Ω
Balanced
Output
56pF
Marking
1.19
PCB Footprint
9.29
1.19
TriQuint
856697
JJJYHH
ID Dot
Date Code
5.00
1.53
1.70
1.01
3.55
1.01
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
16.8
2.7
Ø330
ID dot
0.3
4.0
2.0
Ø1.5
A
1.75
7.5
9.4
Ø102
Ø20.2
Ø13.0
16.0
2.0
Direction of travel
1.6
Section A-A
5.1
8.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev D
09-08 TriQuint Semiconductor, Inc. ©
Page 5 of 6
