Data Sheet
Features
L2 filter for GPS applications
Usable bandwidth of 20 MHz
Low loss
No impedance matching required for operation at
50
Ceramic Chip Scale Package (CSP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856700

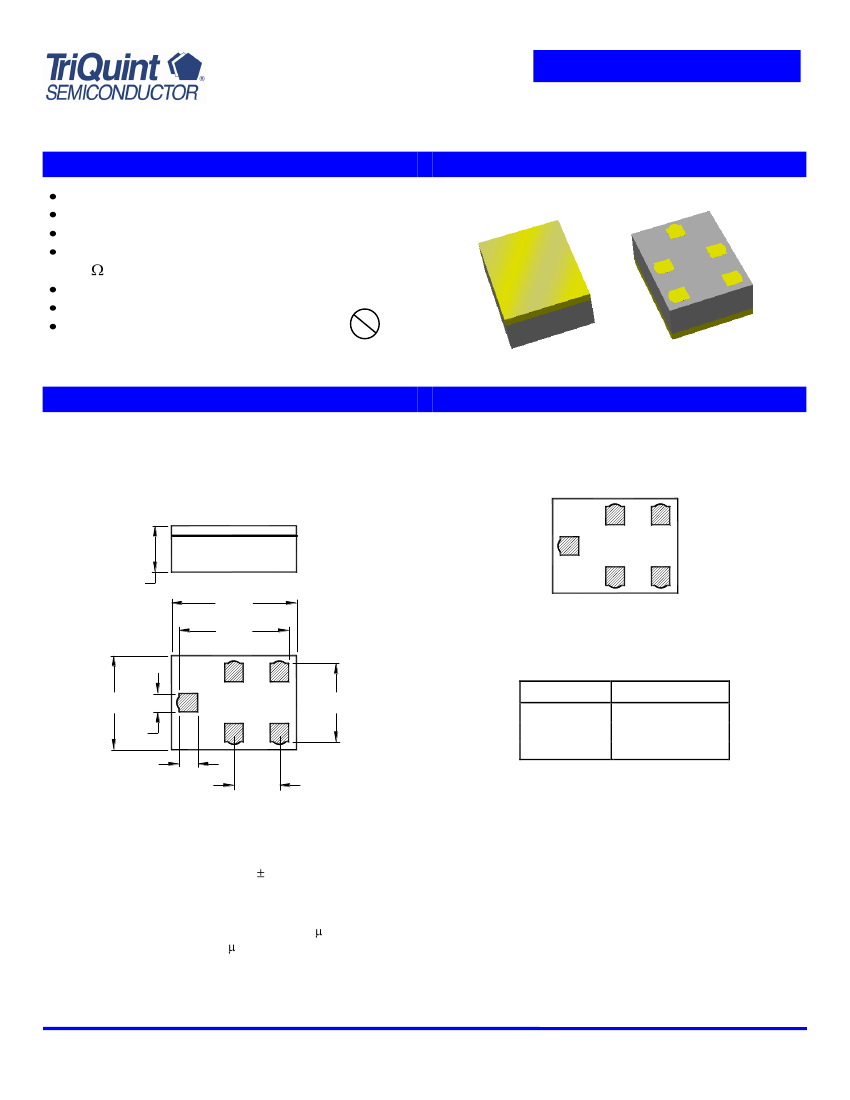

1227.6 MHz SAW Filter
Package
Surface Mount 2.00 x 1.50 x 0.76 mm
CSP-8B
Pin Configuration
Bottom View
2
3
1
0.76 NOM.
0.84 MAX.
2.00
1.80
5
4
Single-ended Configuration
1.50
0.30
0.30
0.75
1.30
Pin No.
1
4
2,3,5
Description
Input
Output
Case ground
Dimensions shown are nominal in millimeters
All tolerances are 0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0 m,
over a 2 - 6 m
Ni
plating
Subject to change or obsolescence without notice
Rev B
01/10
TriQuint Semiconductor, Inc. ©
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-55 to +105
o
C
Part Number 856700
1227.6 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
3 dB Bandwidth
Amplitude Ripple
(5)
1217.6 - 1237.6 MHz
Absolute Group Delay
1217.6 - 1237.6 MHz
Group Delay Variation
1217.6 - 1237.6 MHz
Absolute Attenuation
(5)
300 - 1152 MHz
1302 - 1900 MHz
1900 - 3000 MHz
Input/Output Return Loss
1217.6 - 1237.6 MHz
Source Impedance
(6)
Load Impedance
(6)
Notes:
Minimum
-
-
20
-
16
-
25
25
25
9
-
-
Typical
(4)
1227.6
1.1
31
0.5
21
10
27
33
28
10
50
50
Maximum
-
1.5
-
2.0
26
25
-
-
-
-
-
-
Unit
MHz
dB
MHz
dB p-p
ns
ns
dB
dB
dB
dB
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to minimum insertion loss
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
1
4
50
Single-ended
Input
50
2,3,5
50
50
Single-ended
Output
Subject to change or obsolescence without notice
Rev B
01/10
TriQuint Semiconductor, Inc. ©
Page 2 of 5
Data Sheet
Part Number 856700
1227.6 MHz SAW Filter

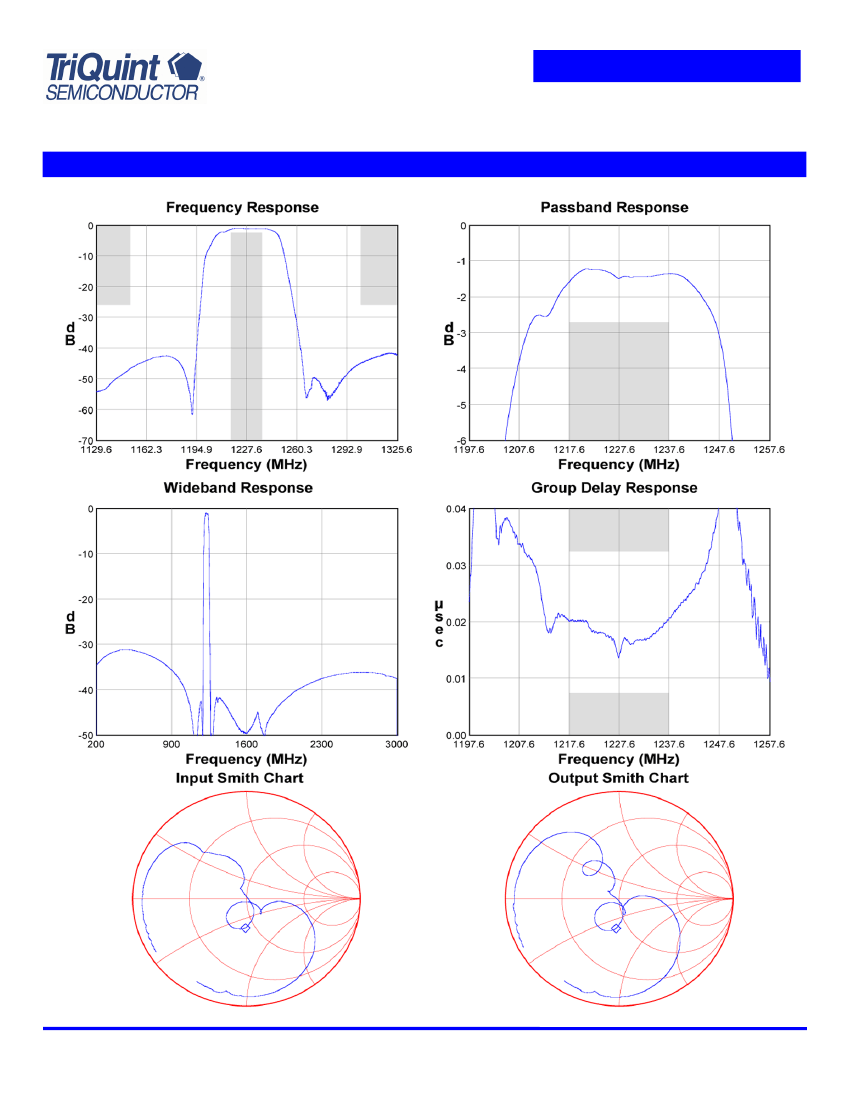

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev B
01/10
TriQuint Semiconductor, Inc. ©
Page 3 of 5
Data Sheet
Part Number 856700
1227.6 MHz SAW Filter

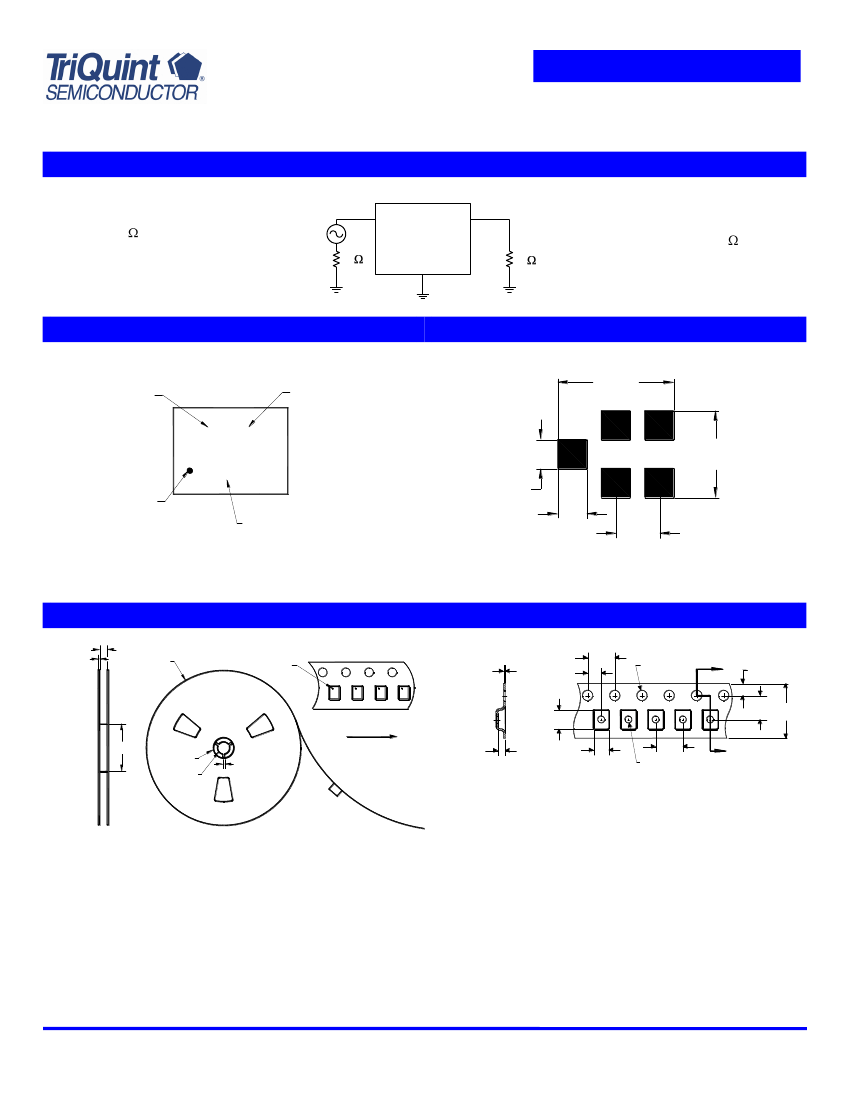

Matching Schematics
1
4
50
Single-ended
Input
50
2,3,5
50
50
Single-ended
Output
Marking
Marking
code
MFG site
PCB Footprint
2.00
DJ M
1.50
WWY
0.50
ID dot
0.50
Date code
0.75
The date code consists of: WW = 2 digit week,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
8.8
Ø330
ID dot
4.0
0.3
2.0
Ø1.5
A
1.75
2.34
Ø102
Direction of travel
2.0
3.5 8.0
Ø20.2
Ø13.0
1.09
Section A-A
1.83
4.0
Ø1.0
A
Dimensions shown are nominal in millimeters
Packaging quantity: 10000 units/reel
Subject to change or obsolescence without notice
Rev B
01/10
TriQuint Semiconductor, Inc. ©
Page 4 of 5
Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856700
1227.6 MHz SAW Filter
Maximum Ratings
Symbol
T
T
stg
Minimum
-55
-55
Maximum
+105
+105
Unit
o
o
C
C
Important Notes
Warnings
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev B
01/10
TriQuint Semiconductor, Inc. ©
Page 5 of 5
