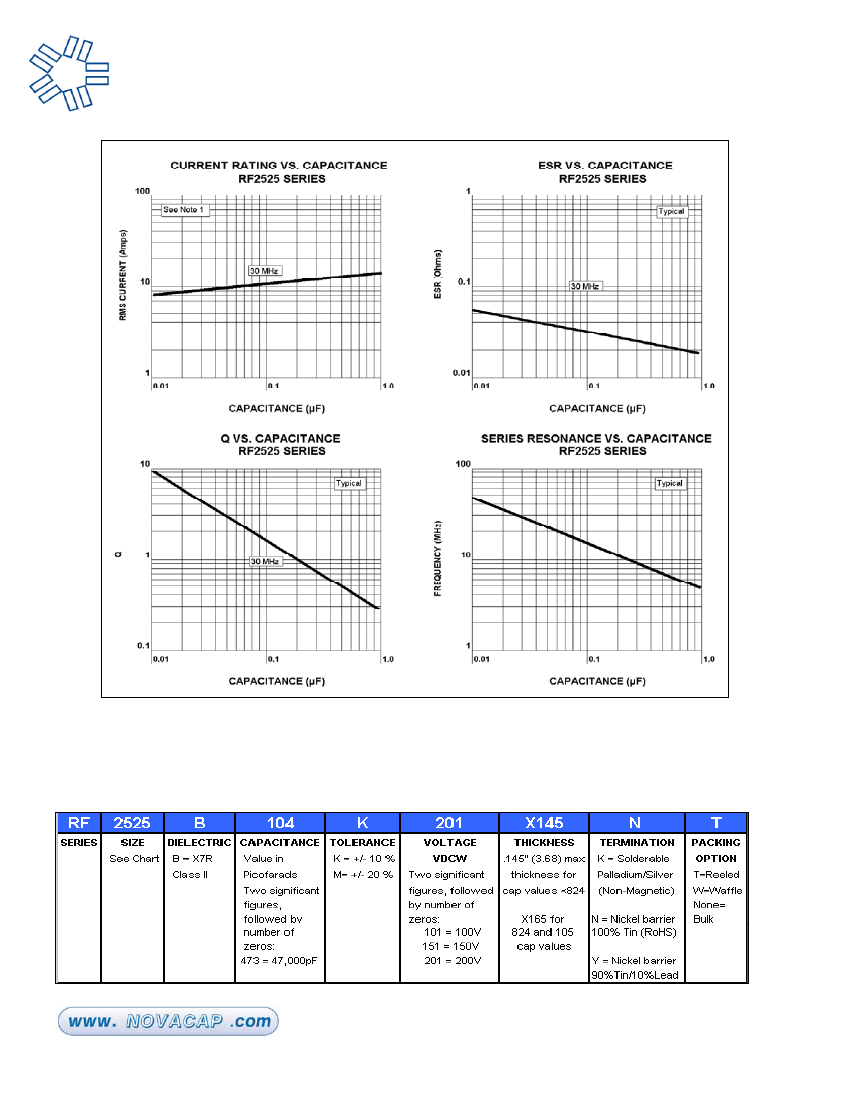

NOVACAP RF2525 SERIES CAPACITORS
-55
-25
-25
-15.6
0
-7.6
NOVACAP manufactures a new improved ESR performance
RF2525 series capacitors. This series has been designed for
25
50
75
100
125
150
200
rugged environments in high power broadband coupling and
175
0
5
9
12
13
12.5
10.5
8
switching power supplies. The Class II ceramic dielectric affords
high volumetric efficiency with negligible piezoelectric effects.
Please contact the factory for higher WVDC, capacitance values not
listed, tolerance, or leading options.
250
5
H
CAPACITANCE & VOLTAGE SELECTION
CAP
CODE
103
123
153
223
333
473
CAP
(µF)
0.010
0.012
0.015
0.022
0.033
0.047
TOL.
K,M
K,M
K,M
K,M
K,M
K,M
RATED
WVDC
300
300
300
300
250
250
CAP
CODE
683
823
104
124
154
224
CAP
(µF)
0.068
0.082
0.100
0.120
0.150
0.220
TOL.
K,M
K,M
K,M
K,M
K,M
K,M
RATED
WVDC
250
200
200
200
200
200
CAP
CODE
334
474
564
684
824
105
CAP
(µF)
0.330
0.470
0.560
0.680
0.820
1.000
TOL.
K,M
K,M
K,M
K,M
K,M
K,M
RATED
WVDC
150
150
150
150
100
100
DIMENSIONS INCHES (MM)
SIZE
LENGTH L
WIDTH W
T MAX
MB
RECOMMENDED MOUNTING PADS
SIZE
VERT
HORIZ
A Min.
.185"
.280"
B Min.
.050"
.050"
C Min.
.200"
.200"
D Min.
.300"
.300"
NOMINAL
.230 (5.84)
.250 (6.35)
.165 (4.19)
.030 (.762)
TOLERANCE
+.020-.012 (+0.51-0.30)
±.015 (0.38)
Maximum
±.015 (0.38)
VERT =Vertical Mount,HORIZ =Horizontal Mount
DIELECTRIC CHARACTERISTICS
Operating Temp Range
Temperature Coefficient
Dissipation Factor
Insulation Resistance @ 25°C
Insulation Resistance @ 125°C
Dielectric Withstanding Voltage
Test Parameters
-55°C to 125°C
± 15% Maximum
.025 (2.5%) Max
>1000ΩF
>100ΩF
2.5X WVDC, 5 Seconds
1KHz, 1.0VRMS, 25°C
NOVACAP RF2525 SERIES CAPACITORS
Note 1: Current rating based a device thermal resistance of 15°C/W and a 65°C mounting surface.
4 Watts of power dissipation will result in a 125°C case temperature.
HOW TO ORDER
