3008-8622 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3008-8622

3008-8622: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

3008-8622 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle

3008-8622 Parametric

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITHOUT KEY
Board mount options	SPLIT BOARD LOCK
body width	0.567 inch
subject depth	0.512 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8

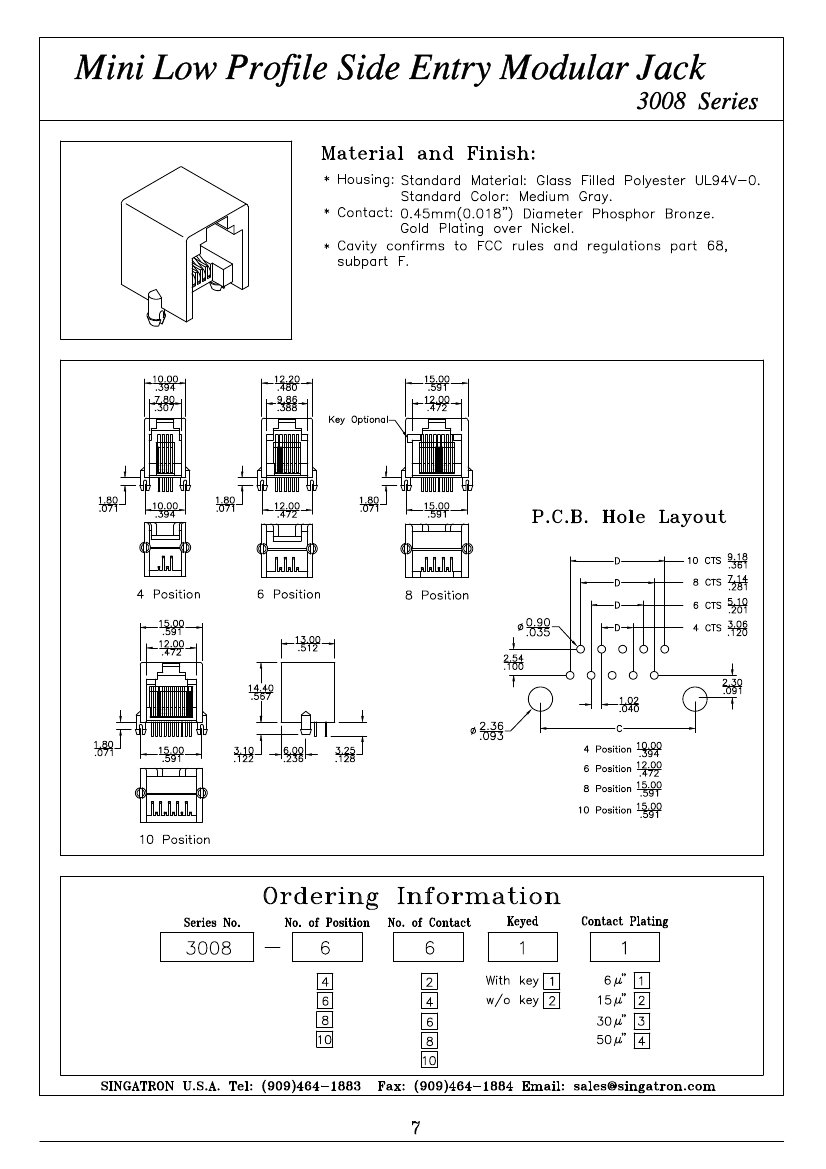

3008-8622 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

3008-8622 Related Products

	3008-8622	3008-10224	3008-8812	3008-8822
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	WITHOUT KEY	WITHOUT KEY	WITH KEY	WITHOUT KEY
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.567 inch	0.567 inch	0.567 inch	0.567 inch
subject depth	0.512 inch	0.512 inch	0.512 inch	0.512 inch
body length	0.591 inch	0.591 inch	0.591 inch	0.591 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Insulator color	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	15u inch	50u inch	15u inch	15u inch
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.128 inch	0.128 inch	0.128 inch	0.128 inch
Terminal pitch	2.032 mm	2.032 mm	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	10	8	8
