310.7 MHz SAW Filter
Applications
General Purpose
For IF applications
Product Features
Usable bandwidth 3 MHz
Low loss
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Dimensions: 5.0 x 5.0 x 1.3mm
Hermetic
RoHS
compliant,
Pb-free
Pb
Functional Block Diagram
Top view
Gnd
Gnd
Input
Gnd
1
2
3
8
7
6
5
Gnd
Output
Gnd
4
Gnd
General Description
The 856140 is a high-performance IF SAW filter with a
center frequency of 310.7 MHz and a usable bandwidth of
3 MHz.
It features low loss with excellent attenuation, and is
designed to be used with a single ended input and output.
The device is RoHS compliant and Pb-free.
Pin Configuration
Pin # Single-end
2
6
1,3,4,5,7,8
Description
Input
Output
Case Ground
Ordering Information
Part No.
856140
856140-EVB
Description
packaged part
evaluation board
Standard T/R size = 4000 units/reel.
Data Sheet: Rev - 5/06/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856140
310.7 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-30 to +95 ºC
Parameter
(3)
Center Frequency
Insertion Loss
Lower 25dB Band Edge
(5)
Upper 25dB Band Edge
(5)
Rejection
(5)
Conditions
at 310.7 MHz
Min
-
-
295
-
25
20
20
25
42
4
-
-
-
Typical
(4)
310.7
3.0
304.9
317.1
59.0
48.5
46.0
67.0
62.0
18.8
0.1
50
50
Max
-
6.5
-
325
-
-
-
-
-
-
0.3
-
-
Units
MHz
dB
MHz
MHz
dB
dB
dB
dB
dB
dB
dB p-p
100 – 295 MHz
289.9 – 301.5 MHz
319.9 – 325 MHz
325 – 500 MHz
Attenuation
(5)
289.3 MHz
305.35 MHz
309.2 – 312.2 MHz
Gaussian Ripple
Source Impedance (single-ended)
(6)
Load Impedance (single-ended)
(6)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to insertion loss at center frequency
6. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Input Power
(7)
7.
Rating
-30 to +95
o
C
-40 to +85
o
C
+9dBm
Device is measured for equivalent 10K hours @ +55
ºC
[CW Signal]
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev - 5/06/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856140
310.7 MHz SAW Filter

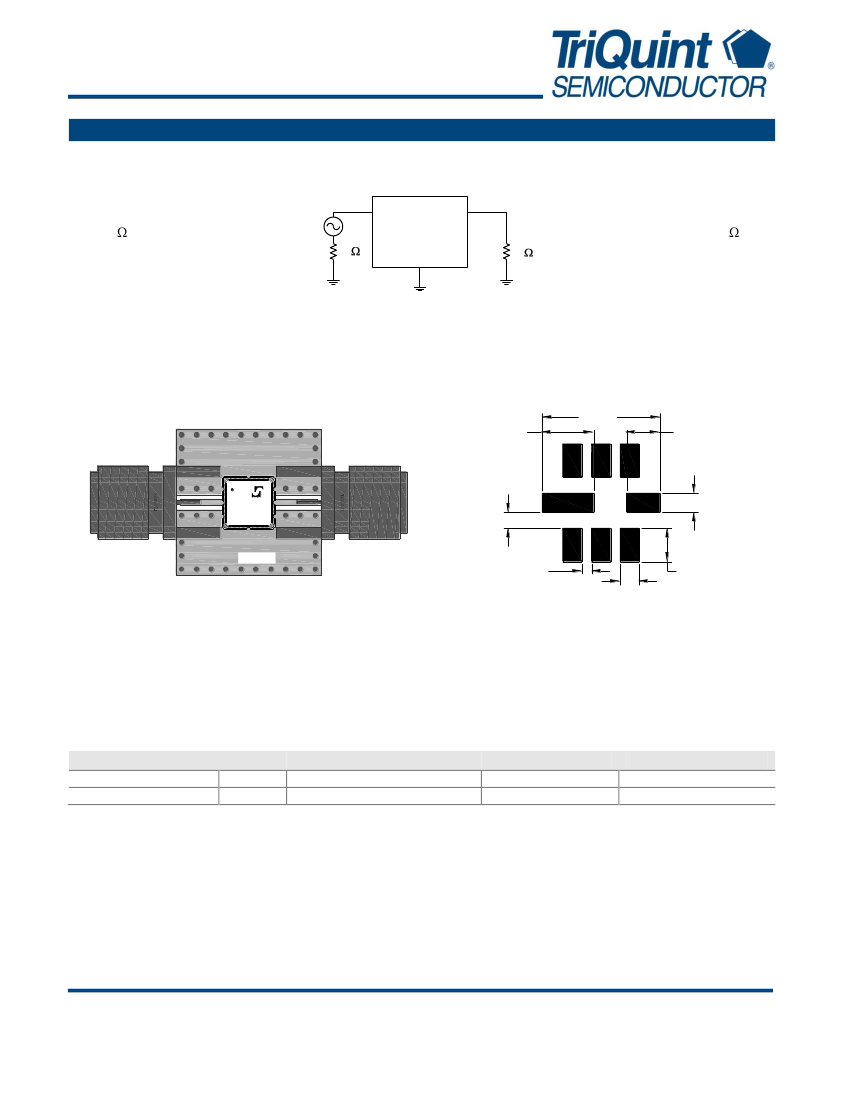

Reference Design
Schematic
2
6
50
Single-ended
Input
50
1,3,4,5,7,8
50
50
Single-ended
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
5.20
2.28
1.47
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
JJJYM
960700
8
.84
.71
.43
.84
1.47
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
SMA
PCB
Value
N/A
N/A
Description
SMA connector
3-layer
Manufacturer
Radiall USA Inc.
multiple
Part Number
9602-1111-018
960700
Data Sheet: Rev - 5/06/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856140
310.7 MHz SAW Filter

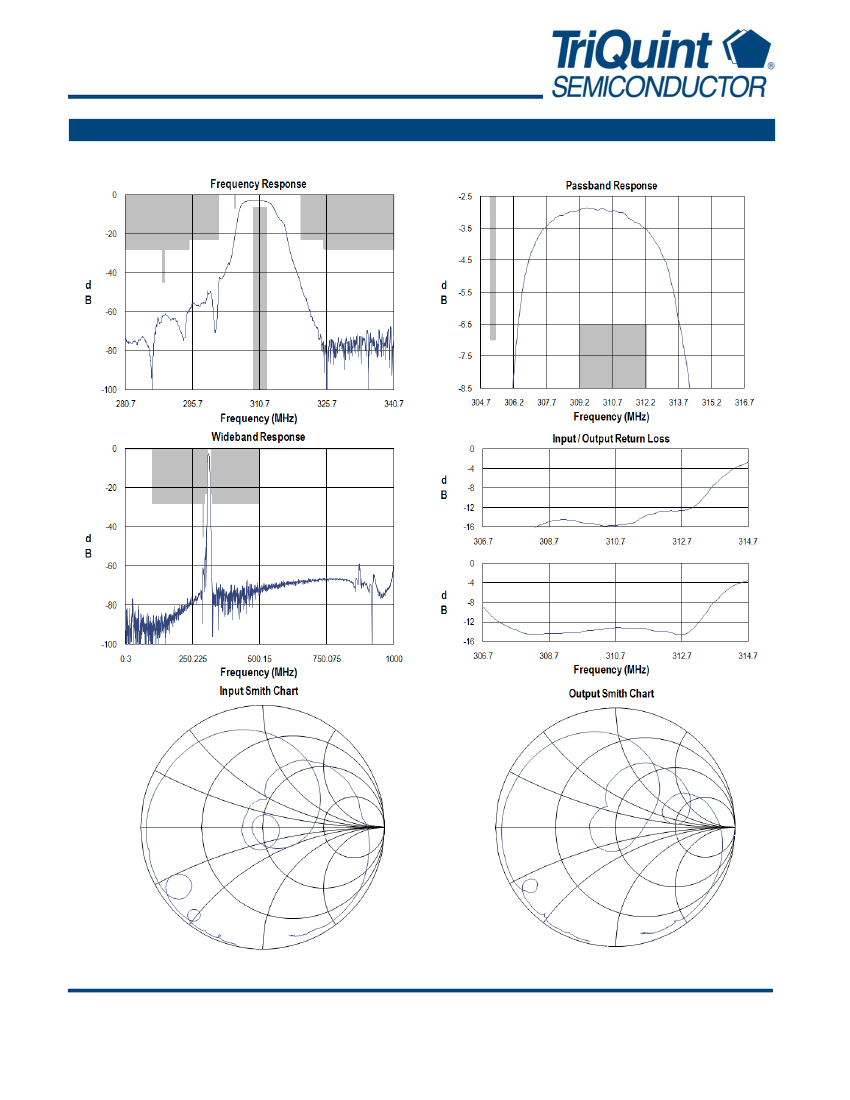

Typical Performance
(at room temperature)
Data Sheet: Rev - 5/06/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856140
310.7 MHz SAW Filter

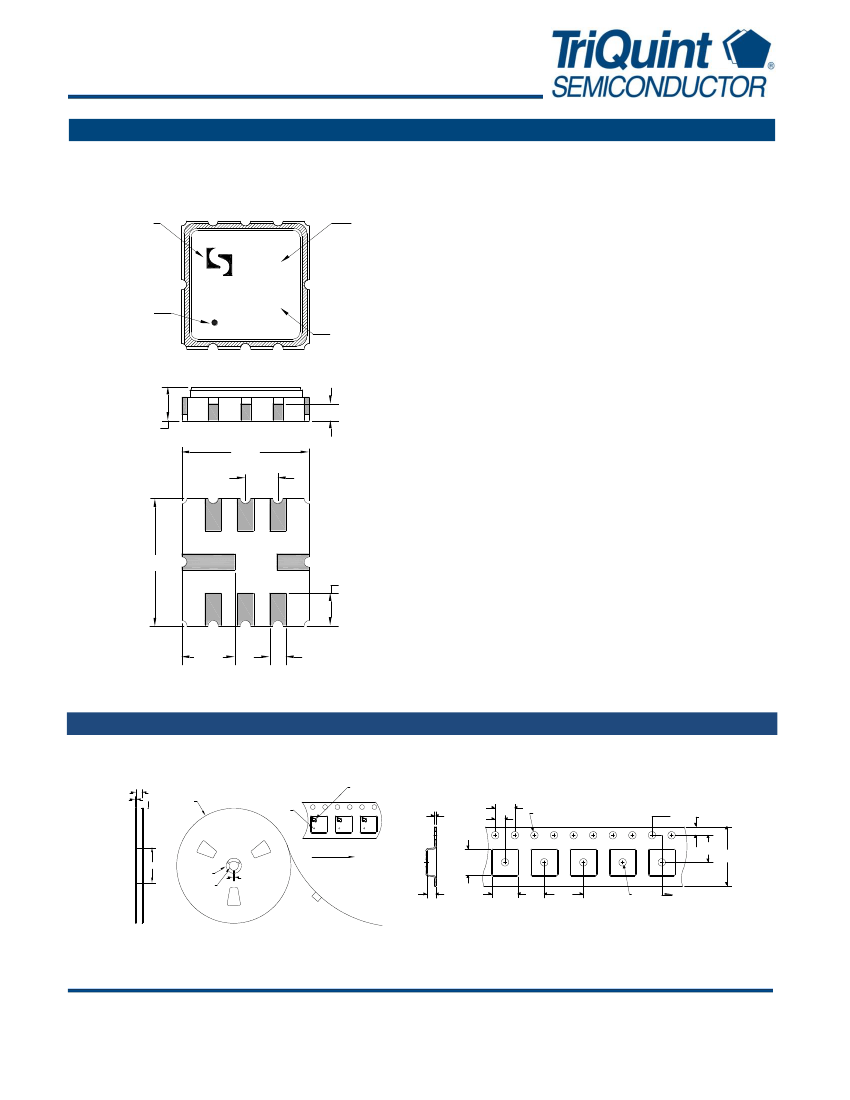

Mechanical Information
Package Information, Dimensions and Marking
Sawtek
logo
Marking
code
Package Style: SMP-20A
Dimensions: 5.00 x 5.00 x 1.32 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
8
ID dot
JJJYM
Date code
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of: day of the current year (Julian,
3 digits), Y = last digit of the year, and M = manufacturing
site code
1.32 NOM.
1.52 MAX.
5.00
1.27
0.66
5.00
1.27
2.08
0.64
Tape and Reel Information
Standard T/R size = 4000 units/reel. All dimensions are in millimeters
2.7
12.8
Ø330
Sawtek
logo
ID dot
Section A-A
0.3
4.0
2.0
Ø1.5
A
1.75
5.5
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
5.25
1.8
5.25
8.0
Ø1.5
A
12.0
Data Sheet: Rev - 5/06/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
