140 MHz SAW Filter
Applications
For Broadband applications

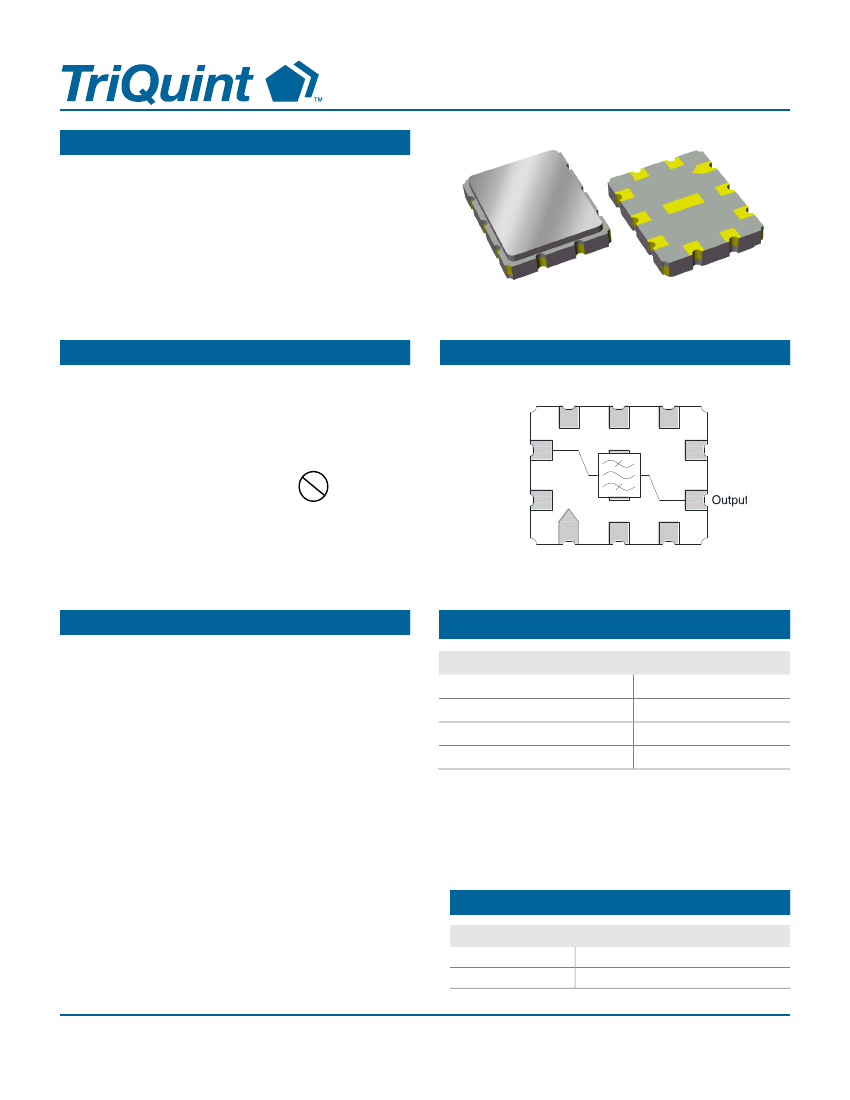

SMP-35B, 9.0 x 7.01 x 1.50 mm
Product Features
Usable 3 dB bandwidth 72 MHz
High-attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetically Sealed
RoHS compliant, Pb-free
Pb
Functional Block Diagram
Gnd
8
Gnd
7
Gnd
6
5
Input
9
Gnd
bb
b
P
bv
General Description
856314 is RoHS compliant and Pb-free.
Gnd
10
1
2
3
4
Gnd
Gnd
Gnd
Top View
P
b
Pin Configuration
Pin No.
4
9
5,10
1,2,3,6,7,8
Label
Output
Input
Ground
Case Ground
Ordering Information
Part No.
856314
856314-EVB
Description
Packaged Part
Evaluation board
Standard T/R size = 2000 units/reel
Data Sheet: Rev. B 09-26-14
© 2014 TriQuint
-
1 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
856314
140 MHz SAW Filter
Absolute Maximum Ratings
Parameter
Storage Temperature
(1)
(2)
Rating
-40 to +85 C
0 to +70 C
o
o
Operating Temperatures
Notes:
1. Operation of this device outside the parameter ranges given
may cause permanent damage.
2. Specifications are not guaranteed over all operable conditions.
Electrical Specifications
(1) (3)
Test conditions unless otherwise noted:
(2)
Temperature Range 0 to +70 C
o
Parameter
Center Frequency
Maximum Insertion Loss
(5)
Lower 1.5 dB Bandedge
Upper 1.5 dB Bandedge
(5)
Lower 3 dB Bandedge
Upper 3 dB Bandedge
Lower 40 dB Bandedge
Upper 40 dB Bandedge
Amplitude Variation
Phase Linearity
Group Delay Variation
Relative Attenuation
(5)
(5)
Conditions
At center frequency
Min
-
-
-
171
-
176
89
89
-
-
-
-
-
45
40
40
42
-
-
Typical
(4)
140
21
103
177
102
178
97
186
0.7
4.0
30
50
43
44
46
-74
50
Max
-
22.5
109
-
104
-
-
191
1.5
10
100
-
-
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
dB p-p
deg p-p
ns p-p
dB
ppm/
o
C
Ω
109 – 171 MHz
109 – 171 MHz
109 – 171 MHz
15 – 75 MHz
75 – 89 MHz
191 – 215 MHz
215 – 298 MHz
(6)
Temperature Coefficient
Source/Load Impedance
Notes:
1.
2.
3.
4.
5.
6.
Single ended
All specifications are based on the TriQuint schematic design shown on page 3.
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance
over temperature.
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances.
Typical values are based on average measurements at room temperature.
Relative to insertion loss at center frequency.
This is the optimum impedance in order to achieve the performance shown.
Data Sheet: Rev. B 09-26-14
© 2014 TriQuint
-
2 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
856314
140 MHz SAW Filter

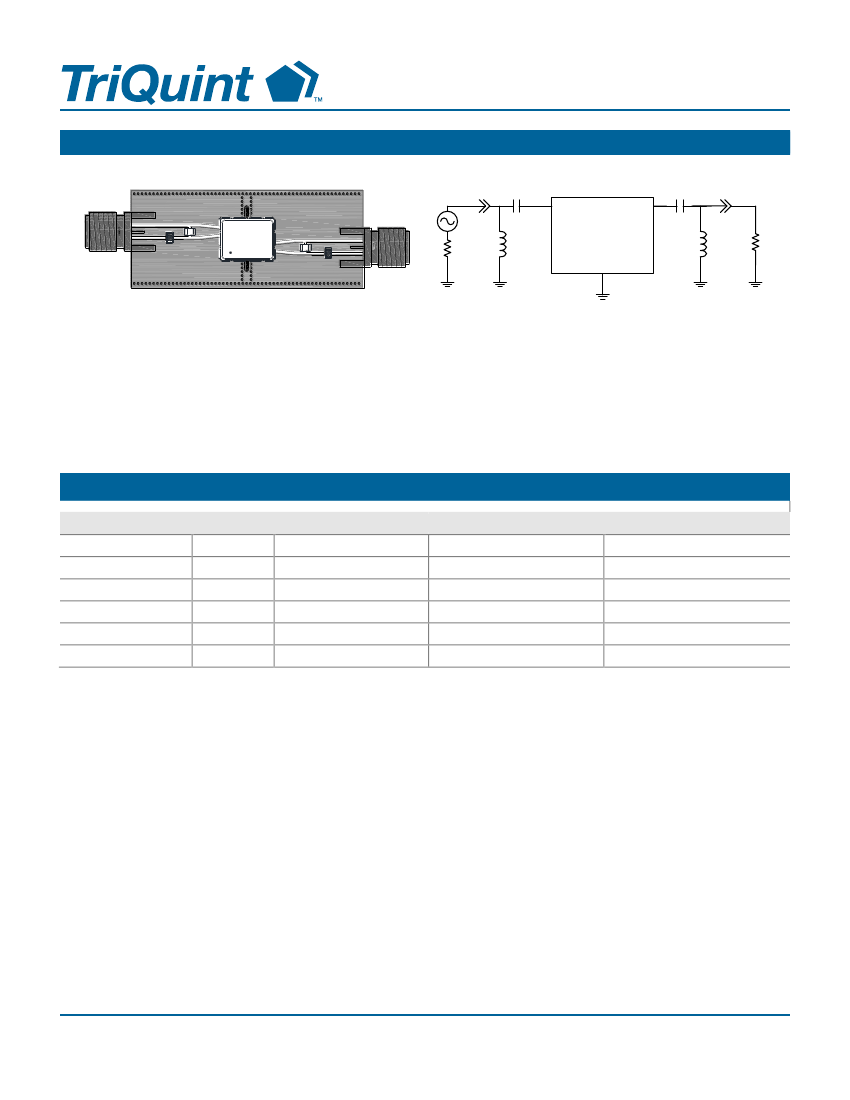

Evaluation Board
960590
Schematics
220pF
9
120nH
4
120nH
50
220pF
C1
SAWTEK
856314
XXXXXX
C2
L1
50
L2
1,2,3,5
6,7,8,10
Notes:
3-layers board - top, middle & bottom layer: 1 oz copper
Substrates: .031” thick FR4 dielectric.
Finish plating: Nickel: 3-8 µm thick, Gold: .03-.2 µm thick
Hole plating: Copper min .0008 µm thick
Bill of Material
Reference Des.
L1
L2
C1
C2
SMA
PCB
Value
120 nH
120 nH
220 pF
220 pF
N/A
N/A
Description
0603 wire wound
0603 wire wound
0603 ceramic cap
0603 ceramic cap
SMA connector
3-layer
Manuf.
Coilcraft
Coilcraft
Murata
Murata
Johnson Components
Multiple
Part Number
0603CS-121XJBC
0603CS-121XJBC
GRM40COG221C050BL
GRM40COG221C050BL
142-0701-801
960590
Data Sheet: Rev. B 09-26-14
© 2014 TriQuint
-
3 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
856314
140 MHz SAW Filter

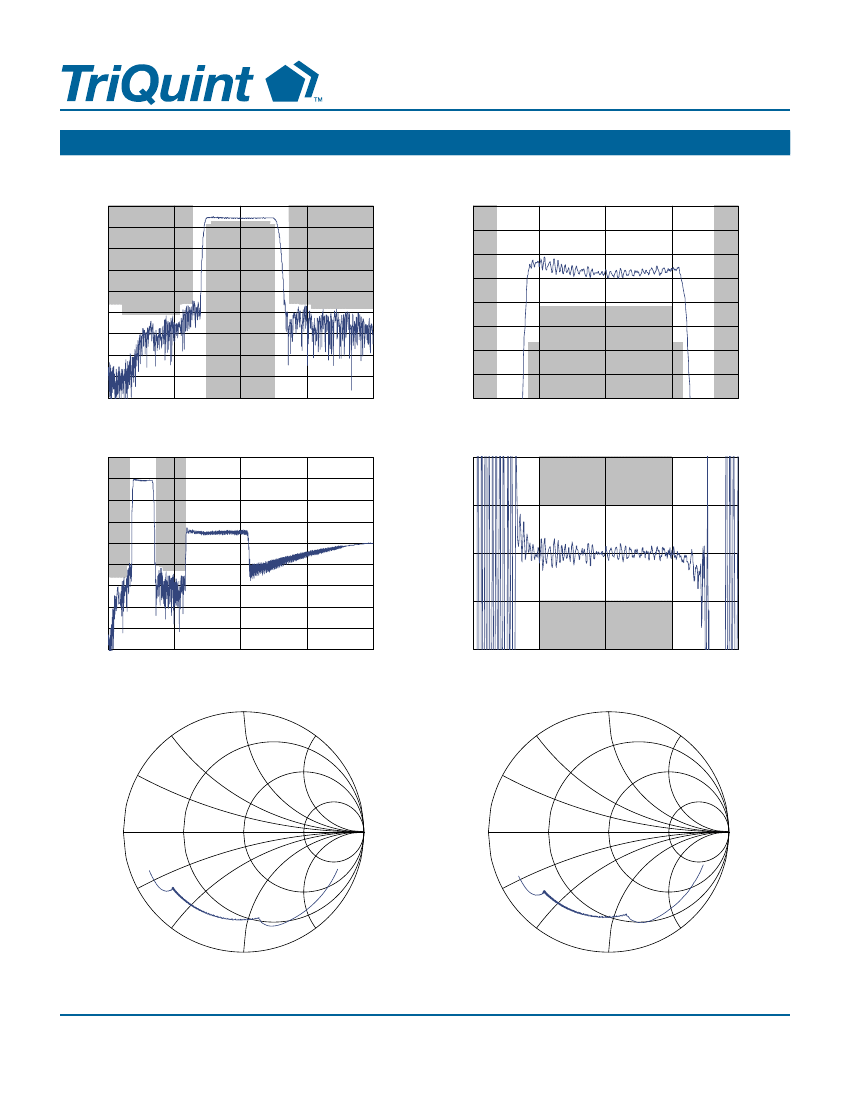

Performance Plots
Test conditions unless otherwise noted: Temp.= +25 °C
-15
-25
Frequency Response
-18
-19
-20
-21
Passband Response
-35
-45
d
B
-55
-65
-75
-85
-95
-105
0.3
70.15
140
209.85
279.7
d
B
-22
-23
-24
-25
-26
78
109
140
171
202
Frequency (MHz)
-10
-20
-30
-40
50
Frequency (MHz)
100
Wideband Response
Group Delay Response
d
B
-50
-60
-70
-80
-90
-100
10
260
510
760
1010
n
s
e
c
0
-50
-100
78
109
140
171
202
Frequency (MHz)
Frequency (MHz)
Input Smith Chart
1
Output Smith Chart
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0
-1
-0 .5
0
0.5
1
-1
-0 .5
0
0
0.5
1
-0 .2
-0 .2
-0 .4
-0 .4
-0 .6
-0 .6
-0 .8
-0 .8
-1
-1
Data Sheet: Rev. B 09-26-14
© 2014 TriQuint
-
4 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
856314
140 MHz SAW Filter

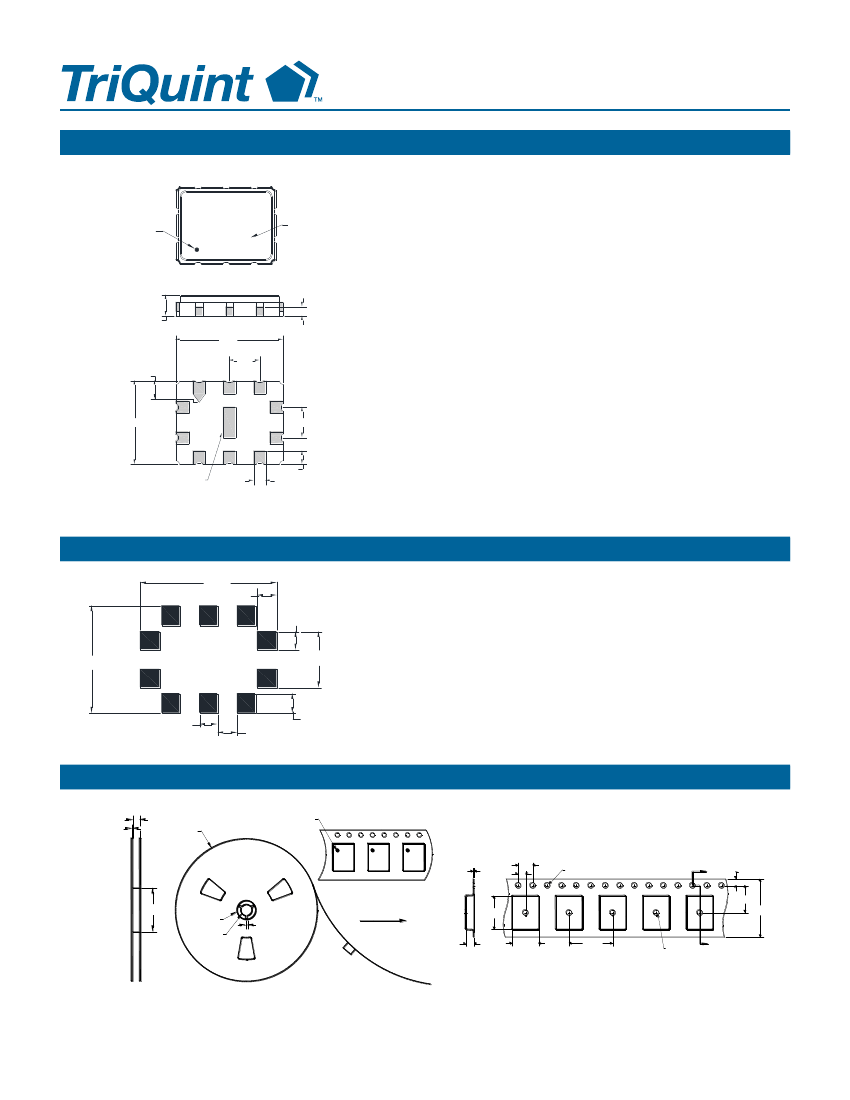

Package Information, Marking and Dimensions
Package Style: SMP-35B
Dimensions: 9.00 x 7.01 x 1.50 mm
SAWTEK
ID dot
856314
XXXXXX
Date Code
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated.
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
The date code consists of:
The day of the year – Julian (3 digits), Y= last digit of the year - (1 digit),
HH = the hour of the day – Military (2 digits)
Notes:
1. All dimensions shown are typical in millimeters
2. An asterisk (*) in front of the marking code indicates prototype
1.50 NOM.
1.65 MAX.
9.00
2.54
1.80
0.76
7.01
2.54
1.12
1.02 x 2.54
1.02
PCB Mounting Pattern
9.19
1.32
1.22
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. This drawing specifies the mounting pattern used on the TriQuint evaluation
board for this product. Some modification may be necessary to suit end
user assembly materials and processes.
3.76
7.21
1.22
1.32
1.32
Tape and Reel information
Standard T/R size = 2000 units / reel. All dimensions are in millimeters
16.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
7.5
16.0
Ø102
Ø20.2
Ø13.0
9.22
2.0
Direction of travel
2.2
Section A-A
7.22
12.0
Ø1.5
A
Data Sheet: Rev. B 09-26-14
© 2014 TriQuint
-
5 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
