Data Sheet
Features
For broadband access applications
Usable bandwidth 10 MHz
High attenuation
No impedance matching required for operation
at 200
Balanced operation
Ceramic Surface Mount Package (SMP)
Small size
Part Number 856330
1086 MHz SAW Filter
Package

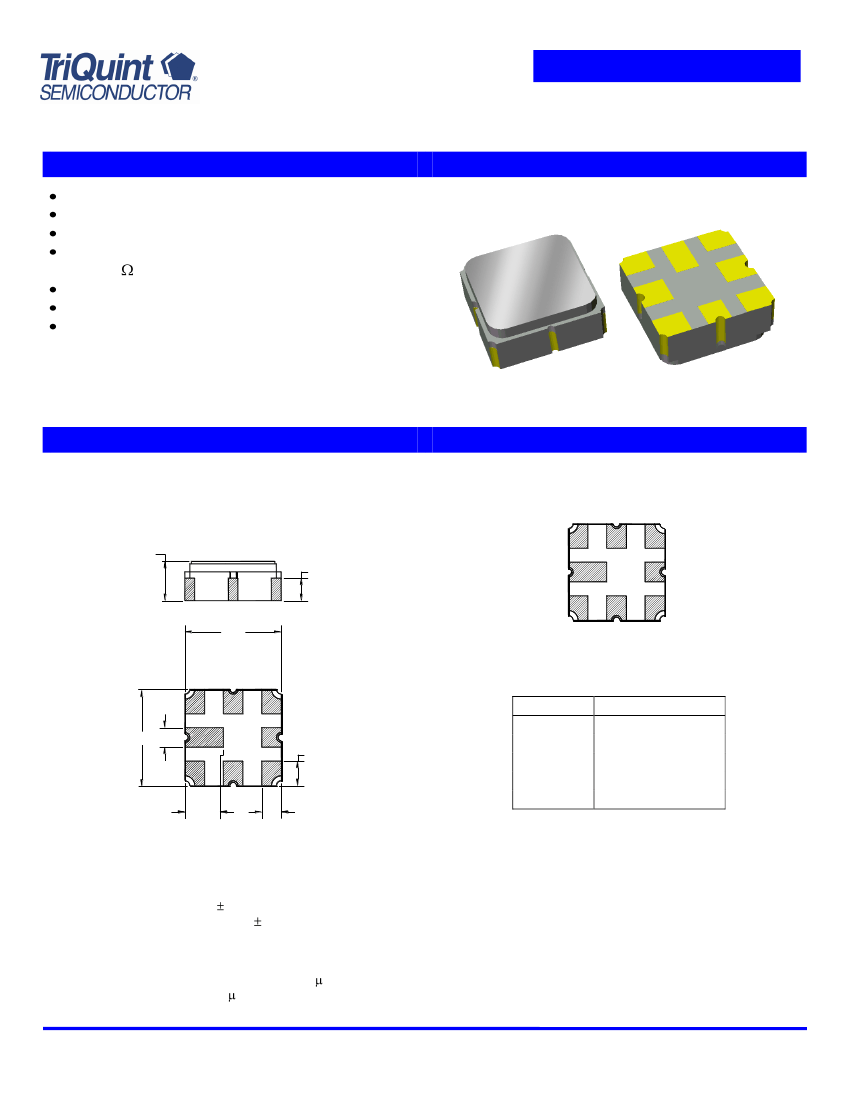

Surface Mount 3.00 x 3.00 x 1.22 mm
Pin Configuration
Bottom View
1
2
3
1.22 NOM.
1.32 MAX.
0.69
8
4
3.00
7
6
5
3.00 0.60
0.75
Pin No.
1
2
5
6
3,4,7,8
Description
Input
Input return
Output
Output return
Case ground
1.20
0.60
Dimensions shown are nominal in millimeters
All tolerances are 0.15mm except overall
length and width 0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0 m,
over a 2 - 6 m
Ni
plating
Subject to change or obsolescence without notice
Rev C
04/10
© TriQuint Semiconductor
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
o
C
Part Number 856330
1086 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Maximum Insertion Loss
1081 - 1091 MHz
1.5 dB Bandedges
Lower Bandedge
Upper Bandedge
Amplitude Ripple
(4)
1081 - 1091 MHz
Stopband Rejection (Test Fixture)
500 - 988 MHz
988 - 1002 MHz
1038 - 1046 MHz
1156 - 1600 MHz
4167 - 4168 MHz
Stopband Rejection (PCB)
(5)
988 - 1002 MHz
Group Delay Ripple
1081 - 1091 MHz
Source Impedance
(6)
Load Impedance
(6)
Notes:
1.
2.
3.
4.
5.
6.
Minimum
-
-
-
1091
-
50
52.5
40
40
35
61
-
-
-
Typical
1086
4
1073
1099
0.3
65
70
55
60
40
71
20
200
200
Maximum
-
5
1081
Unit
MHz
dB
MHz
1.0
-
-
-
-
-
-
-
-
-
dB
dB
dB
dB
dB
dB
dB
ns
All specifications are based on the test circuit shown below. Testing is carried out using test fixture 971748, test data sheet
122288-02, to equipment specification 100221.
In production, devices will be tested at room temperature in a TriQuint test fixture to a guardbanded specification to ensure
electrical compliance over temperature.
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances.
Maximum peak to adjacent valley over the defined frequency range.
This value is correlated to the test specification of 52.5 dB on the TriQuint production test fixture.
This is the optimum impedance in order to achieve the performance shown.
Test Circuit:
1
5
200
2
3,4,7,8
6
200
Balanced
200
200
Balanced
Subject to change or obsolescence without notice
Rev C
04/10
© TriQuint Semiconductor
Page 2 of 5
Data Sheet
Part Number 856330
1086 MHz SAW Filter

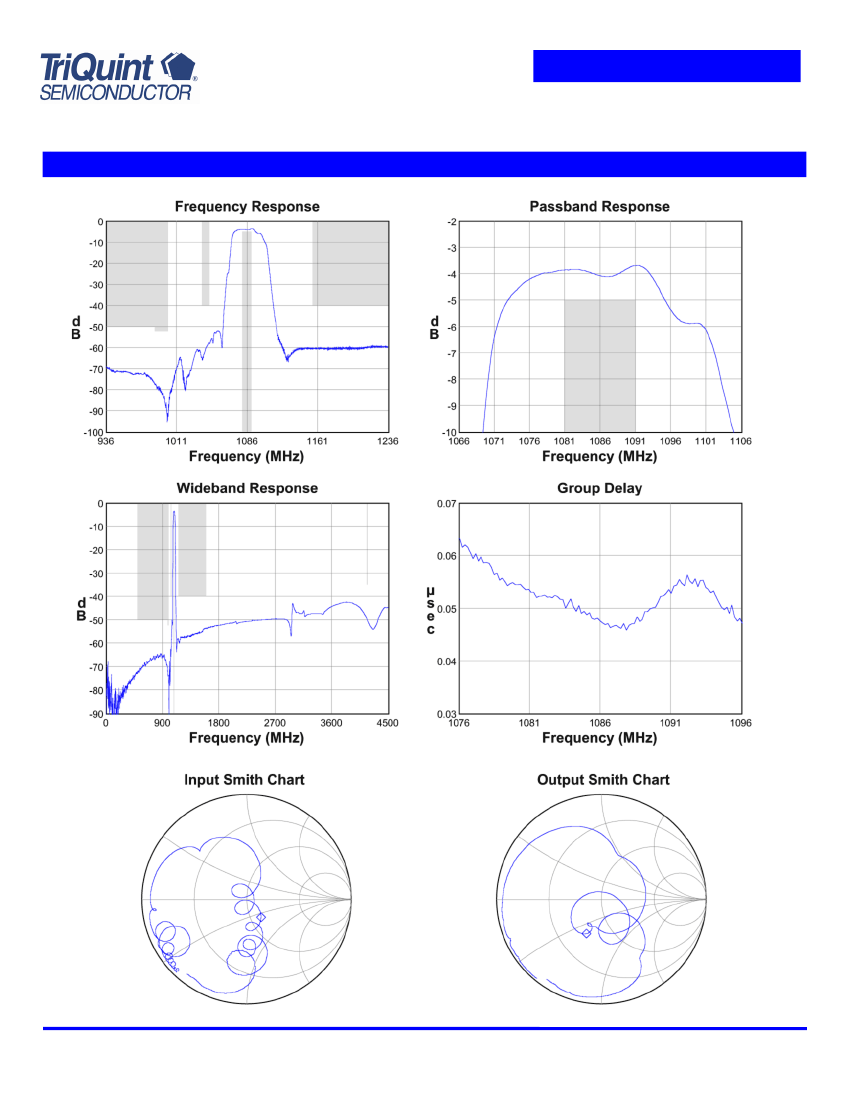

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev C
04/10
© TriQuint Semiconductor
Page 3 of 5
Data Sheet
Part Number 856330
1086 MHz SAW Filter
Matching Schematics
1
5
200
2
3,4,7,8
6
200
Balanced
200
200
Balanced
Marking
Sawtek
logo
Marking
code

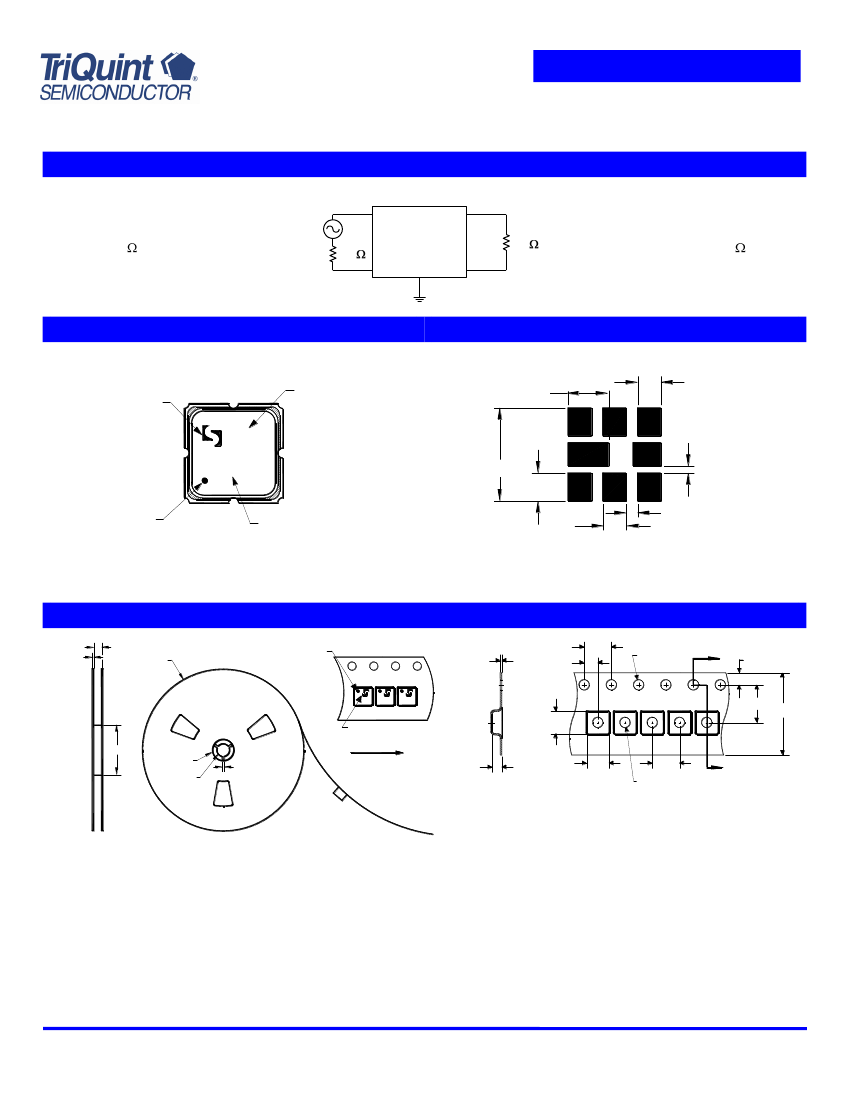

PCB Footprint
1.39
.81
BN
JJJYM
ID dot
Date code
.96
3.20 SQ
.23
.38
.81
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
12.8
2.7
Ø330
ID dot
0.21
2.0
4.0
Ø1.5
A
1.75
5.5
12.0
Sawtek
logo
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
1.4
Section A-A
3.25
3.25
4.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev C
04/10
© TriQuint Semiconductor
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856330
1086 MHz SAW Filter
Symbol
T
T
stg
Minimum
-40
-40
Maximum
+85
+85
Unit
o
o
C
C
Warnings
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Rev C
04/10
Or contact one of our worldwide
network of
sales offices,
representatives or distributors
© TriQuint Semiconductor
Page 5 of 5
