OH200-61003CF-FREQ1 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> OH200-61003CF-FREQ1

OH200-61003CF-FREQ1: DescriptionCMOS Output Clock Oscillator, 5MHz Min, 20MHz Max, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED PACKAGE-5; CategoryPassive components oscillator; File Size429KB，4 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/; Environmental Compliance

Download Datasheet Parametric View All

OH200-61003CF-FREQ1 Overview

CMOS Output Clock Oscillator, 5MHz Min, 20MHz Max, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED PACKAGE-5

OH200-61003CF-FREQ1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Connor-Winfield
Reach Compliance Code	unknown
Ageing	0.05 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.005%
Frequency Stability - Voltage	0.005 ppm
input power	1.5 W
Manufacturer's serial number	OH200
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	20 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Oven power supply voltage	3.3V
physical size	36.0mm x 27.0mm x 12.7mm
Maximum supply voltage	3.47 V
Minimum supply voltage	3.13 V
Nominal supply voltage	3.3 V
surface mount	NO
Preheating power	3.8 W
Maximum warm-up time	5 Minute

Preview

Download Datasheet

View All

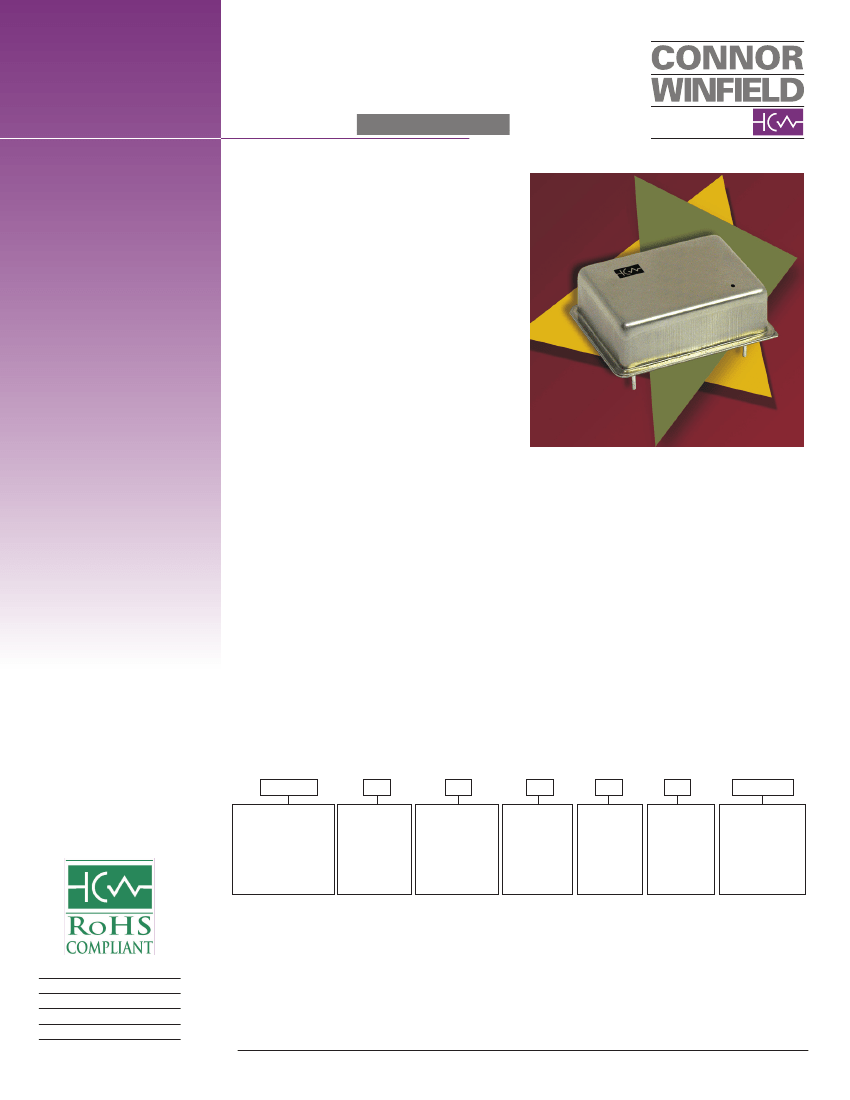

Stratum 3E High Stability

Oven Stabilized Oscillator

OH200-Series

OCXO – OCVCXO

Description

Connor-Winfield’s high stability OH200-

series are exceptionally precise frequency

standards, excellent for use in cellular base

stations, test equipment, Synchronous

Ethernet, VSAT and Stratum 3E applications

These unique OCXO and OCVCXO

products provide temperature stabilities

in the range of

±3

ppb to

±25

ppb, over

the commercial, extended commercial or

the industrial temperature range. Power

requirements are 3W over the commercial

temperature range and 4.5W over the

industrial temperature range. Additionally,

excellent aging is achieved through the use

of overtone SC cut crystals.

The OH200 series is available with

CMOS logic or Sinewave output along

with Electronic Frequency Tuning. These

oscillators provide outstanding phase

noise that varies depending on frequency.

Frequencies are available from 5.0 to 40.0

MHz. Allan Variance specifications are rated

for primary reference standards. Warm up

times are on the order of 5 minutes to 0.10

ppm of final frequency.

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

0939

3CF

-6100

OH20

MHz

12.8

Features

• Frequency Range: 5.0 to 40.0 MHz

• OCXO - Fixed Frequency

• OCVCXO - Voltage Controlled Frequency

• 3.3 Vdc, 5.0 Vdc or 12.0 Vdc Operation

• Available Frequency Stabilities:

±3

ppb,

±5

ppb,

±10

ppb or

±25

ppb

• Available Temperature Ranges:

0 to 70°C, -20 to 70°C, -40 to 70°C or

-40 to 85°C

• Low Phase Noise / Phase Jitter

• Available Outputs:

CMOS or Sinewave

• Package: 1.1" x 1.4" x 0.5" (CO-8)

• RoHS Compliant / Lead Free

Ordering Information

OH200-

Package

OH200- = 1.1x1.4 CO8

Temperature

Range

5 = 0 to 70°C

6 = -40 to 85°C

7 = -20 to 70°C

8 = -40 to 70°C

Frequency

Stability

06 = ±3 ppb

10 = ±5 ppb

20 = ±10 ppb

50 = ±25 ppb

{±(Fmax-Fmin)/2.Fo}

Supply Voltage

03 = 3.3 Vdc

05 = 5.0 Vdc

12 = 12.0 Vdc

Output Type

C = CMOS

S = Sinewave

OCXO Type

F = Fixed

Freq.

V = Voltage

Controlled

Freq.

- 012.8M

Output Frequency

Frequency Format

-xxx.xM Min

-xxx.xxxxxxM Max

*Amount of

numbers after the

decimal point.

M = MHz

voltage, CMOS square wave output, fixed frequency OCXO, 12.8 MHz output frequency.

Example Part Number:

OH200-61003CF-012.8M = 1.1" x 1.4" x 0.5" CO-8 package, -40 to 85°C temperature range, ±5.0 ppb frequency stability, 3.3 Vdc supply

To order a OH200-61003CF with an output frequency of: 6.4 MHz = OH200-61003CF-006.4M

To order a OH200-61003CF with an output frequency of 16.384 MHz = OH200-61003CF-016.384M.

Bulletin

Page

Revision

Date

Cx193

1 of 4

21 Mar 2012

OH200-712005SV-040.0M = 1.1" x 1.4" x 0.5" CO-8 package, -20 to 70°C temperature range, ±10.0 ppb frequency stability, 5.0 Vdc supply

voltage, Sinewave output, voltage controlled output frequency OCVCXO, 40 MHz output frequency.
