80 MHz Bandpass Filter 8 MHz Bandwidth
File Size63KB,1 Pages
ManufacturerTriQuint Semiconductor Inc. (Qorvo)
Websitehttp://www.triquint.com
Download Datasheet View All

855679_15 Overview

80 MHz Bandpass Filter 8 MHz Bandwidth

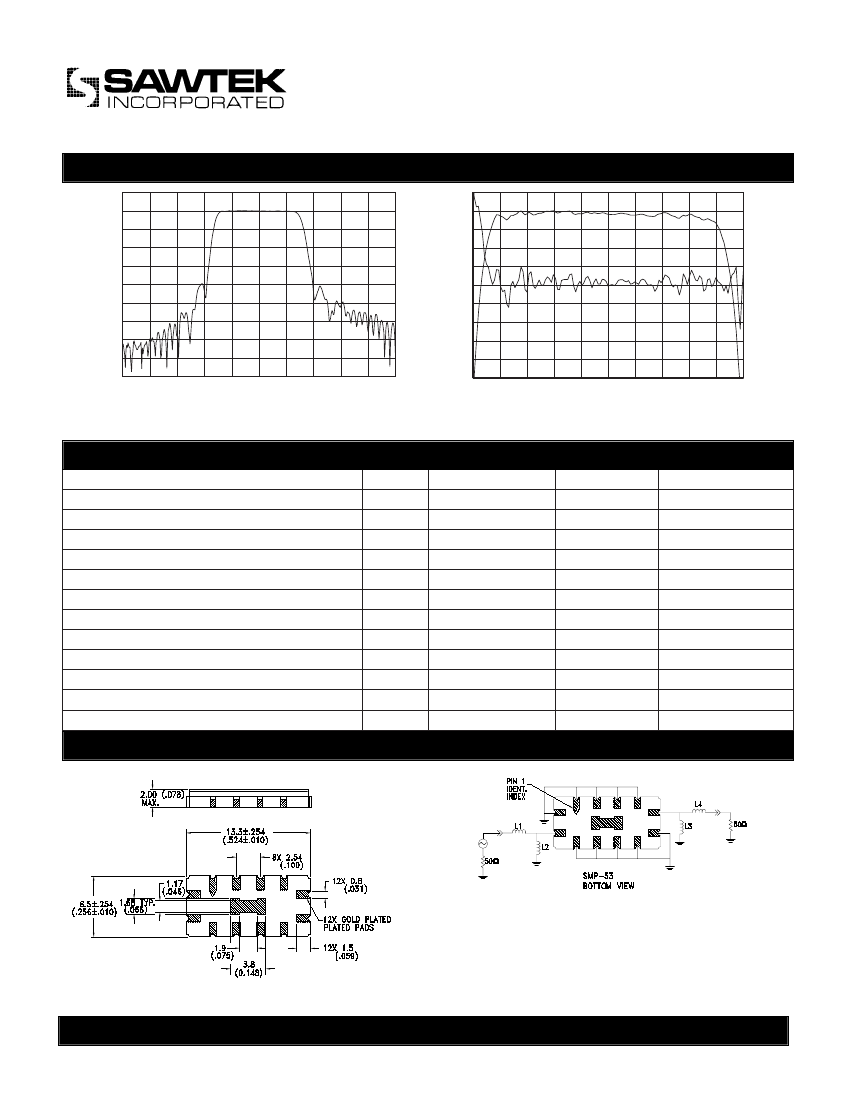

80 MHz Bandpass Filter
Data Sheet
Typical Performance
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
Horizontal:
83 86
65 68 71 74 77 80
3 MHz/Div
89 92 95
Vertical: 10 dB/Div
1
1.84
0
1.8
-1
1.76
-2
1.72
-3
1.68
-4
1.64
-5
1.6
-6
1.56
-7
1.52
-8
1.48
-9
1.44
75 76 77
Horizontal: 1 MHz/Div
83 84 85
78 79 80 81 82
Vertical: 1 dB/Div
Vertical: 40 nsec/Div
8 MHz Bandwidth
Part Number 855679
Parameter
Center Frequency
Insertion Loss
1 dB Lower Frequency
1 dB Upper Frequency
35 dB Lower Frequency
35 dB Upper Frequency
Amplitude Variation
Phase Ripple
Group Delay Variation
Absolute Delay
Substrate Material
Ambient Temperature
Specifications
Unit
Minimum
MHz
dB
MHz
MHz
MHz
MHz
dB p-p
deg p-p
nsec
µsec
-
°C
-
-
-
84
72.875
-
-
-
-
-
-
-
Typical
80
11.9
75.8
84.2
74.5
85.8
0.34
3.7
62
1.64
LiTaO
3
25
Maximum
-
14
76
-
-
87.125
1
7
150
1.8
-
-
Package Outline
Matching Configuration
L1 = 150 nH , L2 = 75 nH
L3 = 75 nH , L4 = 132 nH
Nominal Source/Load Impedance = 50
Package Style SMP 53
12/3/99
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
