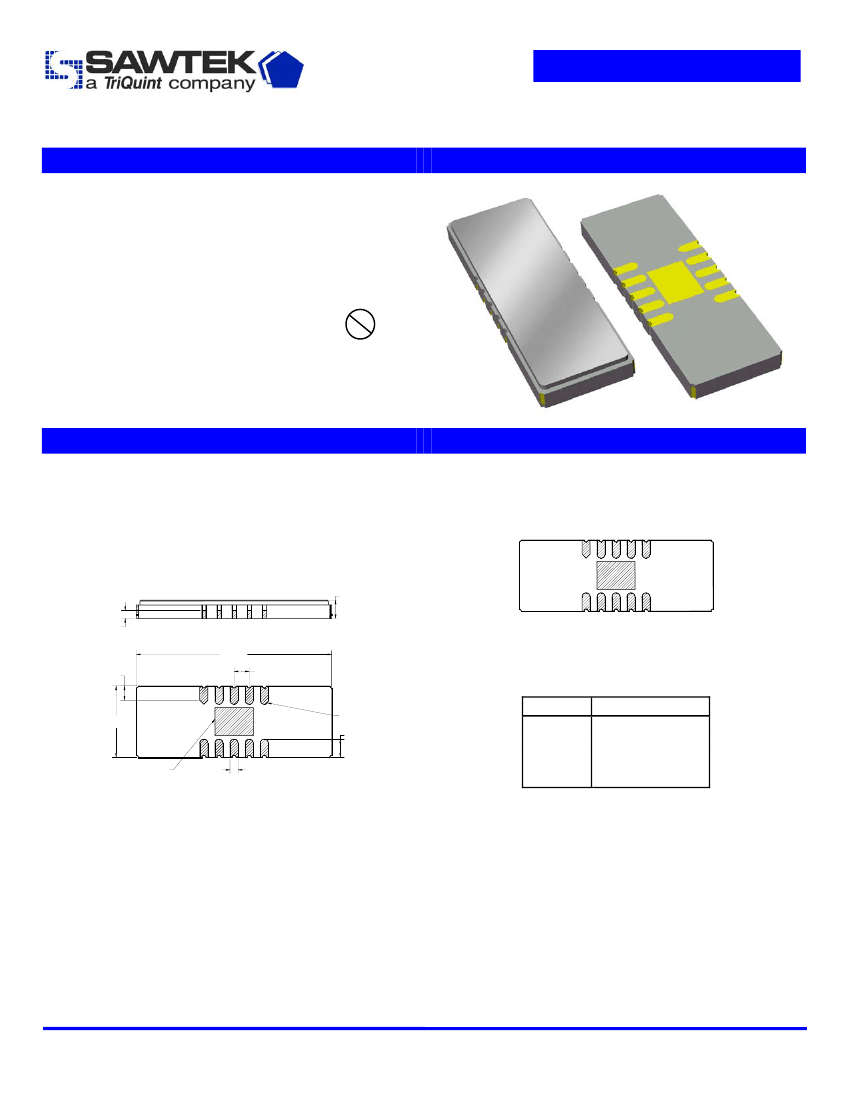

All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
All attenuation measurements are measured relative to minimum insertion loss
This is the optimum impedance in order to achieve the performance shown

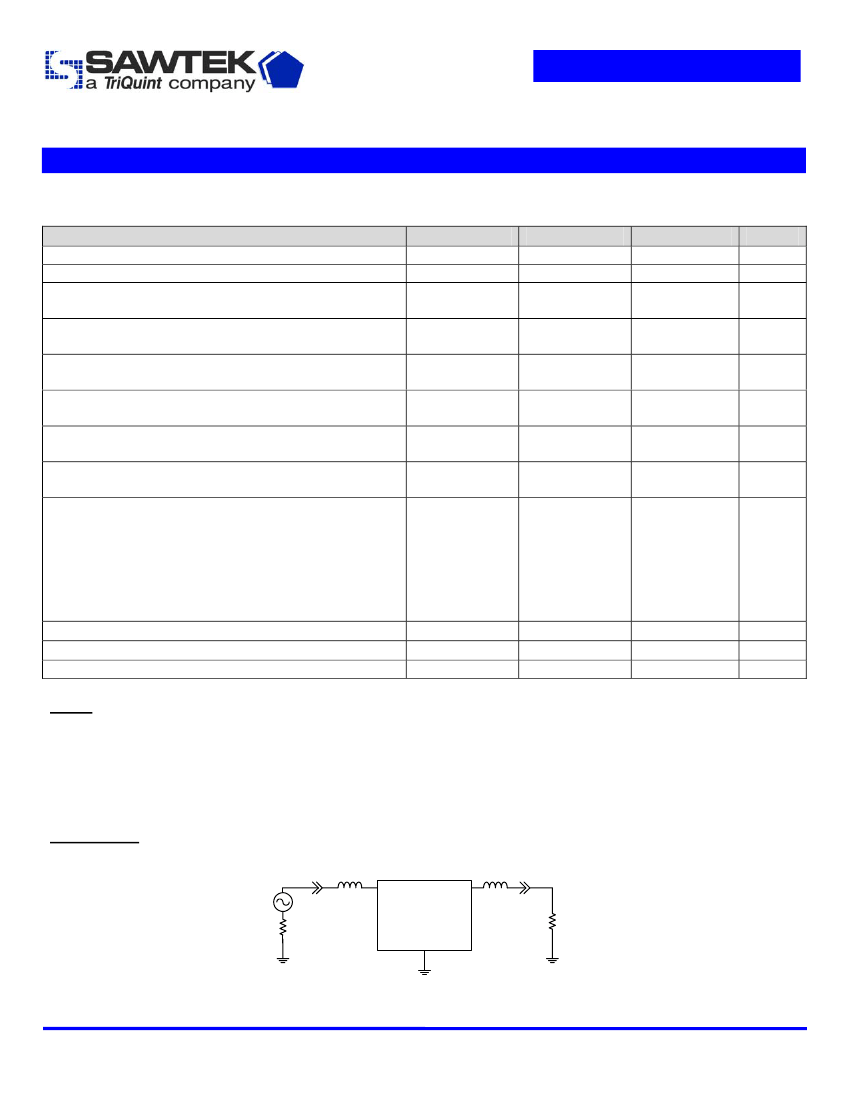

Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
330nH
10
5
50Ω
270nH
50
Ω
Single-ended
50Ω
1,2,3,4
6,7,8,9
Subject to change or obsolescence without notice
Rev B
13-Oct-2005
Page 2 of 5
Data Sheet
Part Number 855738
70 MHz SAW Filter

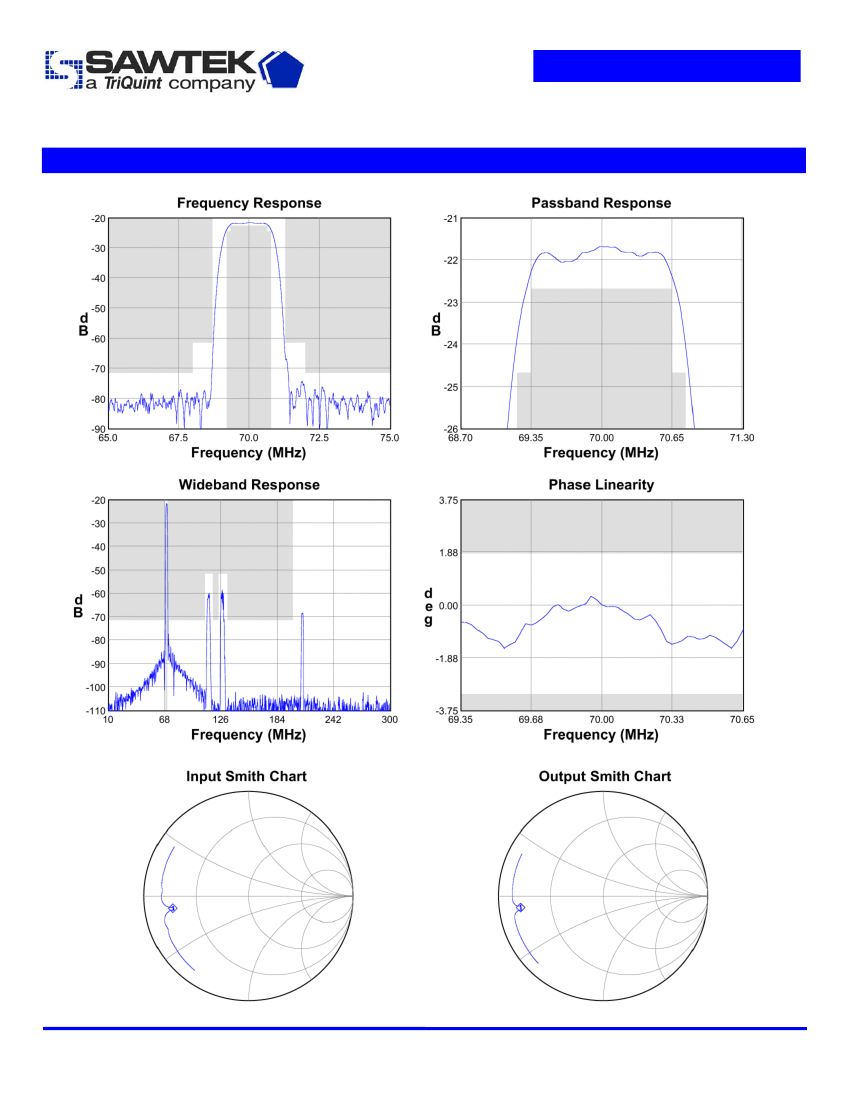

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev B
13-Oct-2005
Page 3 of 5
Data Sheet
330nH
10
5
270nH
Part Number 855738
70 MHz SAW Filter

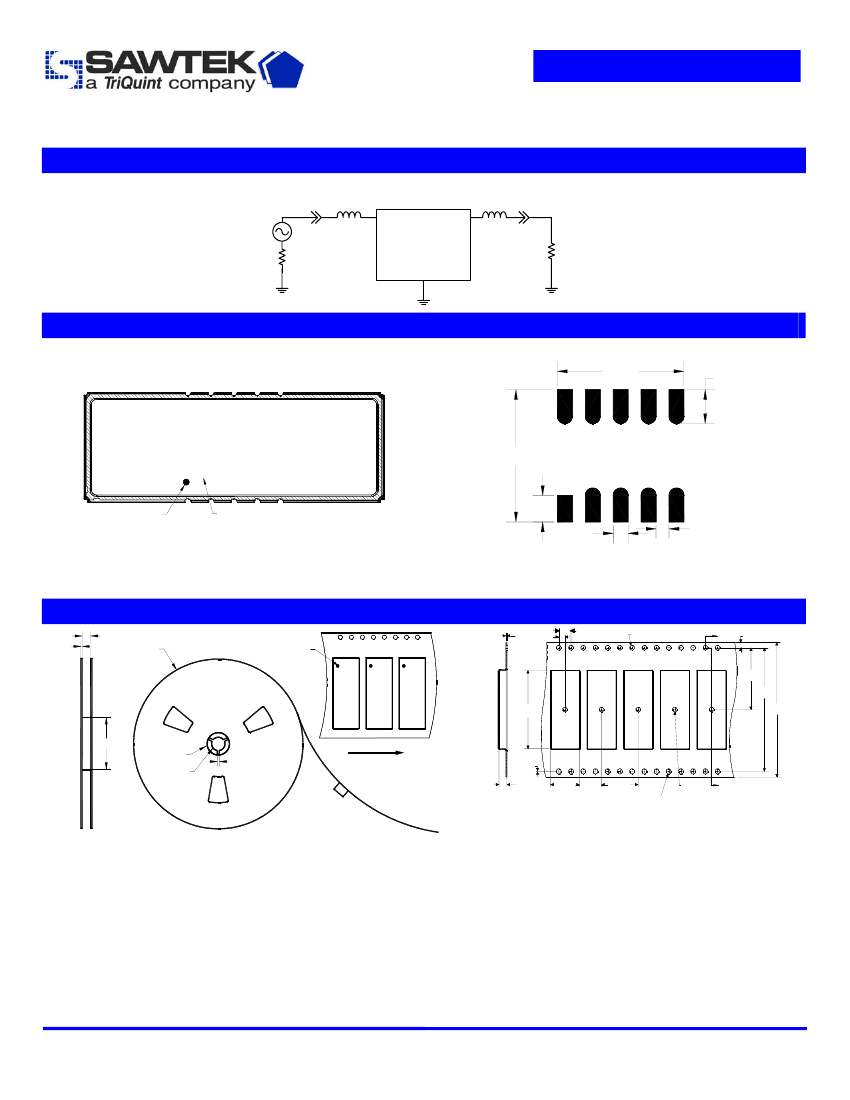

Matching Schematics
50
Ω
Single-ended
50Ω
1,2,3,4
6,7,8,9
50Ω
Marking
PCB Footprint
8.86
2.51
SAWTEK
855738
XXXXXX
ID dot
Date code
9.19
2.00
1.22
0.69
Date code is the day of the current year in Julian format, last digit
of the year, and hour of the day
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
4.0
Tape and Reel
2.7
44.8
Ø330
ID dot
0.36
2.0
Ø1.5
A
1.75
20.2
40.4
25.6
44.0
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
0.20
2.6
Section A-A
9.39
12.0
R0.75
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 1000 units/reel
Subject to change or obsolescence without notice
Rev B
13-Oct-2005
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 855738
70 MHz SAW Filter
Symbol
T
T
stg
Minimum
0
-40
Maximum
+70
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
