Data Sheet
Features
•
•
•
•
•
•
•
•
For broadband applications
Typical 3 dB bandwidth of 4.9 MHz
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Replaces Sawtek P/N 851551 (BW 3dB=4.5 MHz)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 855744
70 MHz SAW Filter
Package
Surface Mount 19.00 x 6.50 x 1.75 mm
SMP-75B

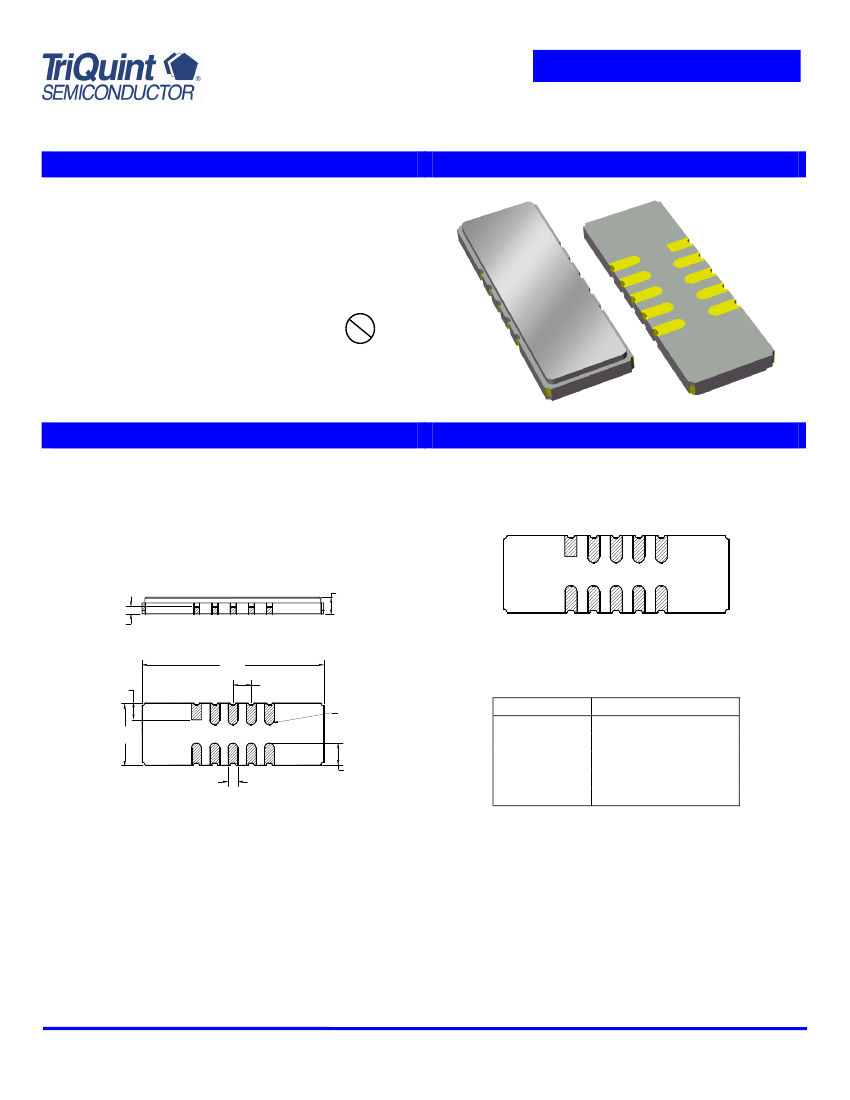

Pin Configuration
Bottom View
1
2
3
4
5
1.75 NOM.
1.96 MAX.
0.76
10 9
19.0
8
7
6
1.80
1.91
R0.51
6.50
2.31
1.02
Single-ended Configuration
Pin No.
Description
5
RF output
10
RF Input
1,6
Ground
2,3,4
Case Ground
7,8,9
Case Ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev C
06/08
© TriQuint Semiconductor
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
0 to +70
°C
Part Number 855744
70 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Lower 1 dB Bandedge
(5)
Upper 1 dB Bandedge
Lower 3 dB Bandedge
(5)
Upper 3 dB Bandedge
Lower 40 dB Bandedge
(5)
Upper 40 dB Bandedge
Amplitude Variation
67.9 - 72.1 MHz
Phase Linearity
67.9 - 72.1 MHz
Group Delay Variation
67.9 - 72.1 MHz
Absolute Delay
Relative Attenuation
(5)
10 - 58 MHz
58 - 65 MHz
75 - 82 MHz
82 - 124 MHz
124 - 140 MHz
140 - 200 MHz
Source Impedance
(6)
Load Impedance
(6)
Notes:
Minimum
-
-
-
72.1
-
72.35
66.68
-
-
-
-
-
42.0
36.5
42.0
42.5
37.5
50.0
-
-
Typical
(4)
70
23.7
67.74
72.31
67.53
72.50
66.79
73.20
0.71
3.3
60
2.3
54
45
45
53
46
63
50
50
Maximum
-
25.5
67.9
-
67.65
-
-
73.32
1.15
5.85
135
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
dB p-p
deg p-p
nsec
µsec
dB
dB
dB
dB
dB
dB
Ω
Ω
1. All specifications are based on the matching schematic shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. All attenuation measurements are measured relative to minimum insertion loss
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
470nH 12pF
10
5
50Ω
Ω
1,2,3,4,6,7,8,9
47nH
50
Ω
Single-ended
Input
50Ω
Ω
50
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev C
06/08
© TriQuint Semiconductor
Page 2 of 5
Data Sheet
Part Number 855744
70 MHz SAW Filter

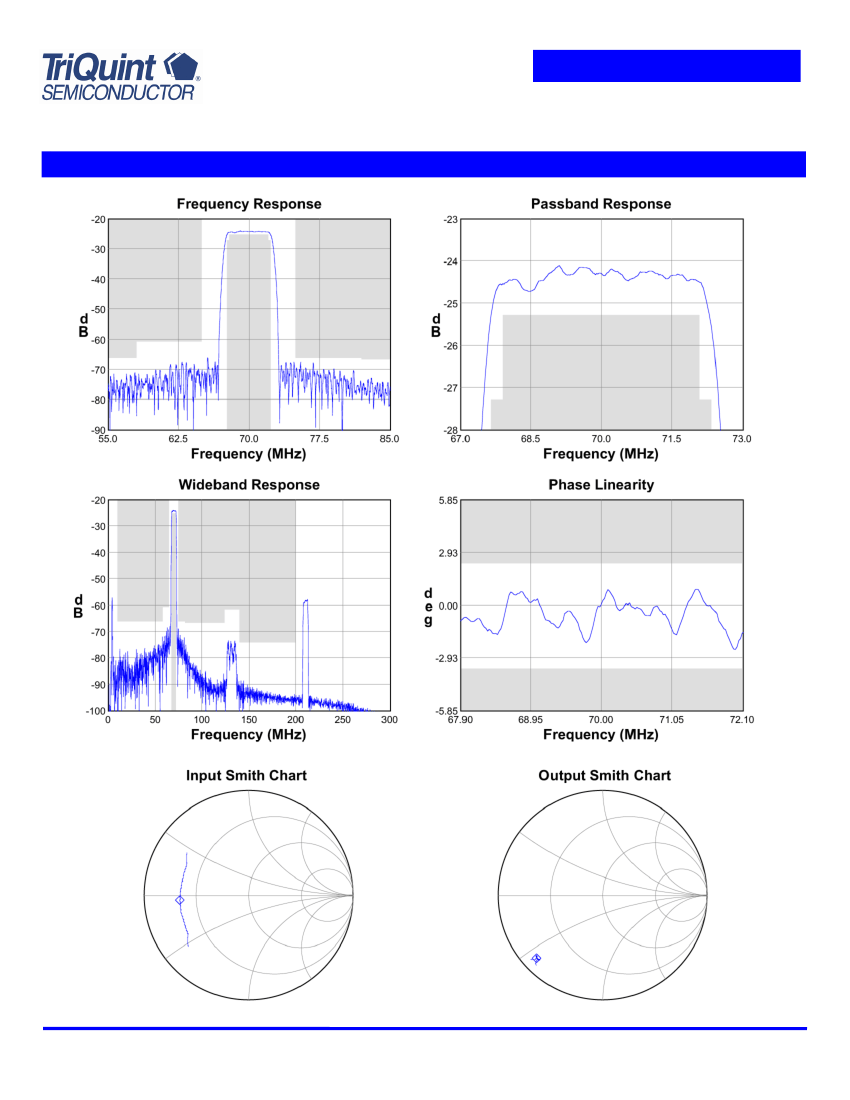

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev C
06/08
© TriQuint Semiconductor
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
470nH 12pF
10
5
47nH
Part Number 855744
70 MHz SAW Filter
Matching Schematics
50
Ω
Single-ended
Input
50Ω
Ω
1,2,3,4,6,7,8,9
50Ω
Ω
50
Ω
Single-ended
Output
Marking
PCB Footprint
8.86
2.51
SAWTEK
855744
XXXXXX
ID Dot
Date Code
6.70
2.00
1.22
.69
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
32.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
R0.75
A 1.75
14.2
19.6
32.0
28.4
Ø102
Ø20.2
Ø13.0
0.20
2.0
Direction of travel
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 2000 units/reel
Subject to change or obsolescence without notice
Rev C
06/08
© TriQuint Semiconductor
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 855744
70 MHz SAW Filter
Symbol
T
T
stg
Minimum
0
-40
Maximum
+70
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
