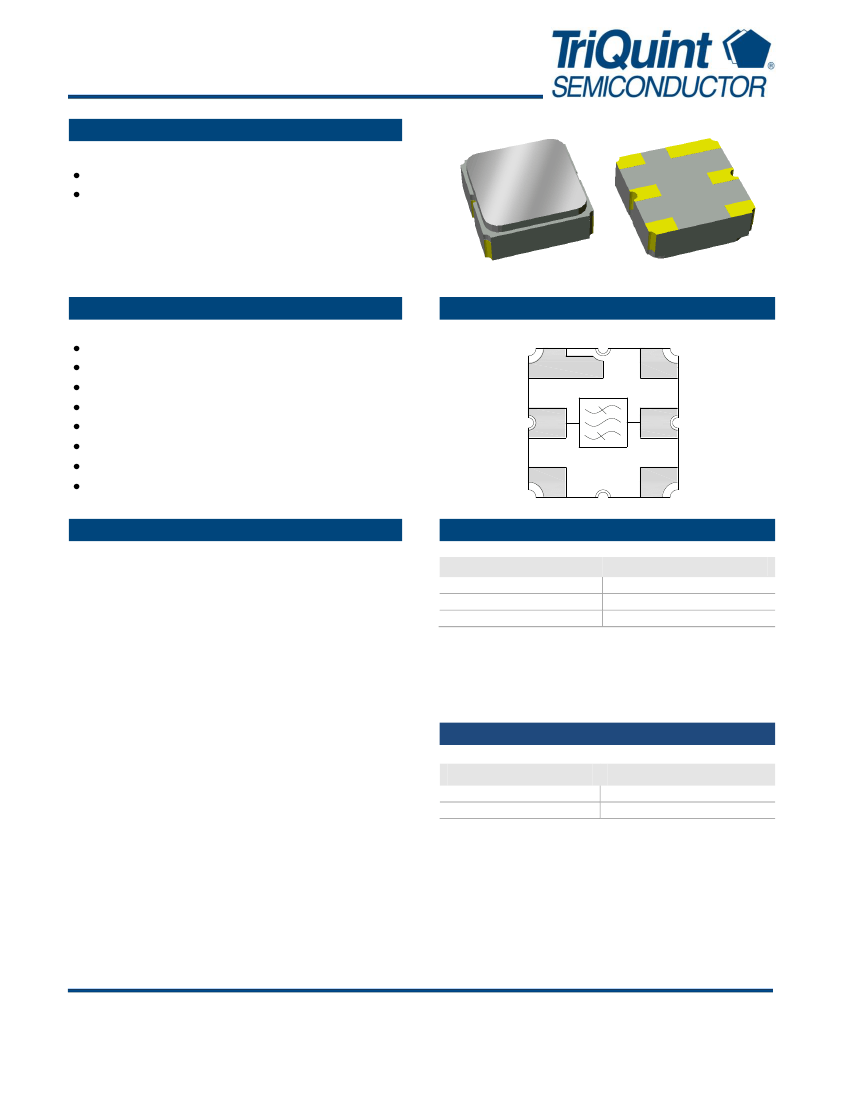

855916
2441.8
MHz SAW Filter
Applications
For ISM applications
Bluetooth
Product Features
Usable bandwidth 83.5 MHz
High Attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
No Impedance matching required for operation at 50Ω
Small Size: 3.00 x 3.00 x 1.22 mm
Hermetically sealed
RoHS
compliant,
Pb-free
Functional Block Diagram
Top view
Gnd
1
6
Gnd
Input
2
5
Output
Gnd
3
4
Gnd
General Description
The 855916 is a high-performance RF SAW filter with a
center frequency of 2441.8 and a usable bandwidth of 83.5
MHz.
It features low loss with excellent attenuation, is designed
to be used with a single ended input and output, and no
impedance matching is required for operation at 50Ω.
The device is RoHS compliant and Pb-free.
Pin Configuration
Pin # SE
2
5
1,3,4,6
Description
Input
Output
Case Ground
Ordering Information
Part No.
855916
855916-EVB
Description
packaged part
evaluation board
Standard T/R size = 5000 units/reel.
Data Sheet: Rev D 6/22/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
855916
2441.8
MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
0 to +60 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Passband Ripple
Absolute Attenuation
(5)
Conditions
2400 – 2483.5 MHz
2400 – 2483.5 MHz
0.3 – 500 MHz
500 – 1000 MHz
1000 – 1700 MHz
1700 – 2200 MHz
2700 – 3100 MHz
3100 – 4000 MHz
4000 – 5000 MHz
2400 – 2483.5 MHz
2400 – 2483.5 MHz
Min
-
-
-
25
20
20
20
20
20
10
-
-
Typical
(4)
2441.8
2.76
1.2
34
29
26.8
26.8
30.5
31.8
20
2.75
2.68
Max
-
5.0
2.5
-
-
-
-
-
-
-
4.55:1
5.70:1
Units
MHz
dB
dB p-p
dB
dB
dB
dB
dB
dB
dB
Ratio
Ratio
Input VSWR
Input VSWR
Specified Temperature Range:
(2)
-40 to +85 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Passband Ripple
Absolute Attenuation
(5)
Conditions
2400 – 2483.5 MHz
2400 – 2483.5 MHz
0.3 – 500 MHz
500 – 1000 MHz
1000 – 1700 MHz
1700 – 2200 MHz
2700 – 3100 MHz
3100 – 4000 MHz
4000 – 5000 MHz
2400 – 2483.5 MHz
2400 – 2483.5 MHz
Min
-
-
-
25
20
20
20
20
20
10
-
-
-
Typical
(4)
2441.8
2.76
1.2
34
29
26.8
26.8
30.5
31.8
20
2.75
2.68
50
Max
-
5.0
3.0
-
-
-
-
-
-
-
4.55:1
5.70:1
-
Units
MHz
dB
dB p-p
dB
dB
dB
dB
dB
dB
dB
Ratio
Ratio
Input VSWR
Output VSWR
Load /Source Impedance (single-ended)
(6)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to zero dB
6. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Input Power (CW at 2441 MHz for 10K hrs)
7.
(7)
Rating
-40 to +85
o
-40 to +85
C
o
+10 dBm
C
Device may operate over this range with degraded Electrical Specifications
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev D 6/22/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
855916
2441.8
MHz SAW Filter

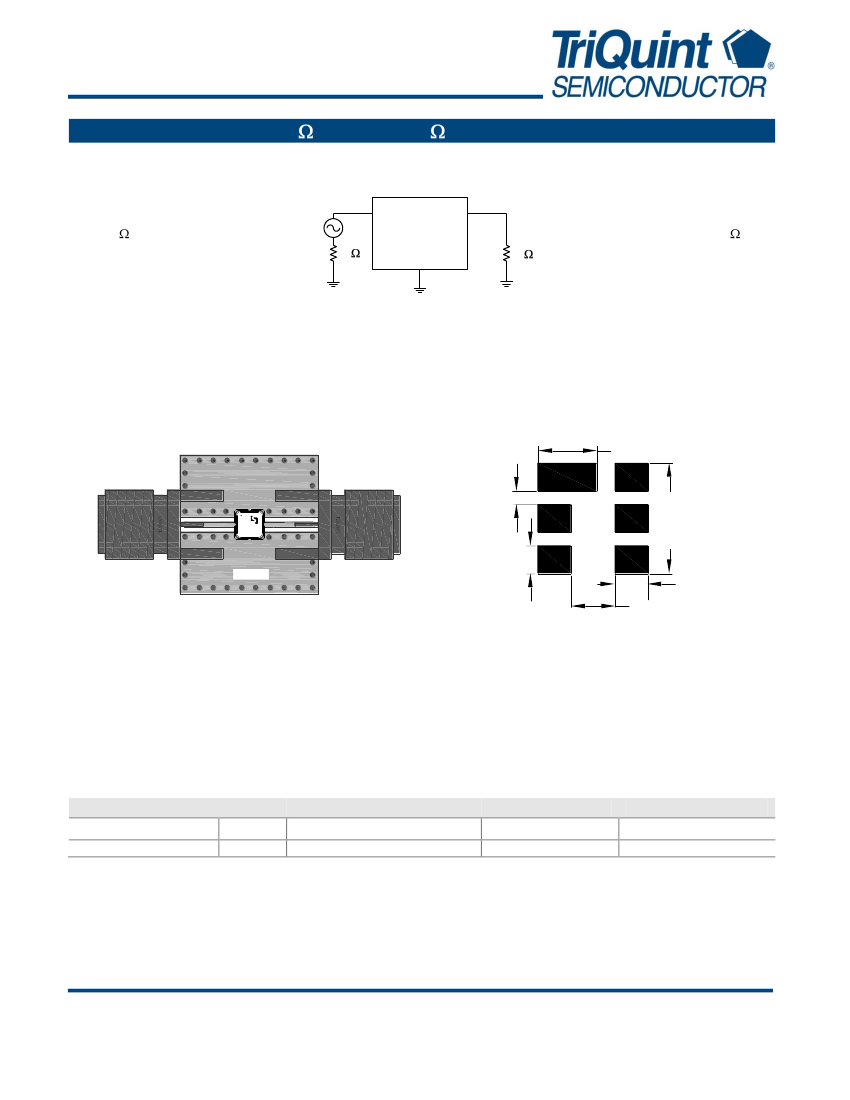

Reference Design 1 – 50
Schematic
2
5
SE Input, 50
SE Output
50
Single-ended
Input
50
1,3,4,6
50
50
Single-ended
Output
Notes:
1.
No impedance matching required
2.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
1.70
3.20 SQ
X
960700
Notes:
Top, middle & bottom layers: 1/2 oz copper
Substrates: FR4 dielectric .063” / Taconic TLY-5A .0075”
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm
JJJYM
.38
.96
.81
1.27
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
SMA
PCB
Value
N/A
N/A
Description
SMA connector
3-layer
Manufacturer
Radiall USA Inc.
multiple
Part Number
9602-1111-018
960700
Data Sheet: Rev D 6/22/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
855916
2441.8
MHz SAW Filter

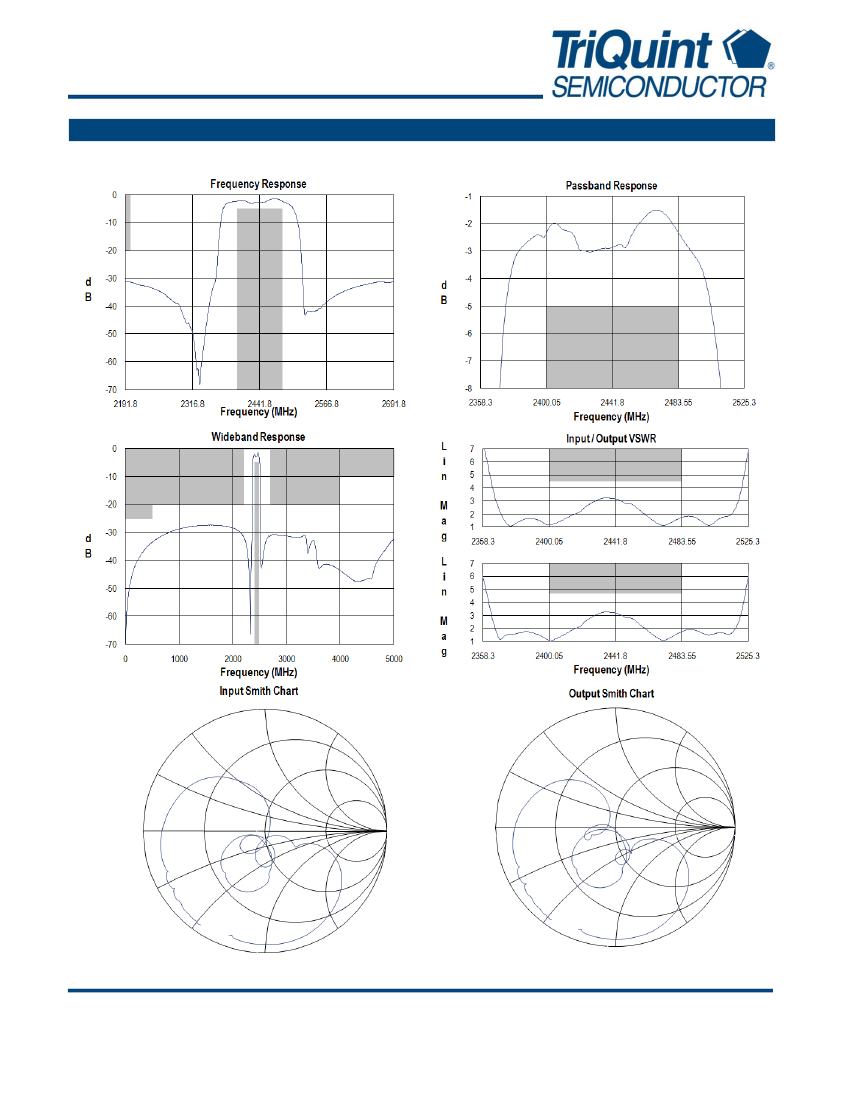

Typical Performance
(at room temperature)
Data Sheet: Rev D 6/22/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
855916
2441.8
MHz SAW Filter

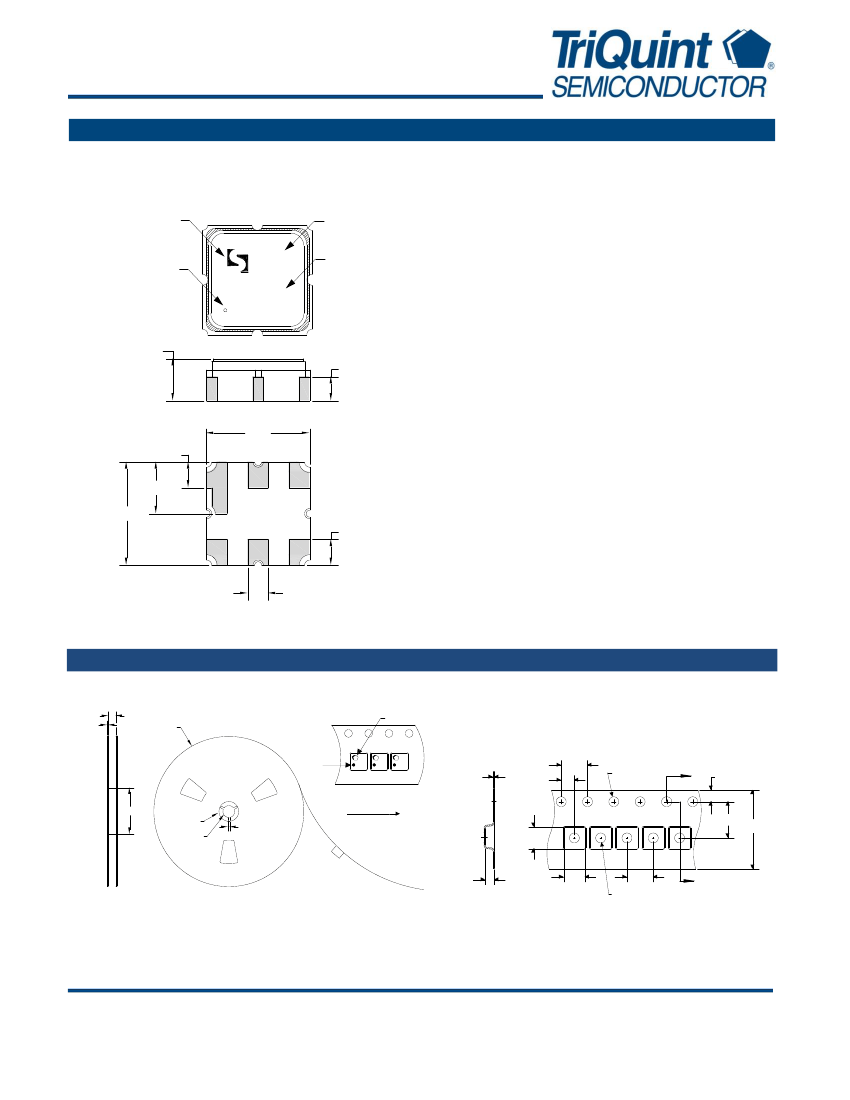

Mechanical Information
Package Information, Dimensions and Marking
Sawtek
logo
Marking
code
Package Style: SMP-12A
Dimensions: 3.00 x 3.00 x 1.22 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of day of the current year (Julian,
3 digits), Y = last digit of the year, and M = manufacturing
site code
ID dot
X
JJJYM
Date code
1.22 NOM.
1.32 MAX.
0.69
3.00
0.75
1.50
3.00
0.75
0.60
Tape and Reel Information
Standard T/R size = 5000 units/reel. All dimensions are in millimeters
12.8
2.7
Ø330
Section A-A
ID dot
0.21
2.0
4.0
Ø1.5
A
TriQuint
logo
1.75
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
3.25
5.5
12.0
1.4 3.25
4.0
Ø1.5
A
Data Sheet: Rev D 6/22/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
