Data Sheet
Features
For WLAN applications
Usable bandwidth of 17 MHz
Low loss
High attenuation
Balanced operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 855942-1
770 MHz SAW Filter

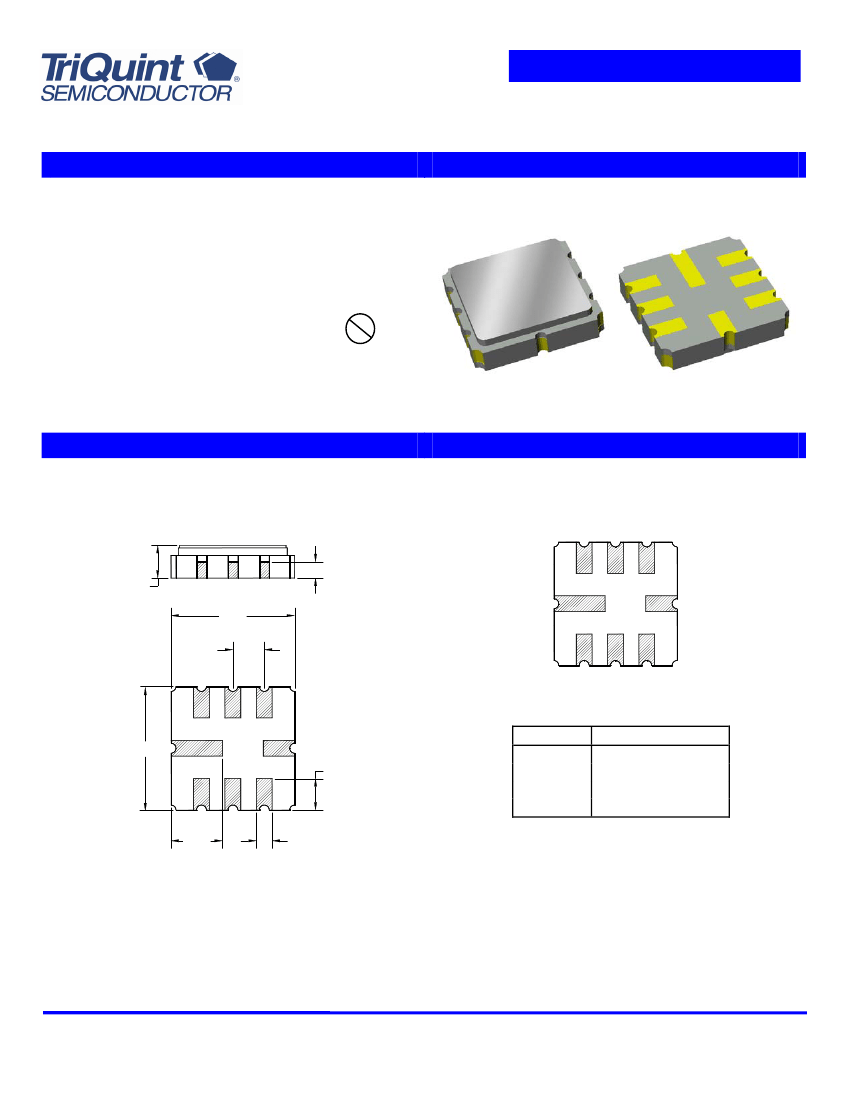

Package
Surface Mount 5.00 x 5.00 x 1.32 mm
SMP-20
Pin Configuration
Bottom View
1
2
3
1.32 NOM.
1.52 MAX.
5.00
1.27
0.66
8
4
7
6
5
5.00
1.27
Pin No.
1,3
5,7
2,6
8,4
Description
Balanced Input
BalancedOutput
External ground
Case ground
2.08
0.64
Dimensions shown are nominal in millimeters
All tolerances are
0.15mm
except overall
length and width +0.15/-0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0m,
over a 2 - 6m
Ni
plating
Subject to change or obsolescence without notice
Rev -
07-09
© TriQuint Semiconductor
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-10 to +70
o
C
Part Number 855942-1
770 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Maximum Insertion Loss
761.5 - 778.5 MHz
Amplitude Variation
761.5 - 778.5 MHz
Group Delay
761.5-778.5 MHz
Group Delay Ripple
761.5-778.5 MHz
Relative Attenuation
(5)
740 MHz
750 MHz
790 MHz
800 MHz
Minimum Rejection
(5)
1 - 370 MHz
370 - 740 MHz
800 - 1400 MHz
1400 - 2000 MHz
Source Impedance: (Balanced)
(6)
Load Impedance: (Balanced)
(6)
Notes:
Minimum
-
-
-
-
-
-
40
32.5
13
35
30
30
30
30
-
-
Typical
(4)
770
2.3
4.74
1.876
50
23
47
45
31
51
46
46.5
43.5
37.75
250
250
Maximum
-
3.2
6.2
3.5
60
100
-
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
dB
dB p-p
nsec
nsec
dB
dB
dB
dB
dB
dB
dB
dB
1. All specifications are based on the TriQuint test circuit matching schematics shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Referenced to insertion loss at 770 MHz
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
18nH
1
7
250
250
18nH
3
2,4,6,8
5
18nH
18nH
250
Balanced
Input
250
Balanced
Output
Subject to change or obsolescence without notice
Rev -
07-09
© TriQuint Semiconductor
Page 2 of 5
Data Sheet
Part Number 855942-1
770 MHz SAW Filter

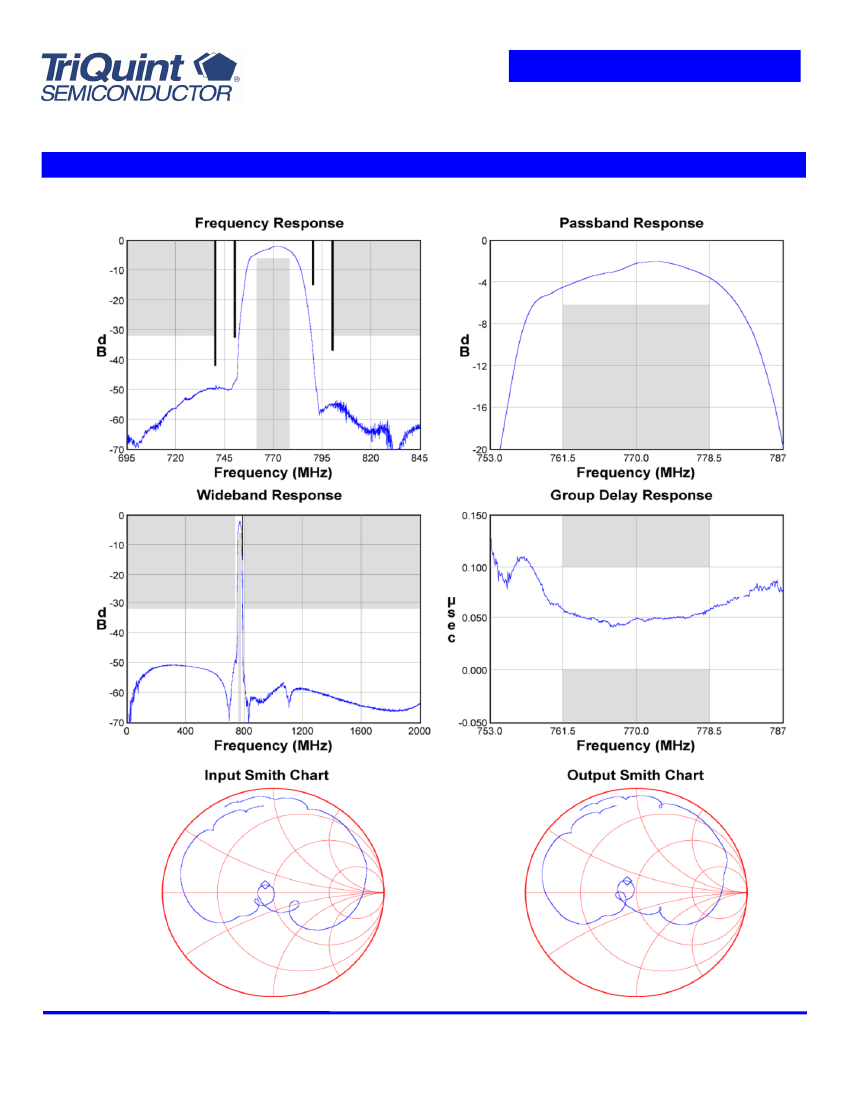

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
07-09
© TriQuint Semiconductor
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
18nH
1
7
18nH
Part Number 855942-1
770 MHz SAW Filter

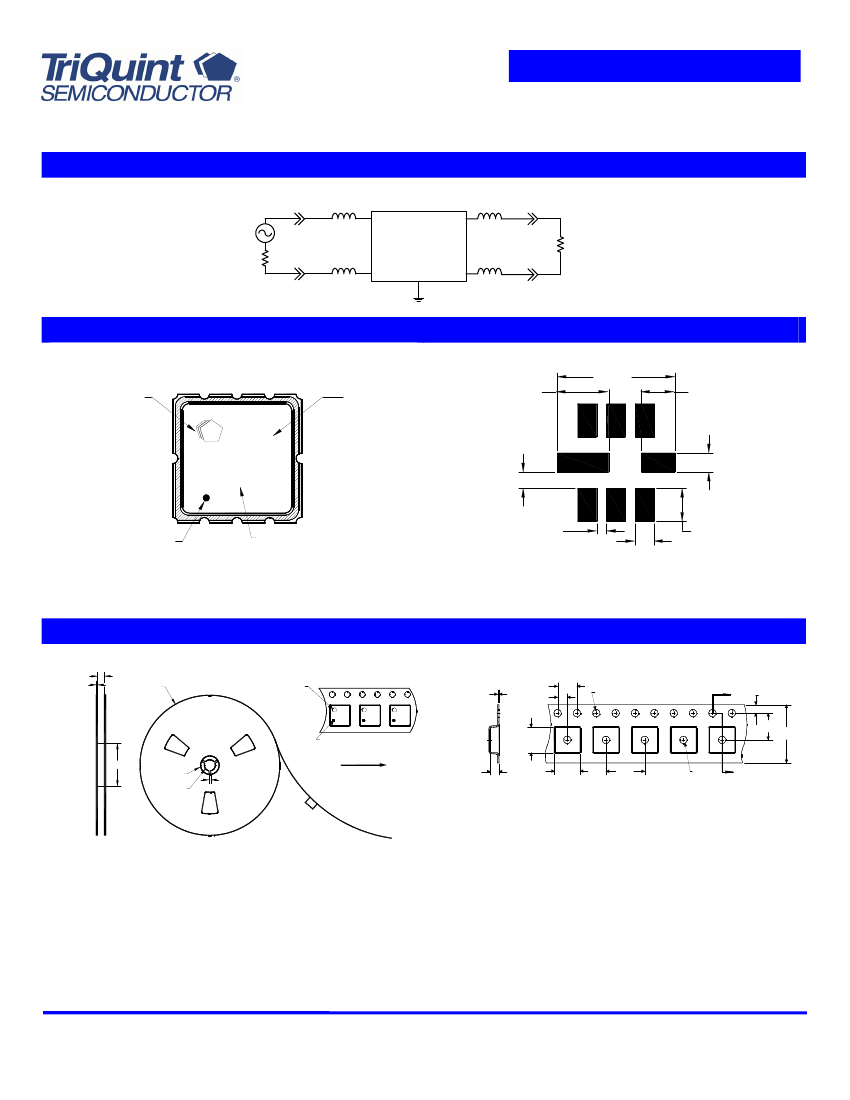

Matching Schematics
250
Balanced
Input
250
250
18nH
3
2,4,6,8
5
18nH
250
Balanced
Output
Marking
TriQuint
logo
Marking
code
PCB Footprint
5.20
2.28
1.47
GC
JJJYM
.84
.71
ID dot
Date code
.43
.84
1.47
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
TriQuint
logo
0.3
4.0
2.0
Ø1.5
A
1.75
5.5
Pad 1 ID dot
Ø102
Ø20.2
Ø13.0
Direction of travel
5.25
1.8
Section A-A
5.25
8.0
Ø1.5
A
12.0
2.0
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev -
07-09
© TriQuint Semiconductor
Page 4 of 5
Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 855942-1
770 MHz SAW Filter
Maximum Ratings
Symbol
T
T
stg
Minimum
-10
-40
Maximum
+70
+85
Unit
o
o
C
C
Important Notes
Warnings
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Subject to change or obsolescence without notice
Rev -
07-09
© TriQuint Semiconductor
Page 5 of 5
