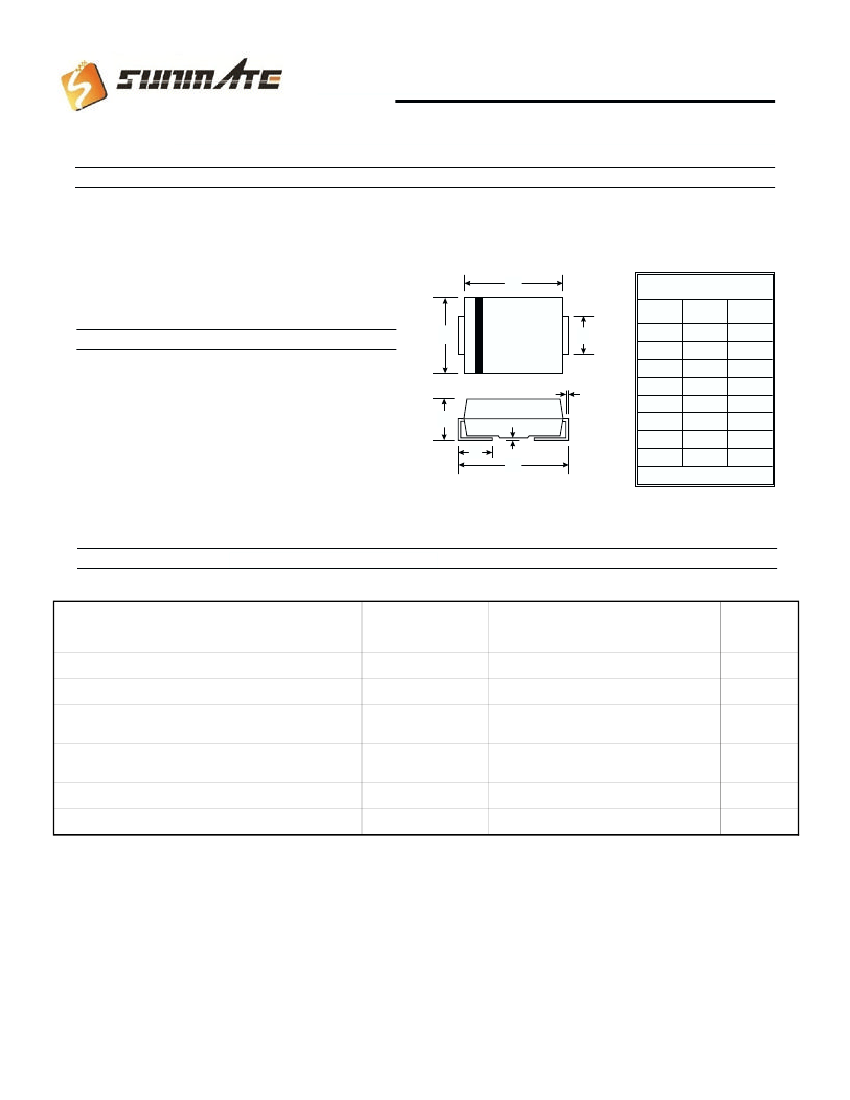

BZG03C10-BZG03C270
3 Watts Surface Mount Zener Diodes
Features
·
Complete Voltage Range 2.7 to 200 Volts
·
High reliability
·
Fits onto 5 mm SMD footpads
·
Wave and reflow solderable
·
Glass passivated junction
B
Dim
SMA
Min
2.29
4.00
1.27
0.15
4.80
0.10
0.76
2.01
Max
2.92
4.60
1.63
0.31
5.59
0.20
1.52
2.62
Mechanical Data
·
Case:JEDEC DO-214AC(SMA)
·
Terminals: Solderable per MIL-
STD-202,Method 208
·
Polarity: Color band denotes cathods end
·
Weight: 0.002 ounces, 0.064 grams
·
Mounting position: any
A
C
A
B
C
D
E
G
H
J
D
J
H
G
E
All Dimensions in mm
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Parameter
Power dissipation at T
A
=100℃
Forward voltage @I
F
=500mA
Maximum thermal resistance
junction to ambient
Peak reverse power dissipation(non-repetitive)
tp=100µs square wave
Junction temperature
Storage temperature range
Symbol
P
tot
V
F
R
θJA
P
ZSM
T
J
T
STG
Value
3.0
1.2
150
600
-65 to +150
-65 to +150
Unit
W
V
K/W
W
℃
℃
1of2
