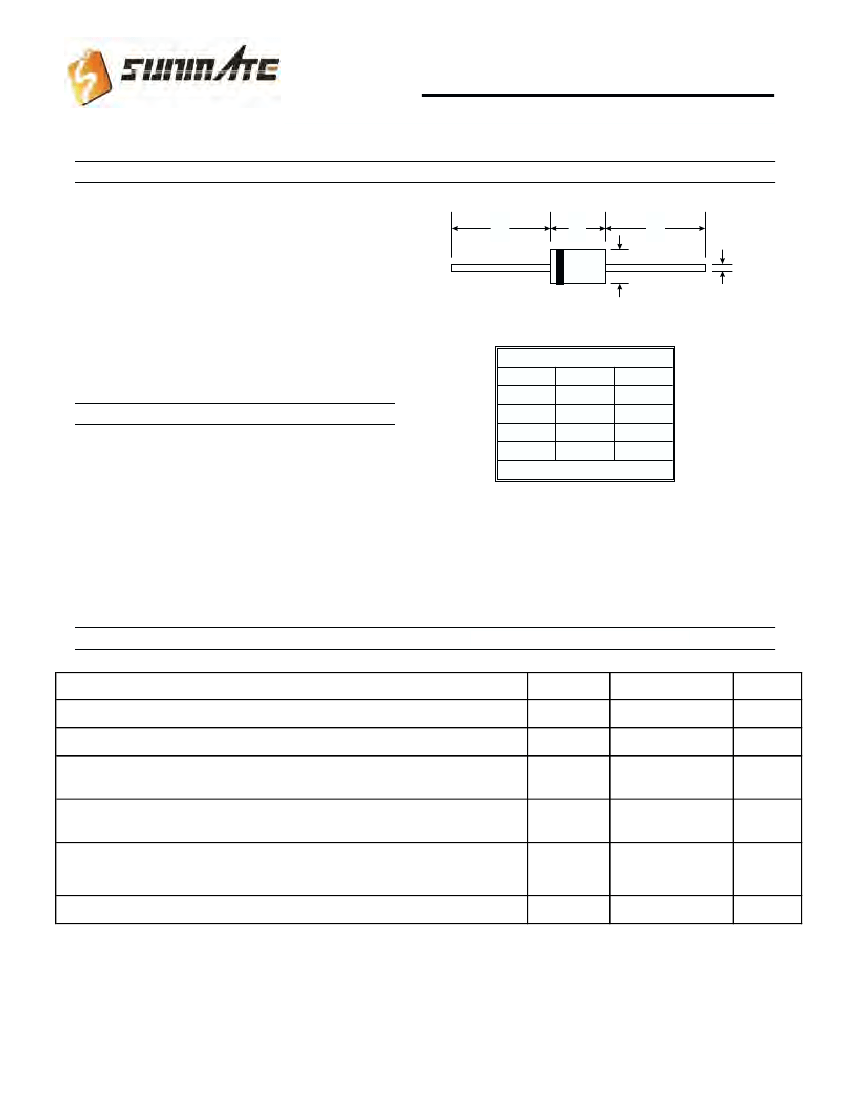

BZW06-5V8—BZW06-376
600 Watts Axial Leaded Transient Voltage Suppressors
Features
·
Plastic package
has
Underwriters Laboratory
Flammability Classification 94V-0
·
Glass passivated junction
·
600W
peak pulse power capability with a 10/1000µs
waveform, repetition rate (duty cycle): 0.01%
·
Excellent clamping capability
·
Fast response time: typically less than 1.0ps from 0 Volts to
V
(BR)
for uni-directional and 5.0ns for bi-directional types
·
Devices with V
(BR)
≥
10V I
D
are typically I
D
less than 1.0 µA
·
High temperature soldering guaranteed:265
℃
/ 10 seconds,
0.375"(9.5mm) lead length, 5Ibs. (2.3kg) tension
A
B
A
D
C
DO-15
Dim
A
Min
25.40
5.50
0.686
2.60
Max
¾
7.62
0.889
3.60
Mechanical Data
·
Case:JEDEC DO--15, molded plastic body over
·
·
·
·
passivated junction
Terminals: Axial leads, solderable per MIL-STD-750,
method 2026
Polarity: Foruni-directional types the color band denotes
the cathode, which is postitive with respect to the
anode under normal TVS operation
Weight: 0.014 ounces, 0.39 grams
Mounting position: Any
B
C
D
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
SYMBOL
Peak pow er sissipation w ith a 10/1000µs w aveform (NOTE 1, FIG.1)
Peak pulse current w ith a 10/1000µs w aveform (NOTE 1)
Steady state pow er dissipation at T
L
=75
℃
fffffLead
lengths 0.375"(9.5mm) (NOTE 2)
Peak forw ard surge current, 8.3ms single half
ffffSine-w
ave superimposed on rated load (JEDEC Method)
Thermal resistance junction to lead
junction to ambient lead = 10mm
Operating junction and storage temperature range
VALUE
Minimum 600
SEE TABLE 1
3.0
100.0
60
100
-55---+175
UNIT
W
A
W
A
P
PPM
I
PPM
P
M(AV)
I
FSM
R
θJL
R
θJA
T
J
, T
STG
℃
/W
℃
NOTES: (1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2
Rating is 500W betw een 40V and 188V types. For a surge greater than the maximum values, the diode w ill short circuit.
(2) Mounted on copper pad area of 1.6 x 1.6” (40 x 40mm) per Fig. 5
1of3
