DB3/DB4/DB6
2A Axial Leaded Silicon Bilateral Voltage Triggered
Features
·
Three way layer two terminal, axial lead ,
hermetically sealed diacs are designed specifically for
riggering thyrisitors .The demonstrate low breakover current.
The breakover symmetry is within three volts(DB3,DB4)
or four volts(DB6).These diacs are intended for
use in thyrisitors phase control.,circuits for lamp
dimming universal motor speed control and heat
control
Dim
A
B
C
D
DO-35
Min
25.40
¾
¾
¾
Max
¾
4.00
0.60
2.00
A
B
A
D
C
Mechanical Data
·
Case: DO-35
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
PARAMETERS
Power Dissipation on Printed
Cir cuit(L=10mm)
Repetitive Peak on-state
Current
T
A
=50℃
Tp=10uS
f=100H
Z
SYMBOL
DB3
Pc
VALUE
DB4
150
DB6
UNITS
mW
I
TRM
T
STG
/T
J
SYMBOLS
2.0
-44 to+125/-40 to+110
TEST CONDITIONS
DB3
Min
28
32
36
C=22nf**
See Diagram 1
VALUE
DB4
35
40
45
3
DB6
56
60
70
A
℃
UNITS
Storage and Operating Juntion Temperature
PAPRAMETERS
Breakover Voltage*
V
BO
Typ
Max
V
Breakover Voltage Symmetry
1+V
BO
I-
1-V
BO
I
C=22nf**
See Diagram 1
△I=(I
BO
to IF=10mA)
Max
V
Dynamic Breakover Voltage
Output Voltage*
Breakover Current*
Rise Time*
Leakage Current*
1
△V1
V
O
I
BO
tr
I
B
Min
See FIG 1
See FIG 2
C=22nf**
See FIG 3
I
B
=0.5 V
BO
MAX
See FIG 3
Min
Max
Typ
Max
5
5
100
1.5
10
V
V
uA
uS
uA
NOTE:* Electrical characteristics applicable in both forward and reverse directions.
** Connected in parallel with the devices.
1 of 2

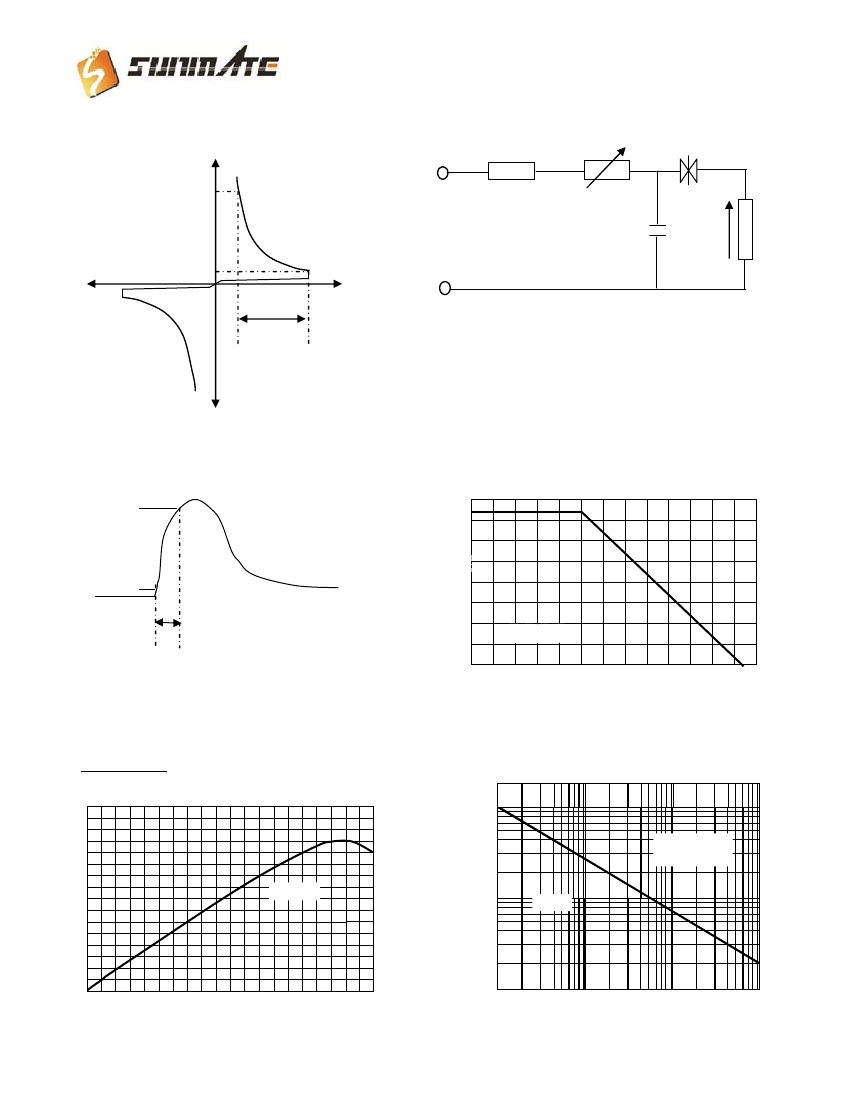

FIG.1-CURRENT-VOLTAGE CHARACTERISTICS
+I
F
FIG.2-TEST CIRCUIT FOR OUTPUT VOLATGE
10mA
220V
60H
Z
10KΩ
500KΩ
D.U.T
V
O
R=20Ω
I
B
I
B
-V
0.5V
BO
△V
V
BO
+V
0.1uF
-I
F
FIG.3-TEST CIRCUIT SEE FIG.2 ADJUST R
FOR Ip=0.5A
P(mW)
90%
I
P
160
140
120
100
10%
tr
80
60
40
20
0
0 10 20 30 40 50 60 70 80
FIG.5-RELATIVE VARIATION OF VBO VERSUS
JUNCTION TEMPERATURE(TYPICAL VALUES)
V
BO
(I
J
)
V
BO
(T
J
=25℃）
1.08
I
TRM
(A)
2
1
f = 100Hz
Tjinitial=25°C
T
J
= (°C)
90 100 110 120 130
Tamb(°C)
FIG.4-TEST CIRCUIT FOR OUTPUT
VOLATGE
FIG.6-PEAK PULSE CURRENT VERSUS PULSE
DURATION (MAXIMUM VALUES)
1.06
1.04
0.1
tp(us)
1.02
1.00
25
50
75
100
125
0.01
10
100
1000
10000
2 of 2
