1N4586 datasheet, PDF - EEWORLD Datasheet

1N4586: DescriptionRectifier Diode, 1 Element, 1A, 1000V V(RRM),; CategoryDiscrete semiconductor diode; File Size159KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

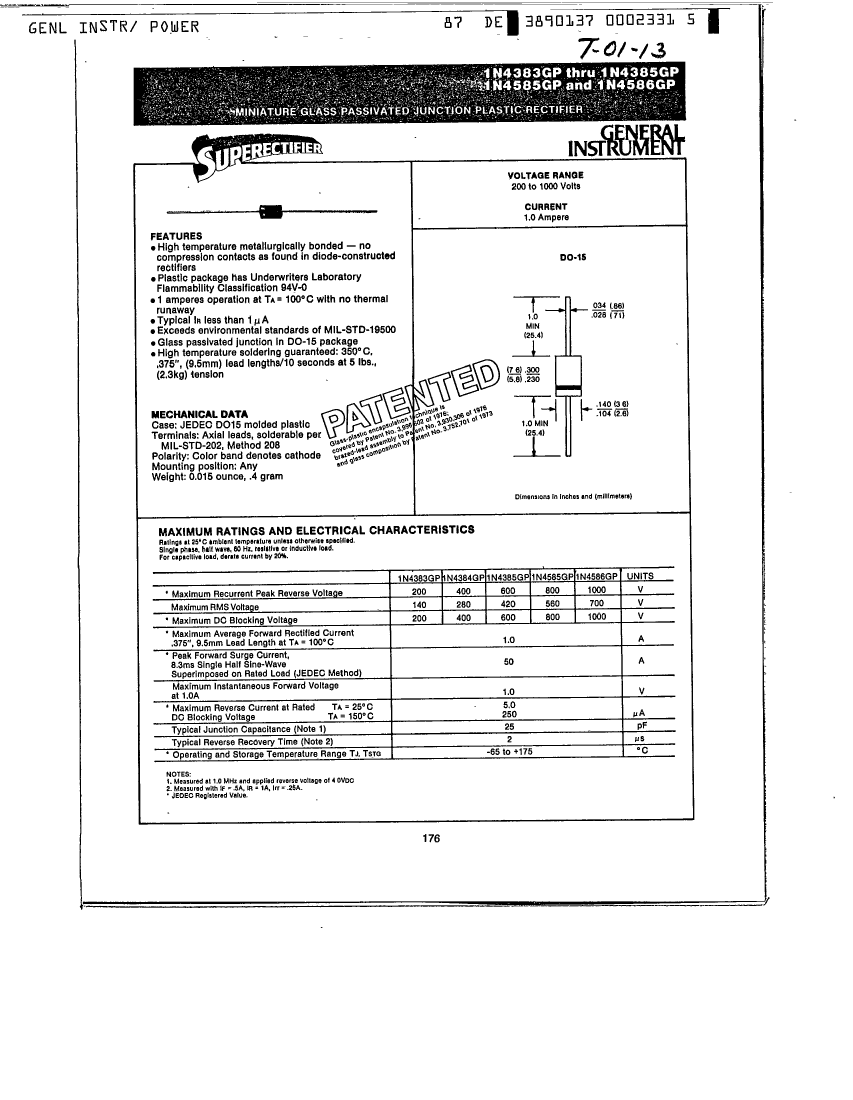

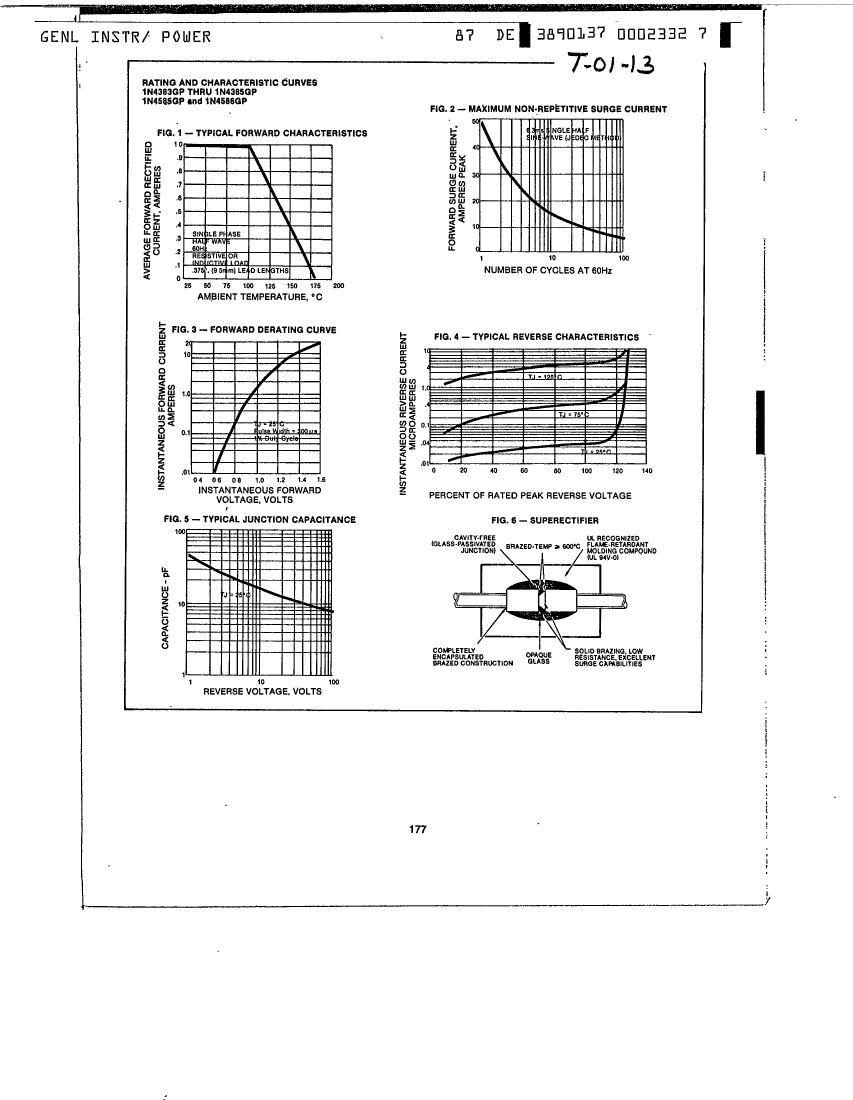

1N4586 Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM),

Parameter Name	Attribute value
package instruction	DO-15, 2 PIN
Reach Compliance Code	unknow
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse current	5 µA
Maximum reverse recovery time	2 µs
Reverse test voltage	1000 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	1N4586	BG121-58-C-0-N-F	1N4385	1N4585
Description	Rectifier Diode, 1 Element, 1A, 1000V V(RRM),	Headers and Edge Type Connector,	Rectifier Diode, 1 Element, 1A, 600V V(RRM),	Rectifier Diode, 1 Element, 1A, 800V V(RRM),
Reach Compliance Code	unknow	compliant	unknown	unknown
package instruction	DO-15, 2 PIN	-	DO-15, 2 PIN	DO-15, 2 PIN
Shell connection	ISOLATED	-	ISOLATED	ISOLATED
Configuration	SINGLE	-	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	-	1 V	1 V
JEDEC-95 code	DO-15	-	DO-15	DO-15
JESD-30 code	O-PALF-W2	-	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	50 A	-	50 A	50 A
Number of components	1	-	1	1
Phase	1	-	1	1
Number of terminals	2	-	2	2
Maximum operating temperature	175 °C	-	175 °C	175 °C
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C
Maximum output current	1 A	-	1 A	1 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	-	ROUND	ROUND
Package form	LONG FORM	-	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	1000 V	-	600 V	800 V
Maximum reverse current	5 µA	-	5 µA	5 µA
Maximum reverse recovery time	2 µs	-	2 µs	2 µs
Reverse test voltage	1000 V	-	600 V	800 V
surface mount	NO	-	NO	NO
Terminal form	WIRE	-	WIRE	WIRE
Terminal location	AXIAL	-	AXIAL	AXIAL
