S5JGS1581D / S5JGS1581D-25
Elektronische Bauelemente
5-Terminal
Dual Input Dropout Regulators
RoHS Compliant Product
A suffix of “-C” specifies halogen and lead-free
DESCRIPTION
The S5JGS1581D is a high performance positive voltage
Regulator is designed for use in applications requiring very low
Dropout voltage at 5 amps . When supplying 2.5V on motherboards
where both 5V and 3.3V supplies are available, the superior dropout
characteristics of the S5JGS1581D result in reduced heat dissipation
compared to regular LDOs, thus allowing heat sink size reduction.
Additionally, the S5JGS1581D provides excellent regulation over
Variations in line, load and temperature. Remote sense operation
allows compensating for trace, connector and other resistive losses.
Outstanding features include very low dropout performance at
Rates current, fast transient response ,remote sense, internal current
limiting, thermal shutdown and safe operating area protection of the
output device. The S5JGS1581D is a five terminal adjustable voltage
regulator available in the TO-252-5L package.

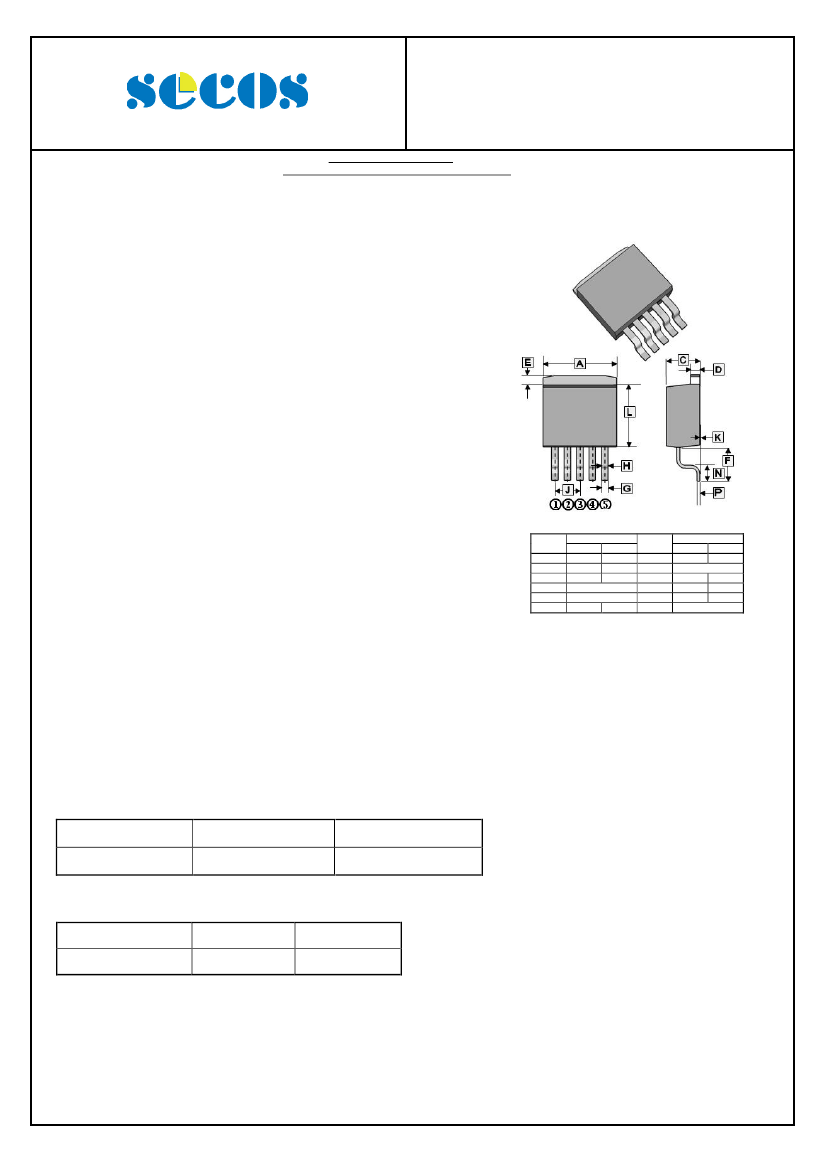

TO-252-5L
FEATURES
V
OUT
Range is 1.25V to 5V@5A
V
POWER
Dropout=0.55V@5A(25
°C)
V
CONTROL
Dropout=1.15V@5A(25
°C)
1% Trimmed Reference
Remote Voltage Sensing
Thermal Shutdown
Current Limit
Short Circuit Protection
Fast Transient Response
Very Low Dropout Reduces Total Power Consumption
Lead-Free Package is available
REF.
A
C
D
E
F
G
Millimeter
Min.
Max.
6.400
6.604
2.210
2.387
0.483
0.584
1.100 REF.
2.743 REF.
0.584
0.660
REF.
H
J
K
L
N
P
Millimeter
Min.
Max.
0.635
0.787
1.27 BSC
0.010
0.127
6.000
6.200
1.391
1.651
0.508 REF.
APPLICATIONS
High Efficiency Linear Regulators
Post Regulators for Switching Supplies
Microprocessor Supply
Adjustable Power Supply
MARKING
Part Number
Marking
S5JGS1581D
GS1581D
S5JGS1581D-25
GS1581D25
PACKAGE INFORMATION
Package
TO-252-5L
MPQ
2.5K
Leader Size
13 inch
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
20-Dec-2011 Rev. A
Page 1 of 8
S5JGS1581D / S5JGS1581D-25
Elektronische Bauelemente
5-Terminal
Dual Input Dropout Regulators

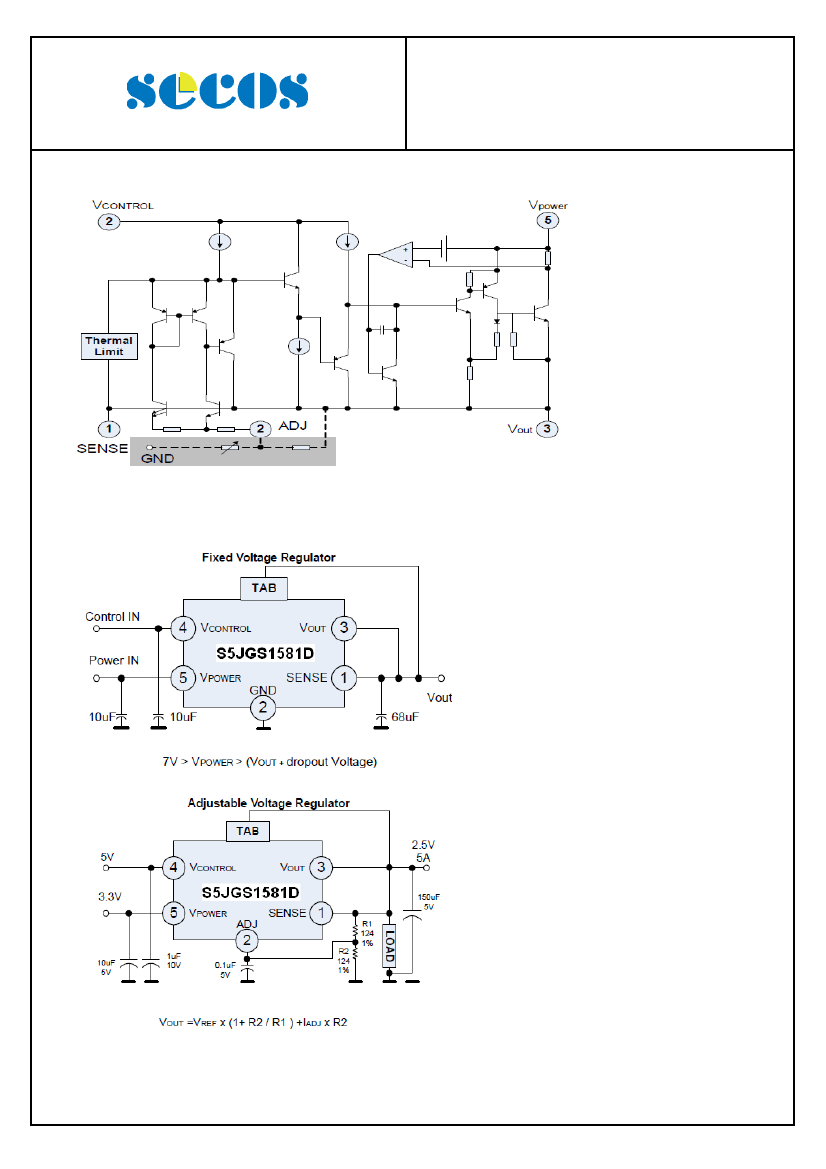

Block Diagram
TYPICAL APPLICATION CIRCUIT
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
20-Dec-2011 Rev. A
Page 2 of 8
S5JGS1581D / S5JGS1581D-25
Elektronische Bauelemente
5-Terminal
Dual Input Dropout Regulators
ABSOLUTE MAXIMUM RATINGS
Parameter
Input Voltage
V
CONTROL
Total Power Dissipation
Thermal Resistance Junction to Ambient
Operating Temperature Range
Storage Temperature Range
Lead Temperature(Soldering, 5 sec)
P
D
R
θJA
T
J
T
STG
T
LEAD
13
1.2
104
0~125
-65~150
300
V
W
°
C/W
°
C
°
C
°
C
Symbol
V
POWER
Ratings
7
Unit
V
ELECTRICAL CHARACTERISTICS
S5JGS1581D
(I
O
=0,T
J
=25°C unless otherwise specified)
Parameter
Reference Voltage
Test Conditions
V
CONTROL
=2.75V, V
POWER
=2.75V, I
LOAD
=10mA
V
CONTROL
=2.7V ~ 12V ,
V
POWER
=3.3V ~ 5.5V, I
LOAD
=10mA ~ 5A
1
I
LOAD
=10mA, (1.5V+VOUT)
≦
V
CONTROL
≦
12V ,
0.8V
≦
V
POWER
- V
OUT
≦
5.5V
1
V
CONTROL
= V
OUT
+2.5V ,
V
POWER
= V
OUT
+0.8V, I
LOAD
=10mA ~ 5A
3
1
Min
1.238
1.220
-
-
-
-
-
-
5.5
60
-
5
Typ
1.250
1.250
0.04
0.08
1.7
80
5
50
6.8
75
0.003
Max
1.262
Unit
V
1.270
0.2
0.4
5
135
10
120
-
-
-
%
%
mA
mA
mA
µA
A
dB
%/W
Line Regulation
Load Regulation
Minimum Load Current
Control Pin Current
4
V
CONTR
OL
=5V, V
POWER
=3.3V, V
ADJ
=0V
1
1
Ground Pin Current
Adjust pin Current
Current Limit
Ripple Rejection
Thermal Regulation
V
CONTROL
= V
OUT
+2.5V ,
V
POWER
= V
OUT
+0.8V, I
LOAD
=10mA ~ 5A
1
V
CONTROL
= V
OUT
+2.5V ,
V
POWER
= V
OUT
+0.8V, I
LOAD
=10mA ~ 5A
1
V
CONTROL
=2.75V ,
V
POWER
=2.05V, I
LOAD
=10mA
V
IN
- V
OUT
=3V
1
V
CONTROL
= V
POWER
= V
OUT
+2.5V,
V
RIPPLE
=1V
P-P
, I
LOAD
=2.5A
T
A
=25ºC, 30ms pulse
Dropout Voltage
Control Input(V
CONTROL
-V
OUT)
Power Input(V
POWER
-V
OUT)
1
1
V
POWER
= V
OUT
+0.8V, I
LOAD
=10mA
V
POWER
= V
OUT
+0.8V, I
LOAD
=5A
V
CONTROL
= V
OUT
+2.5V, I
LOAD
=5
-
-
-
1.00
1.15
0.55
1.15
1.30
0.70
V
V
V
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
20-Dec-2011 Rev. A
Page 3 of 8
S5JGS1581D / S5JGS1581D-25
Elektronische Bauelemente
5-Terminal
Dual Input Dropout Regulators
S5JGS1581D-25
(I
O
=0,T
J
=25°C unless otherwise specified)
Parameter
Output
Voltage
Test Conditions
V
CONTROL
=5.0V, V
POWER
=3.3V
V
CONTROL
=4.0V ,
V
POWER
=3.3V, I
LOAD
=0 ~ 5A
1
I
LOAD
=10mA, (1.5V+ V
OUT
)≦V
CONTROL
≦
12V ,
0.8V≦V
POWER
- V
OUT
≦
5.5V
1
V
CONTROL
= V
OUT
+2.5V ,
V
POWER
= V
OUT
+0.8V, I
LOAD
=10mA ~ 5A
1
V
CONTROL
= V
OUT
+2.5V ,
V
POWER
= V
OUT
+0.8V, I
LOAD
=10mA ~ 5A
1
V
CONTROL
= V
OUT
+2.5V ,
V
POWER
= V
OUT
+0.8V, I
LOAD
=10mA ~5A
V
IN
- V
OUT
=3V
V
CONTROL
= V
POWER
= V
OUT
+2.5V,
V
RIPPLE
=1V
P-P
, I
LOAD
=2.5A
1
Min
2.475
2.460
-
-
-
-
5.5
60
Typ
2.500
2.500
0.04
0.08
80
5
6.8
75
Max
2.525
Unit
V
2.540
0.2
0.4
135
10
-
-
%
%
mA
mA
A
dB
Line Regulation
Load Regulation
Control Pin Current
4
Ground Pin Current
Current Limit
1
Ripple Rejection
Dropout Voltage
Control Input(V
CONTROL
-V
OUT)
Power Input(V
POWER
-V
OUT)
1
1
5
V
POWER
= V
OUT
+0.8V, I
LOAD
=10mA
V
POWER
= V
OUT
+0.8V, I
LOAD
=5A
V
CONTROL
= V
OUT
+2.5V, I
LOAD
=5
-
-
-
1.00
1.15
0.55
1.15
1.30
0.70
V
V
V
Notes:
1. The denotes the specifications which apply over the full temperature range.
2. Unless otherwise specified V
OUT
=V
SENSE
, For S5JGS1581D V
ADJ
=0V.
3. For the adjustable device the minimum load current is the minimum current required to maintain regulation. Normally the current in the
resistor divider used to set the output voltage is select to meet the minimum load current requirement.
4. The control pin current is the drive current required for the output transistor. This current will track output current with a ratio of about
1:100.
5. The dropout voltage for the S5JGS1581D is caused by either minimum control voltage or minimum power voltage. The specifications
represent the minimum input/output voltage required to maintain 1% regulation.

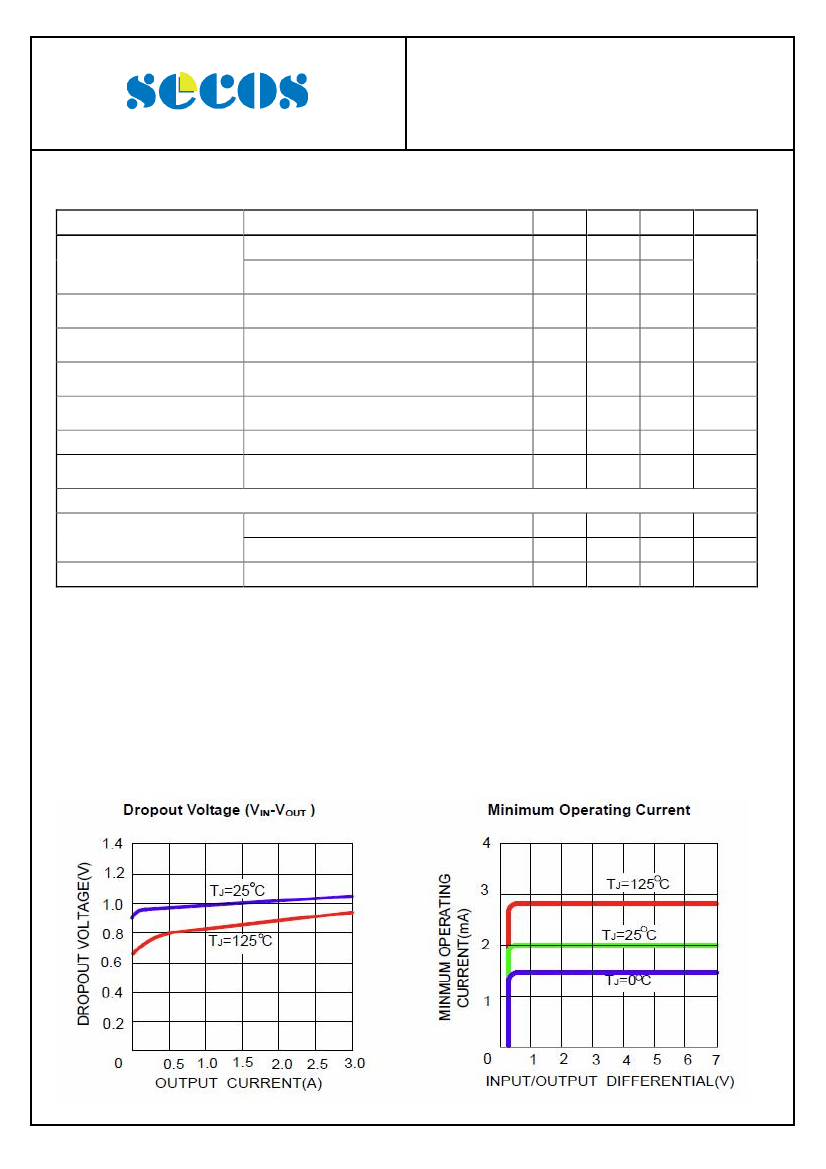

CHARACTERISTICS CURVE
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
20-Dec-2011 Rev. A
Page 4 of 8
S5JGS1581D / S5JGS1581D-25
Elektronische Bauelemente
5-Terminal
Dual Input Dropout Regulators

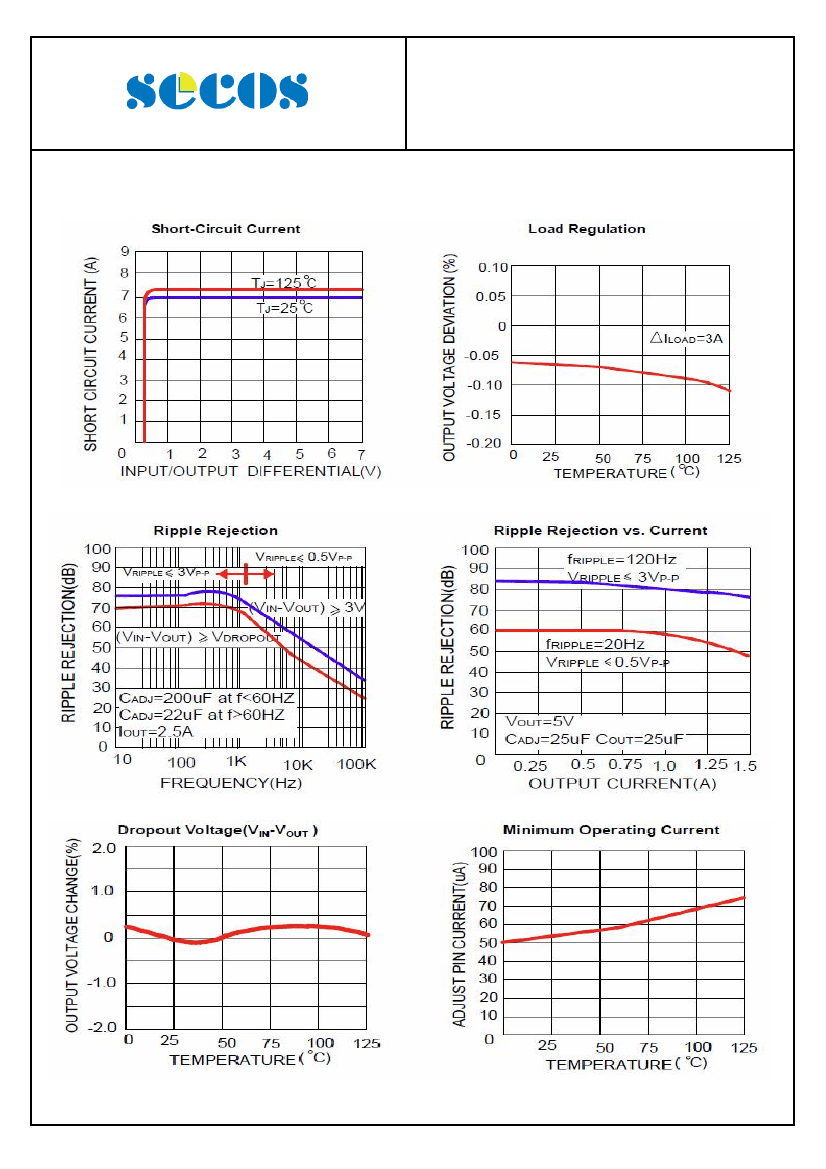

CHARACTERISTICS CURVE
