854651_15 Overview

70 MHz SAW Filter

Data Sheet
Features
Usable bandwidth of 0.5 MHz
Typical 3 dB bandwidth of 0.55 MHz
Low loss
High attenuation
Single-ended operation, 50Ω
Ceramic Surface Mount Package (SMP)
Hermetic
Part Number 854651
70 MHz SAW Filter
Package
Surface Mount 19.00 x 6.50 x 1.75 mm
Pin Configuration
Bottom View
1
2
3
4
5
1.75 NOM.
1.96 MAX.
0.76
10 9
8
7
6
19.0
1.80
1.91
R0.51
6.50
2.31
1.02
Pin No.
5
10
1,6
2,3,4
7,8,9
Description
Output
Input
Ground
Case ground
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width +0.15mm/-0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
15-Feb-2005

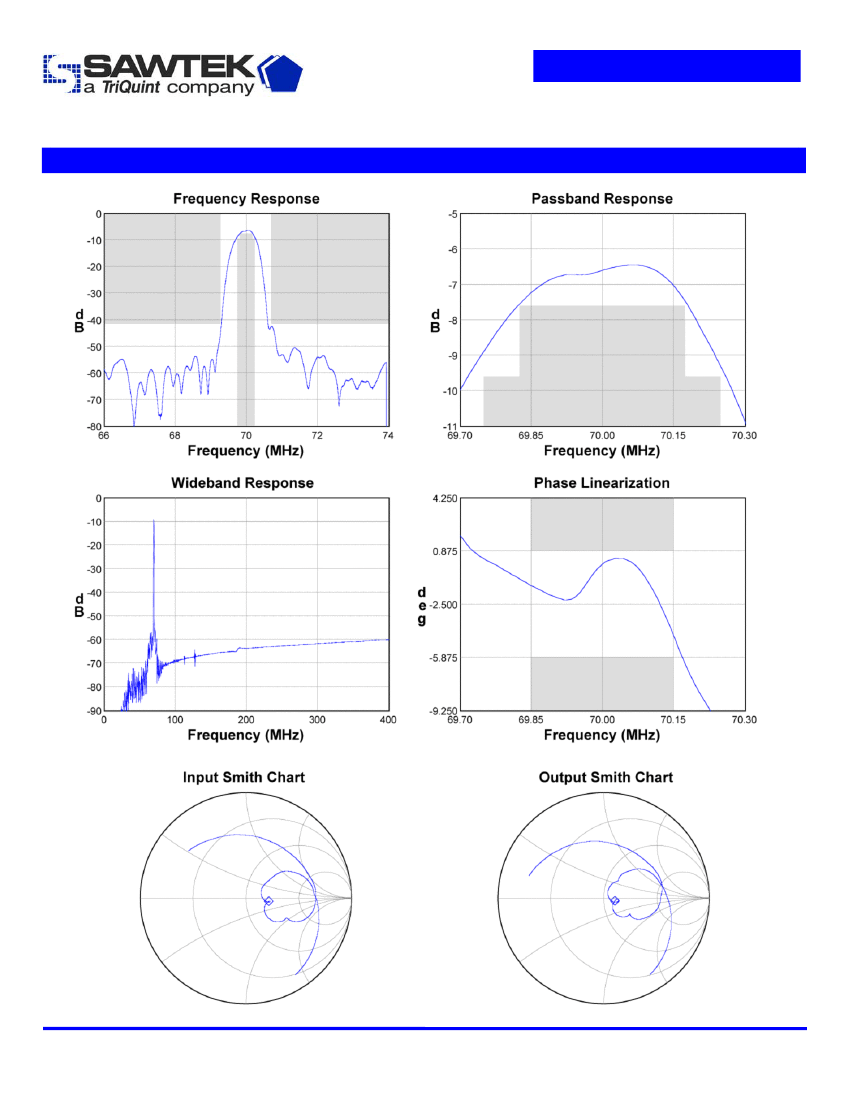

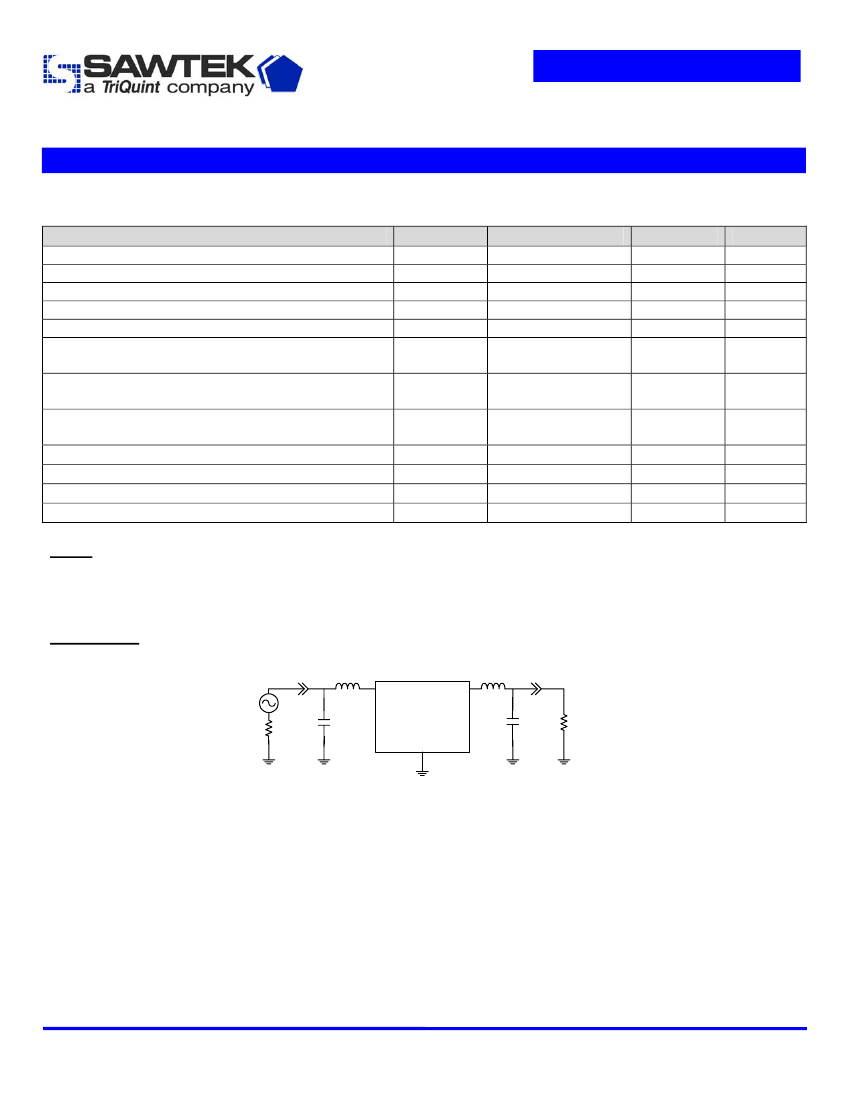

Page 1 of 5
