Part Number 854680
70 MHz SAW Filter
Data Sheet
Features
•
•
•
•
•
•
•
For multiple applications
Usable bandwidth 40 MHz
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
•

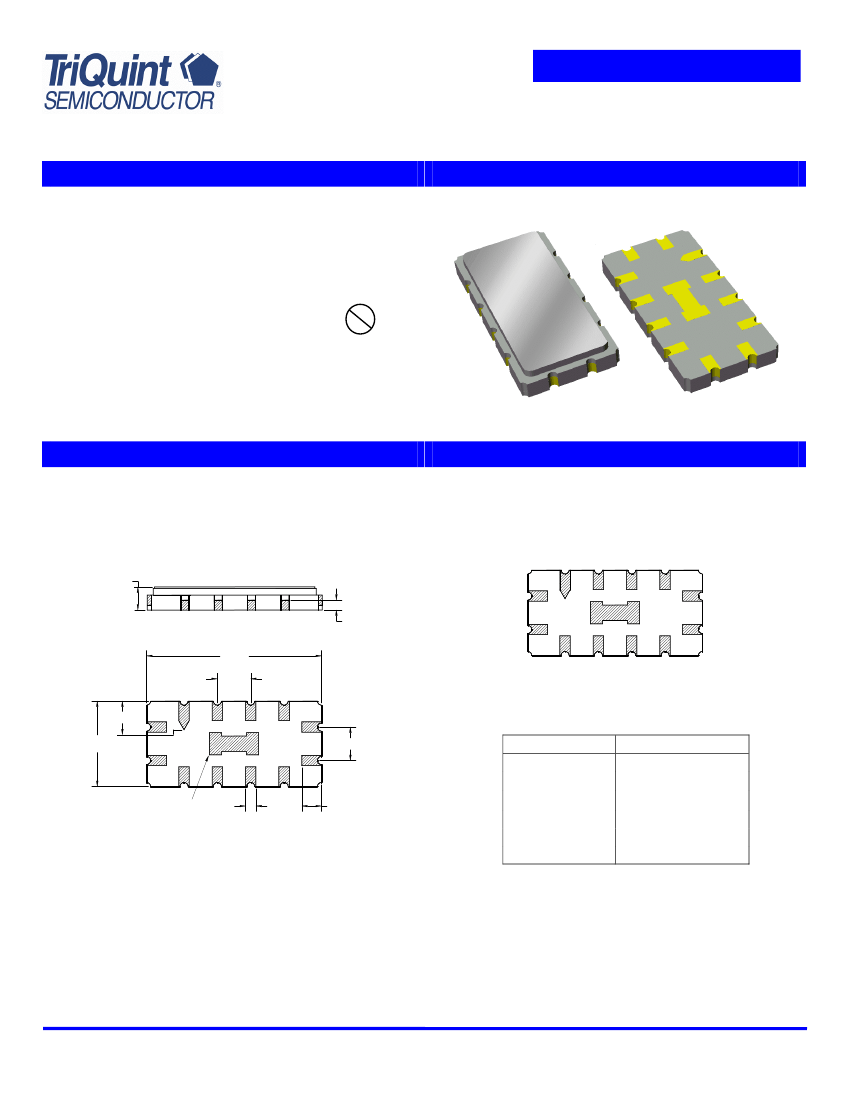

Package
Surface Mount 13.30 x 6.50 x 1.75 mm
SMP-53A
Pin Configuration
Bottom View
1
1.75 NOM.
1.96 MAX.
0.76
13.3
2.54
2
3
4
5
6
12
11
10
9
8
7
2.18
6.50
2.54
1.17 x 3.76
0.79
1.50
Pin No.
5
6
11
12
1,4,7,10
2,3,8,9
Description
Output
Output Return
Input
Input Return
Ground
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
09-07 TriQuint Semiconductor, Inc. ©
Page 1 of 5
Part Number 854680
70 MHz SAW Filter
Data Sheet

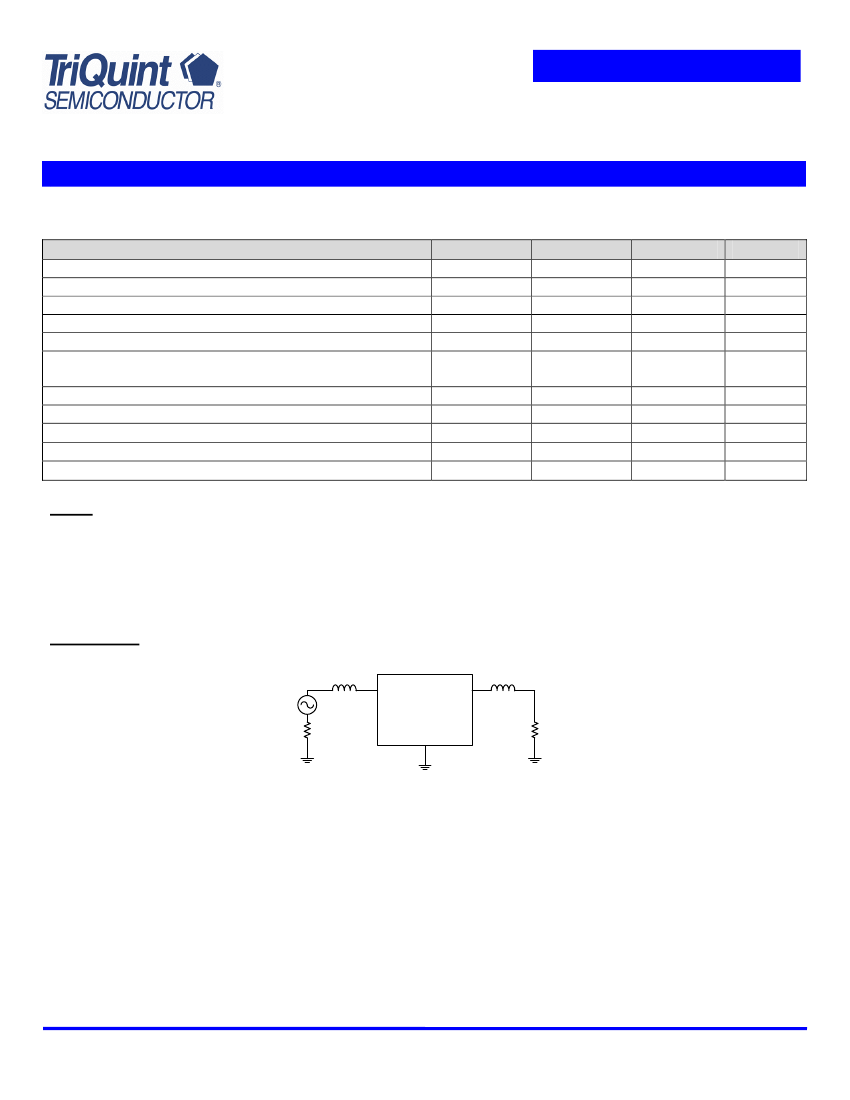

Electrical Specifications
(1)
Operating Temperature Range:
(2)
0 to +70
o
C
Parameter
(3)
Center Frequency
Insertion Loss at 70 MHz
2dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Passband Ripple
52 – 88 MHz
Phase Linearity
(90% of the 3dB bandwidth)
Group Delay Variation
(90% of the 3dB bandwidth)
Absolute Delay
Temperature Coefficient
Source/Load Impedance
(5)
Notes:
1.
2.
3.
4.
5.
Minimum
69.8
-
39.4
40
-
-
-
-
-
-
-
-
Typical
(4)
70
21.5
39.7
40.35
47.25
-
1.1
10
50
1.08
-94
50
Maximum
70.2
22
-
-
48.25
-
2
13
90
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
-
dB
deg
ns
µs
ppm/
o
C
Ω
All specifications are based on Triquint test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Typical values are based on average measurements at room temperature
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
150nH
11
5
1,2,3,4,6,
7,8,9,10,12
50
Ω
150nH
50
Ω
Single-ended
50
Ω
50
Ω
Single-ended
Subject to change or obsolescence without notice
Rev -
09-07 TriQuint Semiconductor, Inc. ©
Page 2 of 5
Part Number 854680
70 MHz SAW Filter
Data Sheet

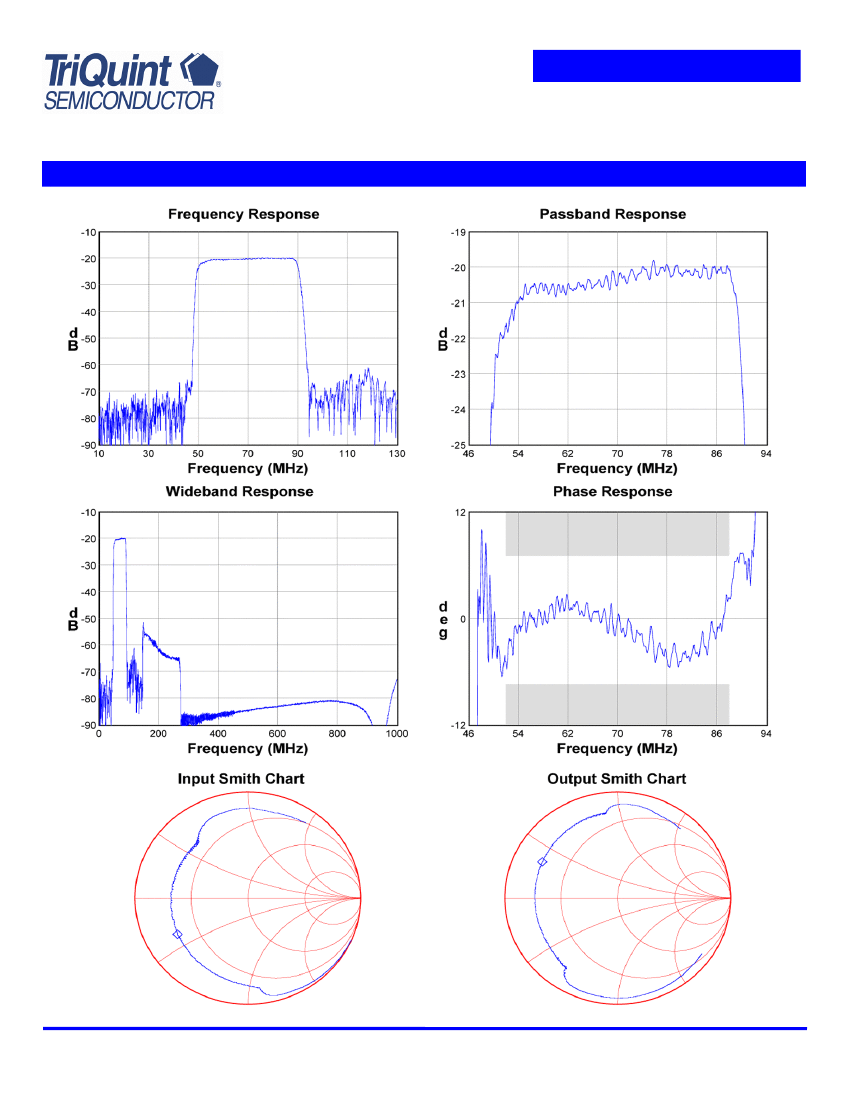

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev -
09-07 TriQuint Semiconductor, Inc. ©
Page 3 of 5
Part Number 854680
70 MHz SAW Filter
Data Sheet

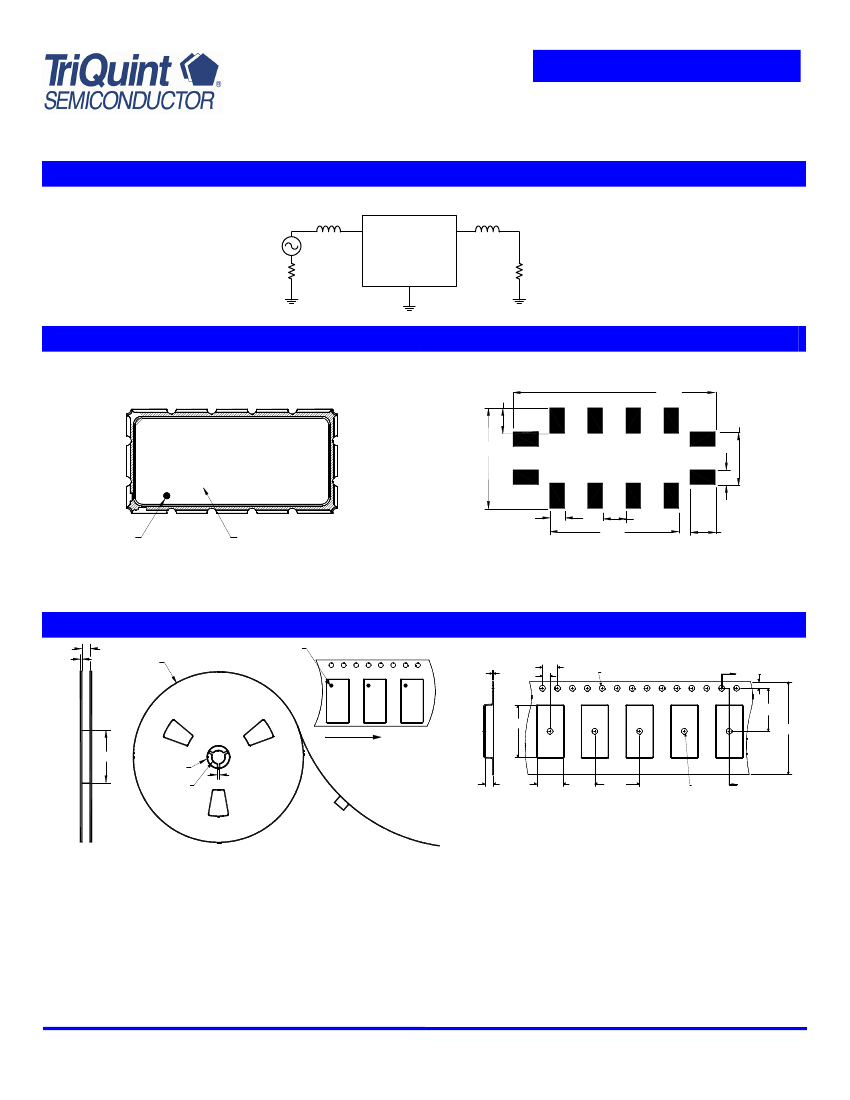

Matching Schematics
Actual matching values may vary due to PCB layout and parasitics
150nH
11
5
1,2,3,4,6,
7,8,9,10,12
50
Ω
150nH
50
Ω
Single-ended
50
Ω
50
Ω
Single-ended
Marking
1.70
PCB Footprint
13.51
3.53
SAWTEK
854680
XXXXXX
ID Dot
Date Code
6.70
.99
.99
8.61
1.55
1.70
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
24.8
2.7
Ø330
0.3
2.0
ID dot
4.0
Ø1.5
A
1.75
11.5
13.9
24
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 2000 units/reel
Subject to change or obsolescence without notice
Rev -
09-07 TriQuint Semiconductor, Inc. ©
Page 4 of 5
Part Number 854680
70 MHz SAW Filter
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Symbol
T
T
stg
Minimum
0
-40
Maximum
70
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°
peak reflow temperature
(see
soldering profile)
C
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev -
09-07 TriQuint Semiconductor, Inc. ©
Page 5 of 5
