D44H11TU — NPN Epitaxial Silicon Transistor
March 2009
D44H11TU
NPN Epitaxial Silicon Transistor
• Low Collector-Emitter Saturation Voltage : V
CE
(sat) = 1V (Max.) @ 8A
• Fast Switching Speeds
• Complement to KSE45H
1

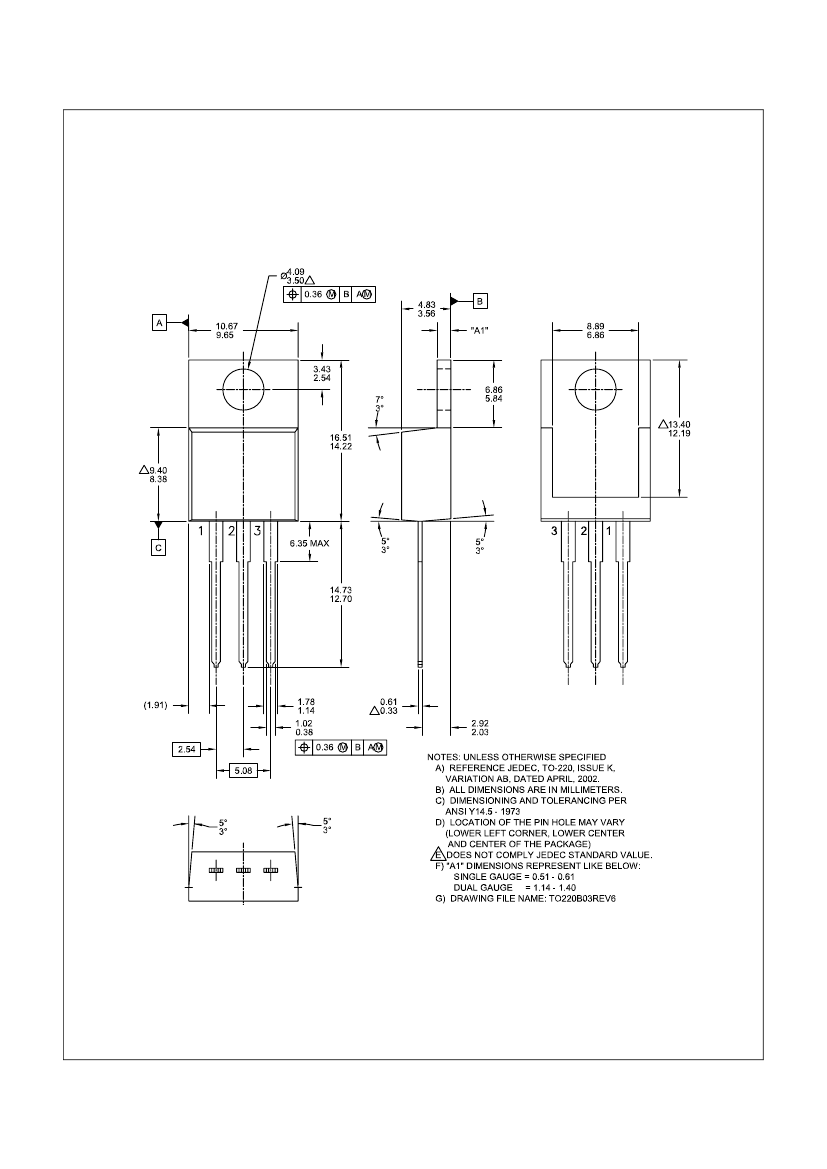

TO-220
2.Collector
3.Emitter
1.Base
Absolute Maximum Ratings
T
C
=25°C unless otherwise noted
Symbol
V
CEO
V
EBO
I
C
I
CP
P
C
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (DC)
Collector-Current (Pulse)
Collector Dissipation (T
C
=25°C)
Collector Dissipation (T
a
=25°C)
T
J
T
STG
Junction Temperature
Storage Temperature
Parameter
Value
80
5
10
20
50
1.67
150
- 55 ~ 150
Units
V
V
A
A
W
W
°C
°C
Electrical Characteristics
T
C
=25°C unless otherwise noted
Symbol
BV
CEO
BV
EBO
I
CES
I
EBO
h
FE
V
CE(sat)
V
BE(sat)
f
T
C
ob
t
ON
t
STG
t
F
Parameter
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
Emitter Cut-off Current
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Current Gain Bandwidth Product
Output Capacitance
Turn On Time
Storage Time
Fall Time
Test Condition
I
C
= 10mA, I
B
= 0
I
E
= 500μA, I
C
= 0
V
CE
= Rated V
CEO,
V
EB
= 0
V
EB
= 5V, I
C
= 0
V
CE
= 1V, I
C
= 2A
I
C
= 8A, I
B
= 0.4A
I
C
= 8A, I
B
= 0.8A
V
CE
= 10V, I
C
= 0.5A
V
CB
= 10V, f = 1MHz
V
CC
= 20V, I
C
= 5A
I
B1
= - I
B2
= 0.5A
Min.
80
5
Typ.
Max.
Units
V
V
10
100
60
1
1.5
50
130
300
500
140
μA
μA
V
V
MHz
pF
ns
ns
ns
NOTES:
1) These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
3) These ratings are based on a maximum junction temperature of 150degrees C.
© 2009 Fairchild Semiconductor Corporation
D44H11TU Rev. B1
1
www.fairchildsemi.com
D44H11TU — NPN Epitaxial Silicon Transistor
Typical Performance Characteristics
1000
V
BE
(sat), V
CE
(sat)[V], SATURATION VOLTAGE
V
CE
= 1V
I
C
= 10 I
B
1
h
FE
, DC CURRENT GAIN
100
V
BE
(sat)
0.1
10
V
CE
(sat)
1
0.01
0.1
1
10
0.01
0.01
0.1
1
10
I
C
[A], COLLECTOR CURRENT
I
C
[A], COLLECTOR CURRENT
Figure 1. DC current Gain
Figure 2. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
1000
f=100MHZ
I
C
[A], COLLECTOR CURRENT
10
C
ob
[pF], CAPACITANCE
1m
s
DC
100
1
s
1
μ
44H 1,2
44H 4,5
44H 7,8
44H 10,11
0.1
1
10
10
μ
s
100
μ
s
10
1
10
100
100
V
CB
[V], COLLECTOR-BASE VOLTAGE
V
CE
[V], COLLECTOR-EMITTER VOLTAGE
Figure 3. Collector Output Capacitance
Figure 4. Safe Operating Area
60
50
P
C
[W], POWER DISSIPATION
40
30
20
10
0
0
25
50
o
75
100
125
150
175
Tc[ C], CASE TEMPERATURE
Figure 5. Power Derating
© 2009 Fairchild Semiconductor Corporation
D44H11TU Rev. B1
2
www.fairchildsemi.com
