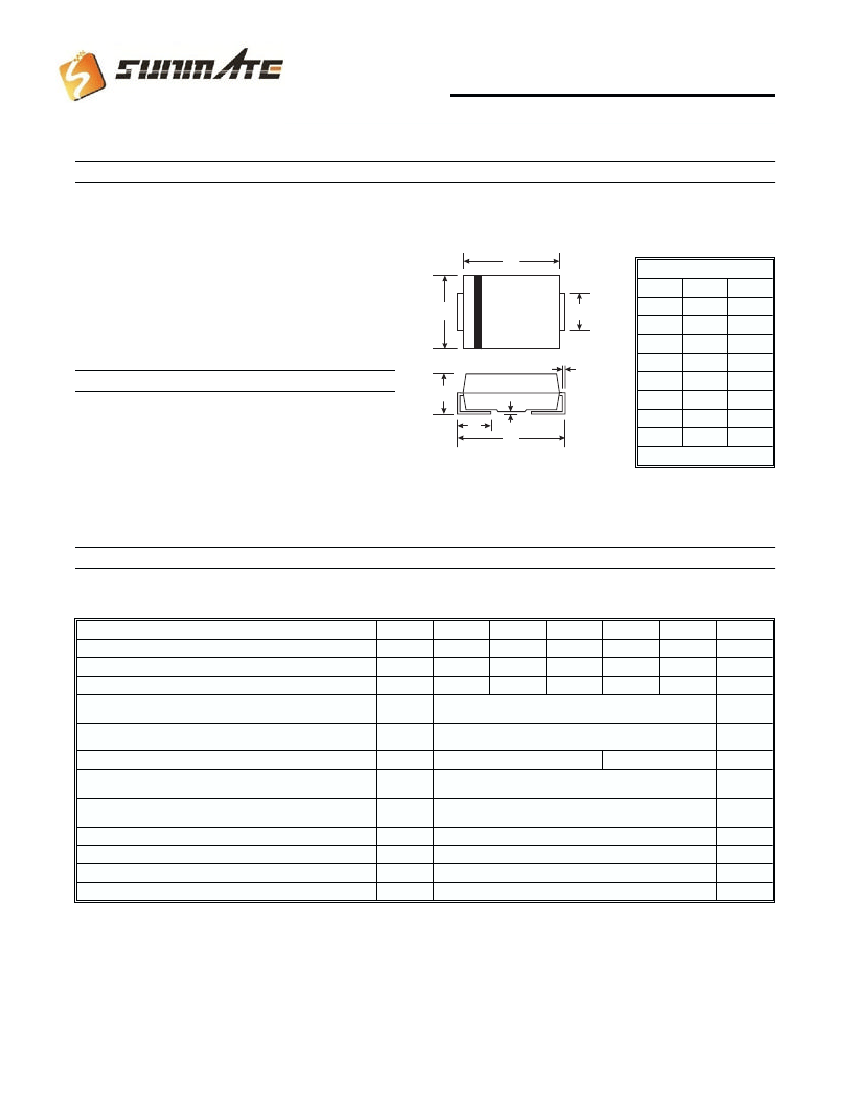

SK12 - SK16
1.0A Surface Mount Schottky Barrier Rectifier
Features
·
·
·
·
·
·
For Surface Mounted Applications
High Temperature Metallurgically Bonded
Contacts
Capable of Meeting Environmental Standards
of MIL-STD-19500
Plastic Material - UL Flammability
Classification 94V-0
High Reliability
Submersible Temperature of 265°C for
10 Seconds in Solder Bath
B
Dim
SMB
Min
3.30
4.00
1.95
0.15
5.00
0.10
0.76
2.00
Max
3.94
4.65
2.21
0.40
6.00
0.20
1.52
2.62
A
B
C
D
E
G
H
J
A
C
Mechanical Data
·
·
·
·
·
Case: SMB, Molded Plastic
Terminals: Solderable per MIL-STD-202,
Method 208
Polarity: Cathode Band or Notch
Approx. Weight: 0.093 grams
Mounting Position: Any
D
J
H
G
E
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, halfwave, 60Hz resistive or inductive load.
Characteristic
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@ T
A
= 75°C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum Instantaneous Forward Voltage at 1.0A
Maximum DC Reverse Current at Rated @ T
A
= 25°C
DC Blocking Voltage
@ T
A
= 100°C
Maximum Full Load Reverse Current Full Cycle
Average
@ T
A
= 75°C
MaximumThermal Resistance (See Note 1)
Typical Junction Capacitance (See Note 2)
Operating Temperature Range
Storage Temperature Range
Notes:
Symbol
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
I
R
R
QJL
C
J
T
J
T
STG
0.55
0.5
10
5
25
110
-65 to +125
-65 to +150
SK12
20
14
20
SK13
30
21
30
SK14
40
28
40
1.0
25
0.70
SK15
50
35
50
SK16
60
42
60
Units
V
V
V
A
A
V
mA
mA
°C/W
pF
°C
°C
1. Thermal resistance from junction to lead.
2. Measured at 1.0MHz and applies reverse voltage of 4.0V.
1 of 2
1.0
AVERAGE OUTPUT CURRENT (AMPERES)
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
SINGLE PHASE HALF-WAVE
60 Hz RESISTIVE OR INDUCTIVE LOAD
6.0mm COPPER PADS
2
4.0
SK12-14
SK15-16
0.8
1.0
0.6
0.4
0.1
0.2
0
0.01
0.1
0.5
0.9
T
J
= 25ºC
PULSE WIDTH = 300 mS
2% DUTY CYCLE
40
60
80
100
120
140
160
180
1.3
1.7
2.1
AMBIENT TEMPERATURE (ºC)

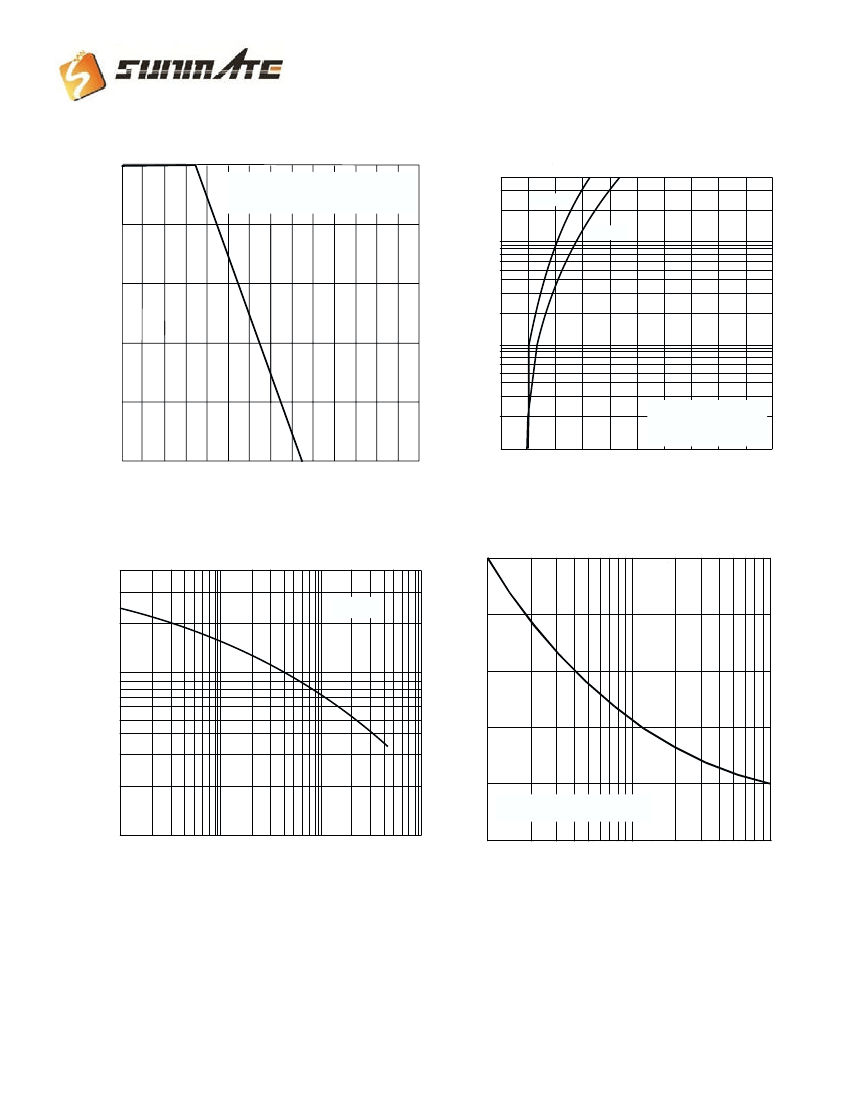

Fig. 1, Forward Current Derating Curve
V
F
INSTANTANEOUS FWD VOLTAGE (VOLTS)
Fig. 2, Typical Forward Characteristics
400
T
J
= 25ºC
25
PEAK FWD SURGE CURRENT (A)
20
CAPACITANCE (pF)
100
15
10
5
8.3ms SINGLE HALF SINE-WAVE
JEDEC METHOD
10
0.1
1.0
10
REVERSE VOLTAGE (VOLTS)
Fig. 3, Typical Junction Capacitance
100
0
1
10
100
NUMBER OF CYCLES @ 60 Hz
Fig. 4, Max Non-Repetitive Peak Fwd Surge Current
2 of 2
