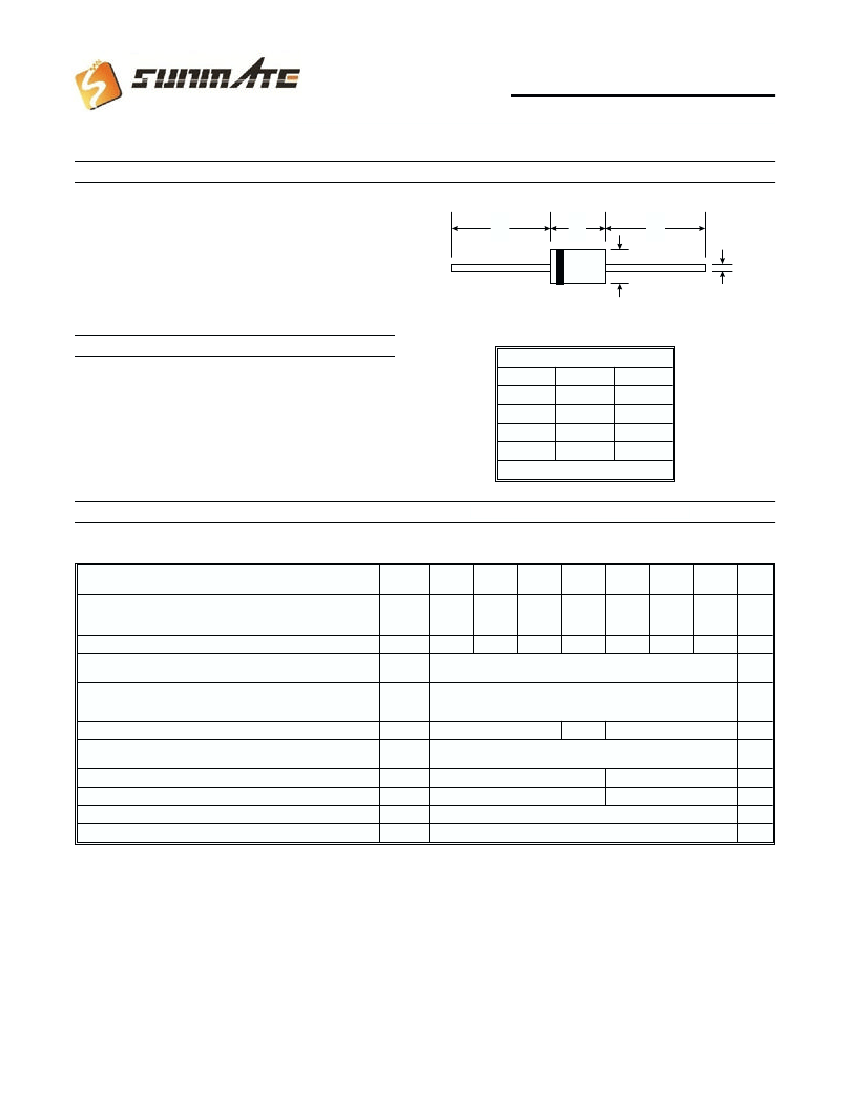

UF2001 - UF2007

2.0A Axial Leaded Ultrafast Diode

Features

Diffused Junction

Ultra-Fast Switching for High Efficiency

High Current Capability and Low Forward

Voltage Drop

Surge Overload Rating to 60A Peak

Low Reverse Leakage Current

Plastic Material: UL Flammability

Classification Rating 94V-0

Mechanical Data

Case: Molded Plastic

Terminals: Plated Leads Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Marking: Type Number

Weight: 0.4 grams (approx.)

Mounting Position: Any

Dim

DO-15

Min

25.40

5.50

0.686

2.60

Max

7.62

0.889

3.60

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

(Note 1)

@ T

= 50°C

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave Superimposed on Rated Load

(JEDEC Method)

Forward Voltage

Peak Reverse Current

at Rated DC Blocking Voltage

Reverse Recovery Time (Note 3)

Typical Junction Capacitance (Note 2)

Typical Thermal Resistance Junction to Ambient

Operating and Storage Temperature Range

@ I

= 2.0A

@ T

= 25°C

@ T

= 100°C

Symbol

RRM

RWM

R(RMS)

FSM

qJA

STG

2001

@ T

= 25°C unless otherwise specified

2002

100

2003

200

140

2004

400

280

2.0

2005

600

420

2006

800

560

2007

1000

700

Unit

1.0

1.3

5.0

100

-65 to +150

1.7

K/W

°C

Notes:

1. Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.

2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

3. Measured at I

= 0.5A, I

= 1.0A, I

= 0.25A. See figure 5.

1 of 2
