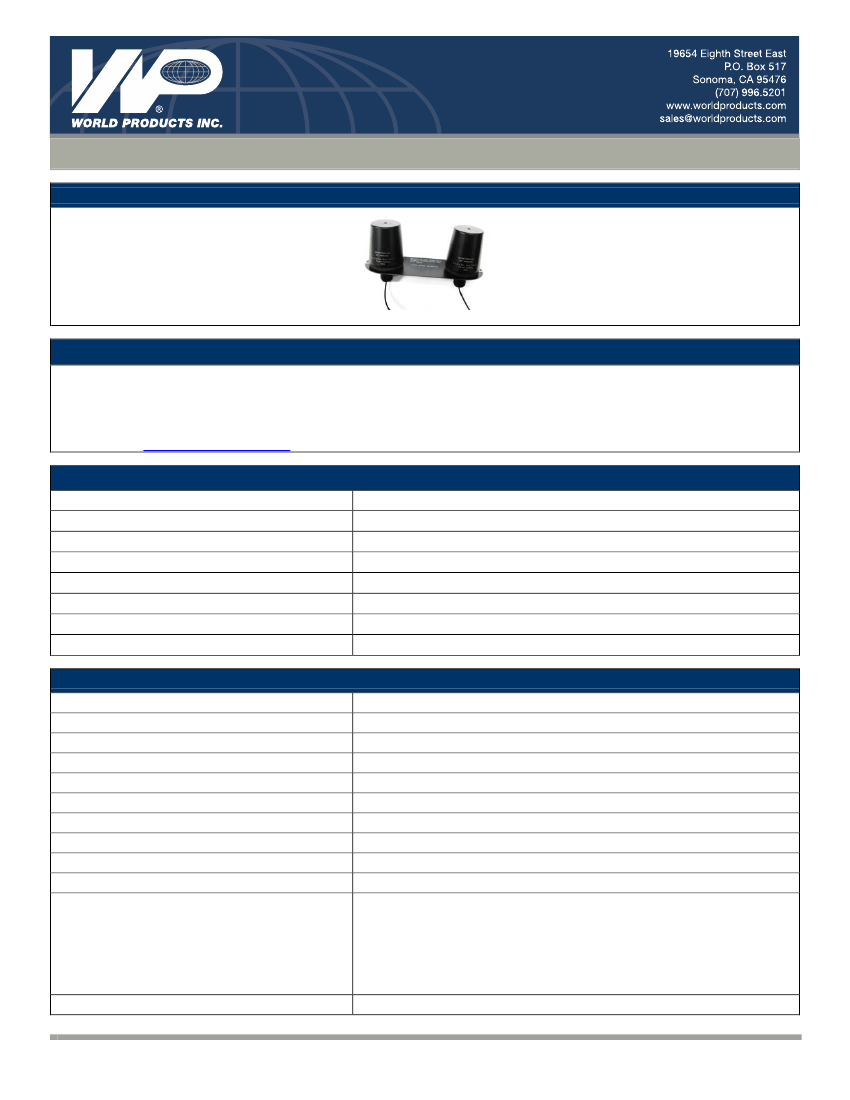

WPANT30102-S1B
2.45 GHz Wi-Fi MIMO Body-mount Antenna

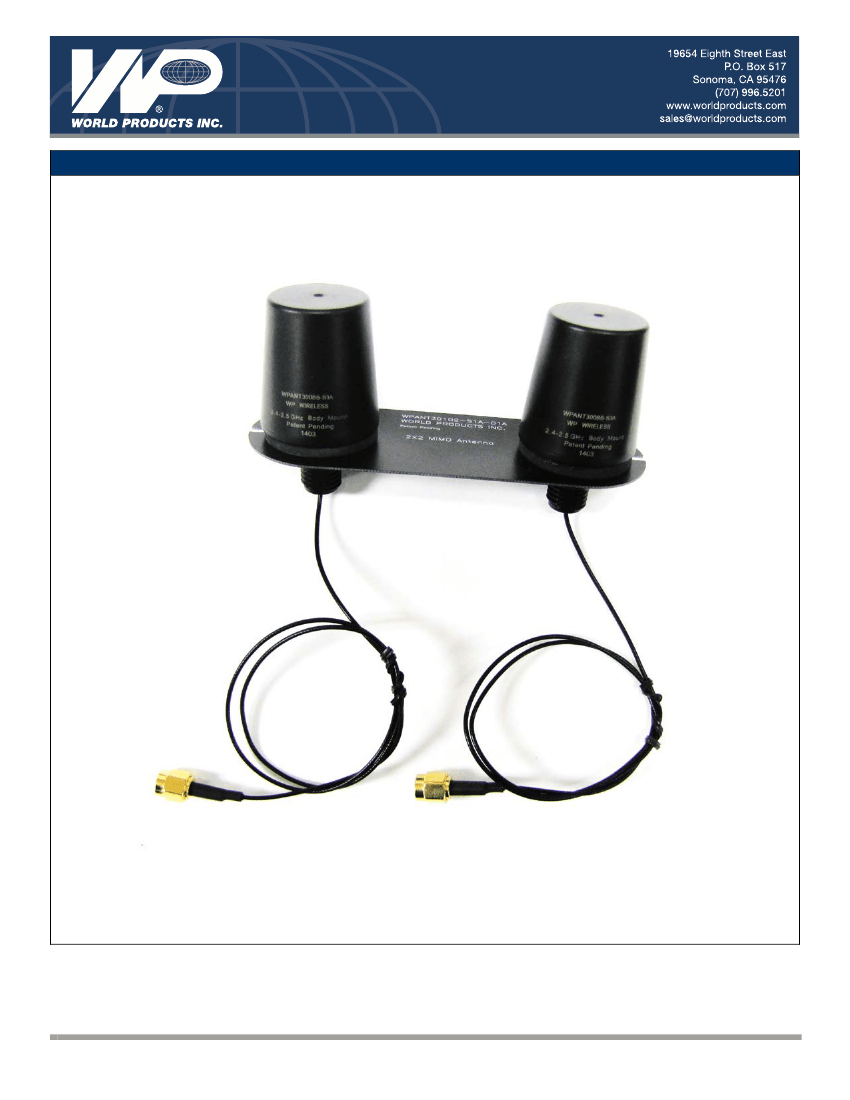

Note: Prototypes shown. The actual antenna will be grey in color.
Description / Application
This is a Wi-Fi / WLAN MIMO Body mount antenna. It is surface independent, which means it performs efficiently on metallic as well
as non-metallic surfaces. The recommended minimum spacing between the two elements is 70mm. Standard cable is 24’’ long
1.32mm OD micro coax and connector is RP - SMA Male.
Please contact
sales@worldproducts.com
with your specific application requirements.
Electrical Properties
Operating Frequency
Approximate Antenna Impedance [Ω]

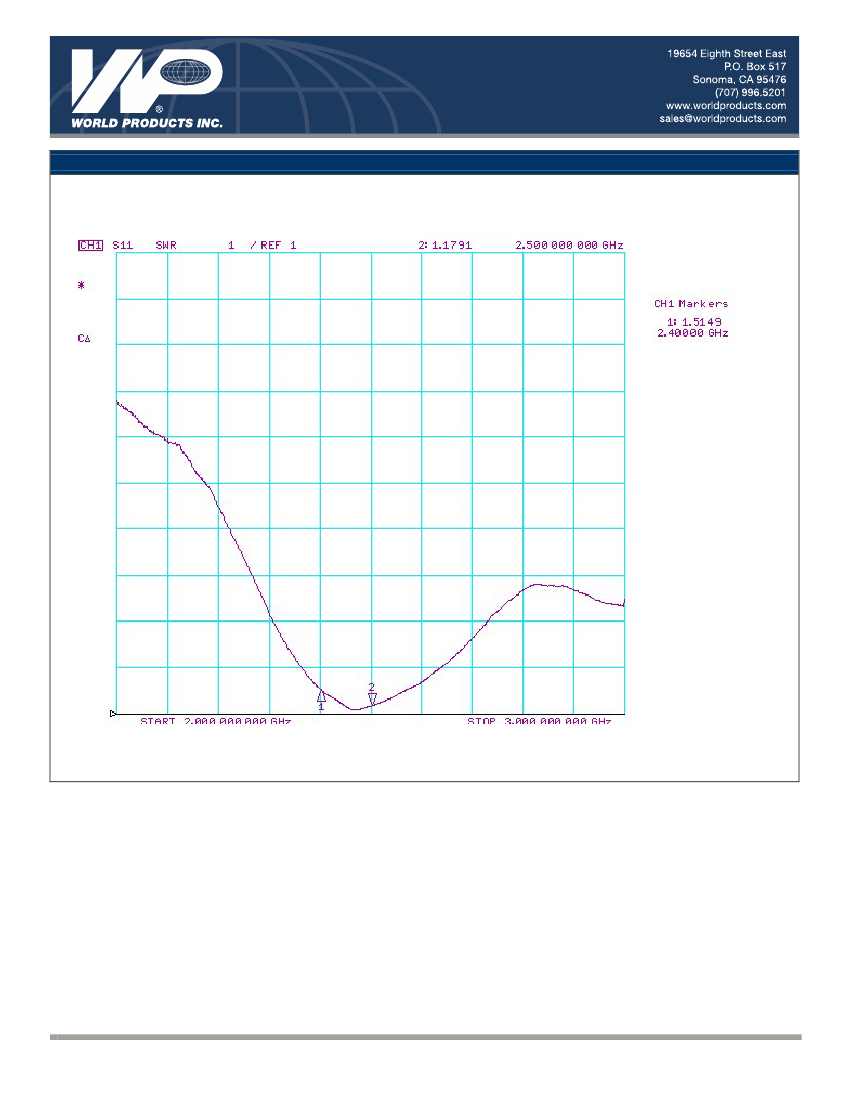

VSWR – Typical
Peak Gain [dBi] (Typical)
Efficiency [%] (Typical)
Isolation [dB] (Typical)
Polarization
Pattern
2.4 – 2.5 GHz
50Ω
< 2:1
2 to 3 dBi
60 – 70 %
< -30 dB
Linear
Near Omni-directional
Mechanical / Environmental Properties
Antenna Dimensions
Antenna Color
Cable
Connector
Tape
External Bottom Gasket Material
Nut
Torque for the Nut
Antenna Plastic Radome
Operating / Storage Temperature
1.5’’ Height** X 1.3’’ Base Dia
Grey
24’’ long 1.32mm OD Micro Co-ax
Reverse Polarity Straight SMA Male
Standard 3M 4920 double stick
Standard 3M 6208 foam
Standard Nylon M12
1.2
ABS + Polycarbonate
-40 C to +90 C
Salt Spray Resistant, Water Ingress Resistant, UV Resistant, Ageing
Resistant, Meets standards for UL 94V-0
This antenna is built in accordance with:
IP 67,66,65
NEMA 250-2008
ASTM G 85-2009
ASTM G 154-2006
RoHS Compliant
Created by: MKS
Approved by: BP
Page |
1
o
o
(38mm X 32.3mm)
Environmental
(for the complete antenna assembly,
including the external foam gasket)
Hazardous Materials
**Height includes the 3M tape & foam gasket thickness.
Rev: 1.0
Created on: February 18, 2014
