MB08M
Elektronische Bauelemente
1000V 0.8 Amp
Miniature SMD Glass Passivated Bridge Rectifiers
RoHS compliant product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Halogen-free type
Glass passivated chip junctions
Compliance to RoHS product
Leadless chip form, no lead damage
Low power loss, High efficiency
High current capability
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
MBCN
APPLICATION
AC/DC Power Supply
Communication Equipment
Lighting
REF.
A
B
C
MECHANICAL DATA
Case : Packed with FRP substrate and epoxy underfilled
Terminals : Pure Tin plated (Lead-Free),
solderable per MIL-STD-750, Method 2026
Millimeter
Min.
Max.
3.40
3.60
3.70
3.90
2.44
2.64
REF.
D
E
F
Millimeter
Min.
Max.
2.00
2.35
0.60
0.80
0.95
1.35
MARKING
M
PACKAGE INFORMATION
Package
MBCN
MPQ
5K
Leader Size
13 inch
ABSOLUTE MAXIMUM RATINGS
( T
A
=25℃unless otherwise specified)
Parameters
Repetitive peak reverse voltage
Average Forward Current
on glass-epoxy P.C.B.
on aluminum substrate
1
2
Symbol
V
RRM
I
F(AV)
I
FSM
T
J
, T
STG
Rating
1000
0.5
0.8
30
-55 ~ 150
Unit
V
A
A
℃
Peak forward surge current, 8.3ms single half sine-wave
Operating and Storage temperature range
ELECTRICAL CHARACTERISTICS
(at T
A
=25℃unless otherwise specified)
Parameters
Forward Voltage at I
F
= 0.4A
Repetitive peak reverse
current@ V
R
= Max. V
RRM
T
A
=25°C
T
A
=125°C
1
Symbol
V
F
I
RRM
It
R
θJA
R
θJL
1
2
Min.
-
-
-
-
-
-
Typ.
0.9
0.08
-
3.74
130
40
Max.
1
5
100
-
-
-
Unit
V
uA
As
℃/W
2
Current squared time t < 8.3ms
Thermal Resistance Junction to Ambient
Thermal Resistance Junction to Lead
Note:
1.
2.
3.
On glass epoxy P.C.B. mounted on 0.05" x 0.05" (1.3 x 1.3 mm) solder pads.
On aluminum substrate P.C.B. with an area of 0.8 x 0.8" (20 x 20 mm) mounted on 0.05" x 0.05" (1.3 x 13. mm) solder pads.
Preliminary specification.
Any changes of specification will not be informed individually.
http://www.SeCoSGmbH.com/
27-Sep-2013 Rev. A
Page 1 of 2
MB08M
Elektronische Bauelemente
1000V 0.8 Amp
Miniature SMD Glass Passivated Bridge Rectifiers

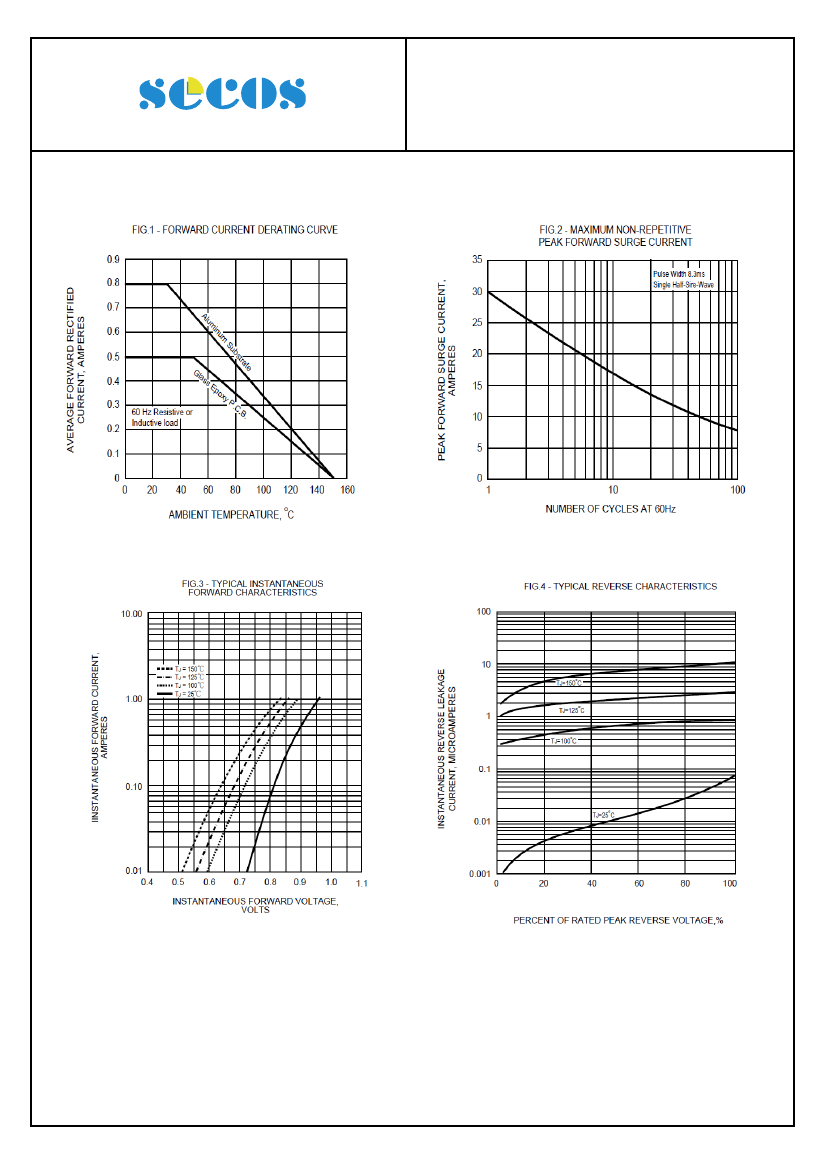

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
27-Sep-2013 Rev. A
Page 2 of 2
